SmartOnline 20kVA On-Line Double-Conversion UPS, N+1, 12U Rack/Tower, 200-240V NEMA & C19 outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 20000VA 18000W UPS SMARTONLINE RACKMOUNT 20KVA PDU 565569 Register free see stock

Related Products

Description

Tripp Lite SU20KRT 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

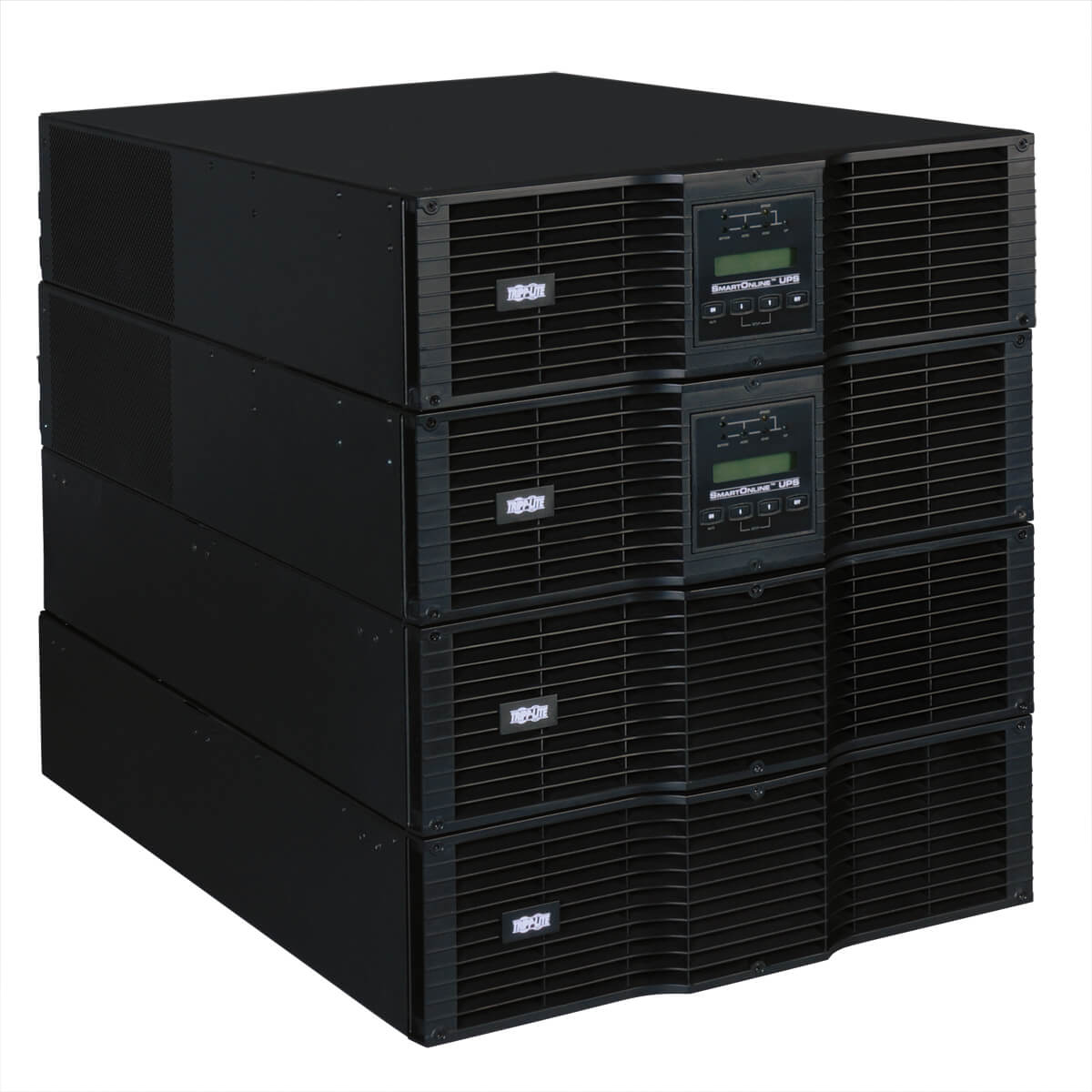

- Tripp Lite SU20KRT 20kVA, 20,000VA / 18,000 watt on-line, double-conversion UPS system in 12U total rack/tower configuration
- Offers enhanced fault-tolerance and reliability with N+1 configuration support and hot-swappable whole UPS replacement options

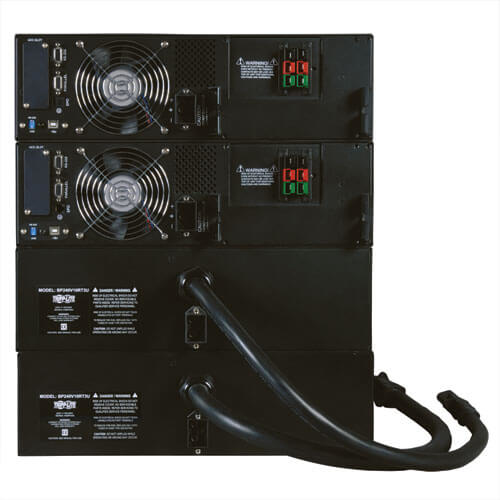

- Unique configuration ties input, output and data connections of two standard 10kVA UPS systems via detachable parallel PDU to offer 20kVA non-redundant operation and automatic N+1 redundancy at load levels of 10kVA and lower

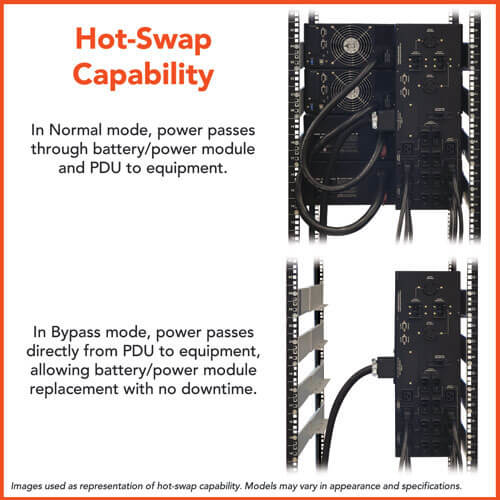

- Included Parallel PDU with manual bypass switching enables hot-swappable replacement of either 10kVA power module at any supported load level, with no interruption to connected equipment

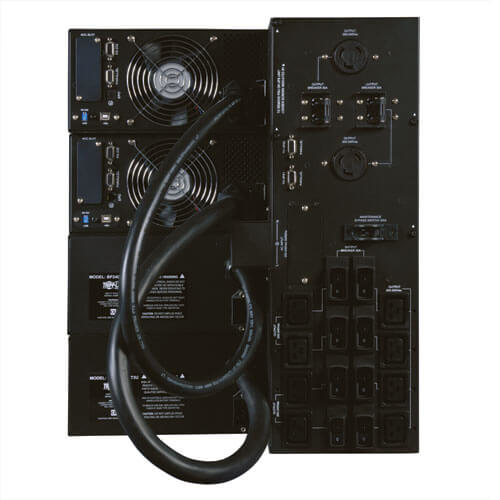

- Hardwire input; 2 L6-30R and 8 C19 outlets
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
- Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
- Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V
- Supports 50/60Hz operation for worldwide frequency compatibility
- Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH external battery packs
- Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Rack / tower configuration installs in 12 total rack spaces (12U) with a maximum installed depth of only 32.5 in. / 82.6 cm
- PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
- Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
- Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification
- Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
- Supports Emergency Power Off (EPO) via built-in interface

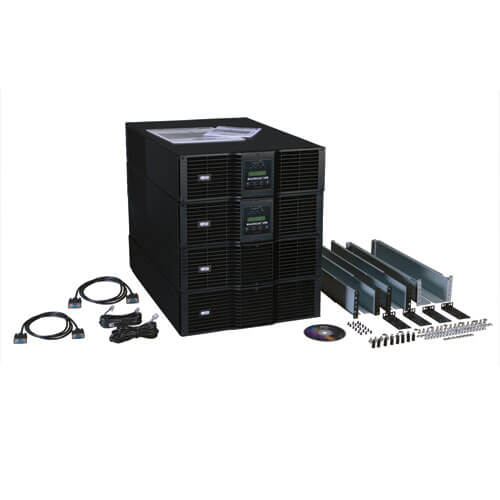

- Included rail kit supports 12U 19 inch rackmount installation in 4 post racks
- Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (4 required for SU20KRT)
- Optional 2-9USTAND supports upright tower placement (2 required for SU20KRT)

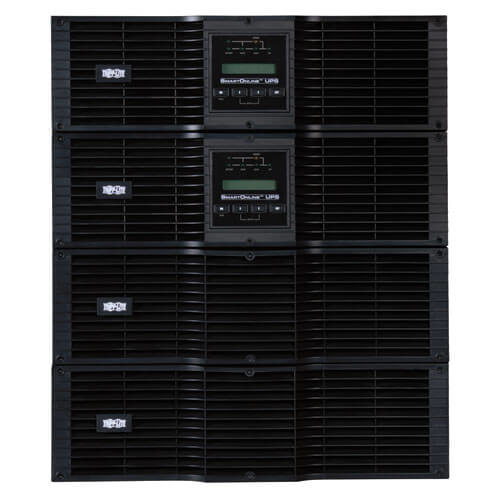

- Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
- LED / LCD display panel rotates for viewing in rackmount or tower configurations
- Network-grade AC surge and noise suppression
- Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
- Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
- External battery packs are field replaceable and hot swappable

Specifications

Power
Output power18000 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Emergency Power Off (EPO)Yes
Power factor0.9
Output power capacity20 kVA
Input frequency50/60 Hz
Performance
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Noise level60 dB
Audible alarm(s)Yes
Features
Country of originChina
Output power18000 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.9
Noise level60 dB
Audible alarm(s)Yes
Output power capacity20 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity10 AC outlet(s)
AC outlet typesC19 coupler, Type L
Battery
Typical backup time at half load12.5 min
Typical backup time at full load4.3 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
CertificationUL1778
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Package width40.3" (1022.4 mm)
Package depth51" (1295.4 mm)
Package height36" (914.4 mm)
Weight44.1 lbs (20 kg)
Width17.5" (445 mm)
Package weight601 lbs (272.6 kg)
Height5.16" (131 mm)
Depth25.8" (656 mm)
Packaging data
Package width40.3" (1022.4 mm)
Package depth51" (1295.4 mm)
Package height36" (914.4 mm)
Package weight601 lbs (272.6 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width40.3" (1022.4 mm)
Master (outer) case length51" (1295.4 mm)
Master (outer) case height36" (914.4 mm)
Master (outer) case gross weight601 lbs (272.6 kg)
Certificates
CertificationUL1778
Other features
InterfaceUSB; DB9
