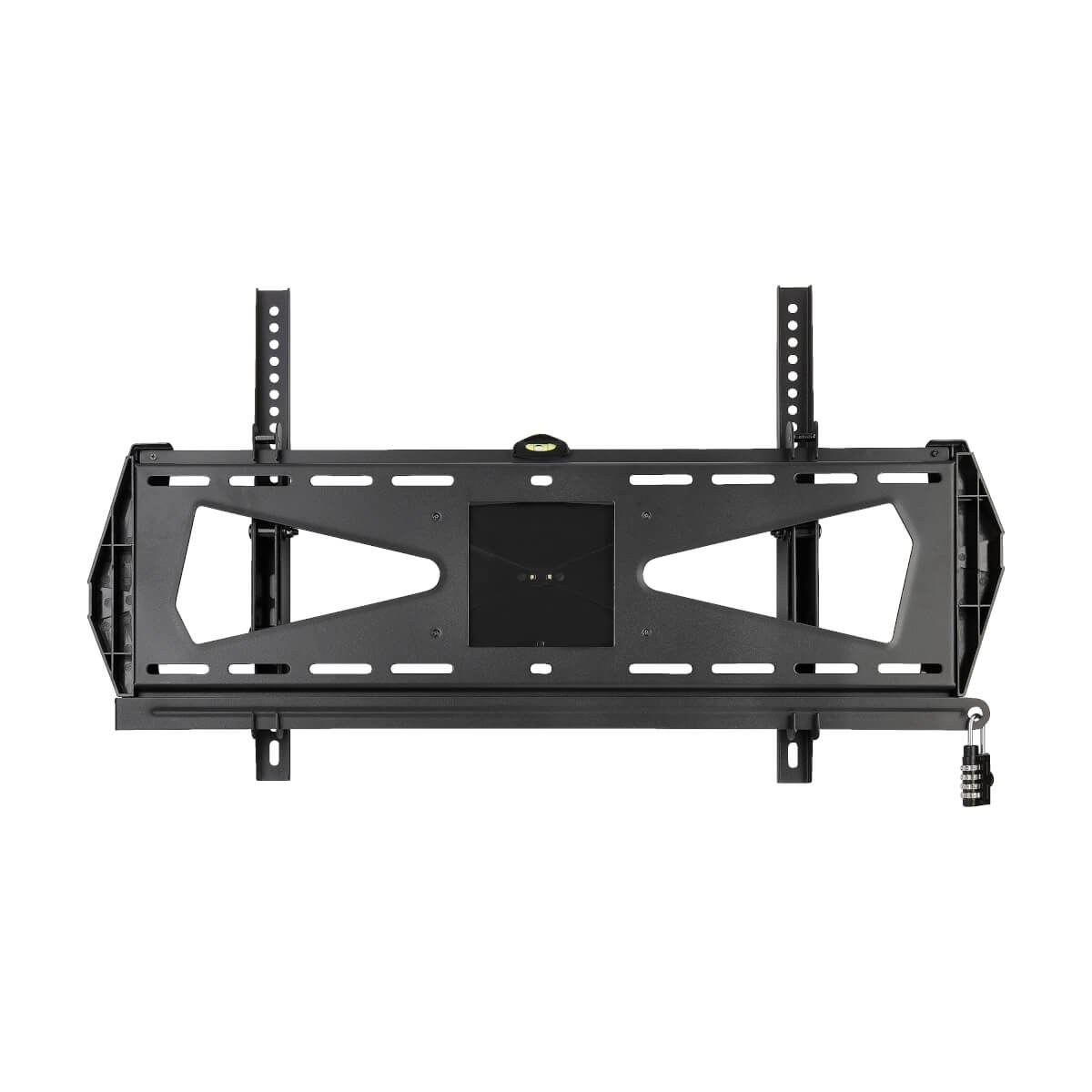

Tripp Lite DWTSC3780MUL TV mount 80" Black

Tripp Lite DWTSC3780MUL TV mount 80" Black

  • Brand: Tripp Lite
  • Category:
  • SKU: DWTSC3780MUL
  • EAN: 0037332213747
Heavy-Duty Tilt Security Wall Mount for 37" to 80" TVs and Monitors, Flat or Curved Screens, UL Certified

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "DISPLAY TV MONITOR SECURITYWALL MOUNT TILT FLAT/CURVED37-80""" 1031063 Register free see stock
ASI Corp AC DWTSC3780MUL Heavy-Duty Tilt Security Wall Mount for 37 to 80 220543
BlueStar TRIPP LITE, DISPLAY TV MONITOR SECURITY WALL MOUNT TILT FLAT/CURVED 37-80" DWTSC3780MUL
D&H SecureWall Mount Tilt 37to80" DWTSC3780MUL
Ingram Micro DISPLAY TV MONITOR WALL MOUNT 2QM771
ScanSource Display TV Monitor Security Wa POW-DWTSC3780MUL
TD Synnex DISPLAY TV MONITOR SECURITY WALL MOUNT TILT FLAT/CURVED 37-80 5150152

Related Products

Description

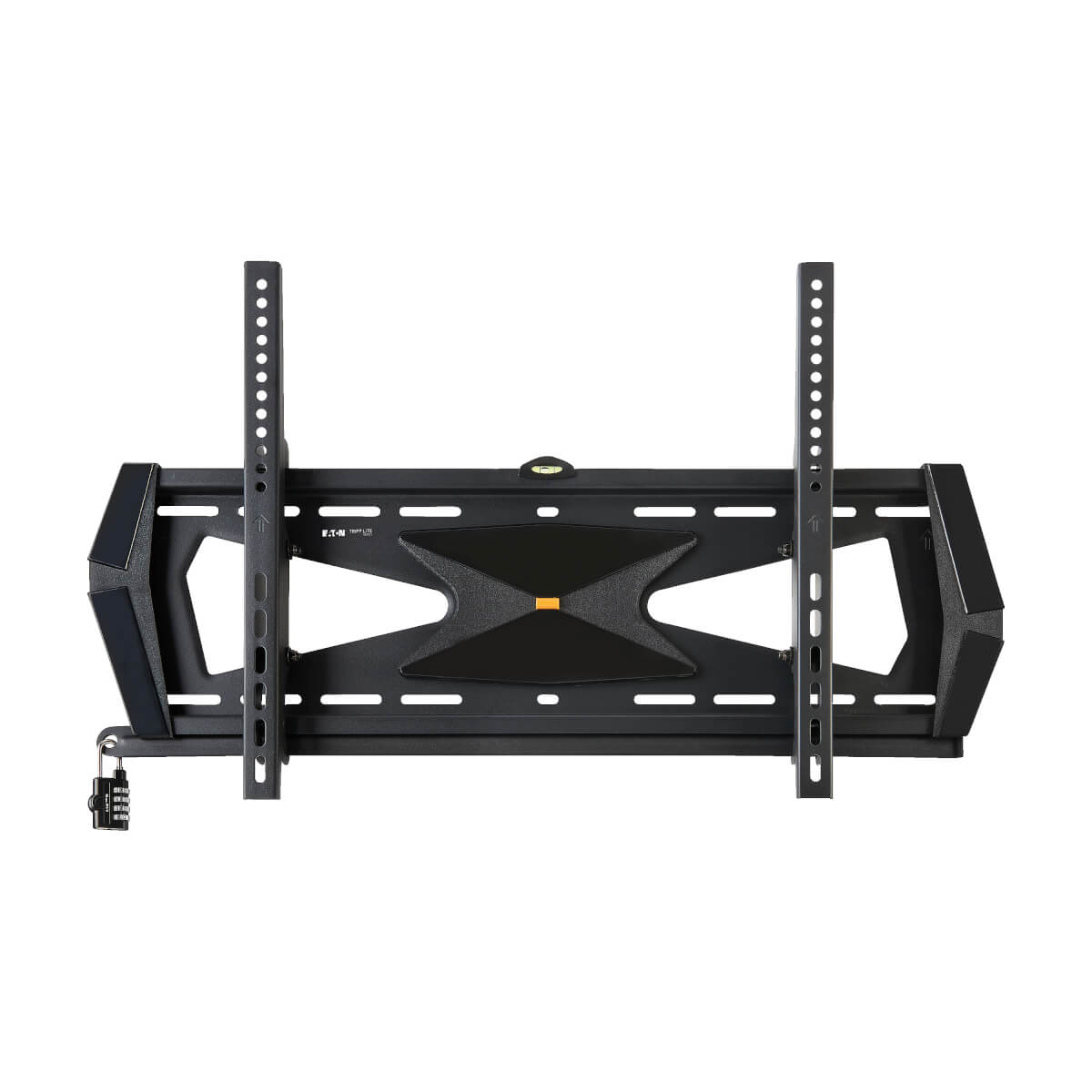

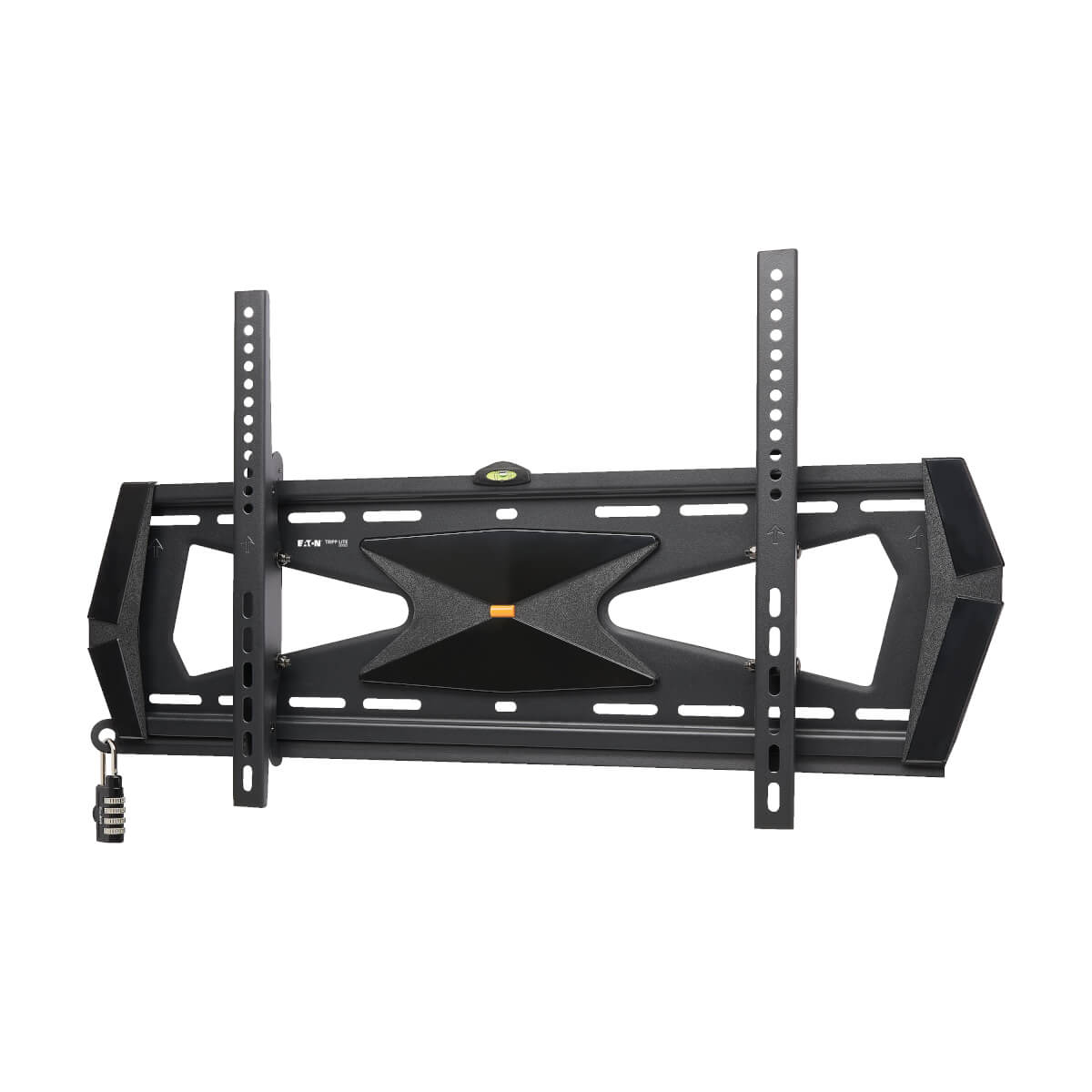

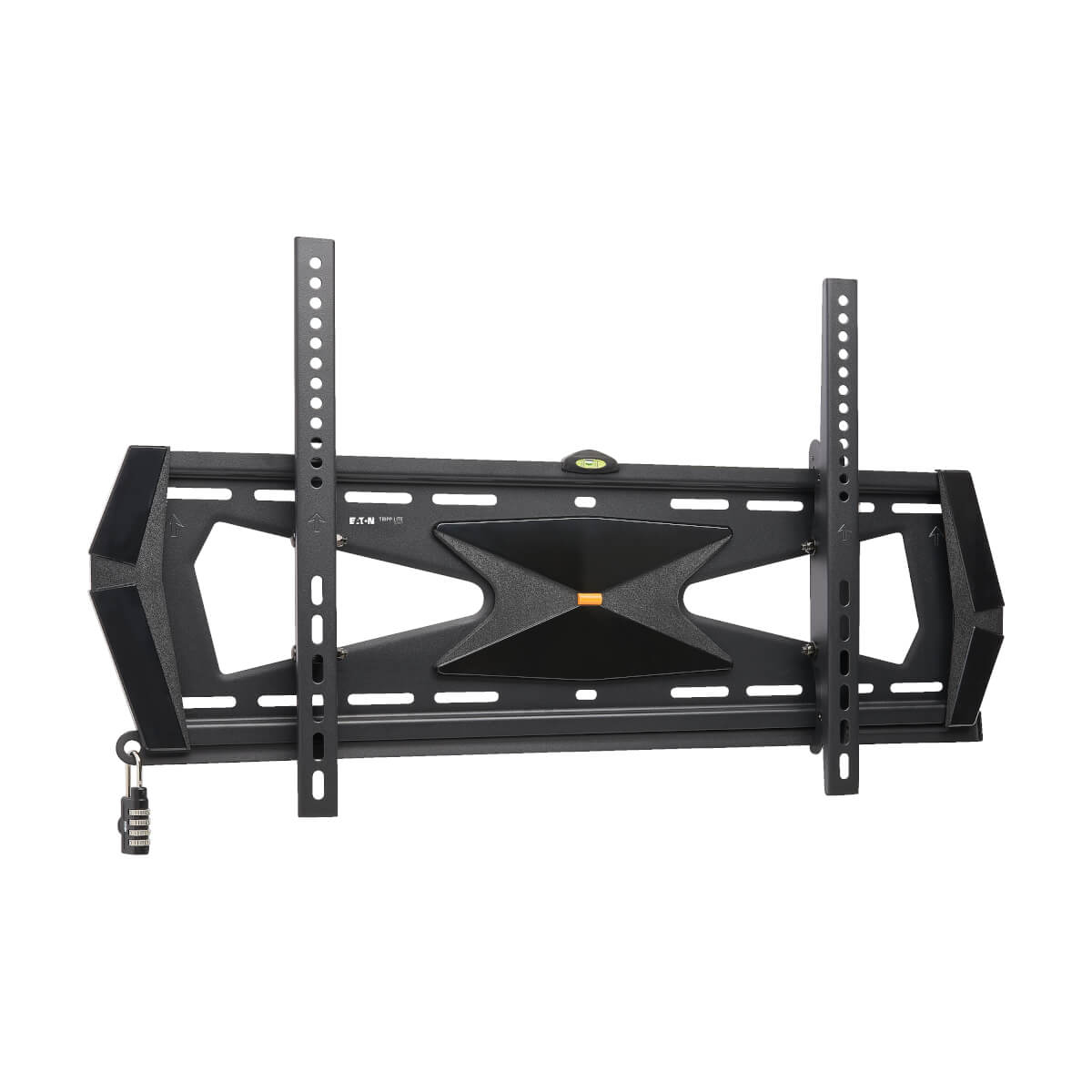

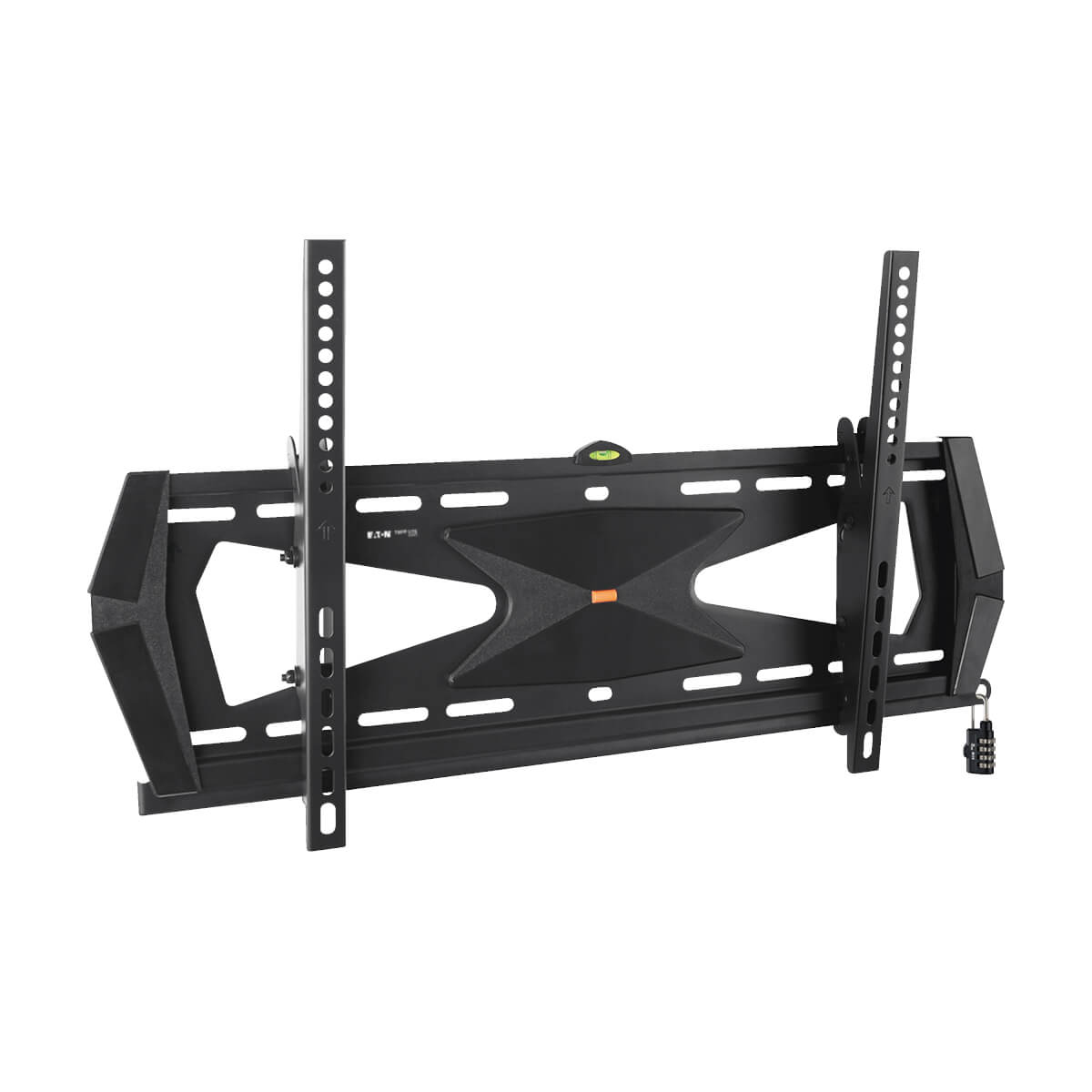

Security Wall Mount Hangs Your Flat-Panel or Curved-Screen TV or Monitor on the Wall
Ideal for home theaters, classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor, this heavy-duty TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel or curved-screen displays from 37 to 80 inches and up to 88 pounds (39.9 kg). Mounting hardware is included.

Durable All-Metal Construction Provides Convenient Cable Access
The security wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. This heavy-duty wall mount is function- and weight-tested to 200 pounds (90.7 kg) in accordance with UL Standard 2442.

Designed to Keep Your Display Safe and Secure

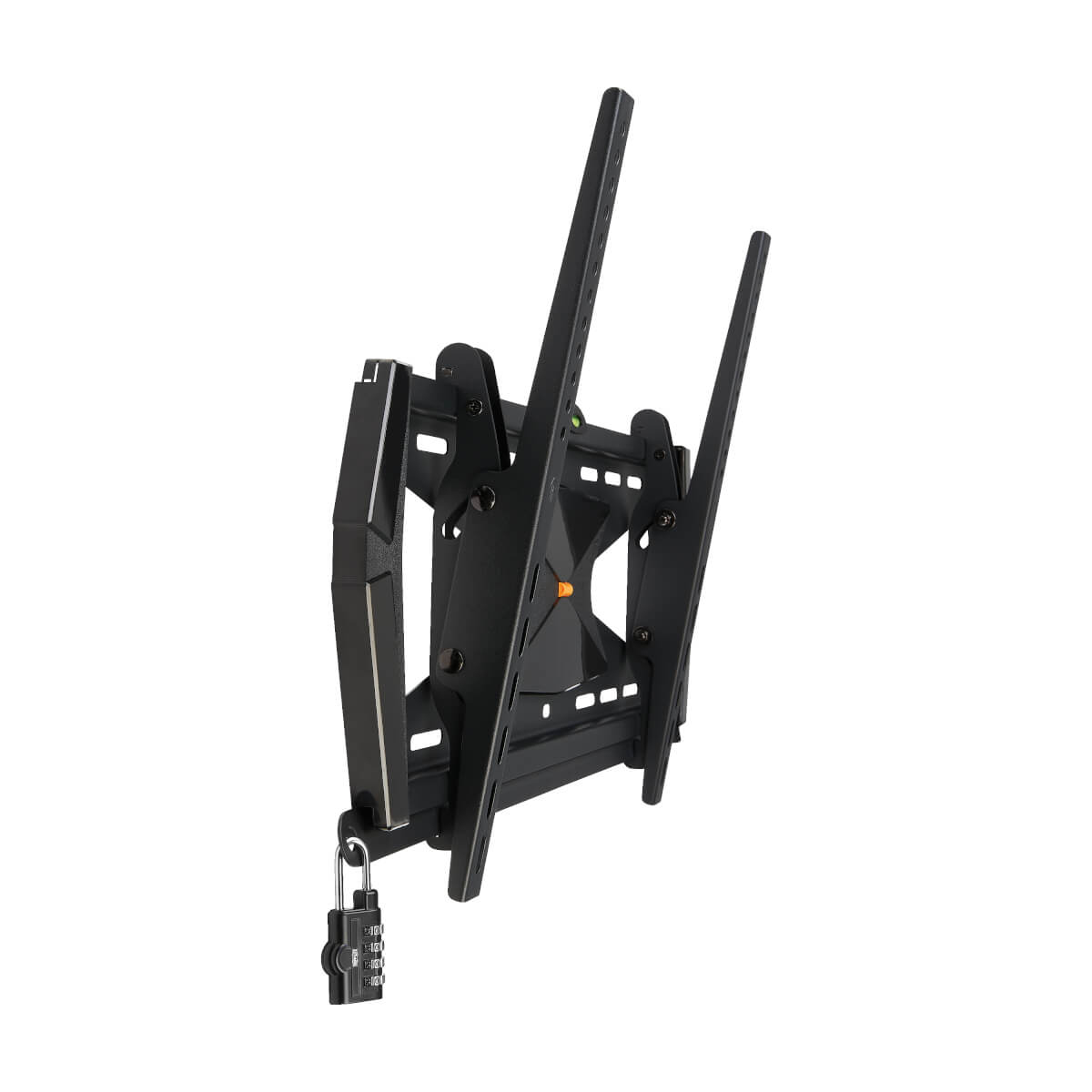

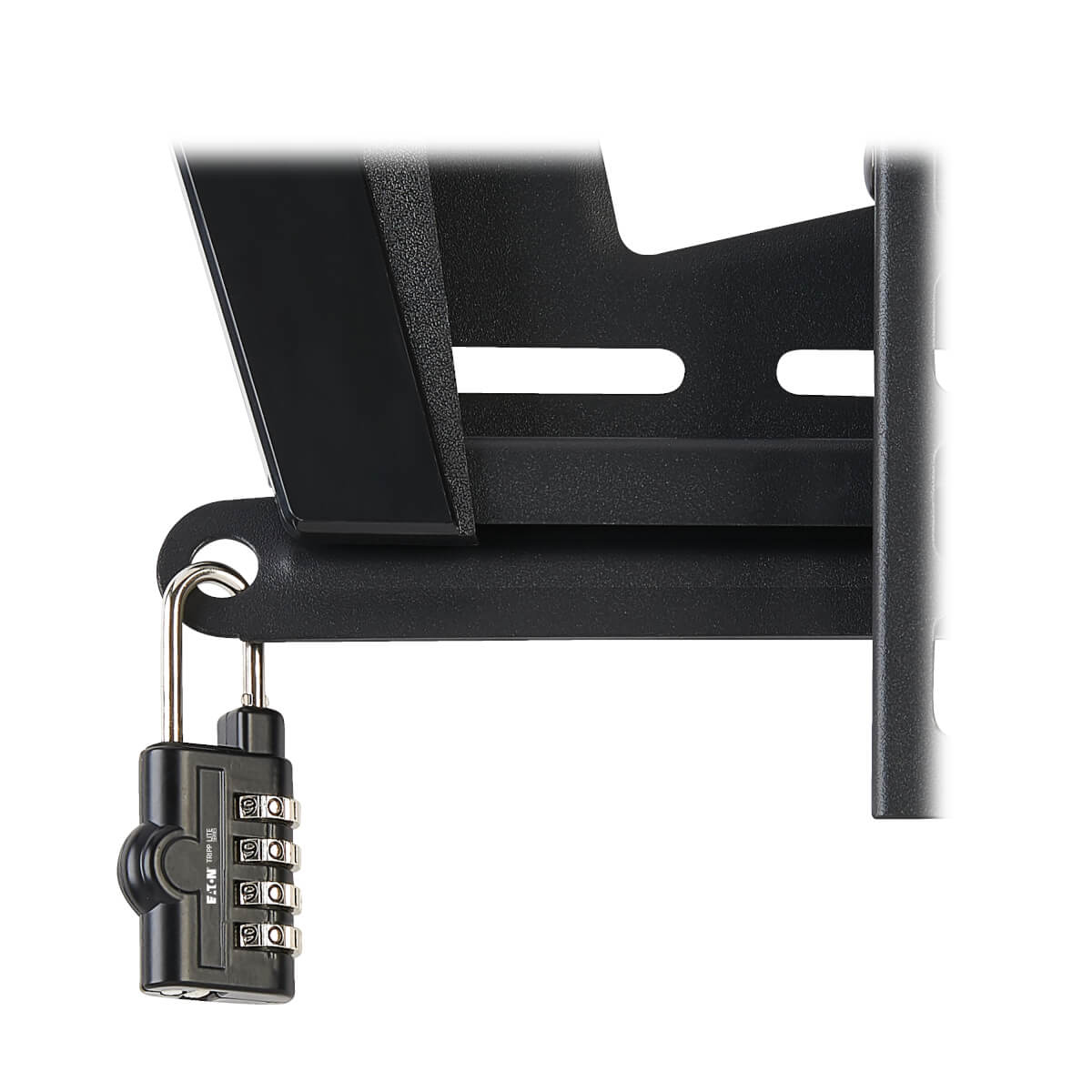

This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with much unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

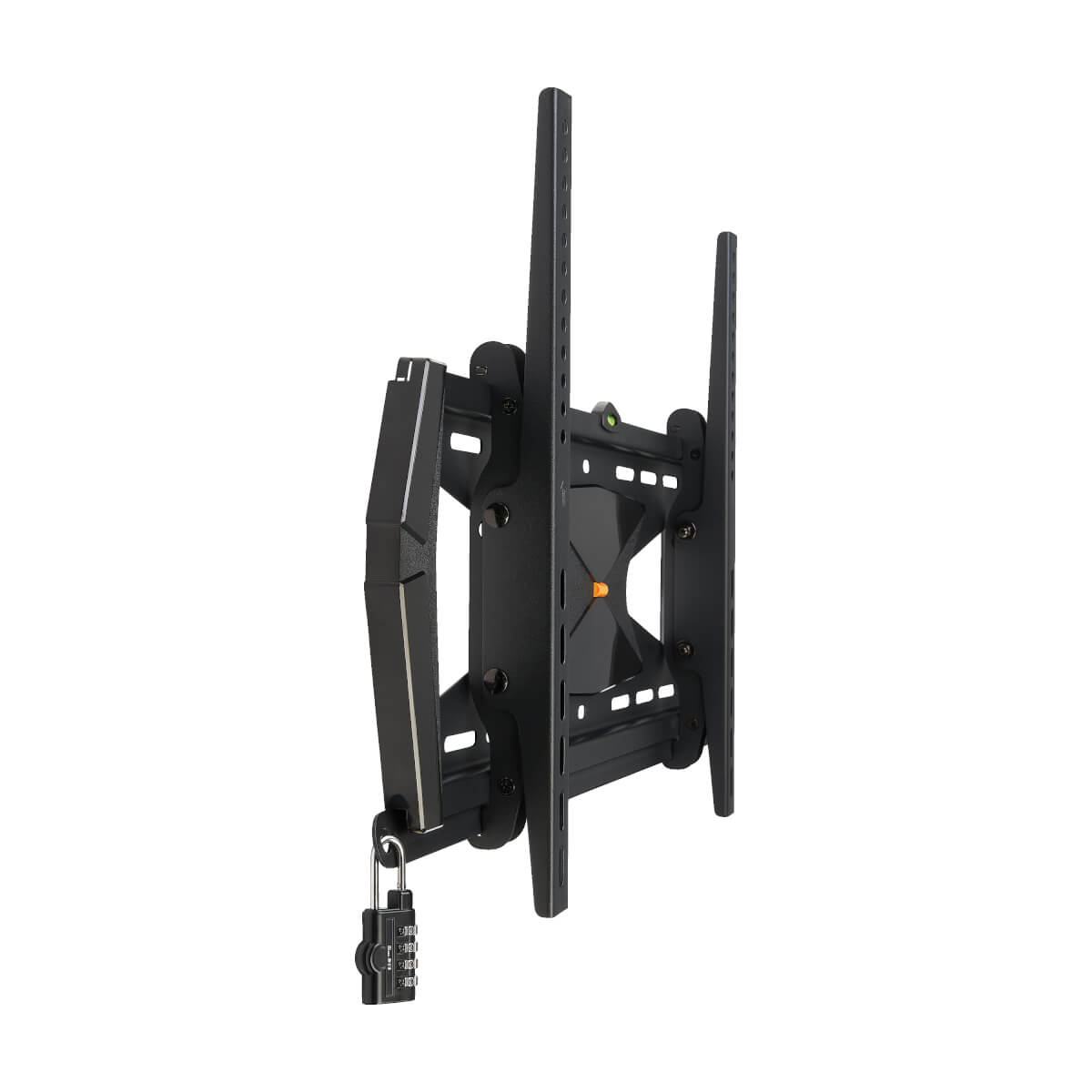

Tilt Feature Lets You Adjust the Viewing Angle to Your Specifications
You can adjust the horizontal angle of your display from -10° to +5°. This will minimize glare on the screen and allow you to customize the angle for comfortable viewing.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This heavy-duty wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 600 x 200, 600 x 300 and 600 x 400.

5-Year Warranty and Environmentally Responsible Design
The DWTSC3780MUL comes with a 5-year warranty. It's manufactured in compliance with strict RoHS specifications.

Specifications

Mounting
Mounting typeWall
Minimum screen size37"
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported1
Minimum VESA mount7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount15.7 x 15.7" (400 x 400 mm)
Maximum screen size80"
Maximum weight capacity88.2 lbs (40 kg)
Suitable for computer monitorYes
Technical details
Number of displays supported1
Product colourBlack
Mounting typeWall
Country of originChina
Sustainability certificatesRoHS
Compliance certificatesRoHS
Design
Product colourBlack
Housing materialSteel

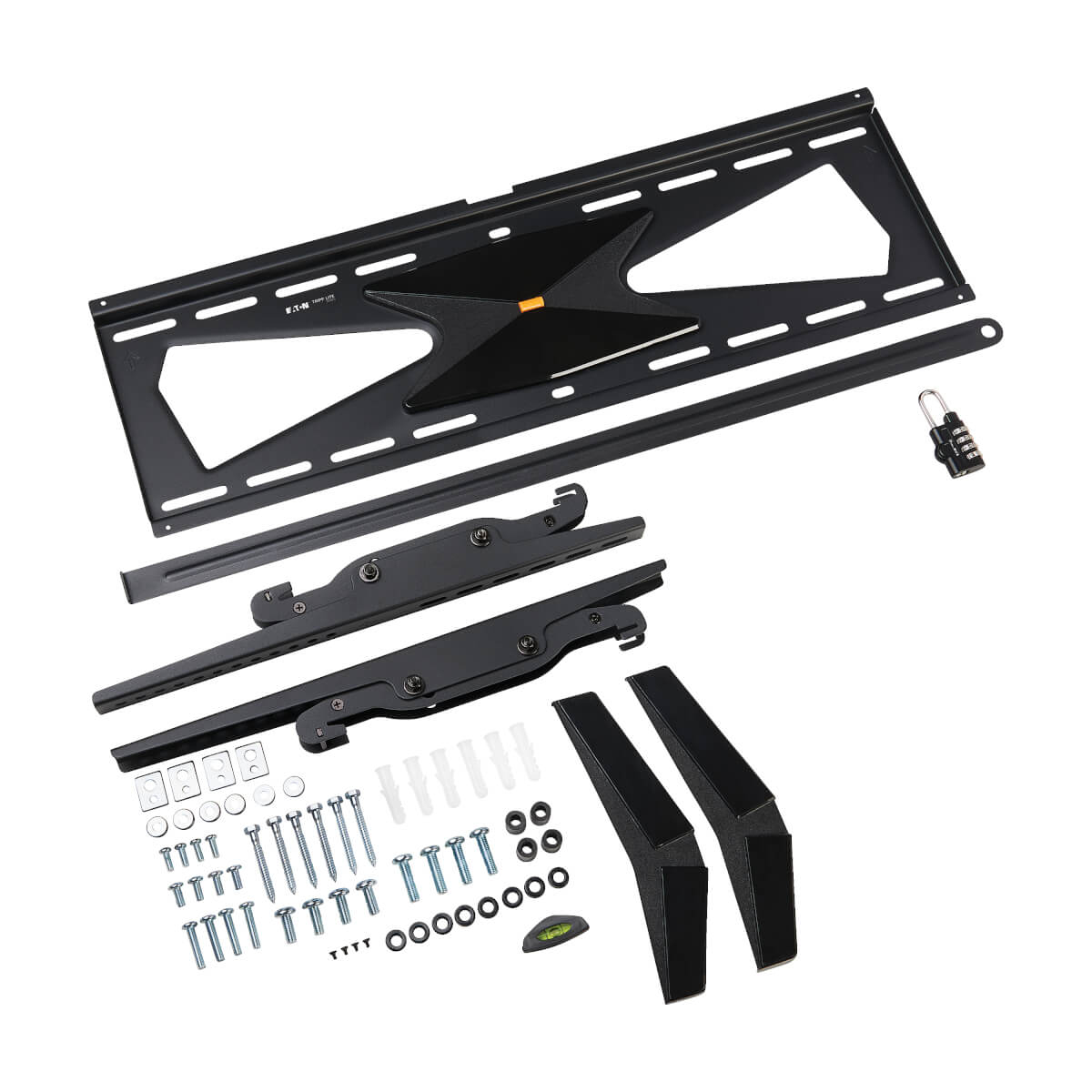

Packaging content
Screws includedYes
Adapter bracket includedYes
Number of adapter brackets included2
Anchors includedYes
Washers includedYes
Spacer includedYes
ManualYes
Weight & dimensions
Width17.3" (439.4 mm)
Depth2" (50.8 mm)
Height30.9" (784.9 mm)
Weight6.9 lbs (3.13 kg)
Packaging data
Package width9.1" (231.1 mm)
Package depth3.1" (78.7 mm)
Package height29.3" (744.2 mm)
Package weight9.48 lbs (4.3 kg)
ManualYes
Logistics data
Master (outer) case width9.9" (251.5 mm)
Master (outer) case length10.2" (259.1 mm)
Master (outer) case height30" (762 mm)
Master (outer) case gross weight28.7 lbs (13 kg)
Products per master (outer) case3 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332213744
Harmonized System (HS) code85299097
Other features
Mounting typeWall
Country of originChina
