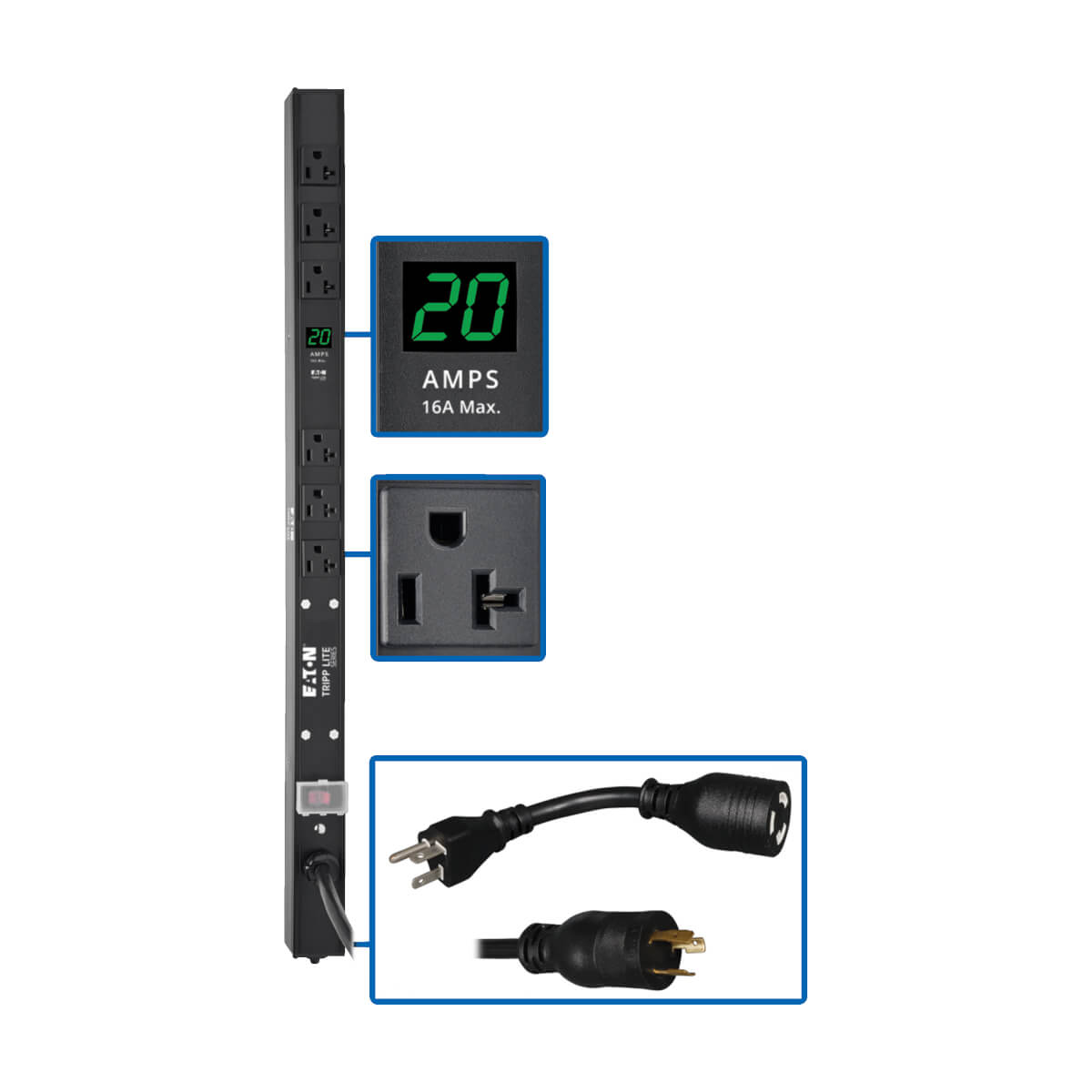

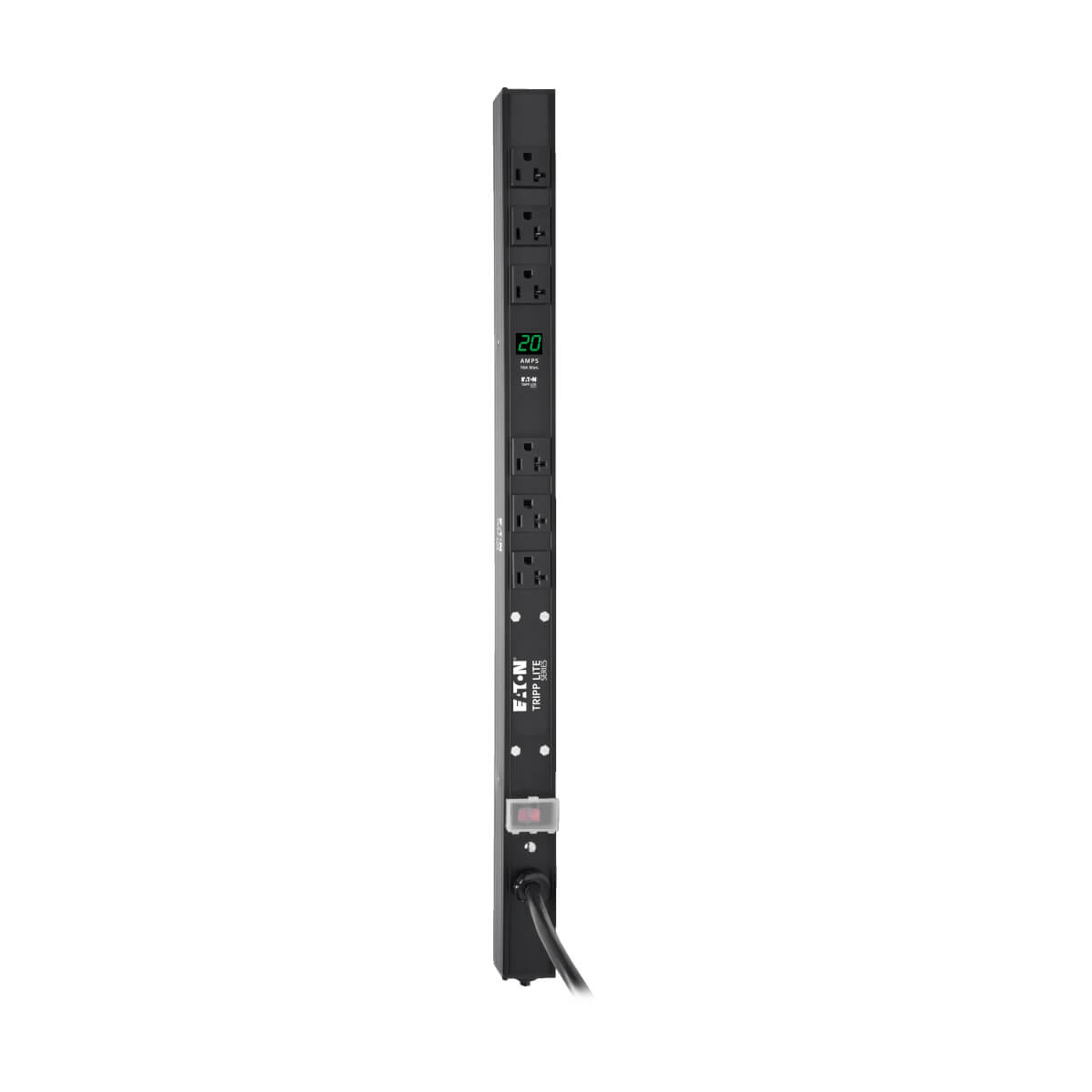

Tripp Lite PDUMV20-24 power distribution unit (PDU) 6 AC outlet(s) 0U Black

Tripp Lite PDUMV20-24 power distribution unit (PDU) 6 AC outlet(s) 0U Black

Metered, 1.9kW, 6 x 5-15/20R Out, 1 x NEMA L5-20P In, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp PDUMV20-24 1.9kW Single-Phase Metered 120V Outlets L5-20P 5-20P ADT 190566 Register free see stock
D&H PDU 120V 5 15 20R 0U PDUMV2024
Ingram Micro PDU METERED 1.9KW 120V 20A 0U ZL8423
TD Synnex PDU METERED 20A 120V 6 5-15/20R 0U 24IN 4159245

Related Products

Description

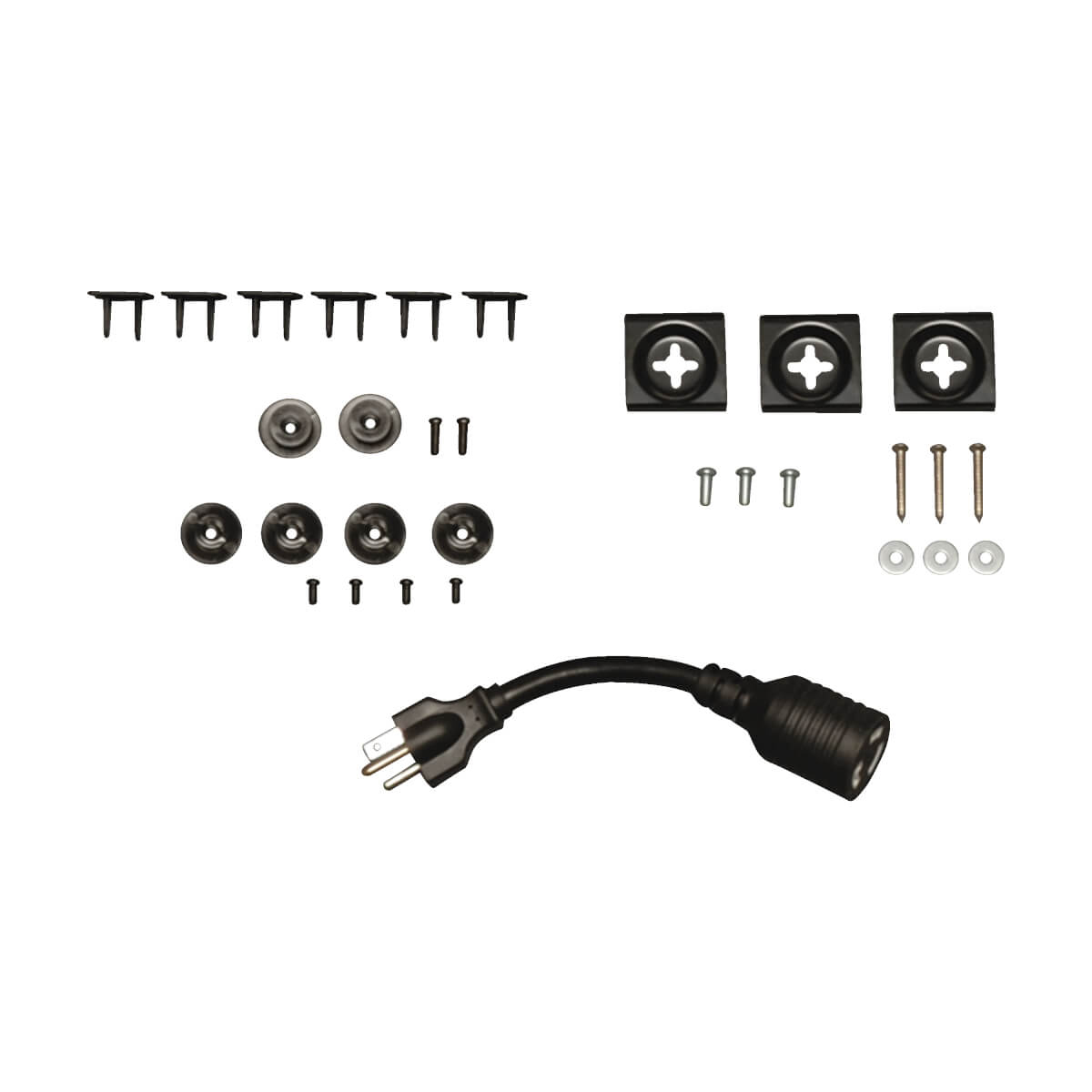

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Specifications

Design
PDU typesMetered
MountingVertical

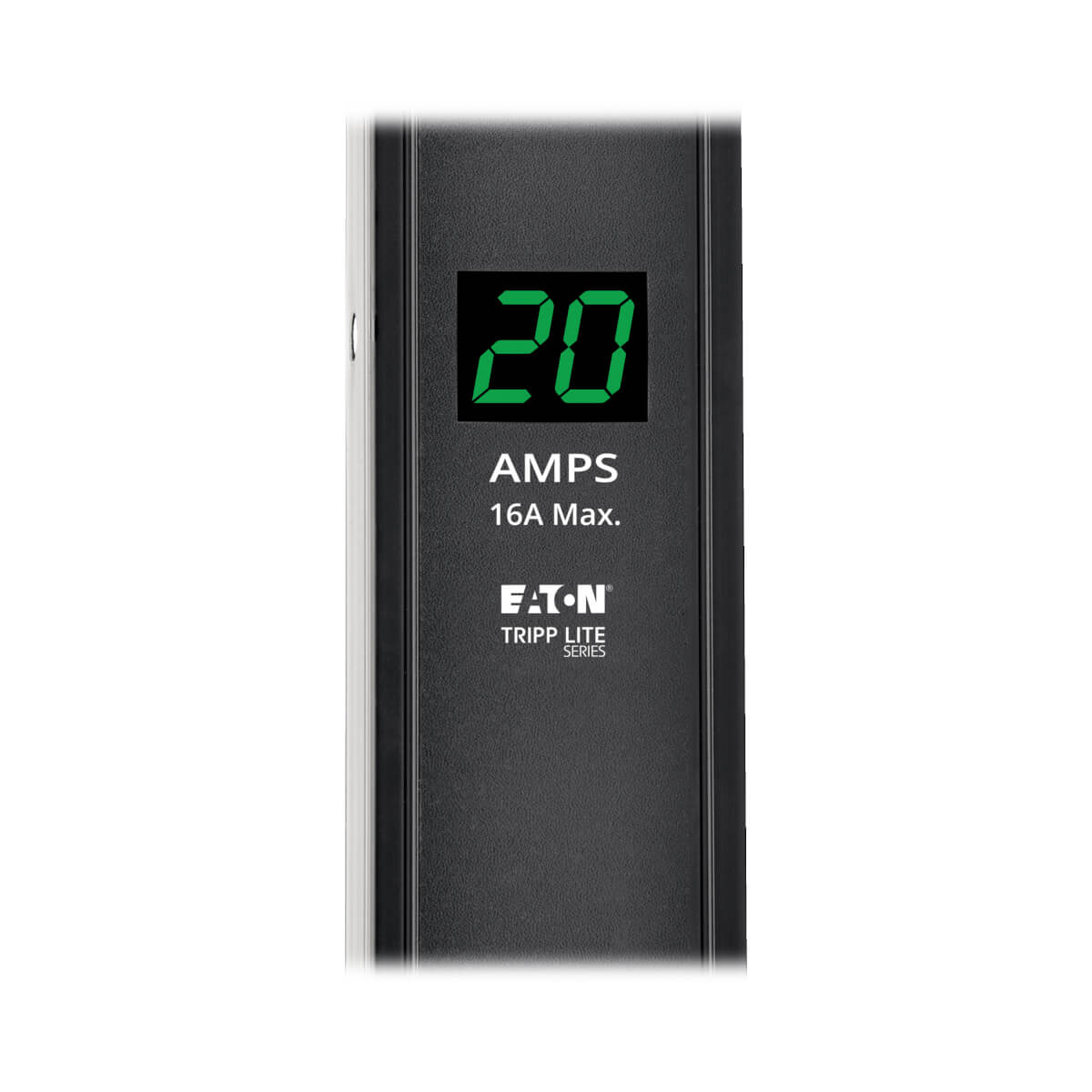

DisplayLED
Product colourBlack
CertificationUL60950-1, UL/CSA60950-1, NOM, FCC Class A
Rack capacity0U
Housing materialAluminum
Ports & interfaces
AC outlets quantity6 AC outlet(s)
Power plugNEMA L5-20P
Output connections6 x NEMA 5-15/20R

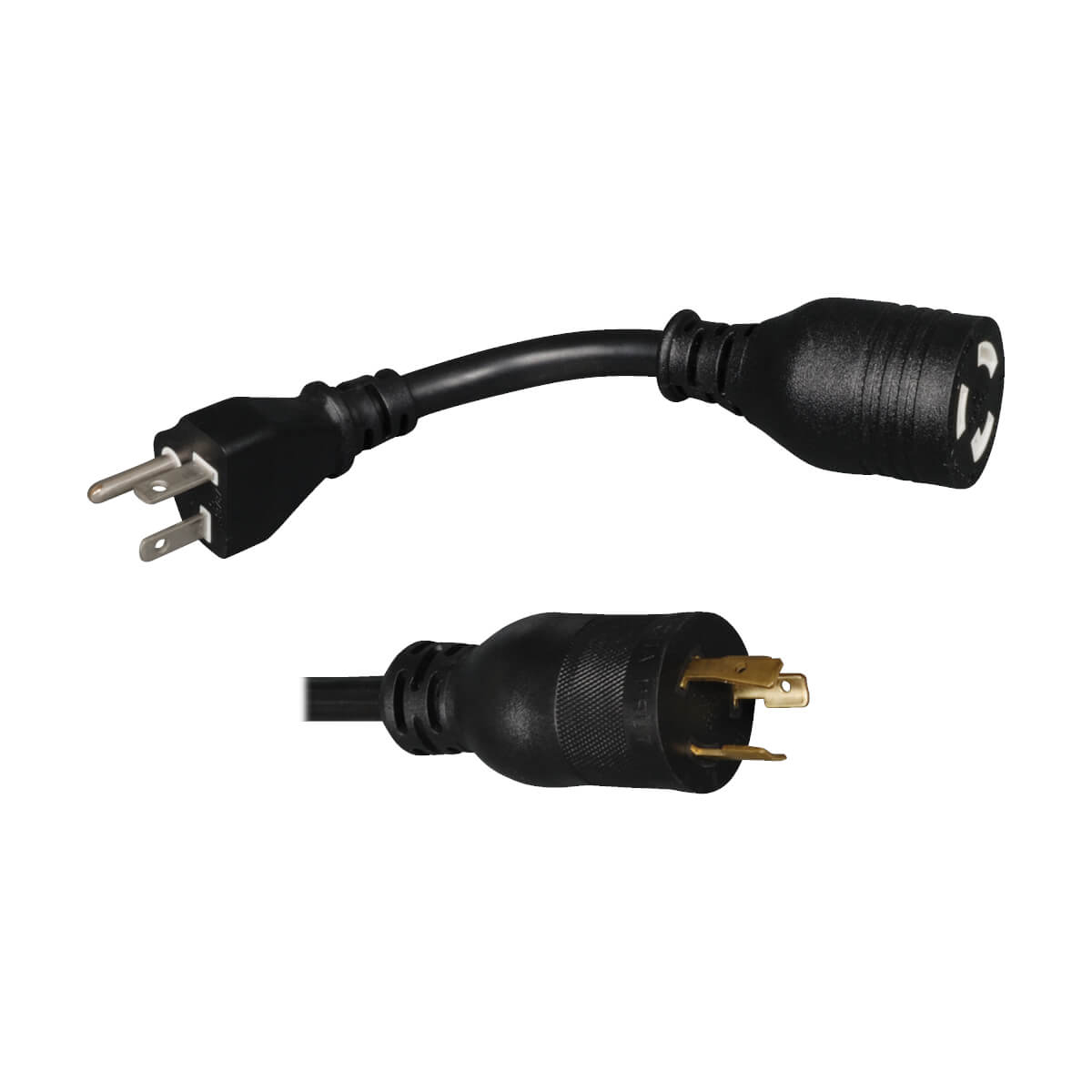

Input connection typeL5-20P/5-20P
Features
Cable length181.1" (4.6 m)
LED indicatorsYes
CertificationUL60950-1, UL/CSA60950-1, NOM, FCC Class A
Ergonomics
Cable length181.1" (4.6 m)
LED indicatorsYes
DisplayLED
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current20 A
Weight & dimensions
Dimensions (WxDxH)1.75 x 1.25 x 24" (44.5 x 31.8 x 610 mm)
Weight3.53 lbs (1.6 kg)
Width1.5" (38.1 mm)
Depth1.64" (41.7 mm)
Height24.5" (621.5 mm)
Package width6.2" (157.5 mm)
Package depth26.5" (673.1 mm)
Package height2.2" (55.9 mm)
Package weight6.31 lbs (2.86 kg)
Package dimensions (WxDxH)26.9 x 6.78 x 2.6" (683.5 x 172.2 x 66 mm)
Packaging data
Package width6.2" (157.5 mm)
Package depth26.5" (673.1 mm)
Package height2.2" (55.9 mm)
Package weight6.31 lbs (2.86 kg)
Package dimensions (WxDxH)26.9 x 6.78 x 2.6" (683.5 x 172.2 x 66 mm)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332182842
Compliance certificatesRoHS
Logistics data
Master (outer) case width20.7" (525 mm)
Master (outer) case length10.8" (275.1 mm)
Master (outer) case height27.4" (694.9 mm)
Master (outer) case gross weight51.4 lbs (23.3 kg)
Products per master (outer) case12 pc(s)
Country of originChina
