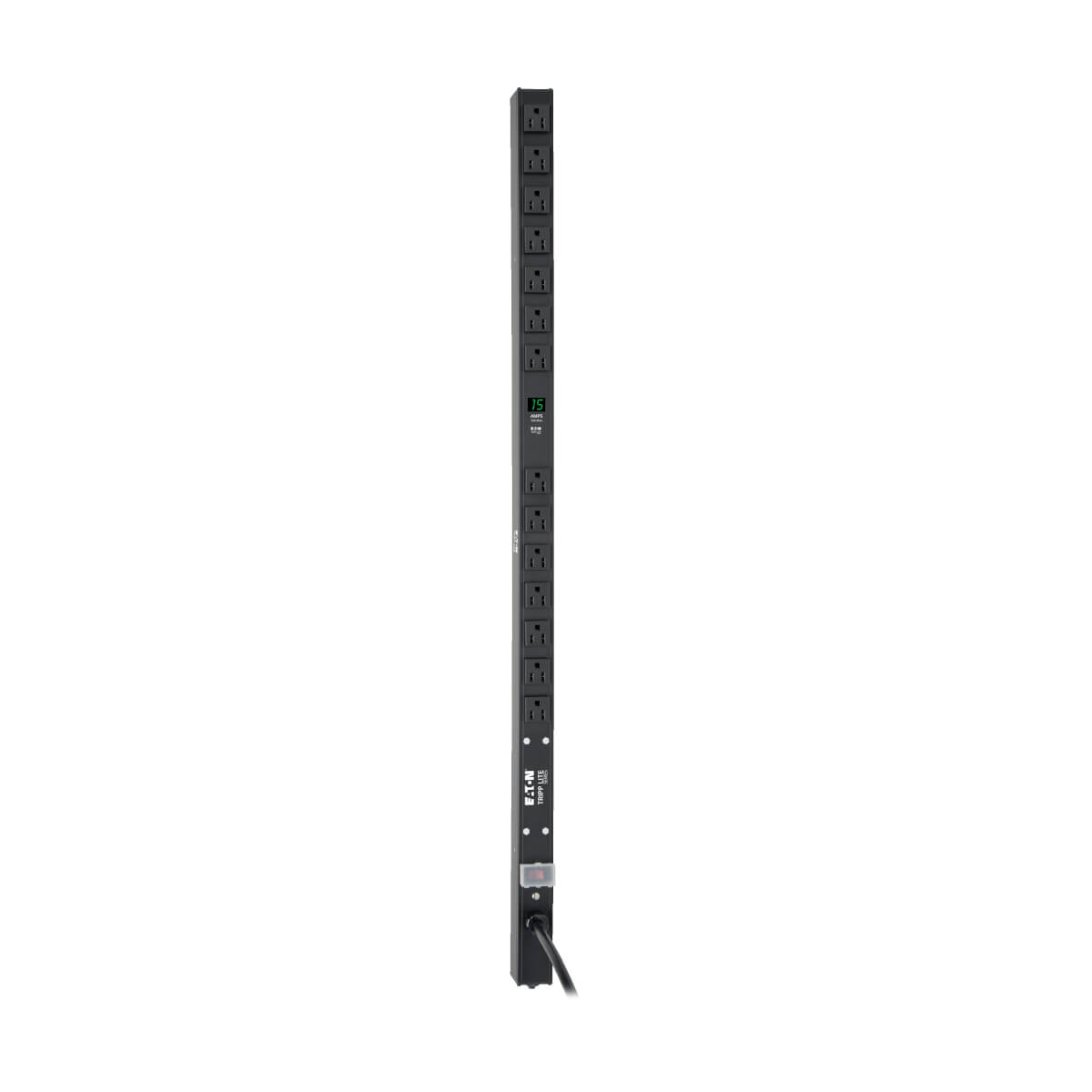

Tripp Lite PDUMV15-36 power distribution unit (PDU) 14 AC outlet(s) 0U Black

Tripp Lite PDUMV15-36 power distribution unit (PDU) 14 AC outlet(s) 0U Black

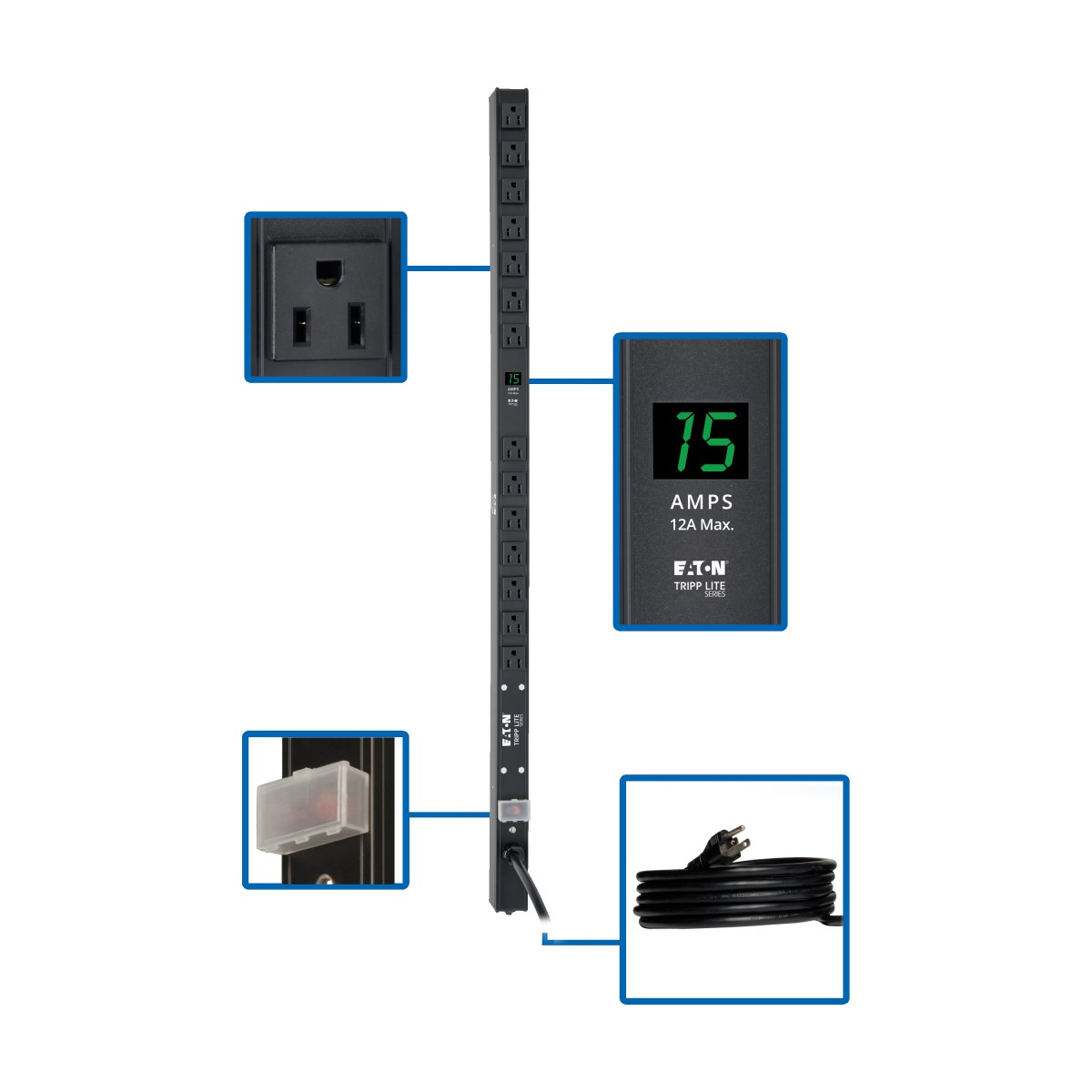

1.4kW Single-Phase Metered PDU, 120V, 14 x 5-15R Out, 1 x 5-15P In, 15ft Cord, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1.4KW 1PHASE METERED PDU 120VOUTLETS 14 5-15R 5-15P 15FTCORD 0U VERT 36 IN. 641212 Register free see stock
BlueStar TRIPP LITE, 1.4KW SINGLE-PHASE METERED PDU, 120V OUTLETS (14 5-15R), 5-15P, 15FT CORD, 0U VERTICAL, 36 IN. PDUMV15-36
D&H PDU 120V 13 OUT 0URM PDUMV1536
Ingram Micro PDU METERED 1.4KW 120V 15A 0U ZG7337
TD Synnex PDU METERED 15A 120V 5-15R 5-15P 0U 36IN 4140898

Related Products

Description

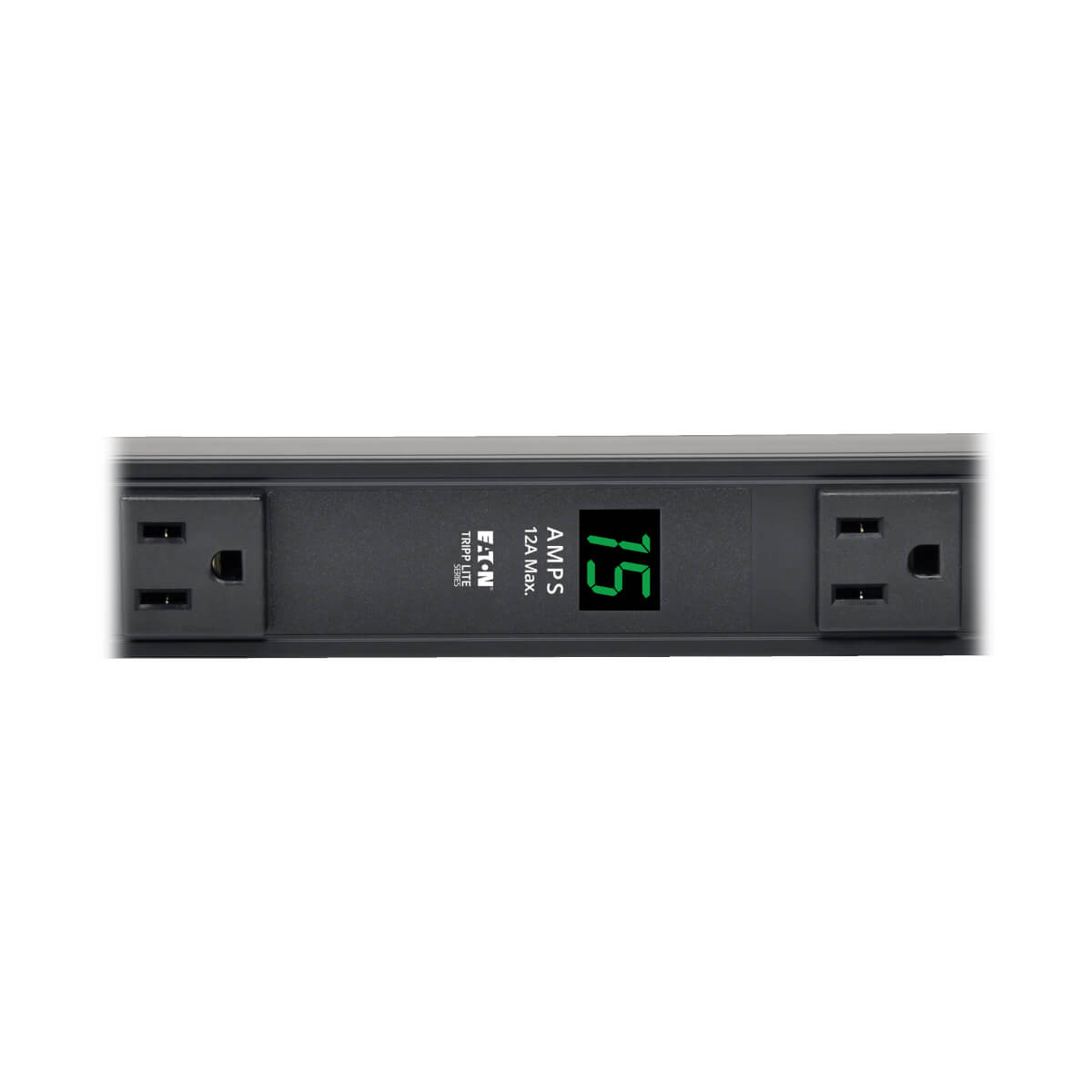

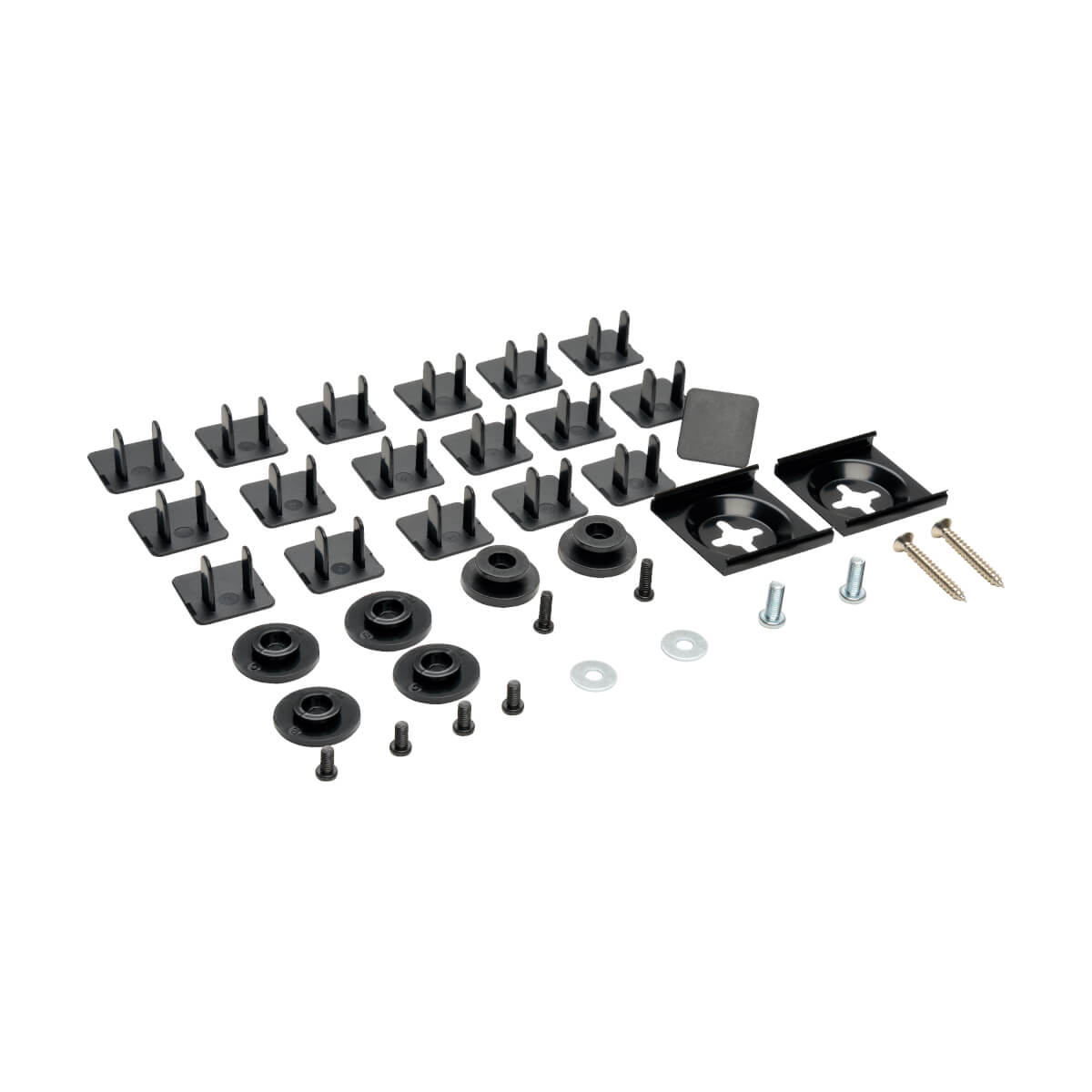

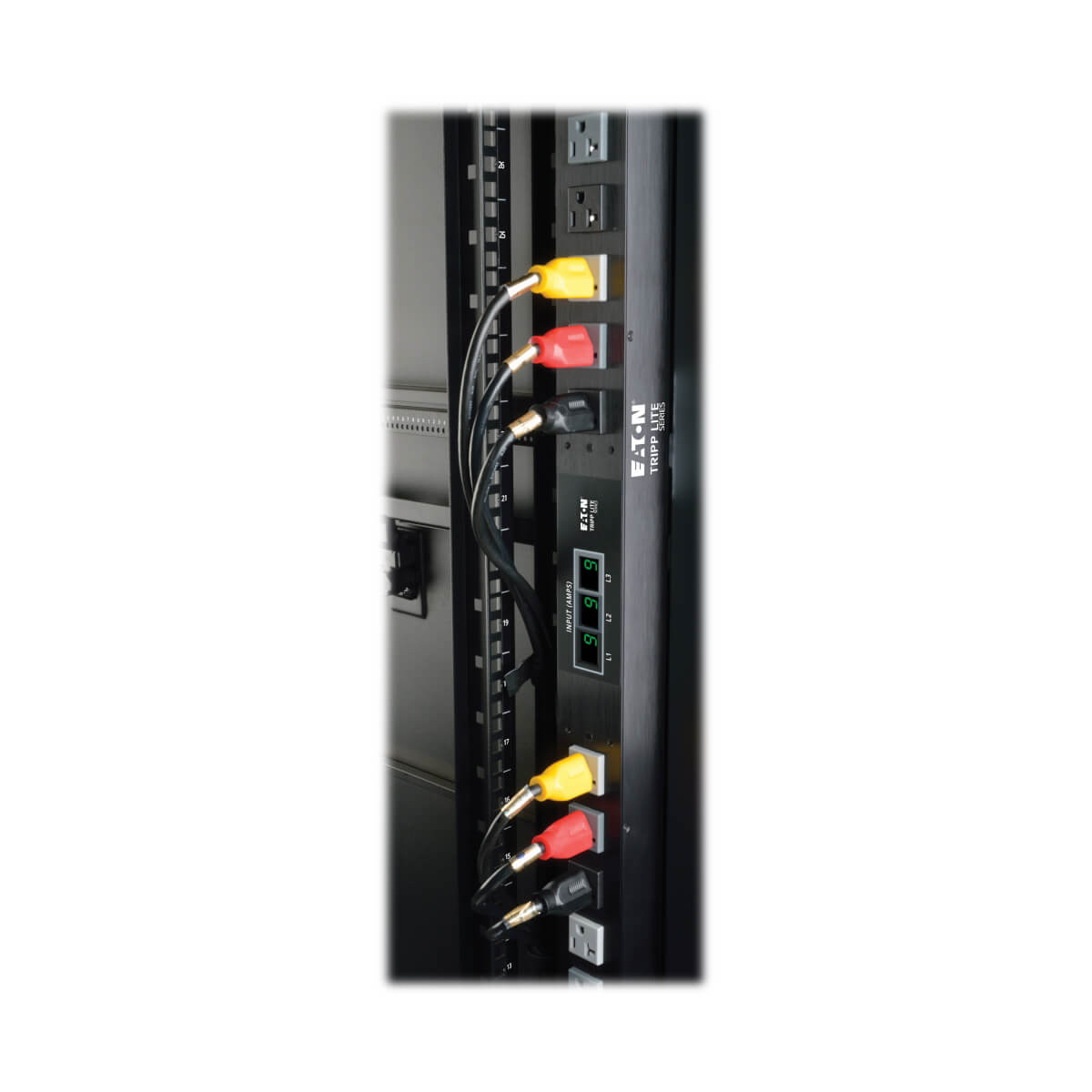

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Specifications

Design
PDU typesMetered
MountingVertical
DisplayLED
Product colourBlack
CertificationUL60950-1 (USA), CSA60950-1, NOM
Rack capacity0U
Housing materialAluminum
Ports & interfaces
AC outlets quantity14 AC outlet(s)

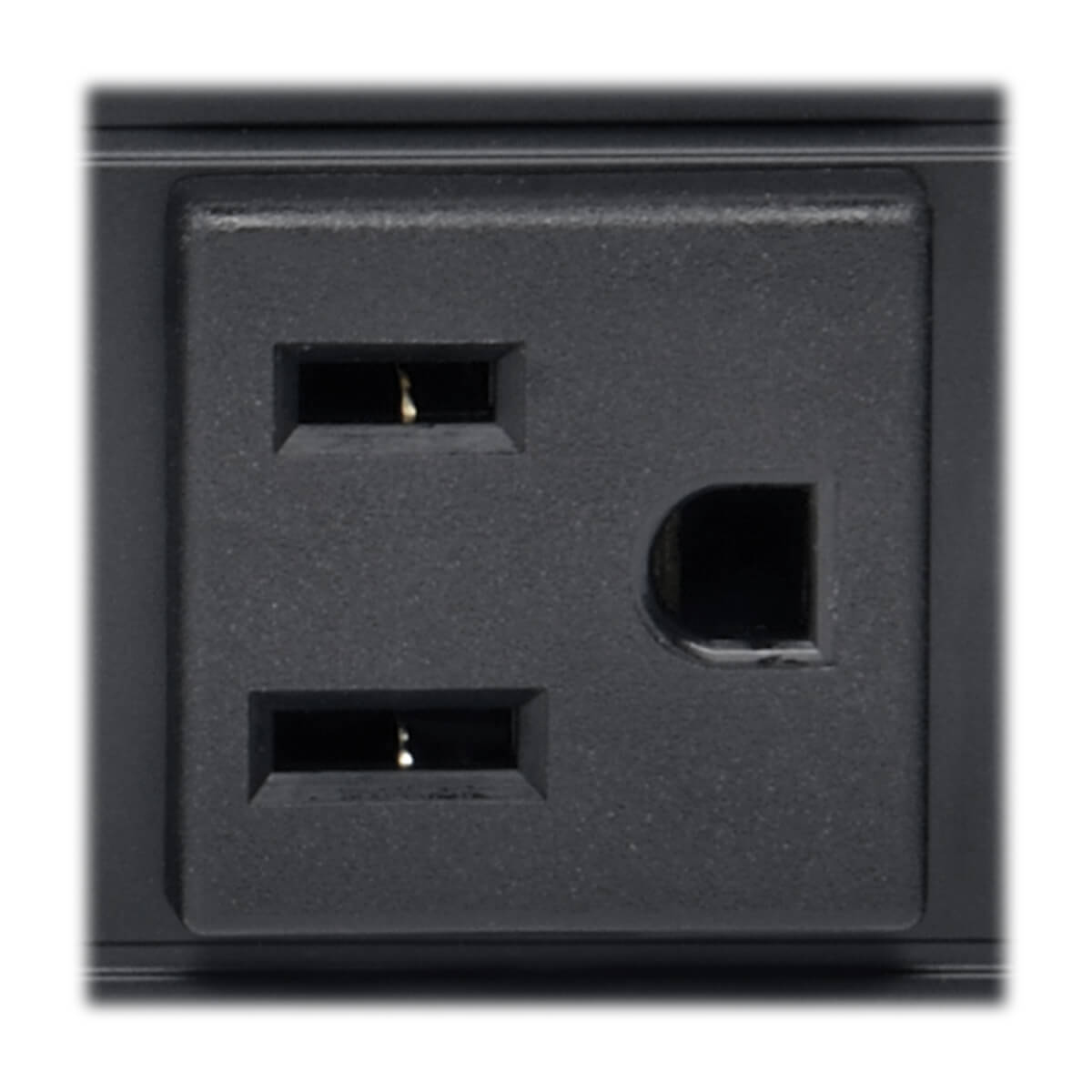

AC outlet typesNEMA 5–15R

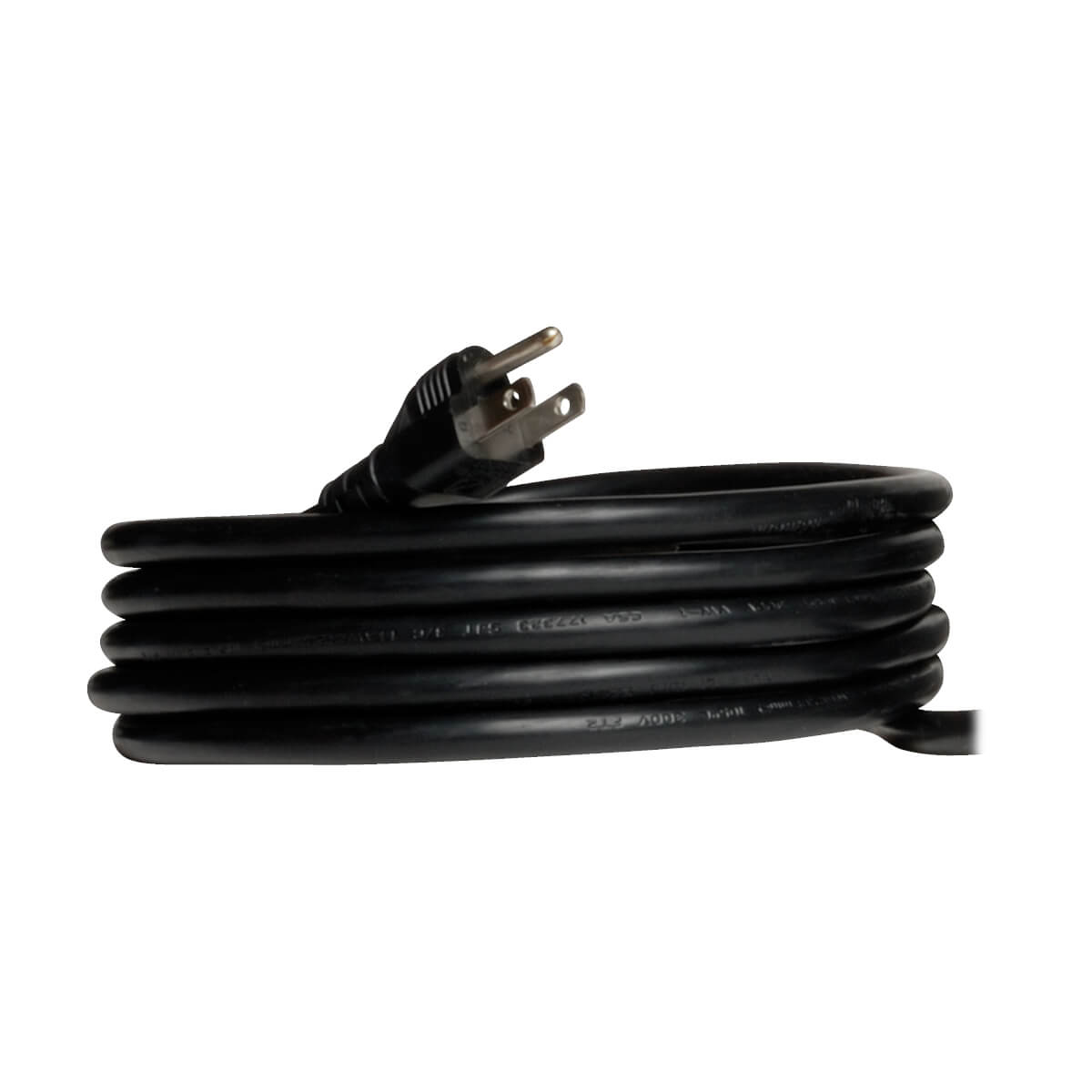

Power plugNEMA 5–15P
Features
Cable length181.1" (4.6 m)
LED indicatorsYes
CertificationUL60950-1 (USA), CSA60950-1, NOM
Ergonomics
Cable length181.1" (4.6 m)
LED indicatorsYes
DisplayLED
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current15 A
Load capacity1800 VA
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 1.26 x 36" (445 x 32 x 914 mm)
Weight3.26 lbs (1.48 kg)
Width1.5" (38.1 mm)
Depth1.64" (41.7 mm)
Height36.5" (926.3 mm)
Package width5.39" (136.9 mm)
Package depth2.4" (61 mm)
Package height38.6" (979.9 mm)
Package weight3.95 lbs (1.79 kg)
Package dimensions (WxDxH)38.9 x 5.55 x 2.2" (989 x 141 x 56 mm)
Packaging data
Package width5.39" (136.9 mm)
Package depth2.4" (61 mm)
Package height38.6" (979.9 mm)
Package weight3.95 lbs (1.79 kg)
Package dimensions (WxDxH)38.9 x 5.55 x 2.2" (989 x 141 x 56 mm)
Operational conditions
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332182866
Compliance certificatesRoHS
Logistics data
Master (outer) case width11.6" (294.9 mm)
Master (outer) case length7.87" (199.9 mm)
Master (outer) case height39.4" (1000 mm)
Master (outer) case gross weight25.4 lbs (11.5 kg)
Products per master (outer) case6 pc(s)
Country of originChina
