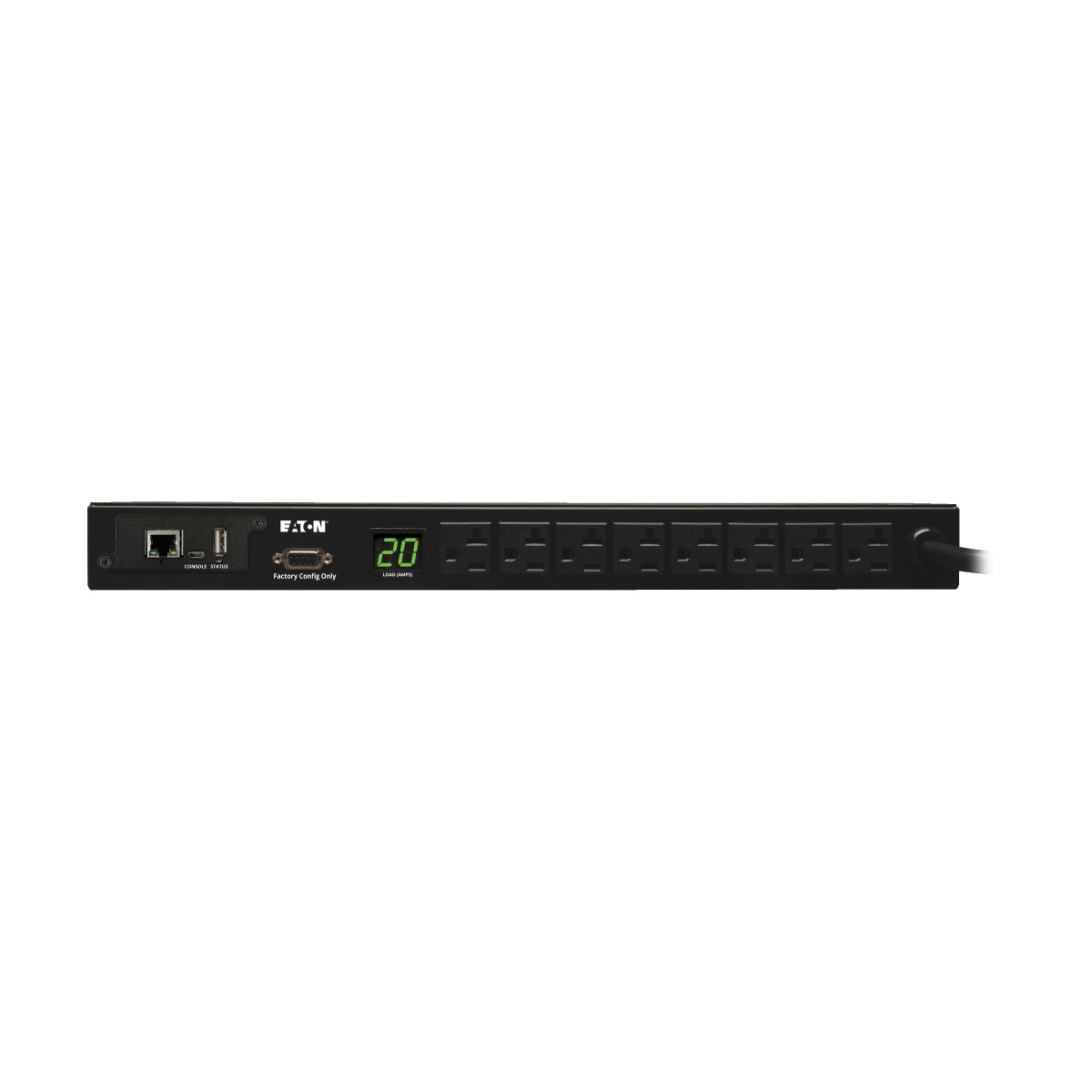

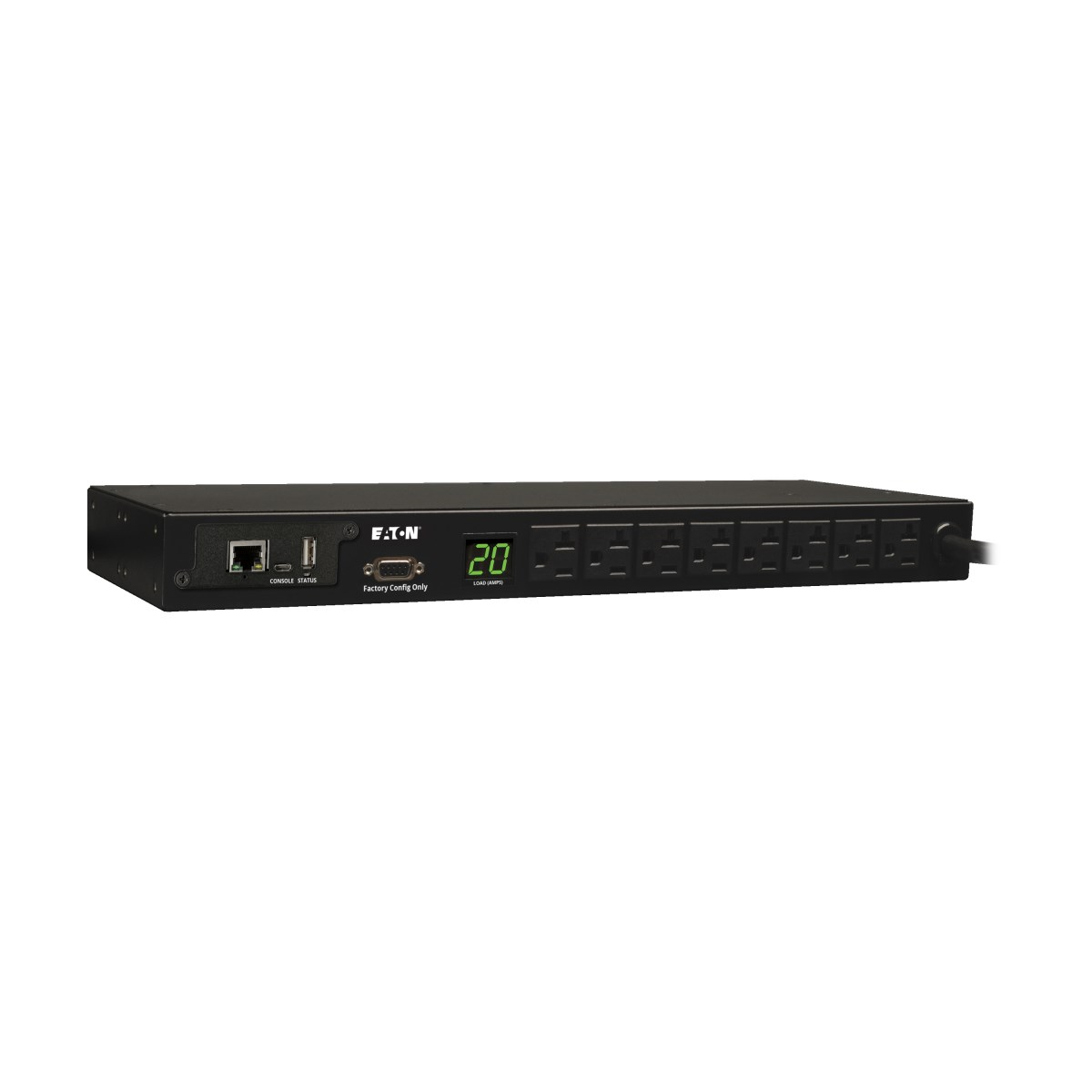

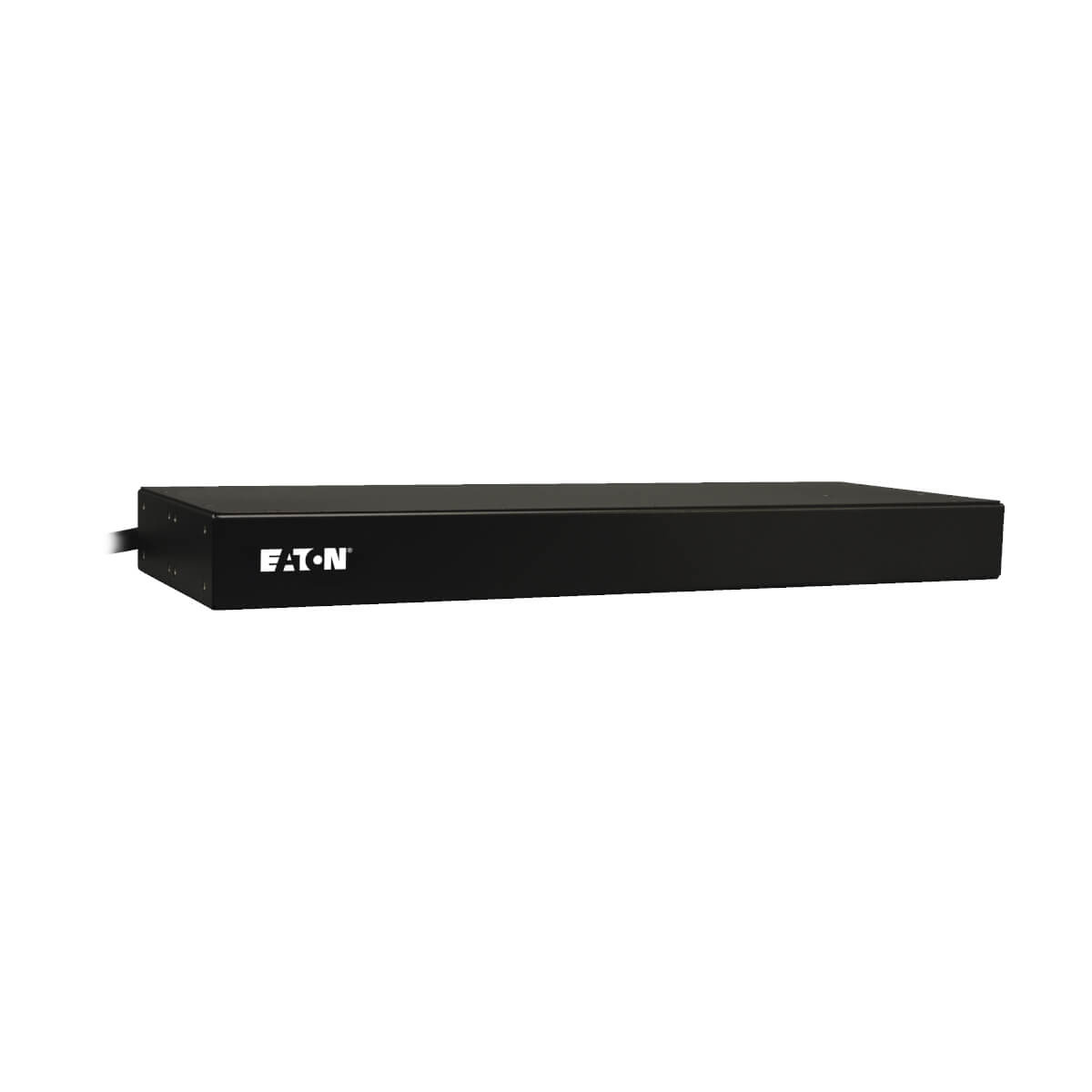

Tripp Lite PDUMNH20 power distribution unit (PDU) 8 AC outlet(s) 1U Black

Tripp Lite PDUMNH20 power distribution unit (PDU) 8 AC outlet(s) 1U Black

1.9kW Single-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter METERED NETWORK PDU 1U 20A120V 8 OUTLET 396491 Register free see stock
BlueStar TRIPP LITE, 1.92KW/16A SINGLE-PHASE MONITORED PDU, 120V, 8 OUTLETS (5-15/20R), L5/5-20P ADAPTER, 12FT CORD, 1U RACK-MOUNT PDUMNH20
D&H Digital PDU 5 15R Outlets 1U PDUMNH20
Ingram Micro PDU MONITORED 1.9KW 120V 20A CM1903
TD Synnex PDU MONITORED 120V 20A 5-15/20R L5-20P 2595275

Related Products

Description

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 16A continuous)
- Attached NEMA L5-20P input plug with NEMA 5-20P adapter and 12ft / 3.6m line cord
- 1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
- 8 NEMA 5-15R outlets
- Lighted display reports output power consumption in amps
- Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
- Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements.
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- TAA Compliant Version Available - Order Tripp Lite PDUMNH20TAA

Specifications

Design
PDU typesMonitored
MountingHorizontal
Product colourBlack
CertificationUL 60950 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico)
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15, NEMA 5–20R
Input connection typeNEMA 5-20P, NEMA L5-20P
Features
Cable length141.7" (3.6 m)
LED indicatorsYes
CertificationUL 60950 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico)
Ergonomics
Cable length141.7" (3.6 m)
LED indicatorsYes
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current20 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.3 x 6.18 x 1.69" (439 x 157 x 43 mm)
Weight6.5 lbs (2.95 kg)
Width17.3" (439.4 mm)
Depth6.2" (157.5 mm)
Height1.7" (43.2 mm)
Package width11" (279.4 mm)
Package depth20.5" (520.7 mm)
Package height2.09" (53.1 mm)
Package weight8.51 lbs (3.86 kg)
Packaging data
Package width11" (279.4 mm)
Package depth20.5" (520.7 mm)
Package height2.09" (53.1 mm)
Package weight8.51 lbs (3.86 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
