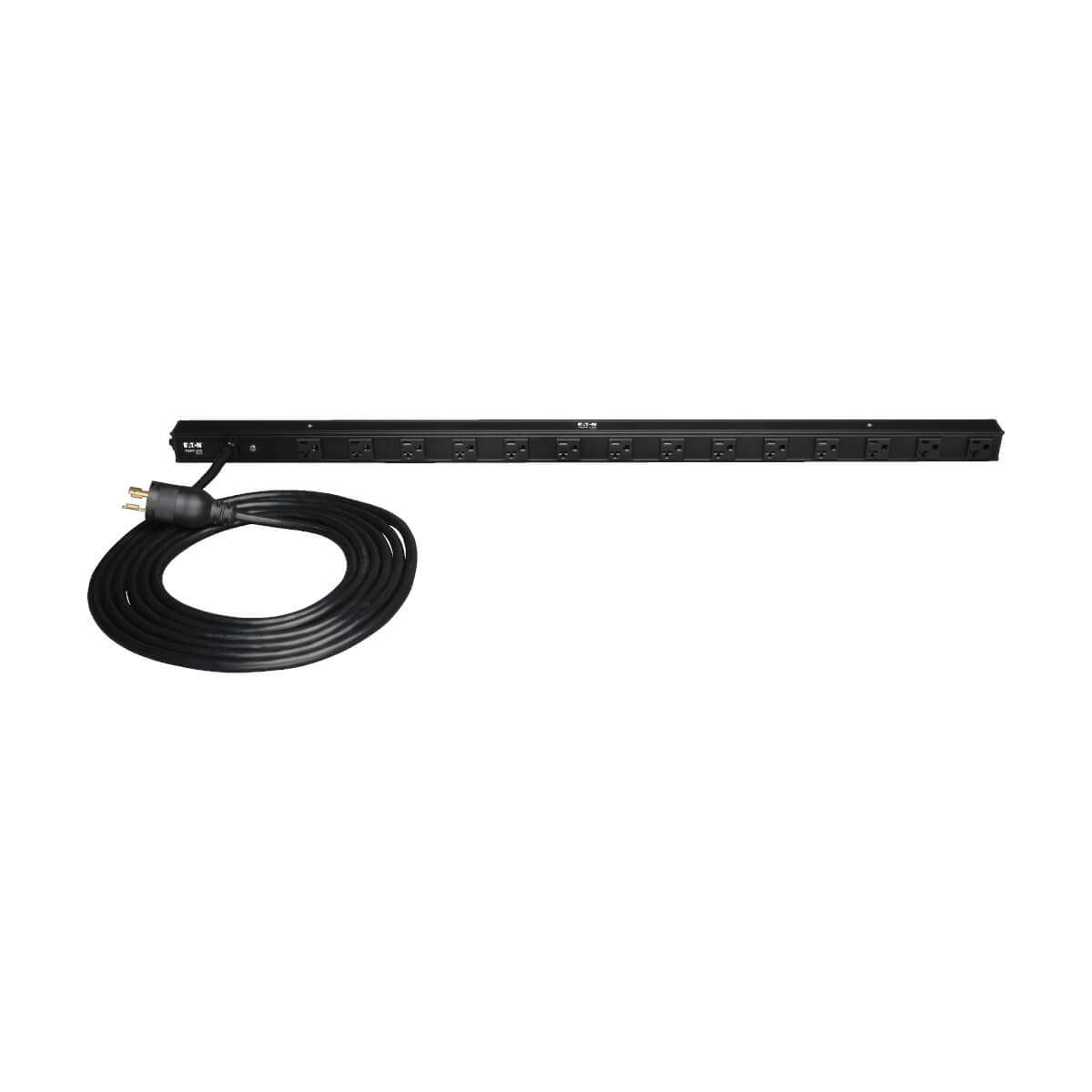

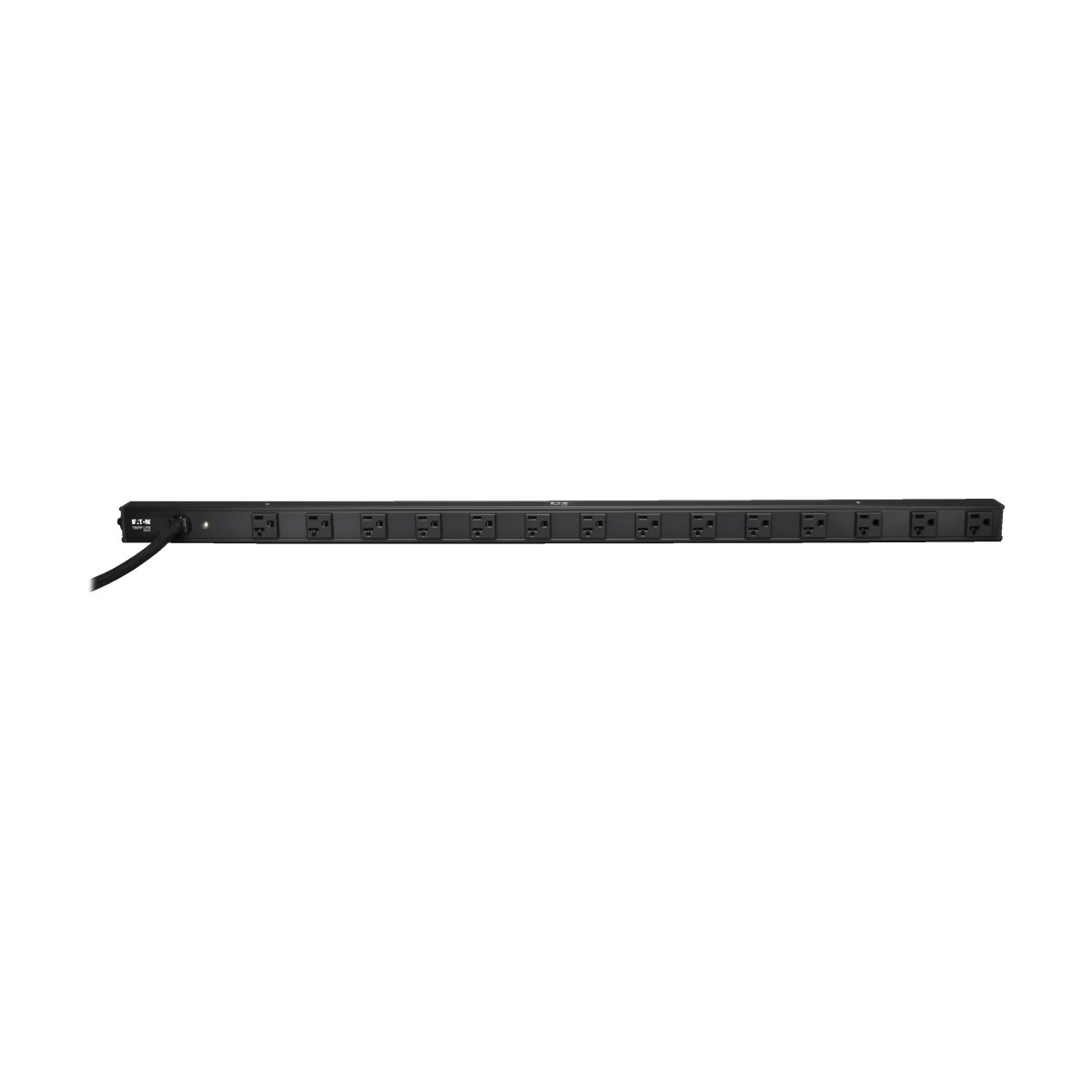

Tripp Lite PDUV20 power distribution unit (PDU) 14 AC outlet(s) 0U Black

Tripp Lite PDUV20 power distribution unit (PDU) 14 AC outlet(s) 0U Black

1.9kW Single-Phase Basic PDU, 120V Outlets (14 5-15/20R), L5-20P/5-20P Adapter, 15ft Cord, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

12 OUTLET, 20 AMP VERTICAL PDU

 396487 Register free see stock
BlueStar

, VERTICAL POWER DISTRIBUTION UNIT

 PDUV20

Related Products

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- PDUV20 offers highly reliable 20A 120V power distribution in a 36 in. / .9m 0U vertical rackmount format (Agency de-rated to 16A continuous)
- 14 NEMA 5-15/20R output receptacles

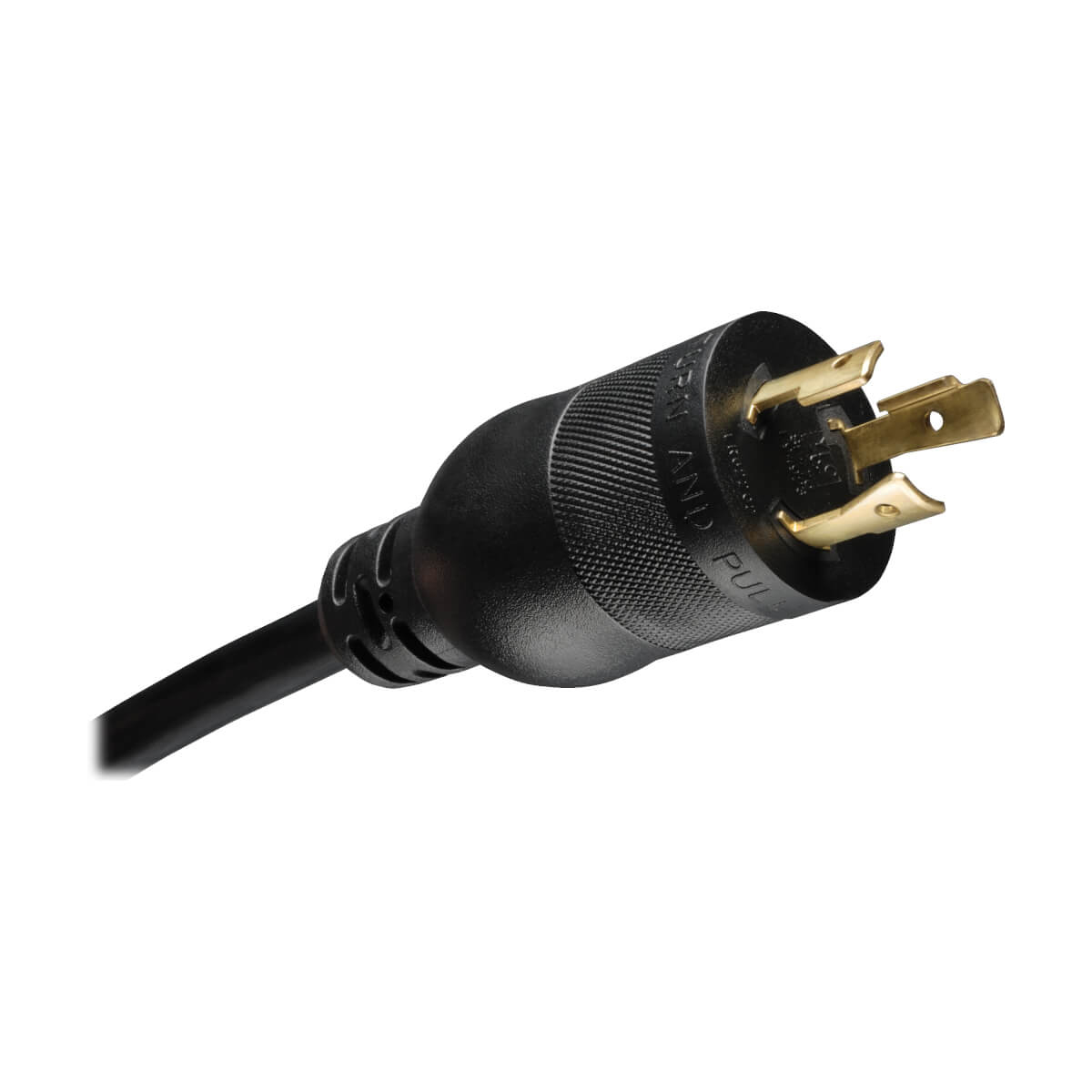

- NEMA L5-20P input plug and 5-20P adapter
- 15 ft. / 4.6m attached line cord

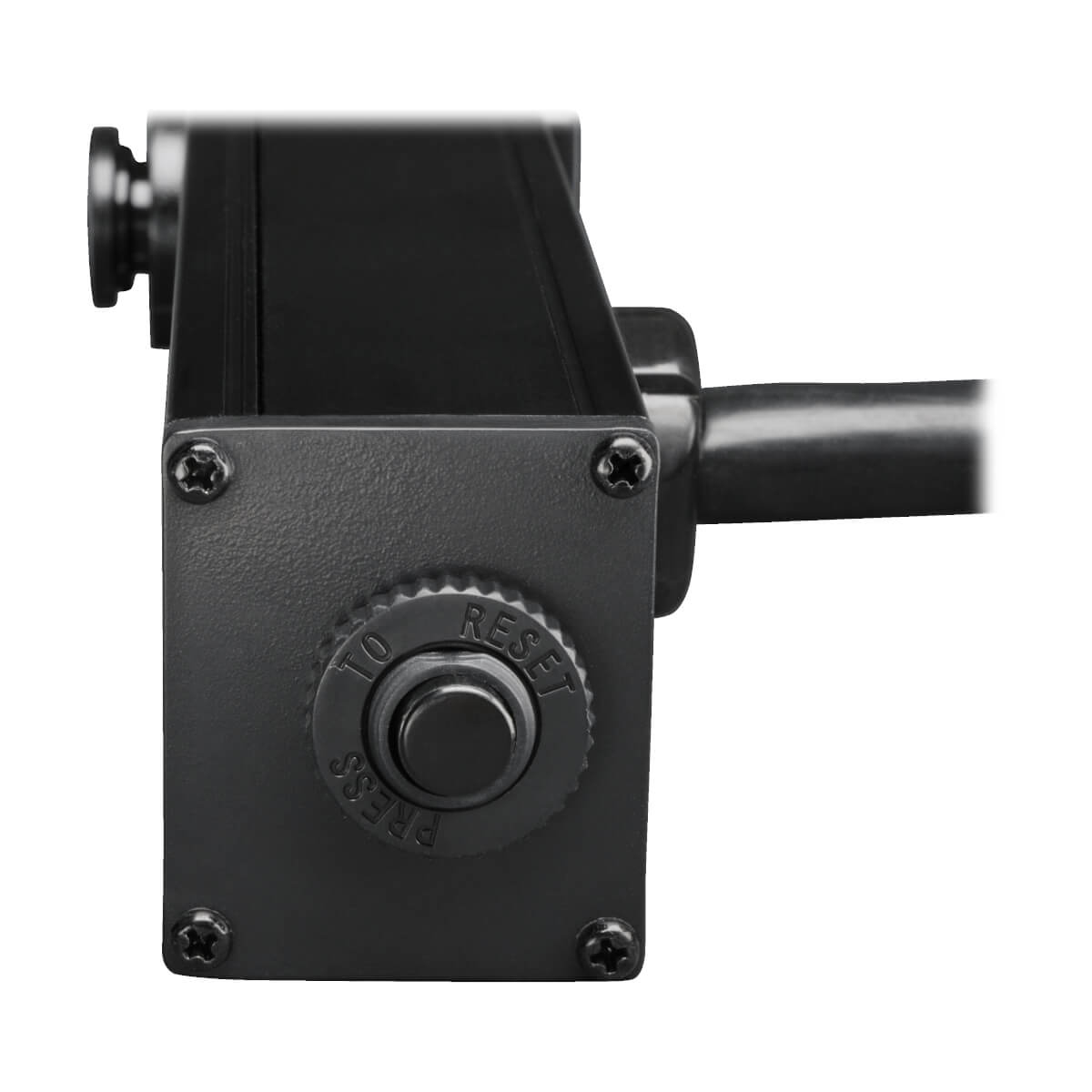

- 20A resettable circuit breaker
- Switch-free design prevents accidental shutoff

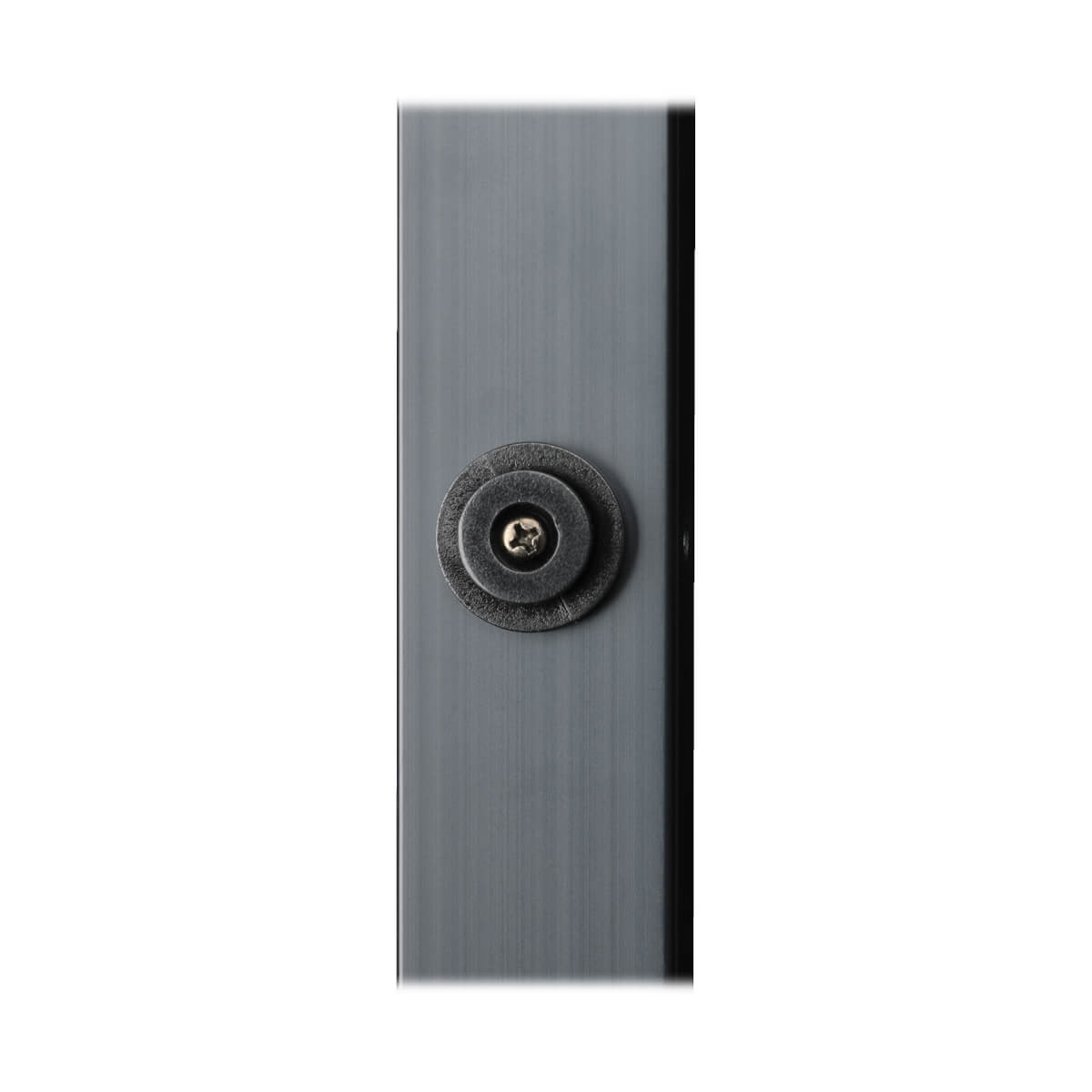

- Toolless mounting buttons enable simple installation in Tripp Lite and other button-mount compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks

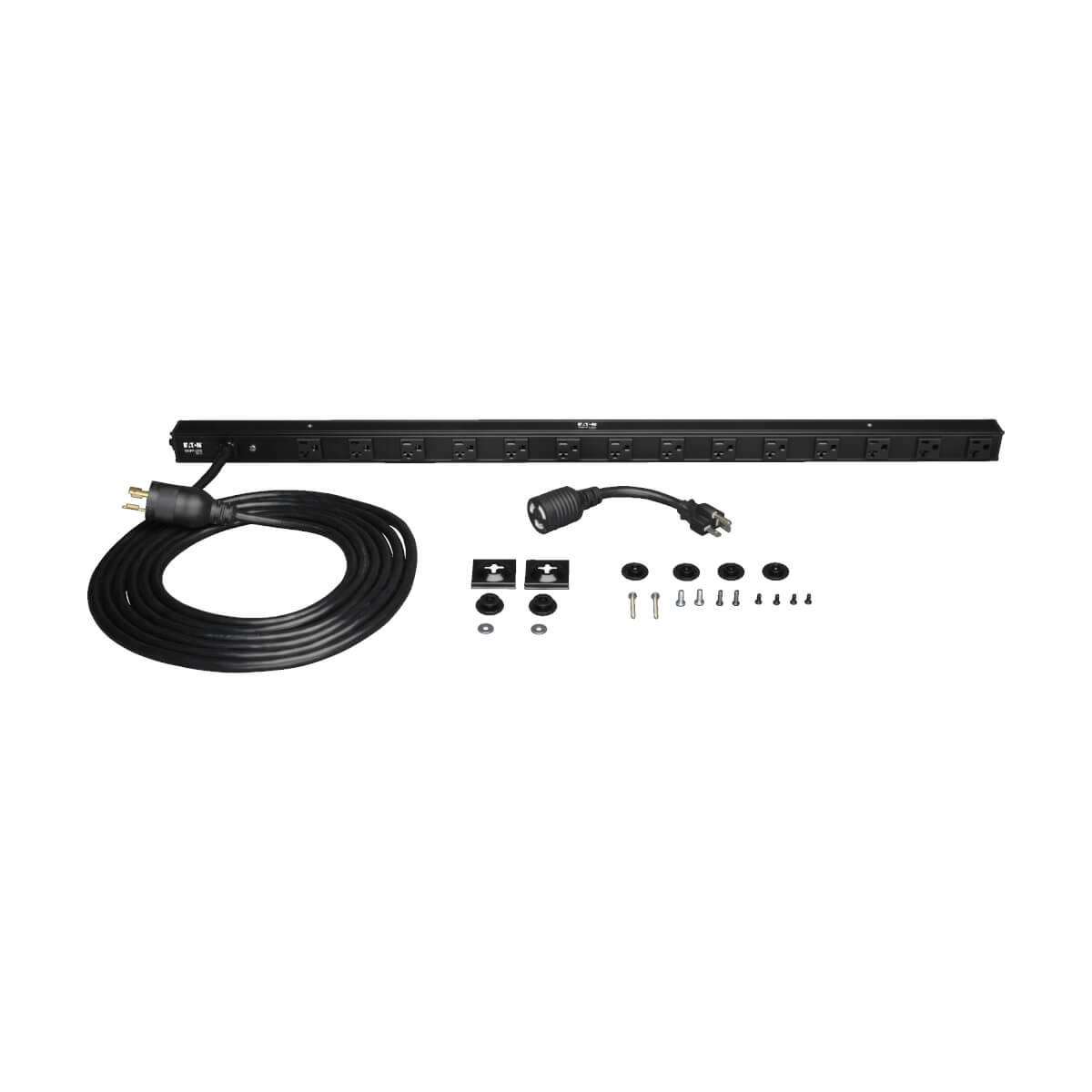

- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications

Specifications

Design
PDU typesBasic
MountingVertical
Product colourBlack
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Rack capacity0U
Ports & interfaces
AC outlets quantity14 AC outlet(s)
AC outlet typesNEMA 5–15, NEMA 5–20R
Input connection typeNEMA 5-20P, NEMA L5-20P
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current16 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight4.01 lbs (1.82 kg)
Width1.75" (44.5 mm)
Depth1.25" (31.8 mm)
Height36" (914.4 mm)
Package width4.61" (117.1 mm)
Package depth2.4" (61 mm)
Package height39.8" (1009.9 mm)
Package weight5.49 lbs (2.49 kg)
Packaging data
Package width4.61" (117.1 mm)
Package depth2.4" (61 mm)
Package height39.8" (1009.9 mm)
Package weight5.49 lbs (2.49 kg)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332143409
Compliance certificatesRoHS
Logistics data
Master (outer) case width14.6" (370.1 mm)
Master (outer) case length10.8" (275.1 mm)
Master (outer) case height40.6" (1030 mm)
Master (outer) case gross weight58.4 lbs (26.5 kg)
Products per master (outer) case12 pc(s)
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332143409
