Tripp Lite PDUMNV30HVLX power distribution unit (PDU) 24 AC outlet(s) 0U Black

Tripp Lite PDUMNV30HVLX power distribution unit (PDU) 24 AC outlet(s) 0U Black

5/5.8kW Single-Phase Monitored PDU with LX Platform Interface, 208/240V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 5/5.8KW SINGLE-PHASEMONITORED PDU WITH LXPLATFORM INTERFACE 9810616 Register free see stock
ASI Corp PDU PDUMNV30HVLX 1.9kW Single-Phase Switched PDU LX Platform 120V 236907
BlueStar TRIPP LITE, PDU MONITORED 5/5.8KW 208/240V 20 C13 4 C19 LX PLATFORM 0URM TAA PDUMNV30HVLX
D&H PDU Monitored LX 20 C13 4 C19 PDUMNV30HVLX
Ingram Micro PDU MONITORED 20 C13 4 C19 TAA 2DA021
TD Synnex PDU MONITORED 20 C13; 4 C19, LX PLATFORM 4999551

Related Products

Description

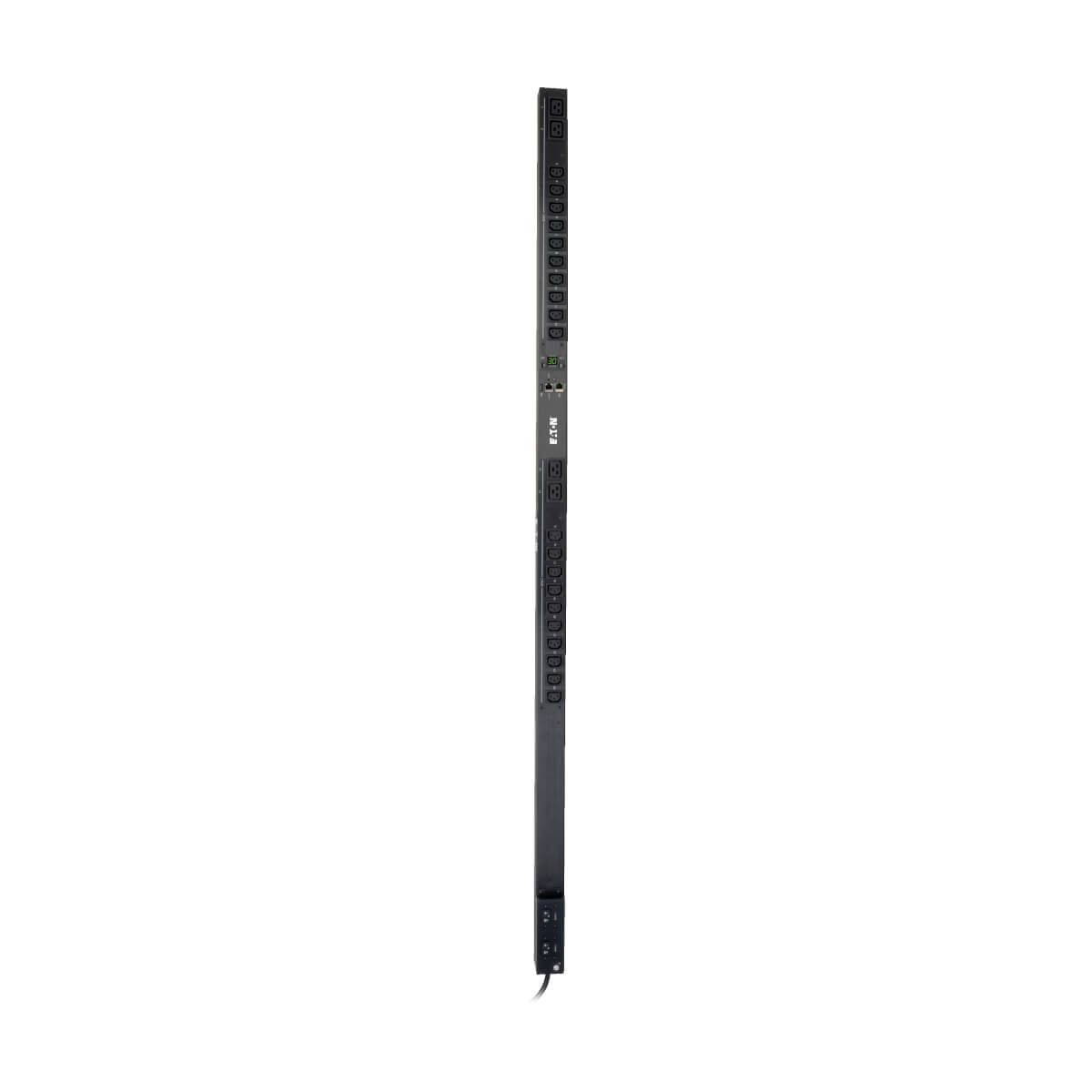

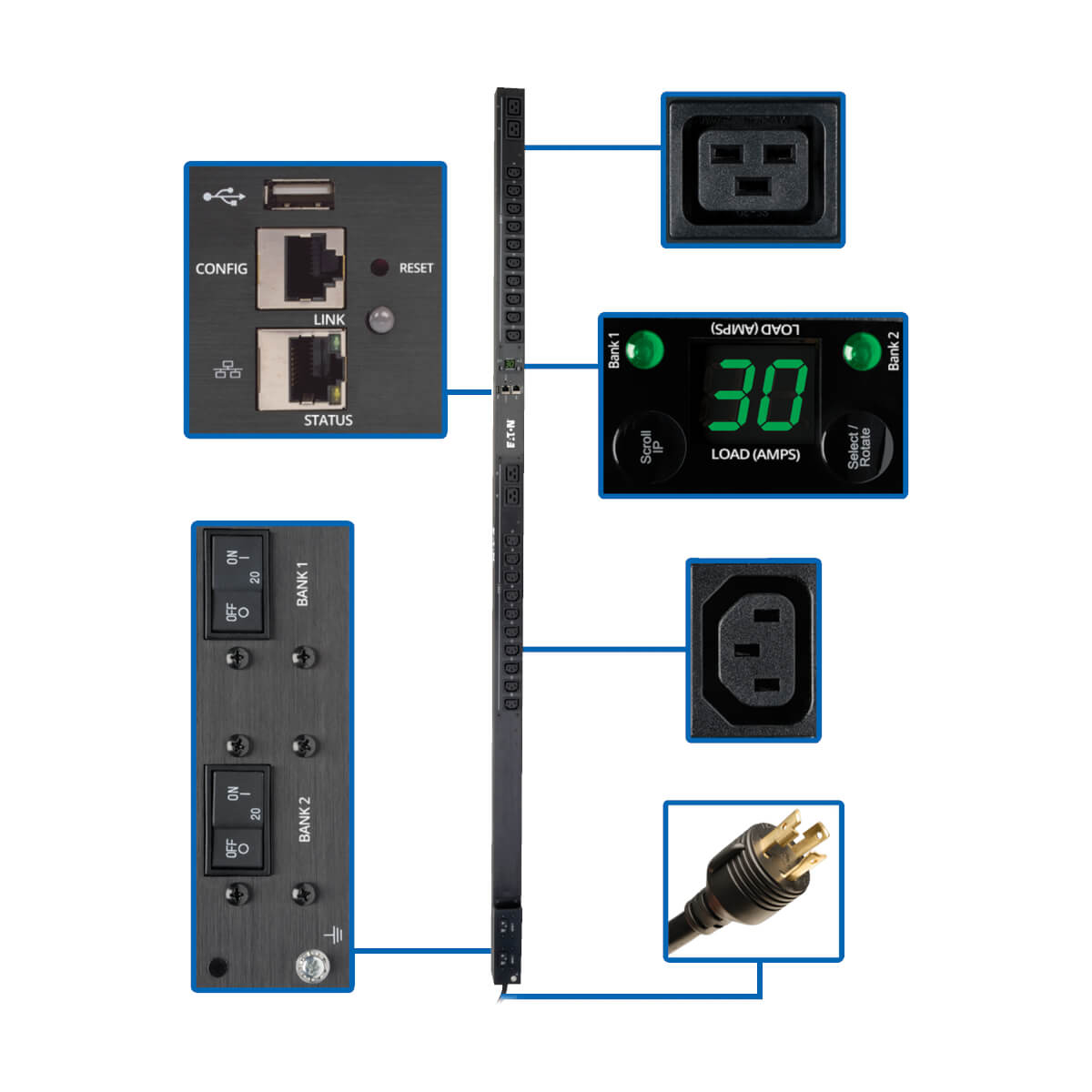

The PDUMNV30HVLX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Distributes Network-Grade Single-Phase Power
- 5/5.8kW 208/240V 30A monitored PDU with single-phase input/output

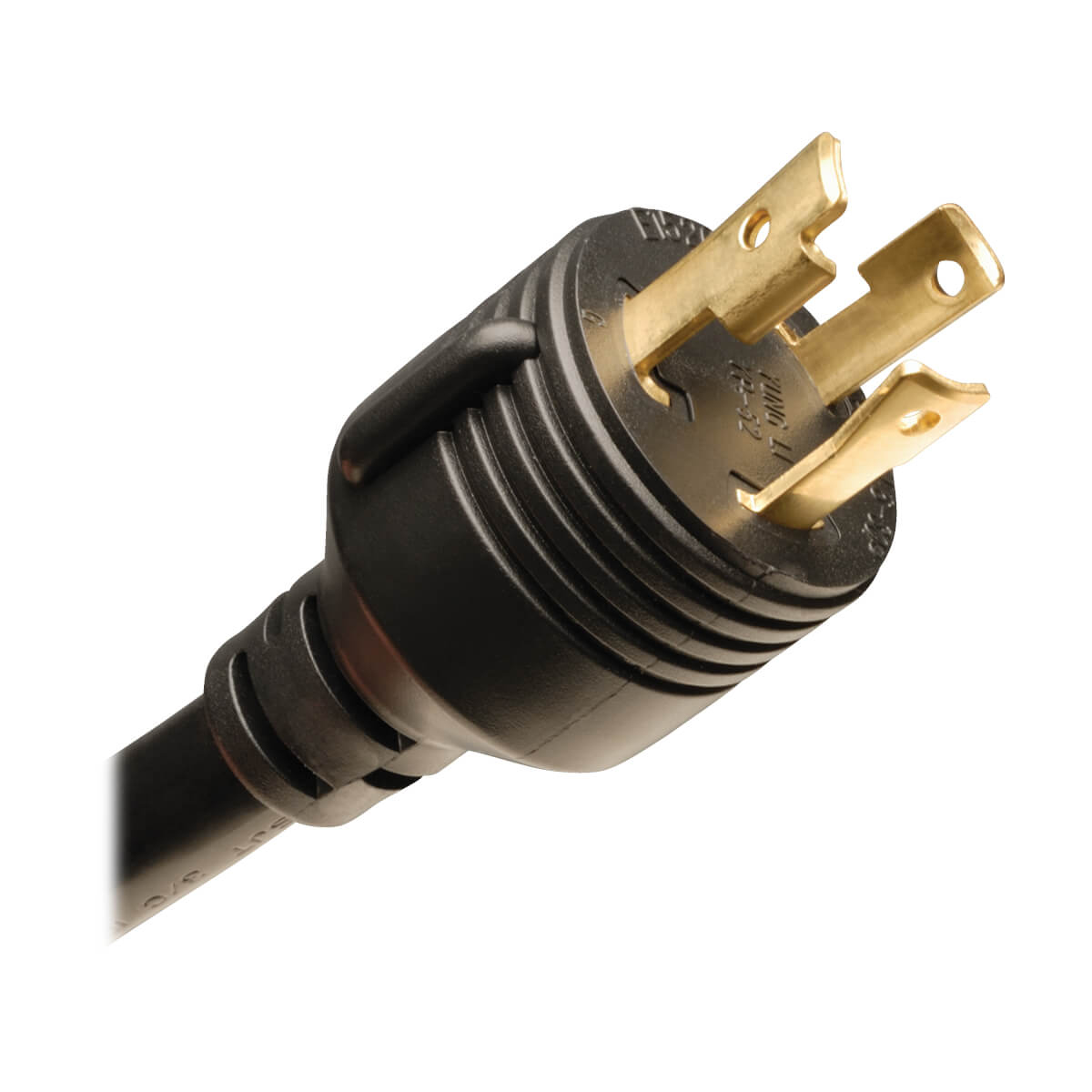

- NEMA L6-30P with 10 ft. cord connects to compatible AC power source
- Firmware upgrades support future product enhancements

24 Outlets Distribute AC Power

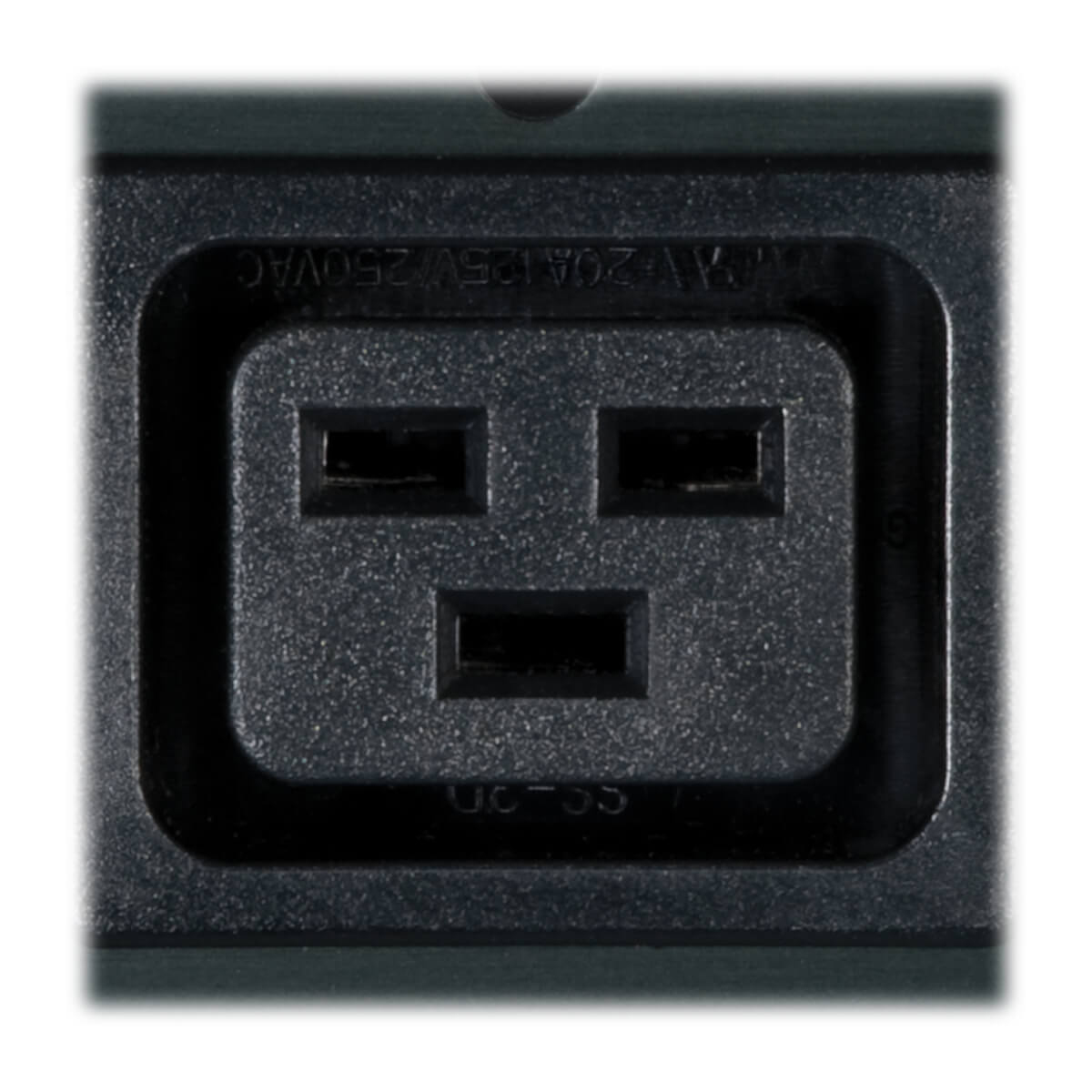

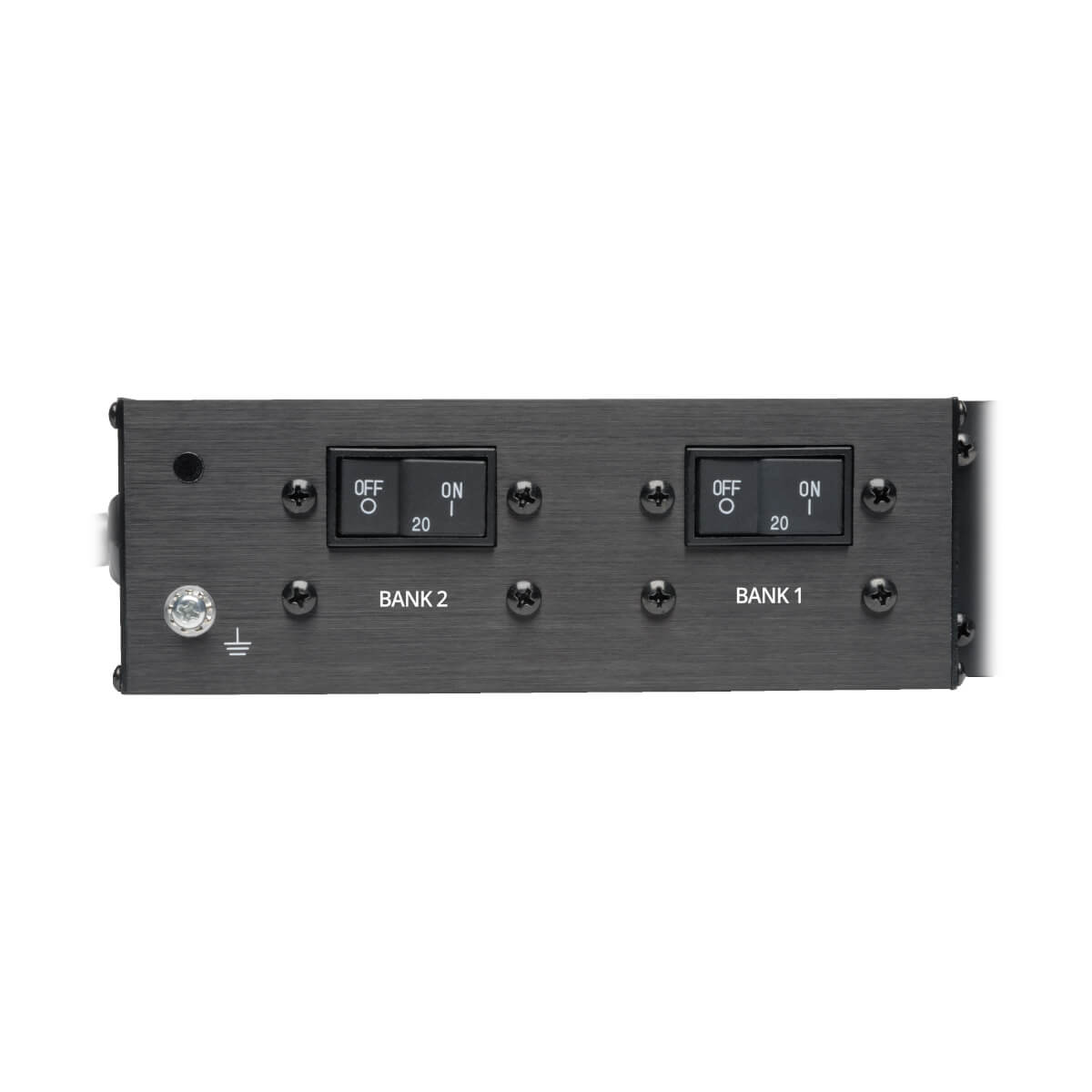

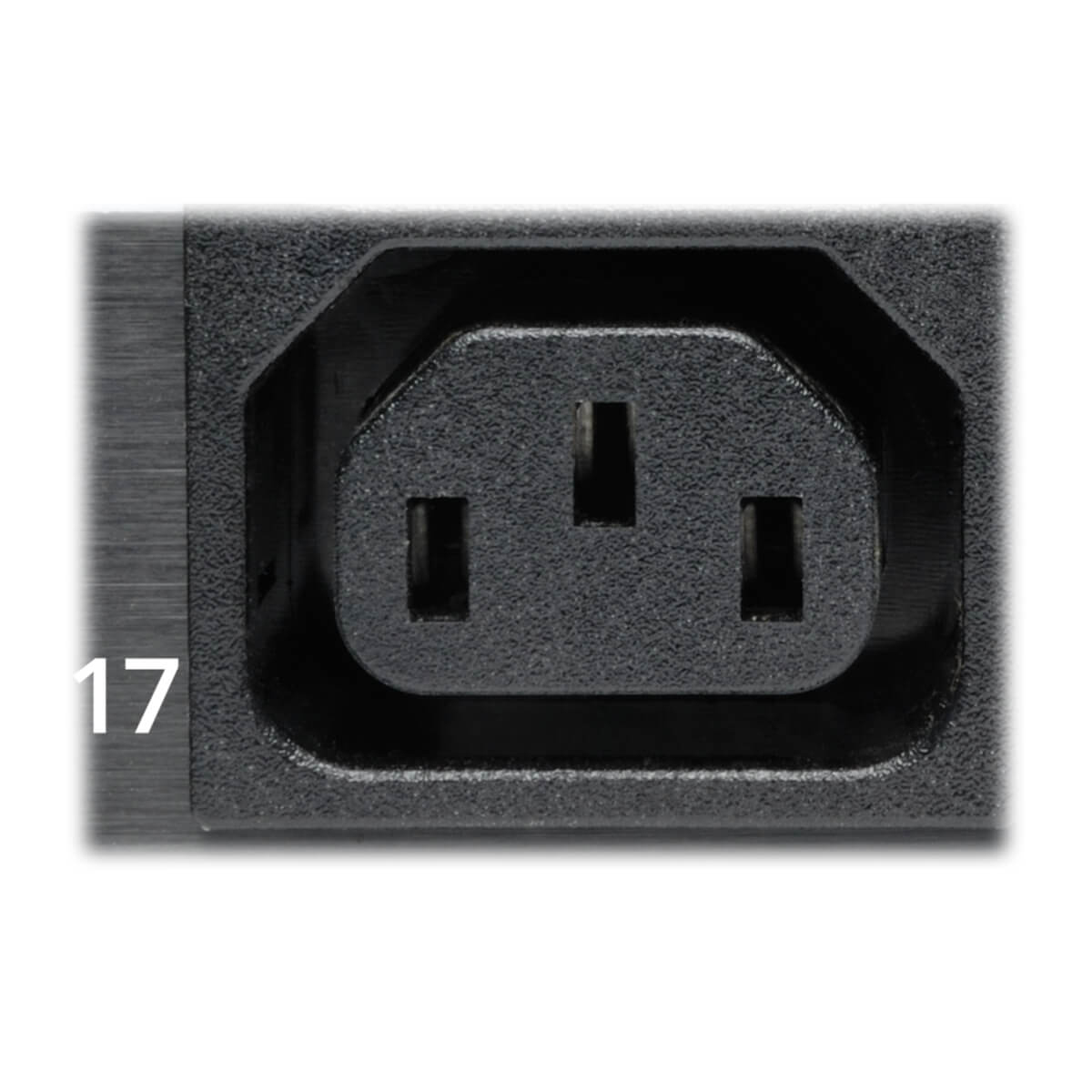

- 20 C13 and 4 C19 outlets split into 2 separate load banks
- Cord retention bracket prevents cables from becoming accidentally disconnected

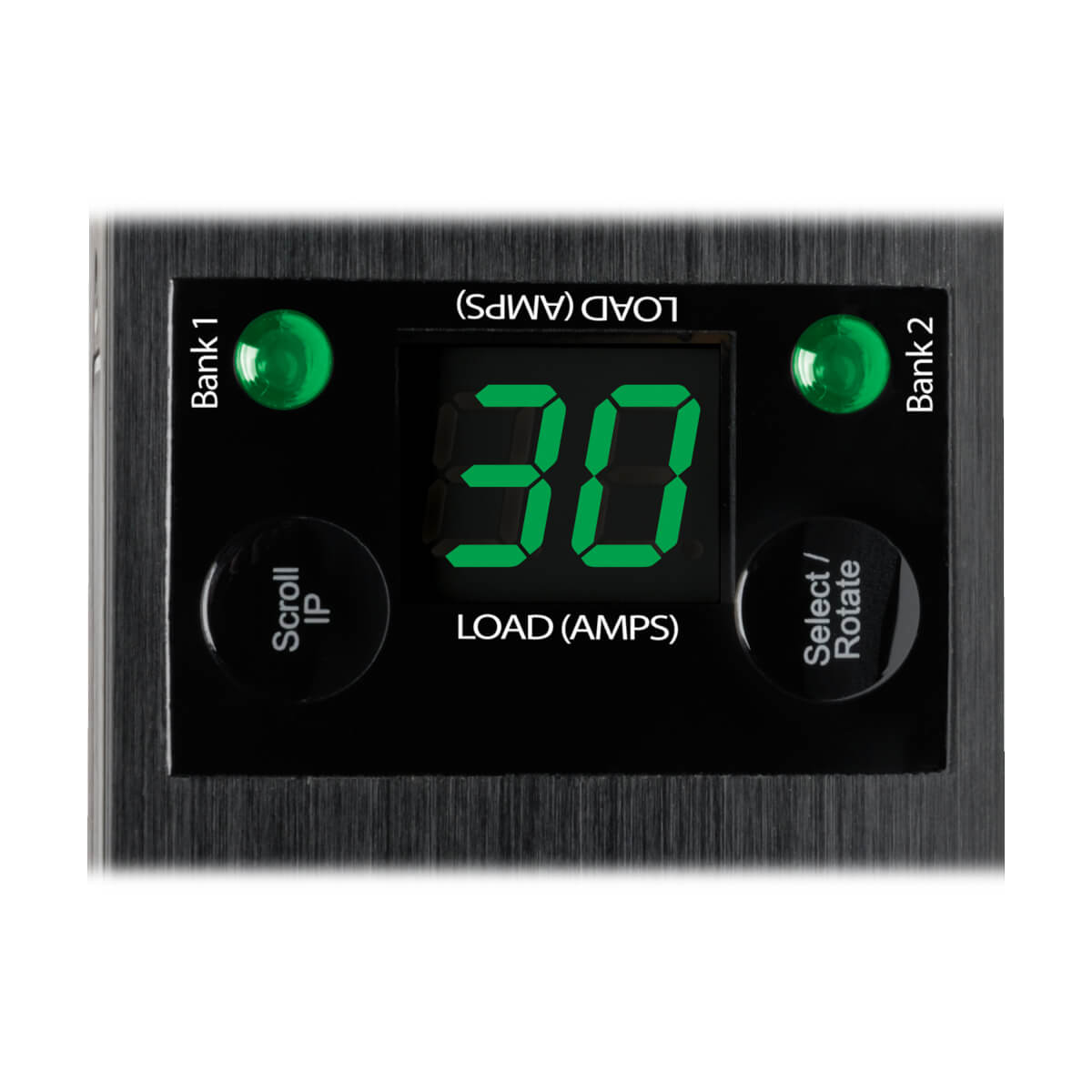

Digital Ammeter
- Reports total connected equipment load
- Supports IP-address self-ID
- Rotates 180° for easy reading at either angle

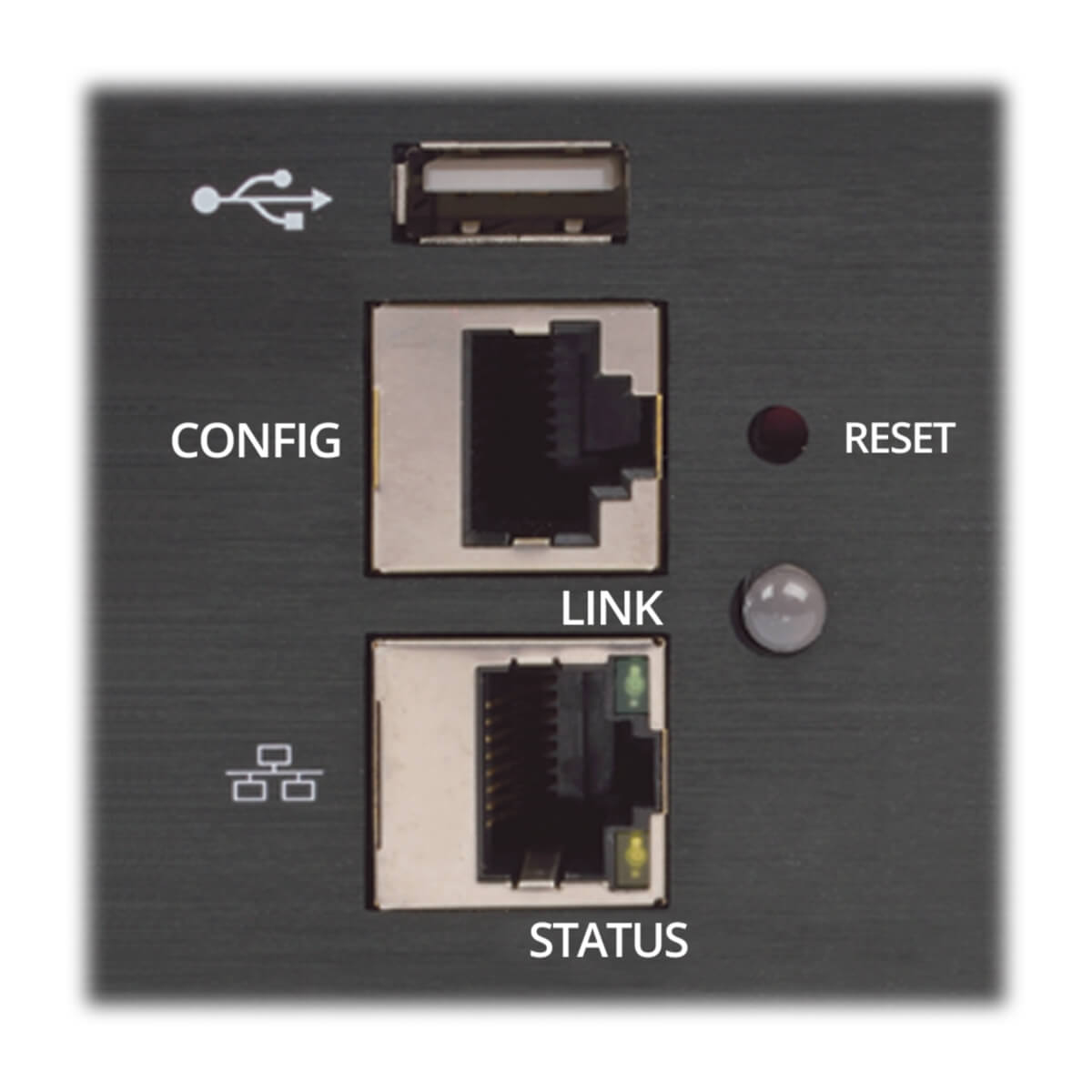

Built-In LX Platform Interface
- Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- No Java required

Broad Communications Compatibility
- Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
- Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19 in. Racks

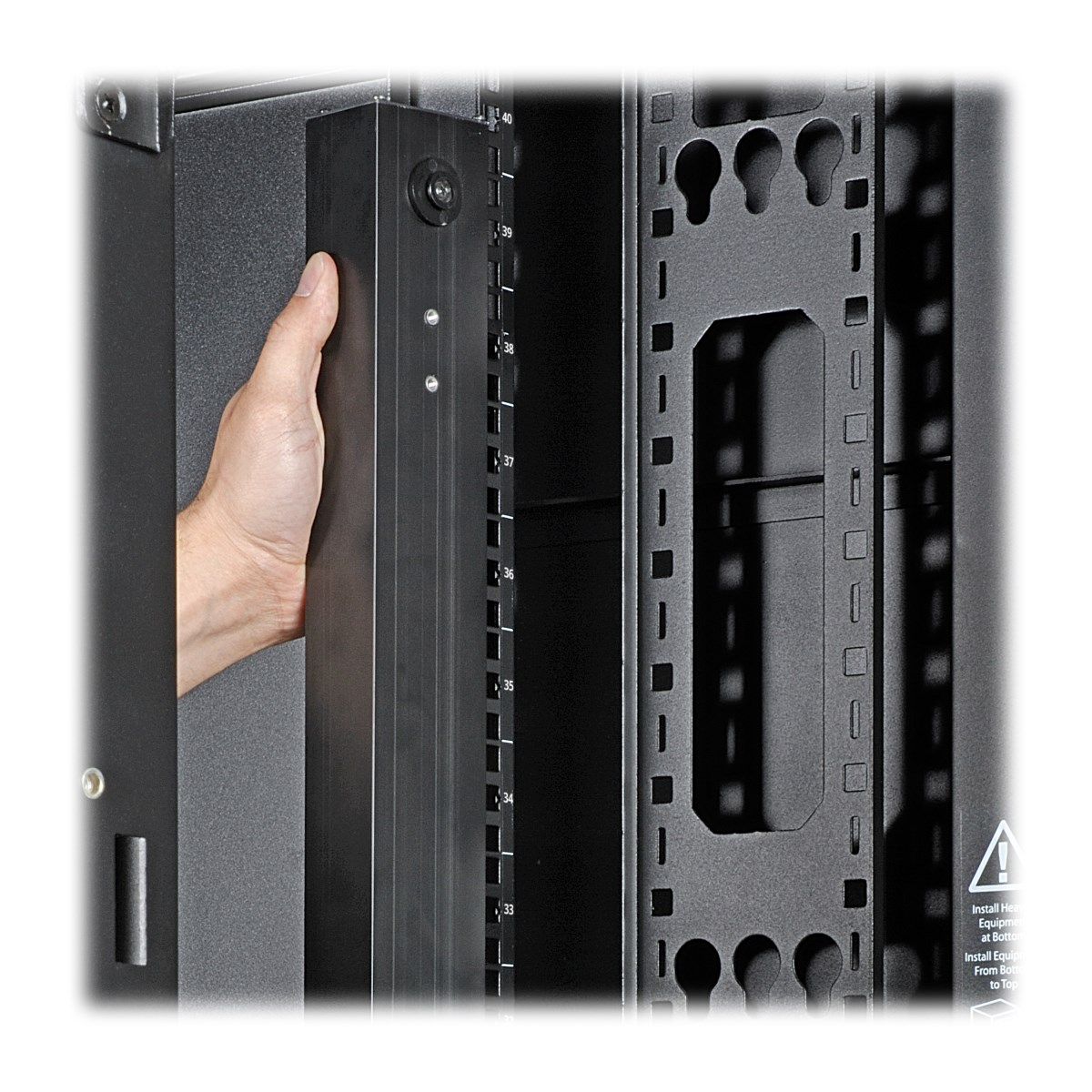

- Mounts vertically using included toolless buttons or rack-mounting brackets
- Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Design
TypeSingle-phase
PDU typesMonitored
MountingVertical
Product colourBlack
CertificationUL 60950-1, NOM, TAA
Rack capacity0U
Housing materialMetal
Ports & interfaces
AC outlets quantity24 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugNEMA L6-30P
Features
Cable length120.1" (3.05 m)
LED indicatorsYes
CertificationUL 60950-1, NOM, TAA
Ergonomics
Cable length120.1" (3.05 m)
LED indicatorsYes
Power
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)2.2 x 2.64 x 70" (56 x 67 x 1778 mm)
Weight11.5 lbs (5.22 kg)
Width2.19" (55.6 mm)
Depth2.65" (67.3 mm)
Height70" (1778 mm)
Package width6.3" (160 mm)
Package depth73.2" (1859.3 mm)
Package height5" (127 mm)
Package weight14.6 lbs (6.62 kg)
Packaging data
Package width6.3" (160 mm)
Package depth73.2" (1859.3 mm)
Package height5" (127 mm)
Package weight14.6 lbs (6.62 kg)
Operational conditions
Storage temperature (T-T)-15 - 60 °C
Storage relative humidity (H-H)5 - 95%
Non-operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
