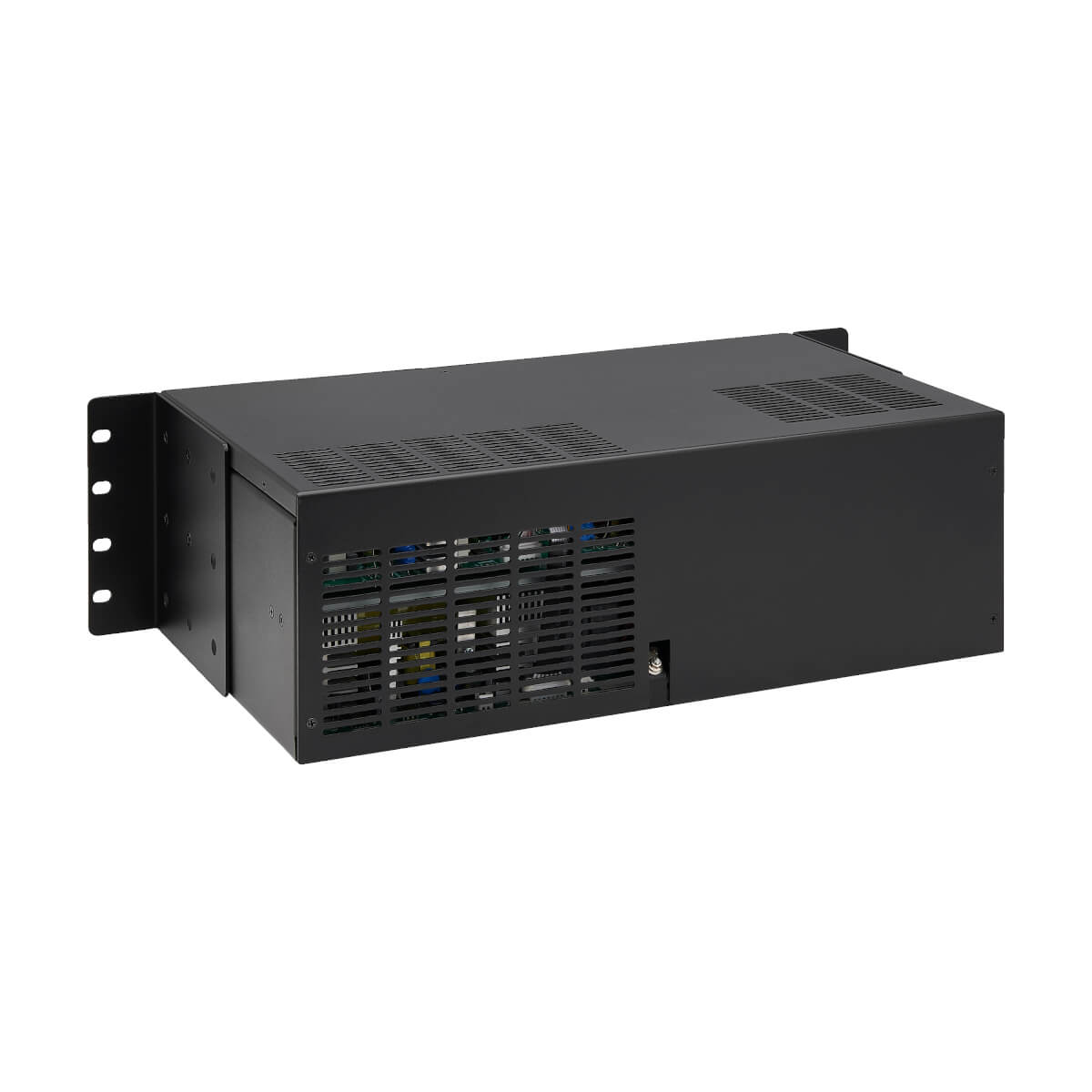

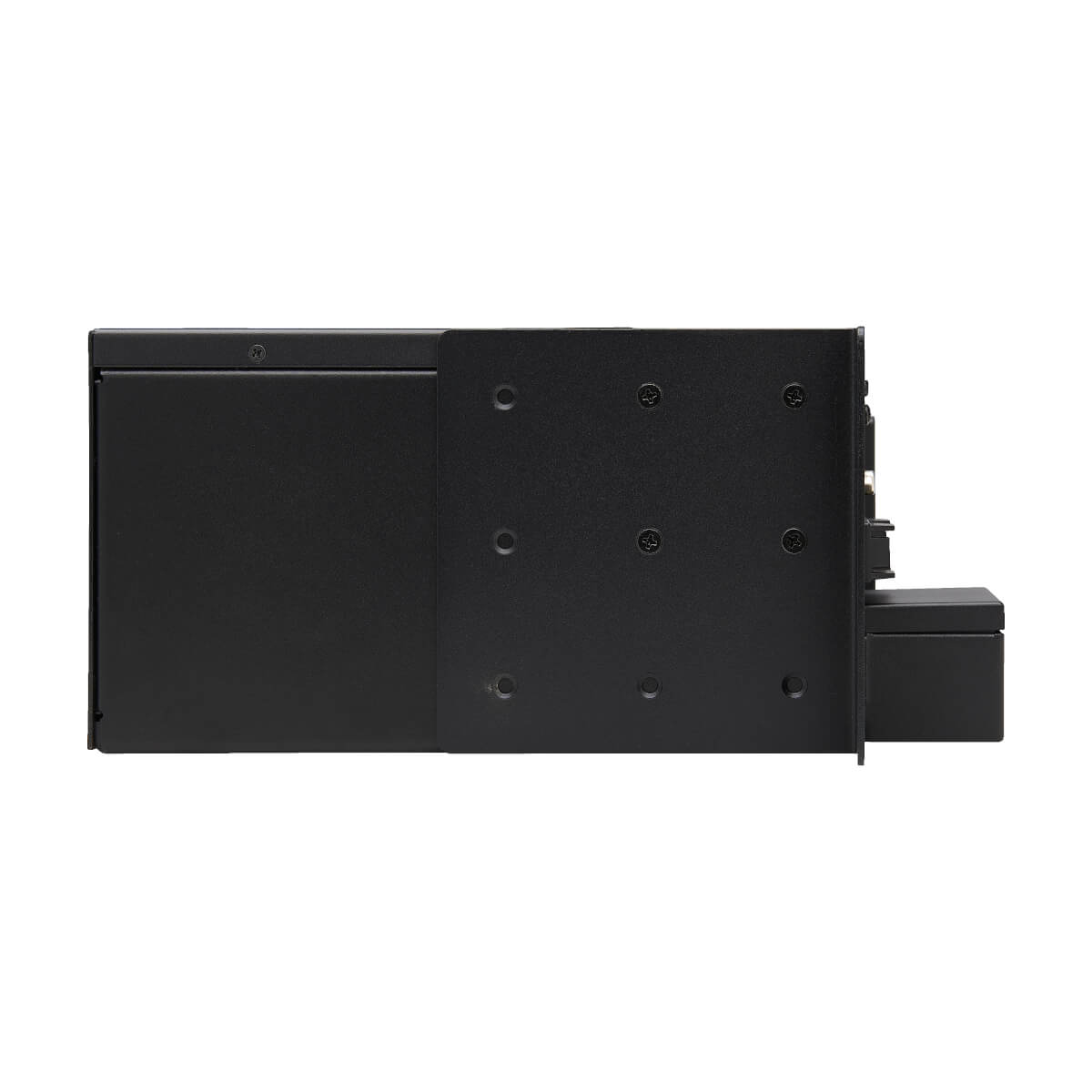

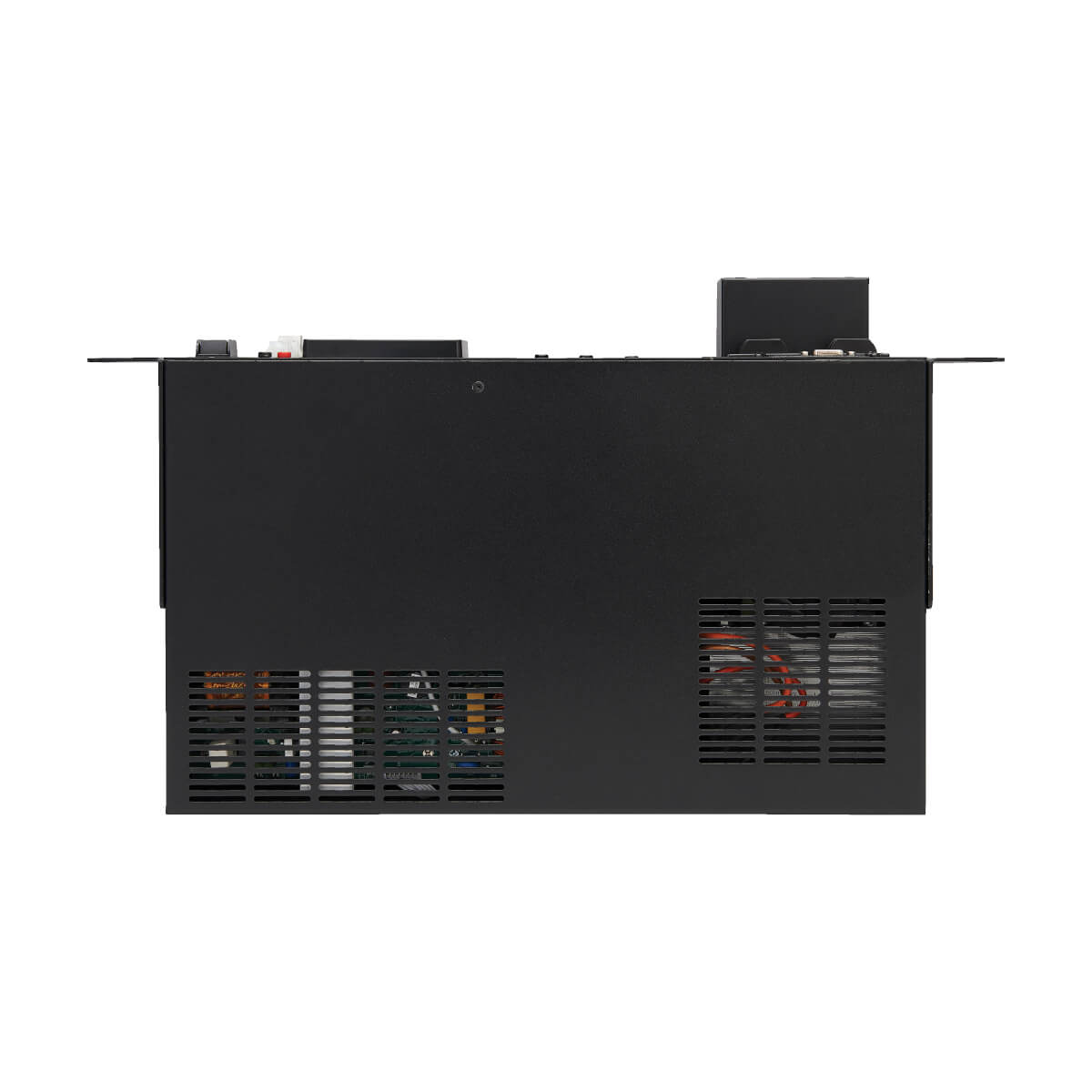

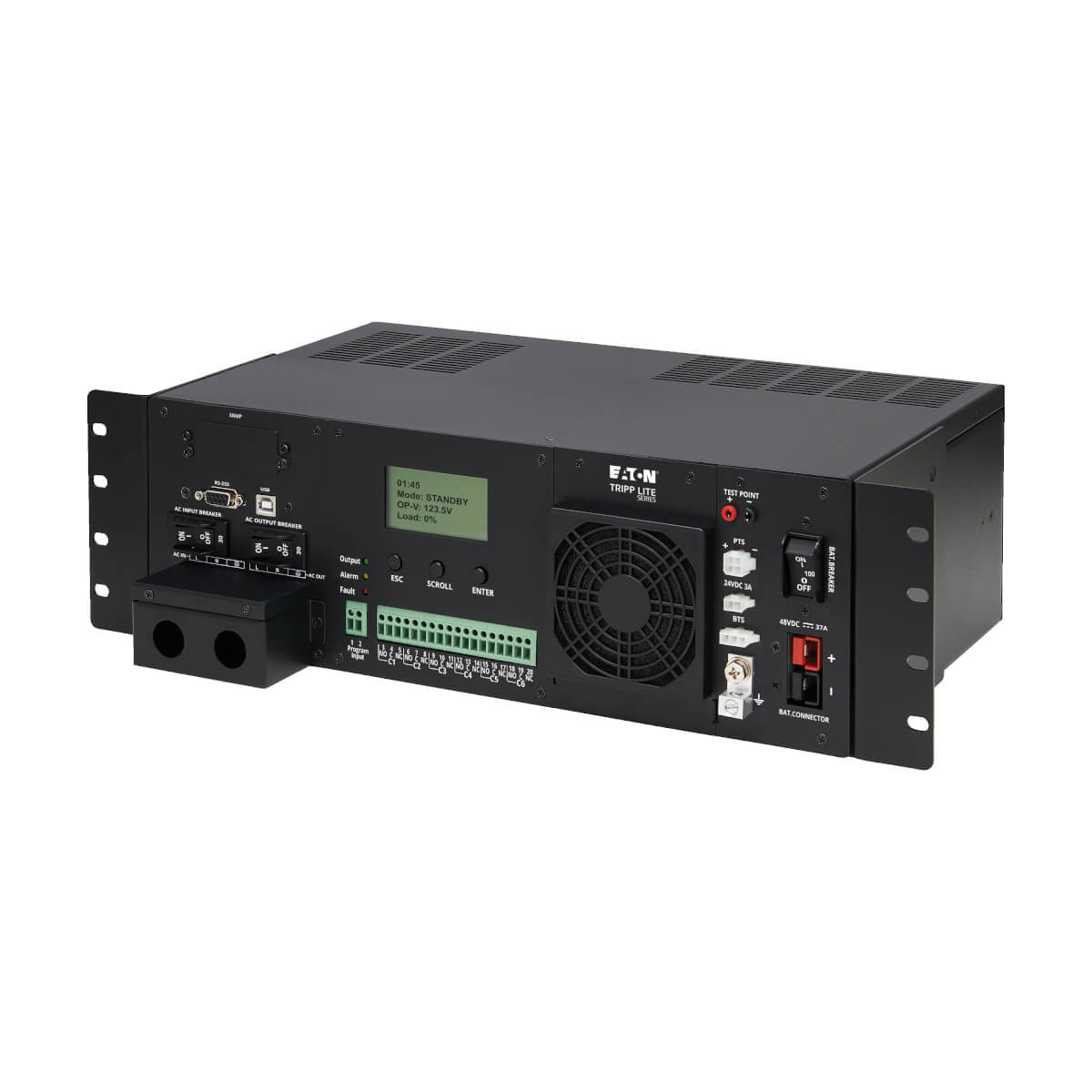

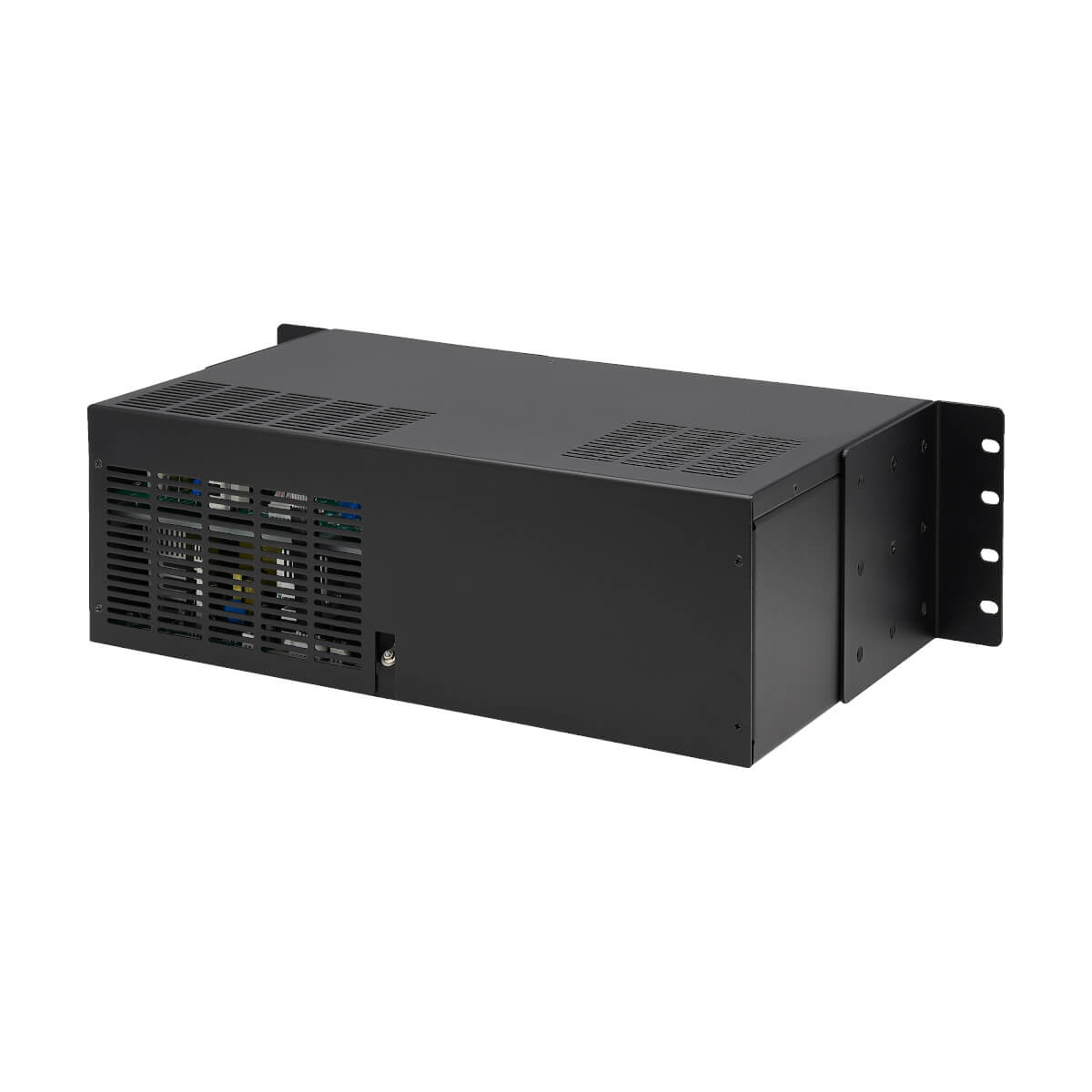

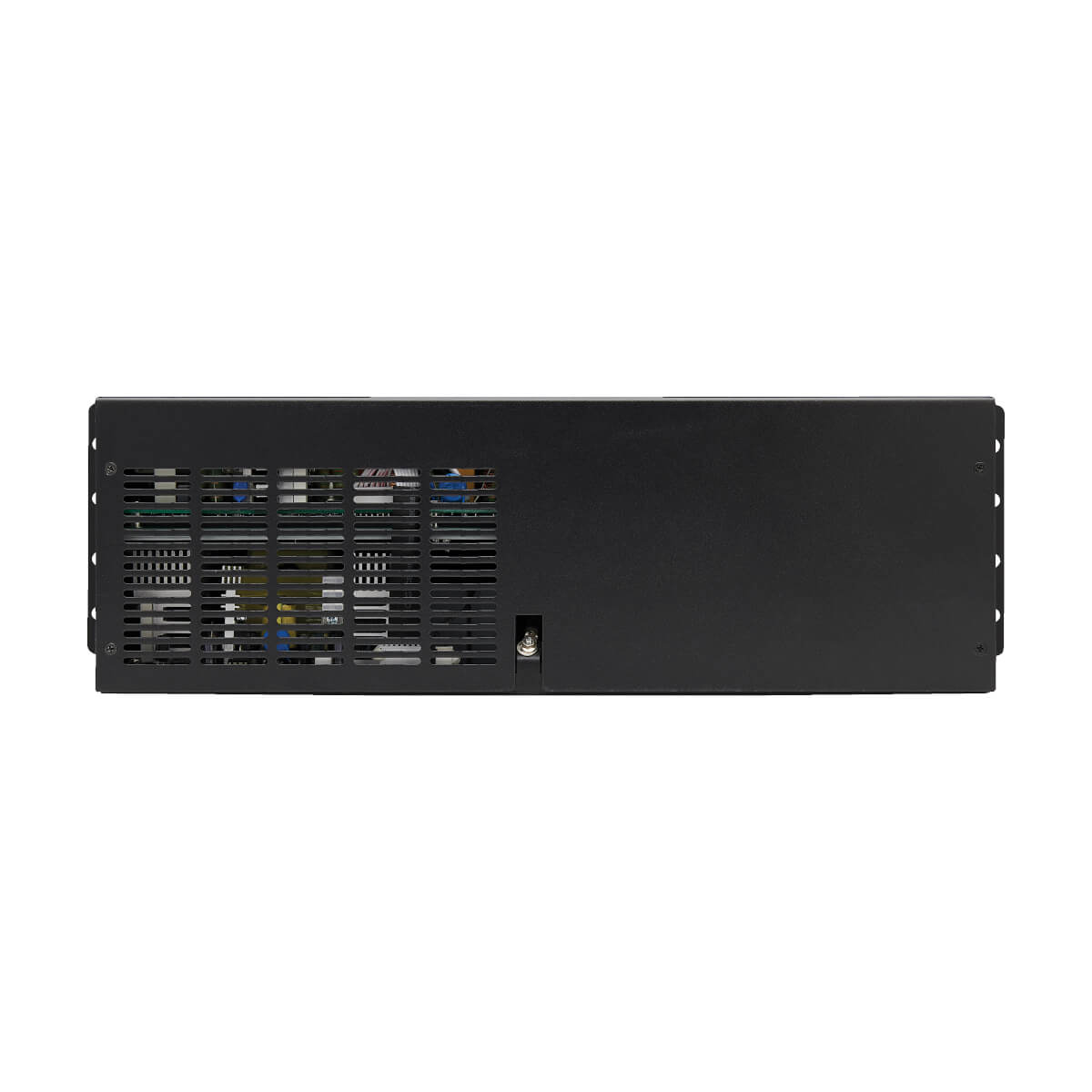

Tripp Lite SMART1524ET uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1200 W 6 AC outlet(s)

Tripp Lite SMART1524ET uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1200 W 6 AC outlet(s)

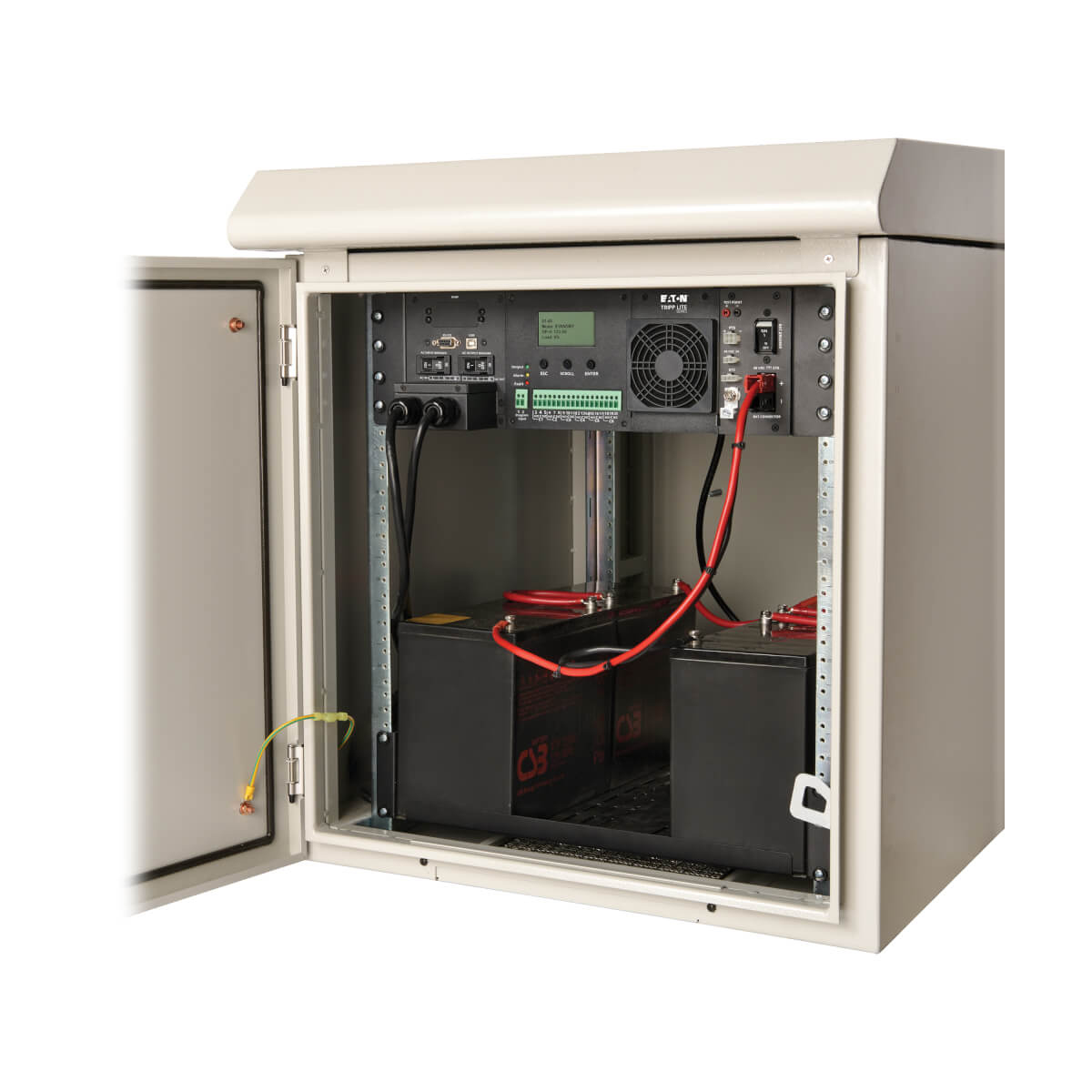

120VAC 24VDC 1500VA 1200W Extreme Temperature Network UPS for Industrial and Traffic Networks, 3U, Hardwire

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 120VAC 24VDC 1500VA 1200WEXTREME TEMPERATURE NETWORKUPS FOR INDUSTRIAL 10138965 Register free see stock
D&H UPS SMART 1500VA EXT TEMP 24DC SMART1524ET
Ingram Micro UPS SMART 1500VA 1200W AVR LCD 8JT724
TD Synnex EXTREME TEMPERATURE UPS SMART 1500VA 24V 5981412

Related Products

Description

120VAC 24VDC 1500VA 1200WEXTREME TEMPERATURE NETWORKUPS FOR INDUSTRIAL

Specifications

Power
Output frequency60 Hz
Output power1200 W
Input operation voltage (min)24 V
Output operation voltage (min)120 V
Surge energy rating480 J
Maximum current12 A
Efficiency96%
Power factor0.7
Output power capacity1.5 kVA
Input frequency50/60 Hz
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Features
Output frequency60 Hz
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power1200 W
Input operation voltage (min)24 V
Output operation voltage (min)120 V
Surge energy rating480 J
Maximum current12 A
Efficiency96%
EMI/RFI noise filteringYes
Power factor0.7
Audible alarm(s)Yes
Output power capacity1.5 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Serial ports quantity1
Battery
Battery recharge time4 h
Typical backup time at half load20 min
Typical backup time at full load7 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity3U
Form factorRackmount
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778:2014 (5th Ed) R10.17; CLASS A; 47 CFR FCC PART 15 SUBPART B:2017; ICES-003:2017; CAN/CSAC22.2 No. 107.3-14 (3rd Ed)+GI1; Series
Built-in fanYes
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)5 - 95%
Technical details
Output frequency60 Hz
Cooling
Cooling typeActive
Built-in fanYes

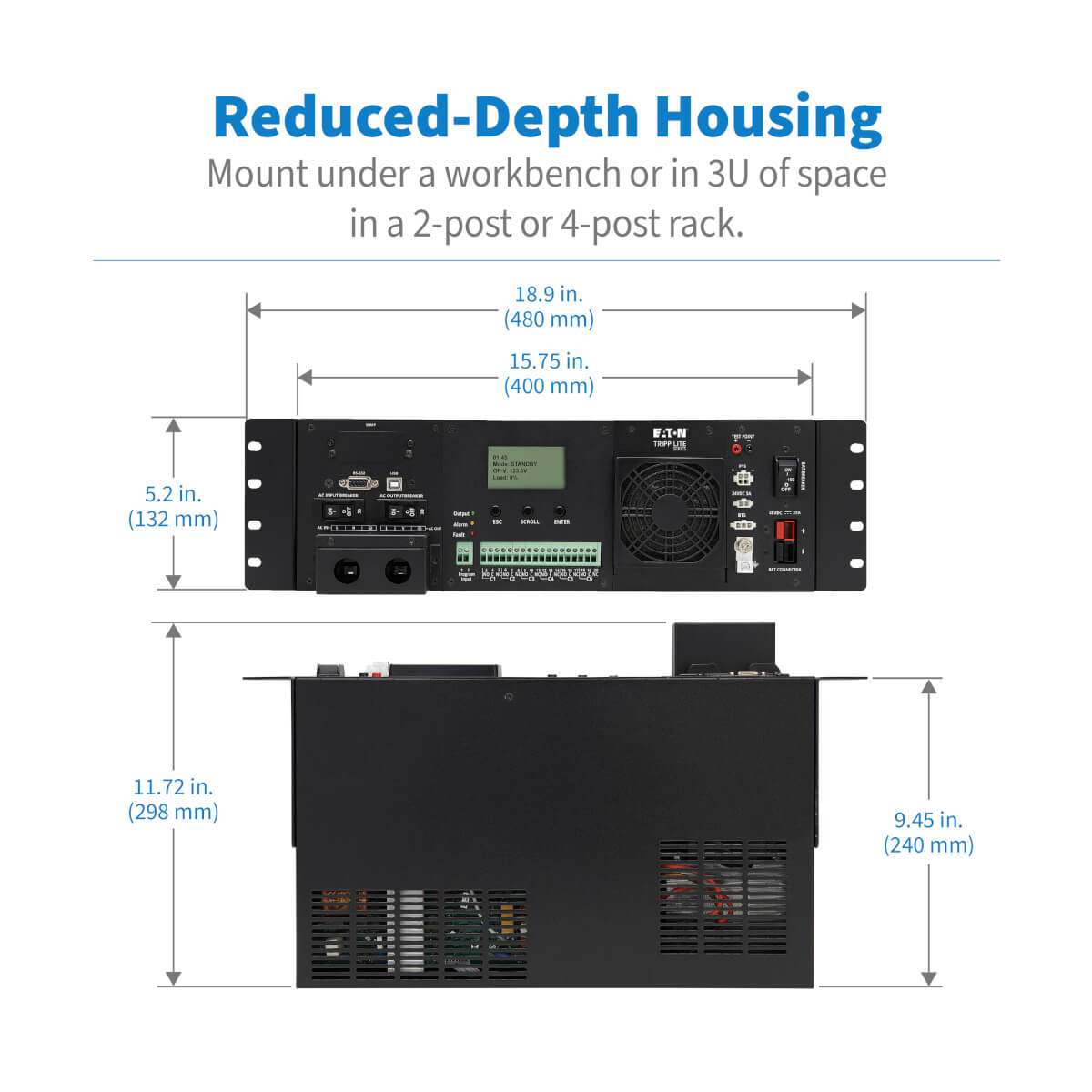

Weight & dimensions
Package width15.3" (388.6 mm)
Package depth23.1" (586.7 mm)
Package height9.7" (246.4 mm)
Weight32.4 lbs (14.7 kg)
Width15.7" (400 mm)
Package weight34.4 lbs (15.6 kg)
Height5.24" (133.1 mm)
Depth9.45" (240 mm)
Packaging data
Rack mount kitYes
ManualYes
Package width15.3" (388.6 mm)
Package depth23.1" (586.7 mm)
Package height9.7" (246.4 mm)
Package weight34.4 lbs (15.6 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width15.3" (388.6 mm)
Master (outer) case length23.1" (586.7 mm)
Master (outer) case height9.7" (246.4 mm)
Master (outer) case gross weight34.4 lbs (15.6 kg)
Certificates
CertificationUL1778:2014 (5th Ed) R10.17; CLASS A; 47 CFR FCC PART 15 SUBPART B:2017; ICES-003:2017; CAN/CSAC22.2 No. 107.3-14 (3rd Ed)+GI1; Series

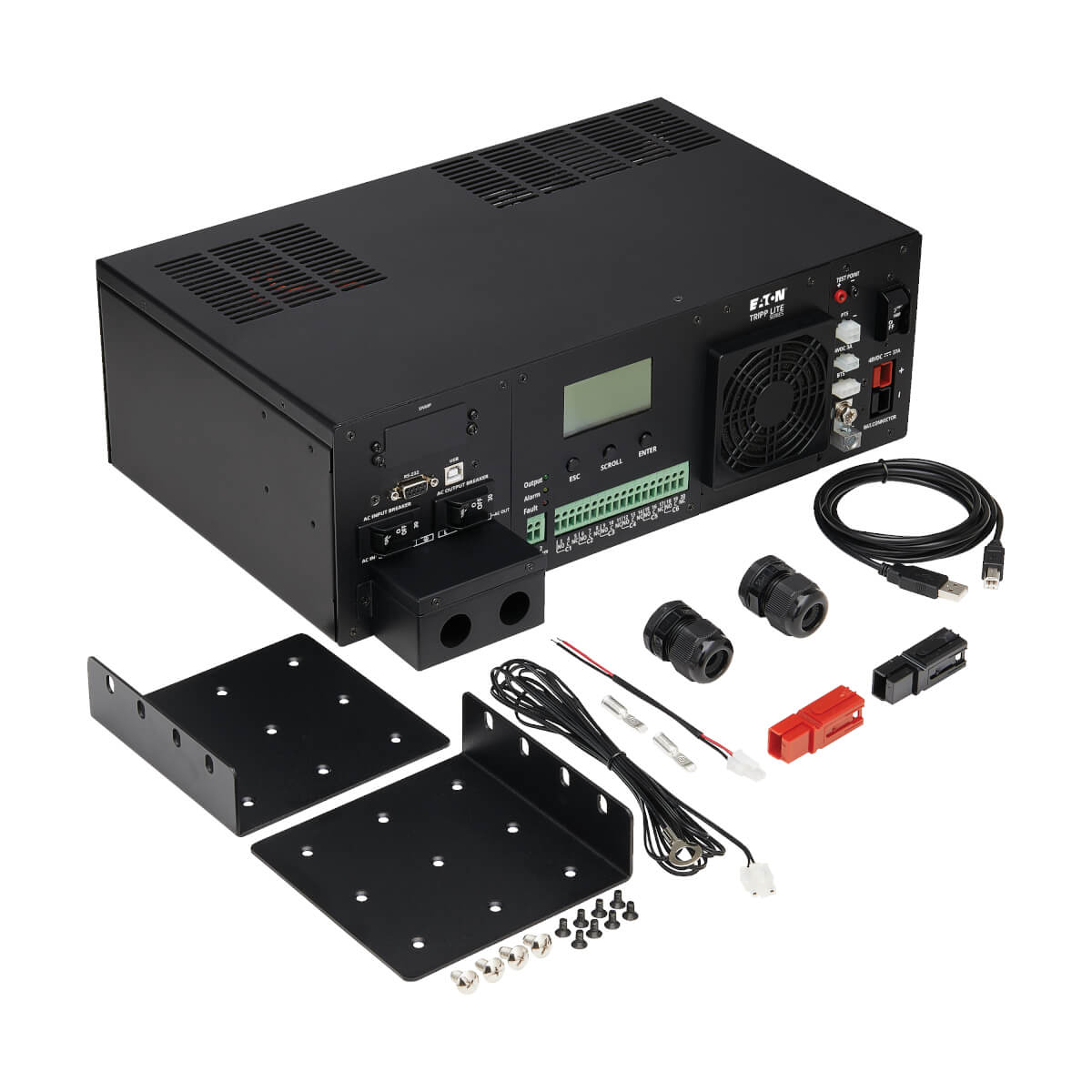

Packaging content
Rack mount kitYes
ManualYes
