Tripp Lite SMART1050SLT uninterruptible power supply (UPS) Line-Interactive 1.05 kVA 650 W 8 AC outlet(s)

Tripp Lite SMART1050SLT uninterruptible power supply (UPS) Line-Interactive 1.05 kVA 650 W 8 AC outlet(s)

SmartPro, 650W, 1050VA, 120V AC, 50/60Hz, 15A, 690J

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1050VA/680W UPS W/6 OUTLETSAND LAN PORT SOFTWARE INCLUDED

 354998 Register free see stock
Arlington Industries

8-OUT LED LINE INTERACTIVE TOWER UPS

 TRPSMART1050SLT

Related Products

Description

1050VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 100V, 110V or 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost during brownouts and voltage cut during overvoltages to maintain regulated 100V, 110V or 120V nominal output over an input voltage range of 95-145V. Features NEMA 5-15P input plug and 8 NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Features 3-stage metered current monitoring and battery charge status LEDs. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Field replaceable, hot-swappable internal batteries.

- SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
- Line-interactive automatic voltage regulation (AVR) maintains selectable 100V, 110V or 120V nominal output during brownouts as low as 83V and overvoltages to 145V
- Enables continuous operation through blackouts, voltage fluctuations and surges
- Line-interactive AVR provides a 14% boost during brownouts and a 12% voltage cut during overvoltages
- Standard internal battery set offers 19 min. runtime at half load (325W) and 7 min. at full load (650W)

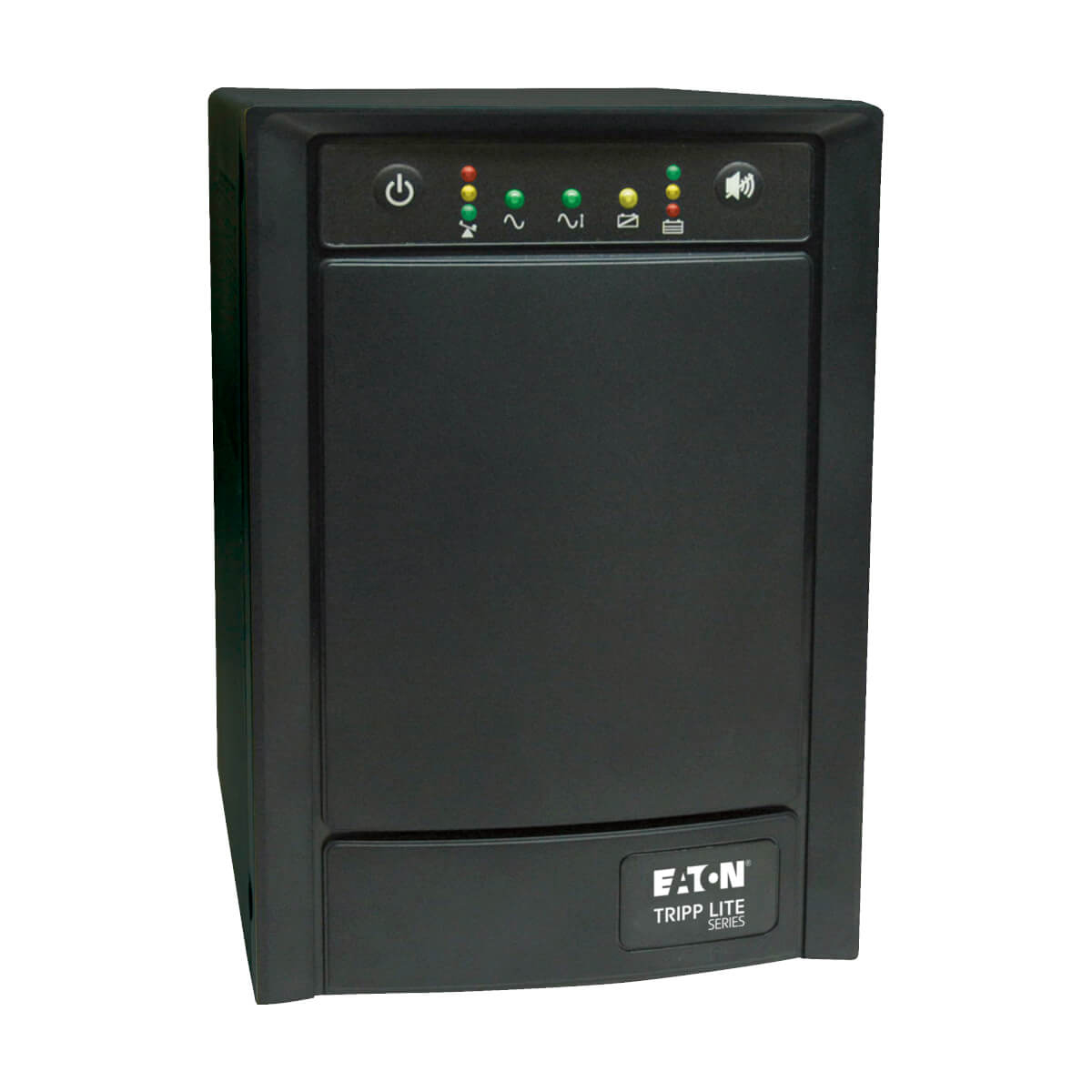

- Space-saving upright tower format
- Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

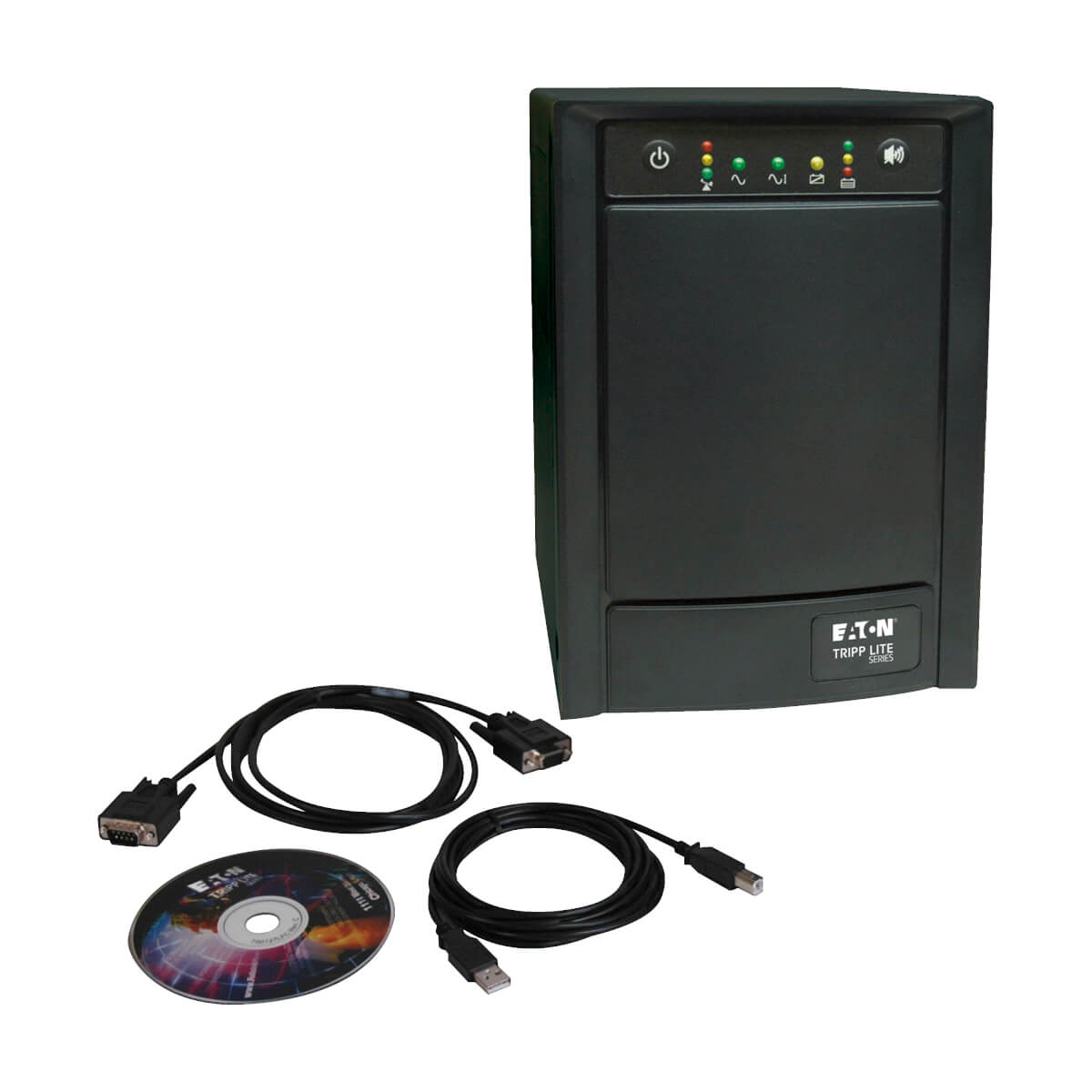

- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control

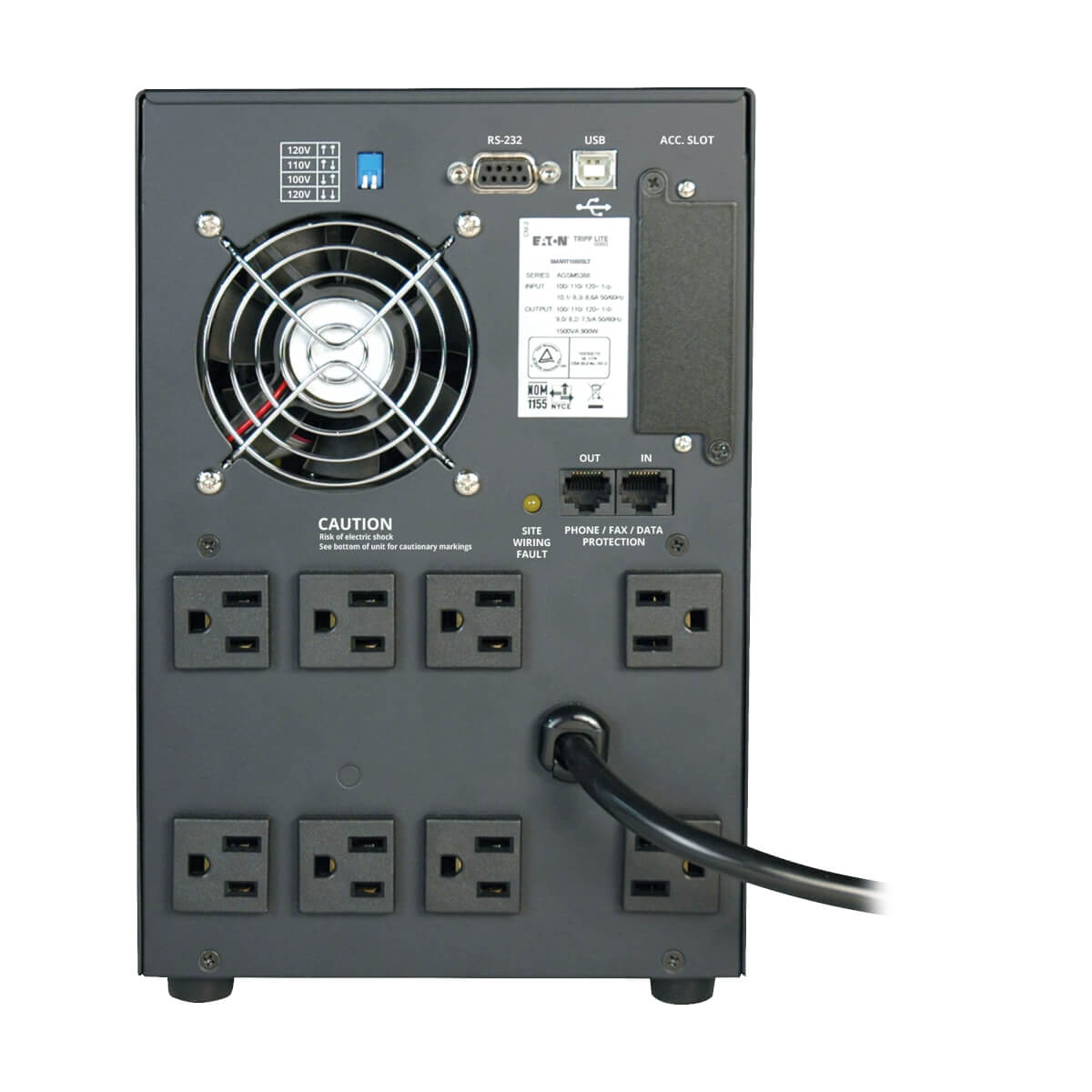

- NEMA 5-15P input plug; 8 x battery-supported NEMA 5-15R output receptacles
- Front panel LEDs offer current monitoring, voltage regulation and battery charge level information
- UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
- Single-line tel/DSL or network Ethernet line surge suppression

Specifications

Power
Output voltage regulation-13 - 15%
Output frequency regulation50/60 Hz
Output power650 W
Input operation voltage (min)100 V
Input operation voltage (max)120 V
Output operation voltage (min)100 V
Output operation voltage (max)120 V
Surge energy rating690 J
Maximum current15 A
Output power capacity1.05 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Serial ports quantity1
Modem (RJ-11) ports2
Performance
UPS topologyLine-Interactive
EMI/RFI noise filteringYes
Surge protectionYes
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyLine-Interactive
Output voltage regulation-13 - 15%
Output frequency regulation50/60 Hz
Output power650 W
Input operation voltage (min)100 V
Input operation voltage (max)120 V
Output operation voltage (min)100 V
Output operation voltage (max)120 V
Surge energy rating690 J
Maximum current15 A
EMI/RFI noise filteringYes
Surge protectionYes
Audible alarm(s)Yes
Output power capacity1.05 kVA
Battery
Battery voltage24 V
Battery recharge time6 h
Typical backup time at half load19 min
Typical backup time at full load7 min
Hot-swap batteryYes
Replacement battery cartridgeRBC24-SLT
Design
Country of originChina
Form factorTower
Product colourBlack
CertificationUL1778, CSA, NOM, FCC
Cable length70.9" (1.8 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Certificates
CertificationUL1778, CSA, NOM, FCC
Weight & dimensions
Package width17.9" (454.7 mm)
Package depth9.3" (236.2 mm)
Package height13.3" (337.8 mm)
Weight35.9 lbs (16.3 kg)
Width6.75" (171.4 mm)
Package weight38.4 lbs (17.4 kg)
Height10.3" (260.4 mm)
Depth13.3" (336.6 mm)
Packaging data
Package width17.9" (454.7 mm)
Package depth9.3" (236.2 mm)
Package height13.3" (337.8 mm)
Package weight38.4 lbs (17.4 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width17.9" (454.7 mm)
Master (outer) case length9.3" (236.2 mm)
Master (outer) case height13.3" (337.8 mm)
Master (outer) case gross weight38.4 lbs (17.4 kg)
Other features
Relative humidity0 - 95%
