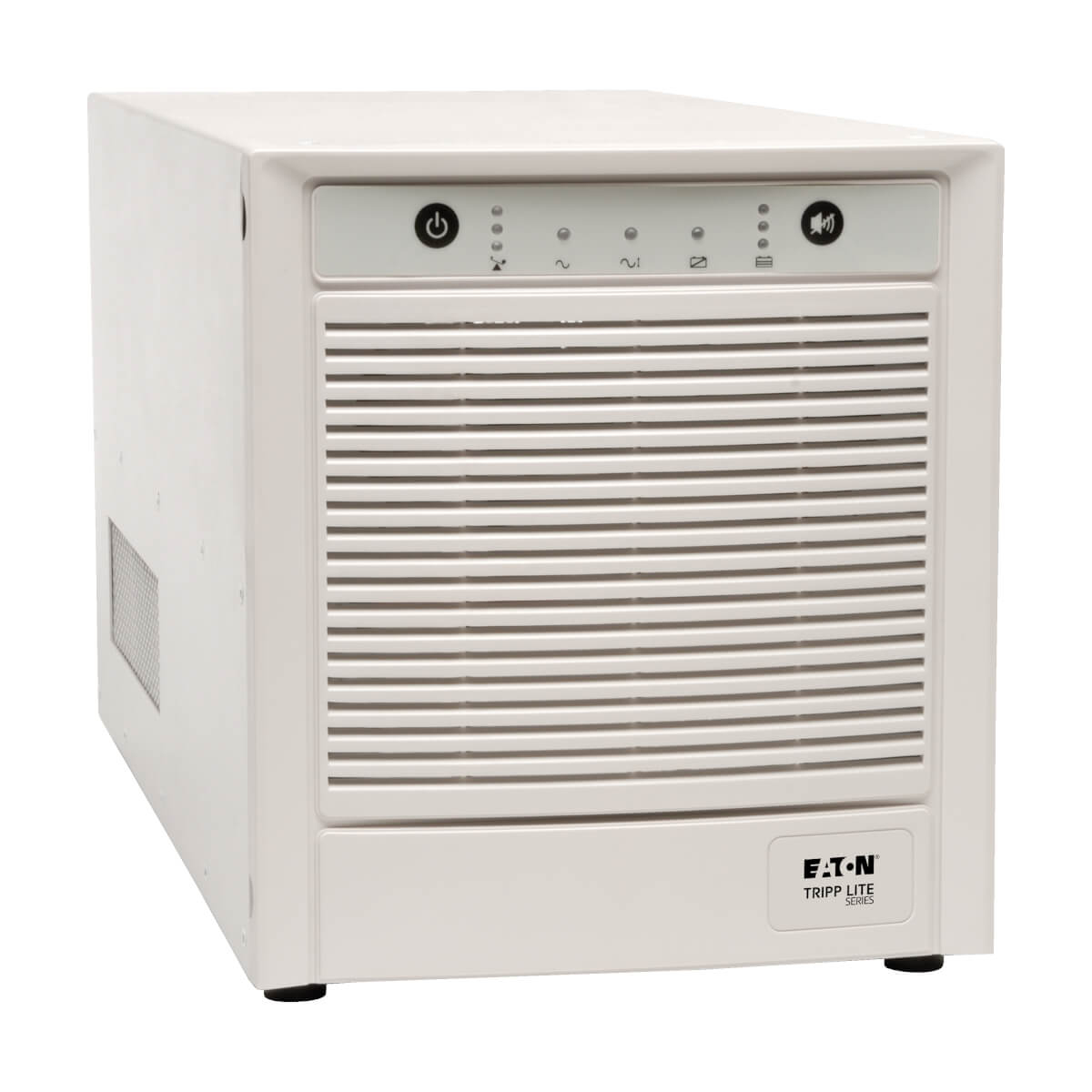

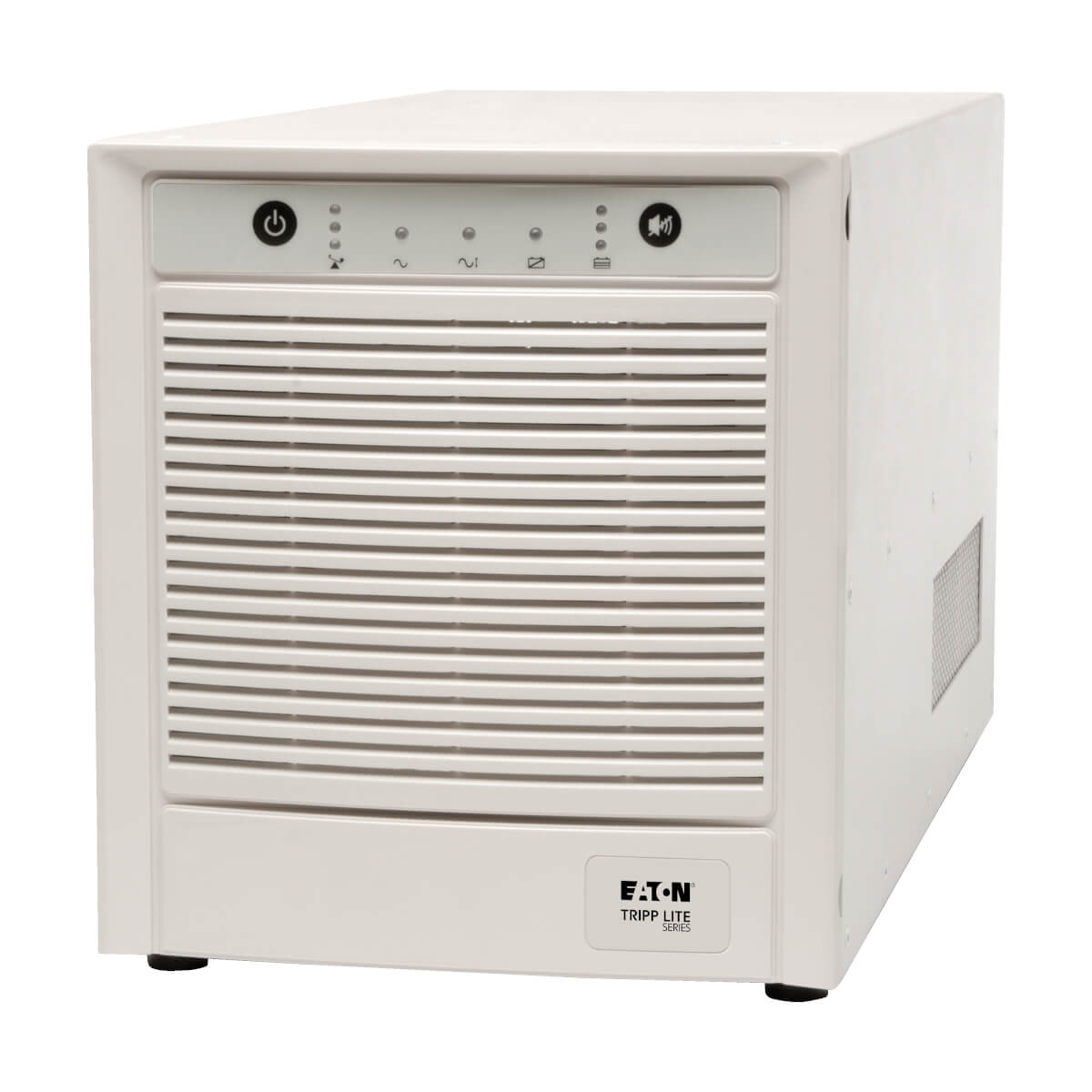

Tripp Lite SMART2500XLHG uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

Tripp Lite SMART2500XLHG uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

SmartPro, 1920W, 2200VA, 120V AC, 60Hz, 510J

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

2200VA 1920W UPS SMART TOWERHOSPITAL MEDICAL AVR 120V

 565429 Register free see stock

Related Products

Description

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite’s SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 μA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure.

- Ideal UPS protection for applications in patient-care areas where UL 60601-1 3rd edition listed medical electrical equipment is required
- Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
- Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
- Provides connected equipment with continuous power during short and long duration loss of commercial power
- Expandable runtime is available with the addition of one or more external battery packs (BP48V24-2U and BP24V60RT-3U)
- Line-interactive voltage regulation corrects brownouts and over voltages from 83 to 143V back to usable 120V output levels, without using battery power
- Resistant to electrostatic discharge
- Supports loads up to 2200VA/1920W
- 13 min half-load runtime (1100VA/960W), 4 min full load runtime (2200VA/1920W)

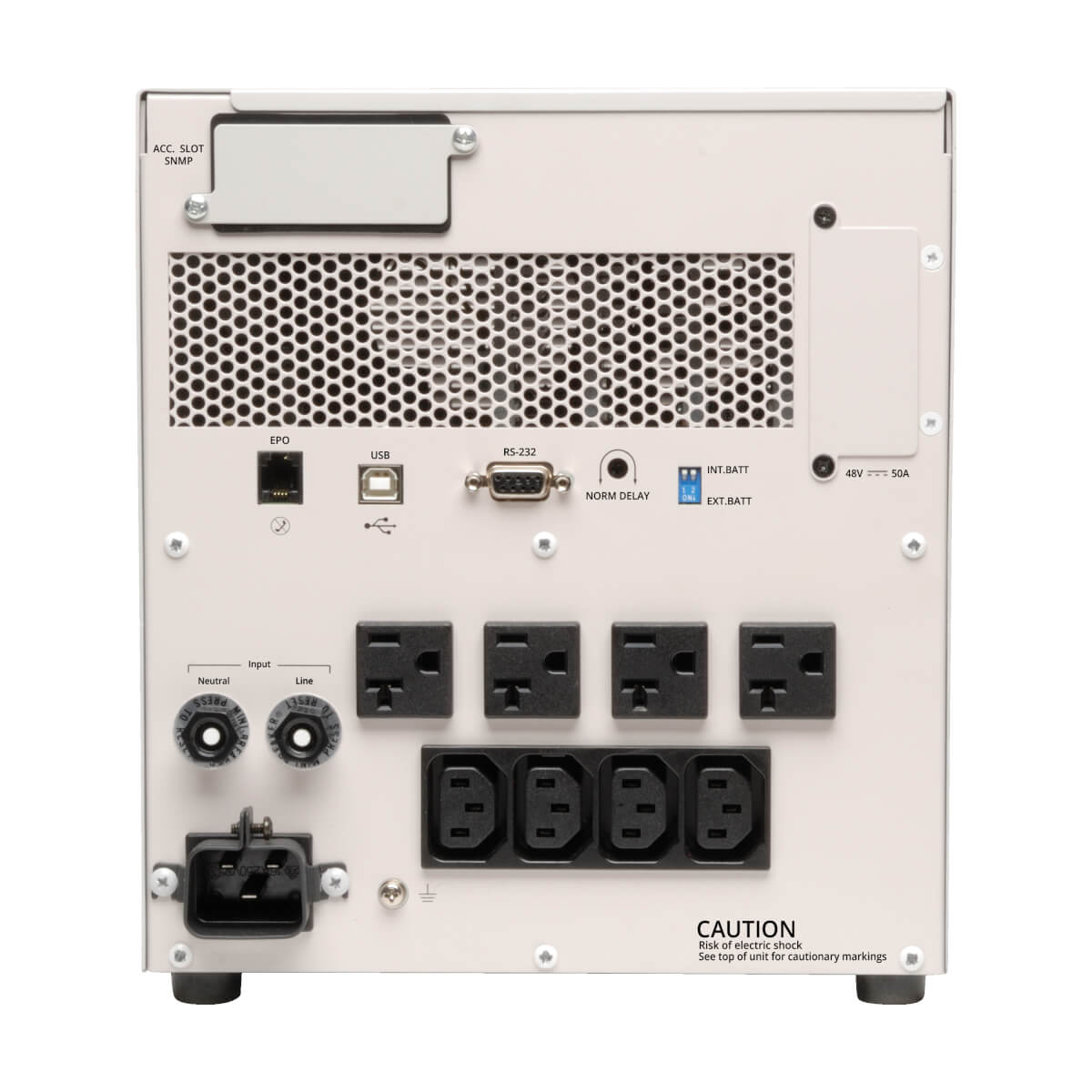

- Input: IEC320-C20 inlet with locking clamp/ Output: 4 NEMA 5-15/20R and 4 IEC C13
- Built-in USB, DB9 (RS-232) & optional SNMPWEBCARD accessory monitoring options

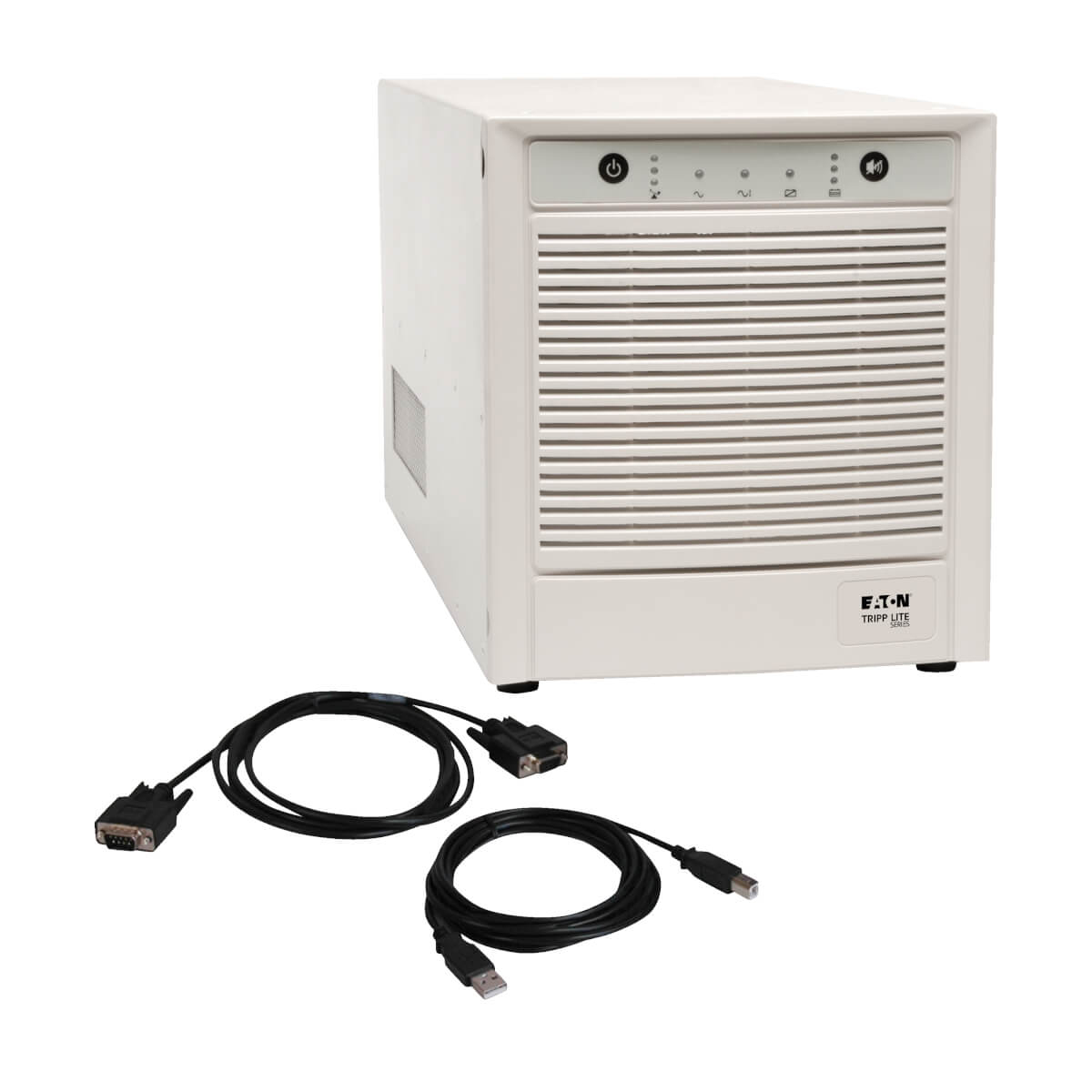

- PowerAlert unattended shutdown software and complete cabling included
- Complete surge protection (510 Joules), line isolation and EMI/RFI noise filtering
- 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace
- Battery replacement door and back panel grounding lug
- Relay IO card allows users to communicate UPS status & events via 6 configurable contact closure outputs

Specifications

Power
Output power1920 W
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating510 J
Maximum current15 A
Emergency Power Off (EPO)Yes
Power factor0.87
Output power capacity2.2 kVA
Input frequency60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler, NEMA 5–15
Power plugC20 coupler
USB 2.0 ports quantity1
Serial ports quantity1
Performance
Audible alarm modesBattery replacement
UPS topologyLine-Interactive
Response time4 ms
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originChina
Audible alarm modesBattery replacement
UPS topologyLine-Interactive
Response time4 ms
Output power1920 W
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Surge energy rating510 J
Maximum current15 A
EMI/RFI noise filteringYes
Surge protectionYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.87
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency60 Hz
Battery
Number of battery cells1
Battery recharge time4.5 h
Typical backup time at half load13 min
Typical backup time at full load4.4 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourWhite
Cooling typeActive
CertificationUL, CSA, FCC, EMI
Cable length70.9" (1.8 m)
Built-in fanYes
Housing materialPolyvinyl chloride (PVC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Certificates
CertificationUL, CSA, FCC, EMI
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width14" (355.6 mm)
Package depth24" (609.6 mm)
Package height16" (406.4 mm)
Weight73.2 lbs (33.2 kg)
Width8.9" (226.1 mm)
Package weight100.1 lbs (45.4 kg)
Height9.72" (246.9 mm)
Depth19.1" (484.9 mm)
Packaging data
Package width14" (355.6 mm)
Package depth24" (609.6 mm)
Package height16" (406.4 mm)
Package weight100.1 lbs (45.4 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width14" (355.6 mm)
Master (outer) case length24" (609.6 mm)
Master (outer) case height16" (406.4 mm)
Master (outer) case gross weight100.1 lbs (45.4 kg)
