Tripp Lite SMX2200XLRT2U uninterruptible power supply (UPS) 2.2 kVA 1920 W 8 AC outlet(s)

Tripp Lite SMX2200XLRT2U uninterruptible power supply (UPS) 2.2 kVA 1920 W 8 AC outlet(s)

SmartPro 230V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

RACK MOUNT UPSSMX2200XLRT2U

 373366 Register free see stock
D&H

UPS 2200VA 1600W International

 SMX2200XLRT2U
Ingram Micro

UPS SMART INT 2200VA 1920W 230V

 GU1617
ScanSource

Tripp Lite SMX2200XLRT2U UPS SMART

 POW-SMX2200XLRT2U
TD Synnex

Tripp Lite Series SmartPro 230V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

 1886460

Related Products

Description

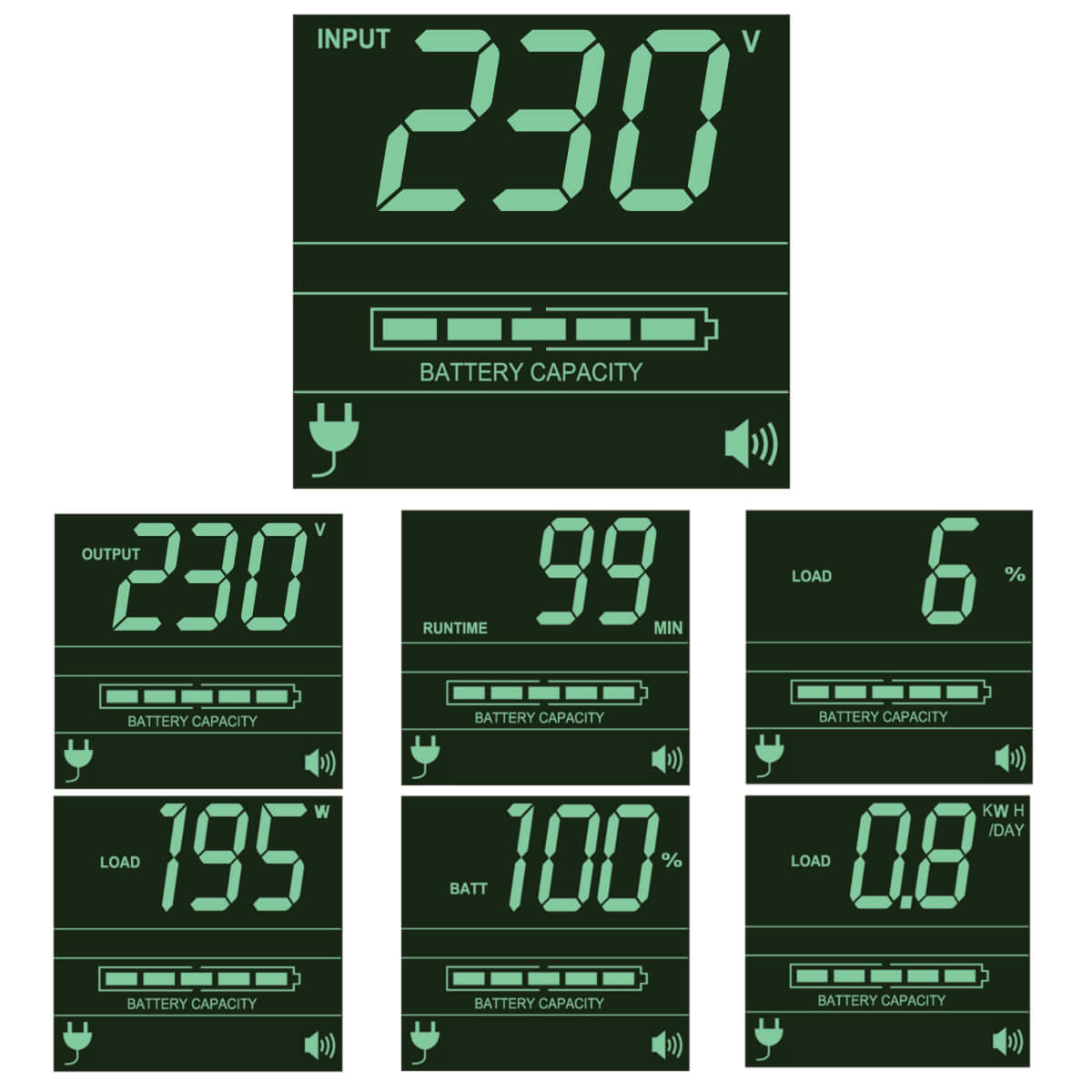

SmartPro® Line-Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line-Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. This unique configuration excels in exceptionally poor power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and macOS. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert® UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rack-mount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Specifications

Power
Output frequency50/60 Hz
Output power1920 W
Input operation voltage (min)158 V
Input operation voltage (max)278 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating350 J
Maximum current15 A
Efficiency98%
Emergency Power Off (EPO)Yes
Power factor0.9
Output power capacity2.2 kVA
Input frequency50/60 Hz
Battery
Battery typeRBC94-2U
Battery recharge time4.5 h
Typical backup time at half load11.9 min
Typical backup time at full load5 min
Hot-swap batteryYes
Performance
Number of input phases1
Response time4 ms
LED indicatorsYes
Surge protectionYes
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
Number of input phases1
Response time4 ms
Output power1920 W
Input operation voltage (min)158 V
Input operation voltage (max)278 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating350 J
Maximum current15 A
Efficiency98%
Surge protectionYes
Emergency Power Off (EPO)Yes
Power factor0.9
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler
USB 2.0 ports quantity1
Serial ports quantity1
Design
Country of originChina
Rack capacity2U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationCE, GOST, SASO, FCC
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Output frequency50/60 Hz
Compliance certificatesRoHS
Certificates
CertificationCE, GOST, SASO, FCC
Compliance certificatesRoHS
Weight & dimensions
Package width24.2" (614.7 mm)
Package depth21.5" (546.1 mm)
Package height8.7" (221 mm)
Weight68.8 lbs (31.2 kg)
Width17.5" (444.5 mm)
Package weight81.1 lbs (36.8 kg)
Height3.5" (88.9 mm)
Depth19.5" (495.3 mm)
Packaging data
Package width24.2" (614.7 mm)
Package depth21.5" (546.1 mm)
Package height8.7" (221 mm)
Package weight81.1 lbs (36.8 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Other features
Battery typeRBC94-2U
