Tripp Lite SMX1500LCDT uninterruptible power supply (UPS) 1.5 kVA 900 W 8 AC outlet(s)

Tripp Lite SMX1500LCDT uninterruptible power supply (UPS) 1.5 kVA 900 W 8 AC outlet(s)

SmartPro 230V 1.5kVA 900W Line-Interactive UPS, Tower, LCD, USB, 8 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1500VA 900W UPS INTERNATIONALSMART LCD TOWER AVR 230V USB 565441 Register free see stock
Arlington Industries 8-OUT 900W LCD INTERNATIONAL TOWER UPS TRPSMX1500LCDT
ASI Corp SMX1500LCDT 1500VA 900W UPS Line-Interactive SmartPro RM 230V C13 194579
D&H UPS 1500VA 900W International SMX1500LCDT
Ingram Micro UPS SMART INT 1500VA 900W LCDT TL6674
TD Synnex 1500VA UPS SMART LCD TOWER BATTERY BACK UP AVR 230V USB COAX RJ45 3681734

Related Products

Description

The SMX1500LCDT SmartPro® 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1500LCDT switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

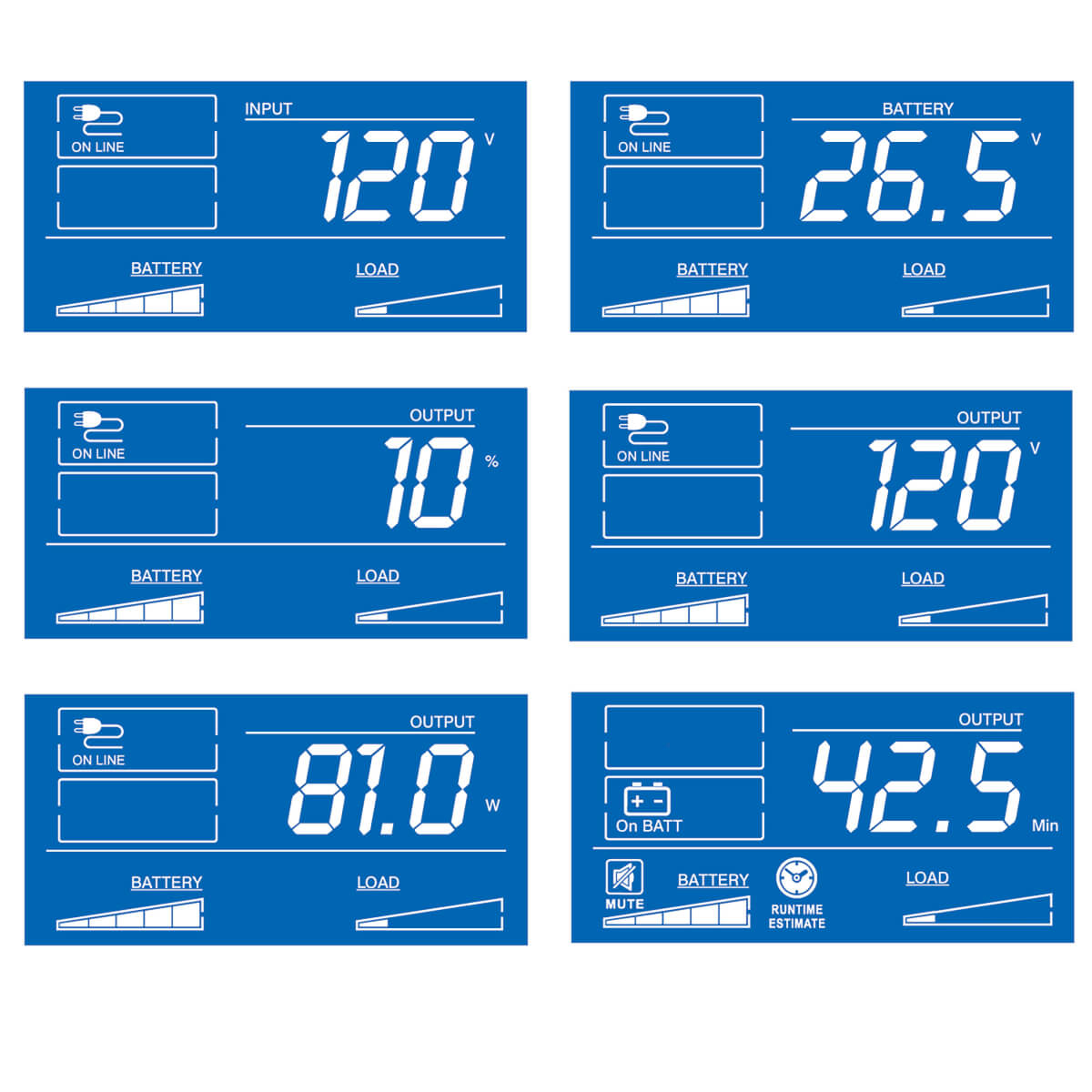

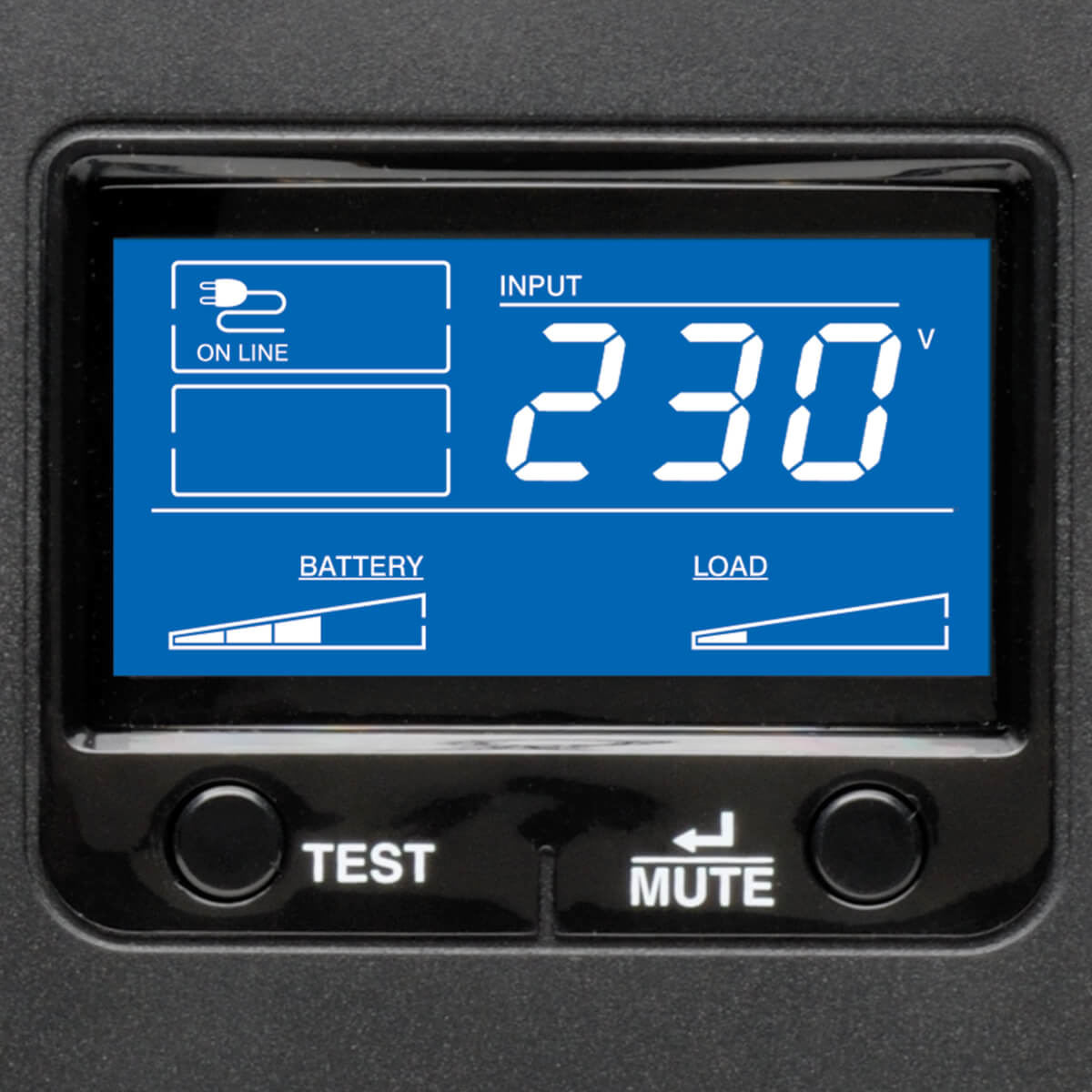

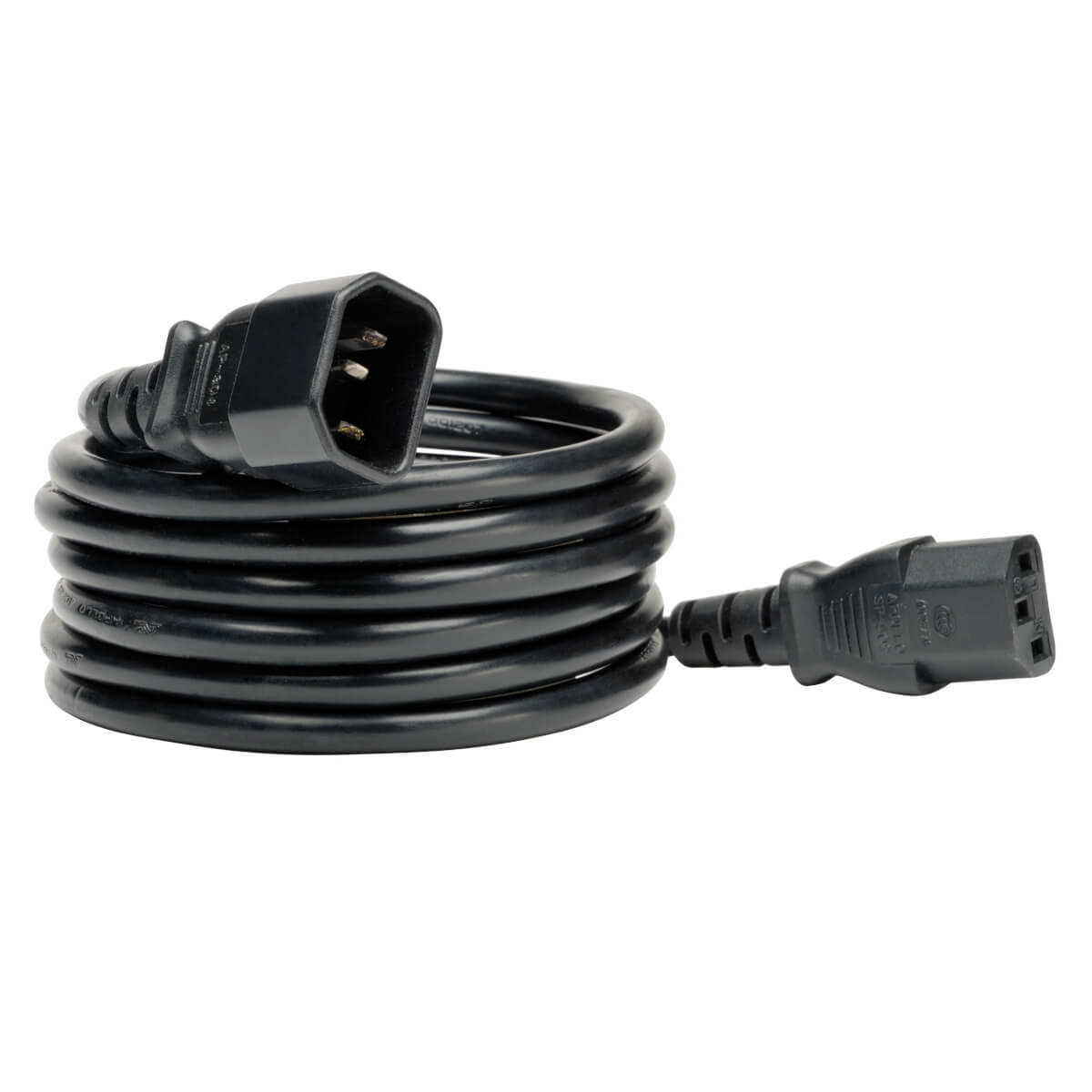

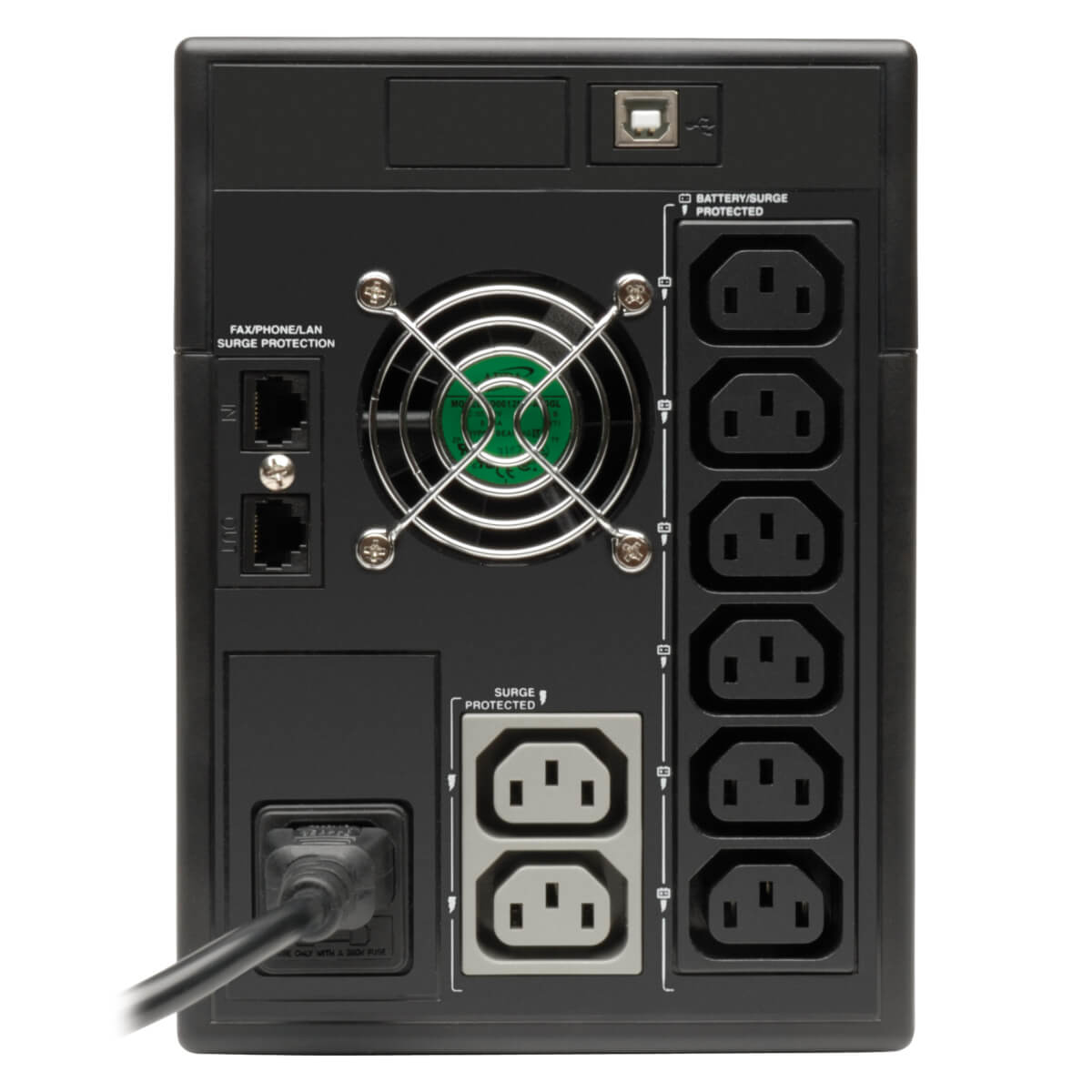

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCDT has an internal battery that provides 10 minutes of support at half load. It can also power an entry-level PC up to 90 minutes. Two of the eight outlets provide surge protection only for printers and other non-essential devices A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.

Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 170V to 280V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 455-joule surge suppression rating protects your equipment from harmful power surges. With free downloadable PowerAlert® software, SMX1500LCDT enables safe unattended system shutdown in case of a prolonged power failure.

Specifications

Power
Output power900 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating455 J
Maximum current10 A
Efficiency95%
Output power capacity1.5 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Ethernet LAN (RJ-45) ports2
Performance
LED indicatorsYes
Surge protectionYes
Features
Country of originChina
Output power900 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating455 J
Maximum current10 A
Efficiency95%
Surge protectionYes
Output power capacity1.5 kVA
Battery
Battery voltage12 V
Typical backup time at half load10 min
Hot-swap batteryYes
Design
Country of originChina
Form factorCompact
LED indicatorsYes
Product colourBlack
Cooling typeActive
Cable length70.9" (1.8 m)
Display typeLCD
Cooling
Cooling typeActive
Weight & dimensions
Package width9.1" (231.1 mm)
Package depth19.3" (490.2 mm)
Package height11.3" (287 mm)
Weight24.7 lbs (11.2 kg)
Width5.75" (146 mm)
Package weight27.1 lbs (12.3 kg)
Height8" (203.2 mm)
Depth15.5" (393.7 mm)
Packaging data
Package width9.1" (231.1 mm)
Package depth19.3" (490.2 mm)
Package height11.3" (287 mm)
Package weight27.1 lbs (12.3 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width9.1" (231.1 mm)
Master (outer) case length19.3" (490.2 mm)
Master (outer) case height11.3" (287 mm)
Master (outer) case gross weight27.1 lbs (12.3 kg)
