Tripp Lite SMART5000XFMRXL uninterruptible power supply (UPS) Line-Interactive 5 kVA 3750 W 11 AC outlet(s)

Tripp Lite SMART5000XFMRXL uninterruptible power supply (UPS) Line-Interactive 5 kVA 3750 W 11 AC outlet(s)

SmartPro 208/120V 5kVA 3.75kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 5000VA UPS 3U RACK/ TOWER208V INPUT 208V & 120V OUTPUT11 OUTLETS 304973 Register free see stock
BlueStar UPS SMARTPRO RACK/TOWER LINE 5000VA 120V/208V 11 OUTL SMART5000XFMRXL
D&H 5kVA 3750W UPS RM 3U SMART5000XFMRXL
Ingram Micro UPS SMART 5000VA 3750WAVR 3URM F35001
TD Synnex UPS 5000VA SMART AVR EXT-RUN USB DB9 3U 1039442

Related Products

Description

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
- 5000VA/3750 watt max. output power capacity compatible with North American 208V/60Hz input voltage
- Supports full output at either 208V or 120V

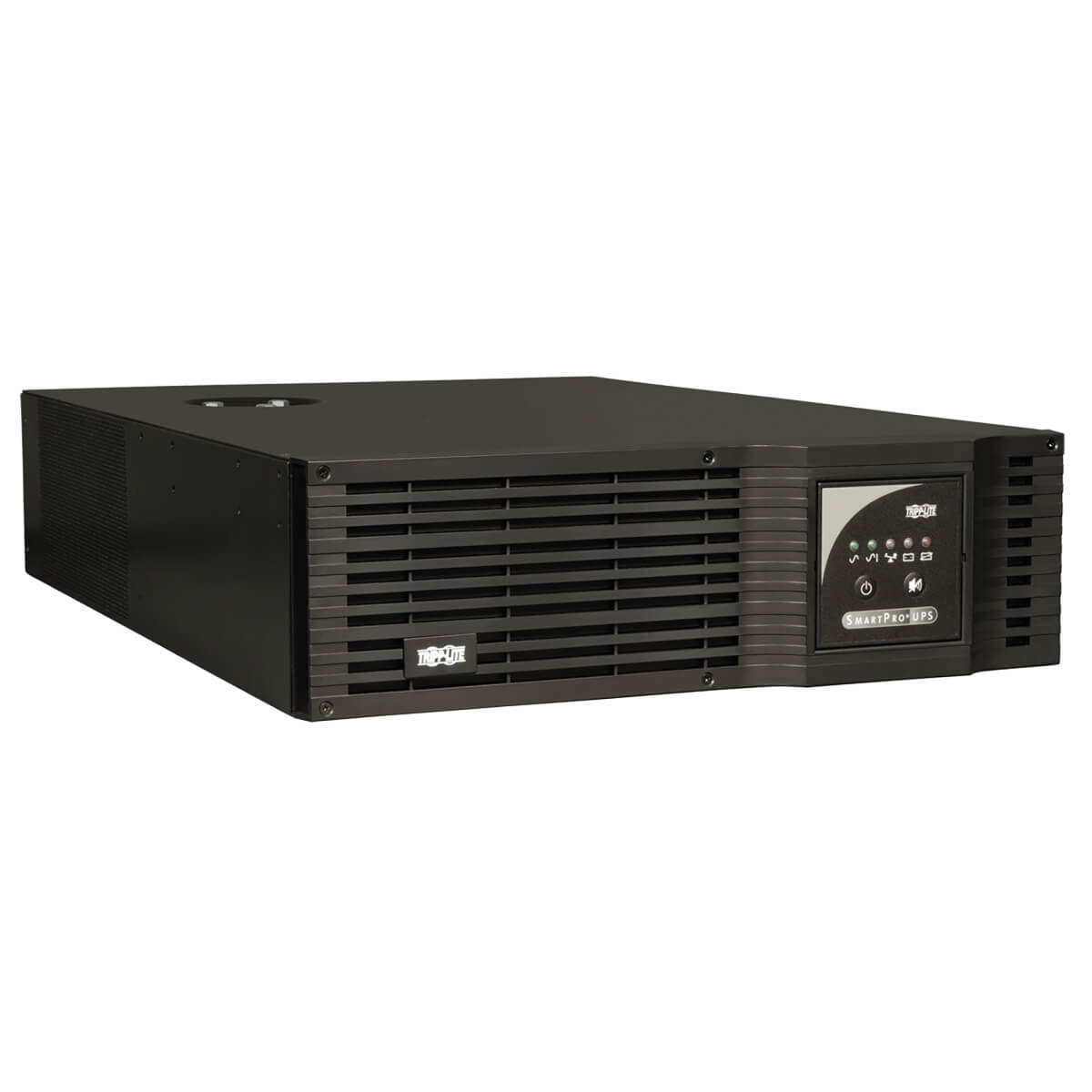

- 3U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 25 inches / 63.5cm
- Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
- Line Interactive Automatic Voltage Regulation (AVR) corrects 208V nominal input from 167 to 260VAC back to usable 208/120V levels without consuming battery power
- AVR circuits boost undervoltages by 12% and reduce overvoltages by 12%
- Network interfaces support simultaneous communications via USB, DB9 serial and SNMPWEBCARD slot
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
- Built-in Emergency Power Off (EPO) interface with cable
- Sine wave output in AC and battery mode
- Expandable runtime with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Half/full load runtime of 20/8.5 minutes with internal batteries

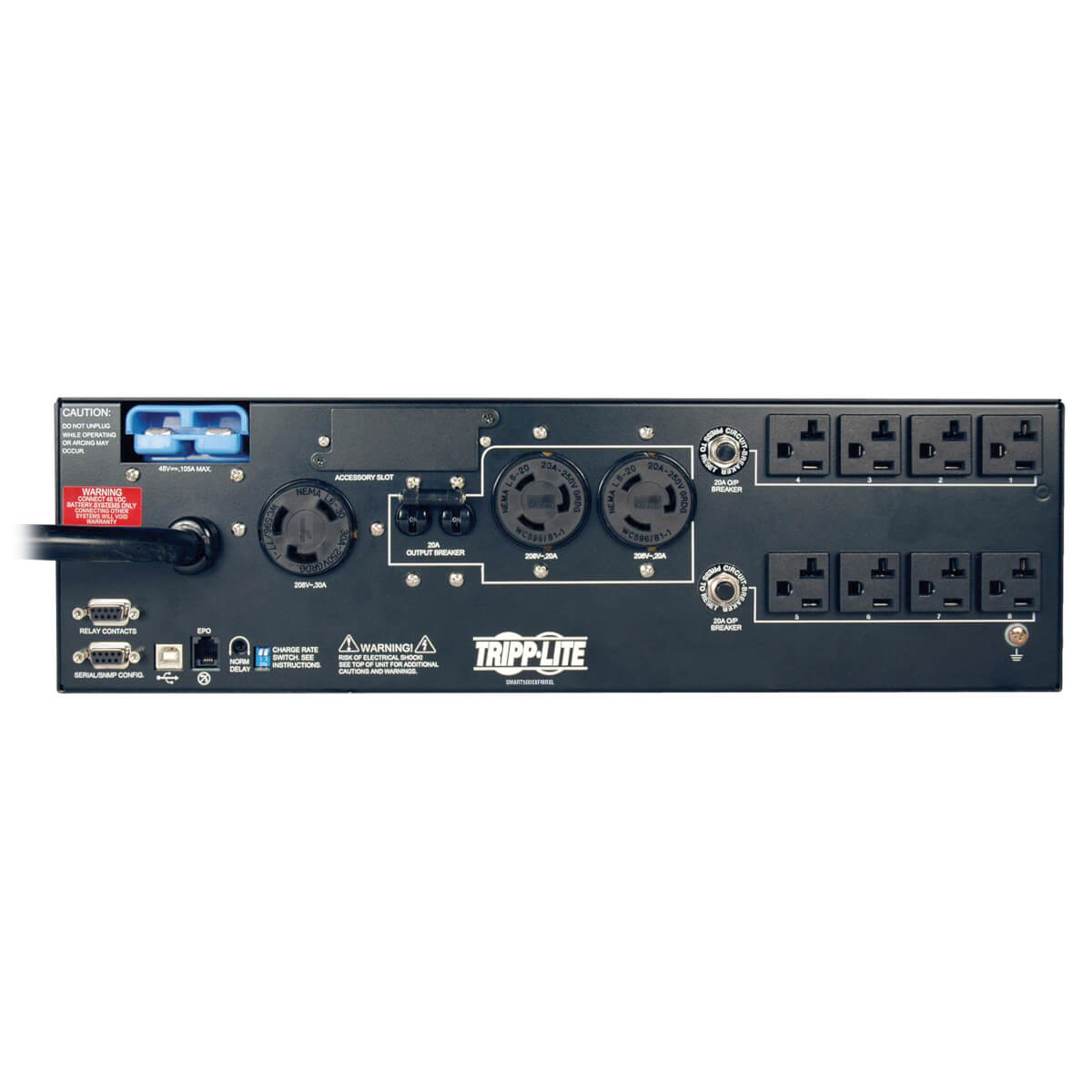

- Includes 11 output receptacles (2 L6-20, 1 L6-30 & 8 NEMA 5-15/20R)

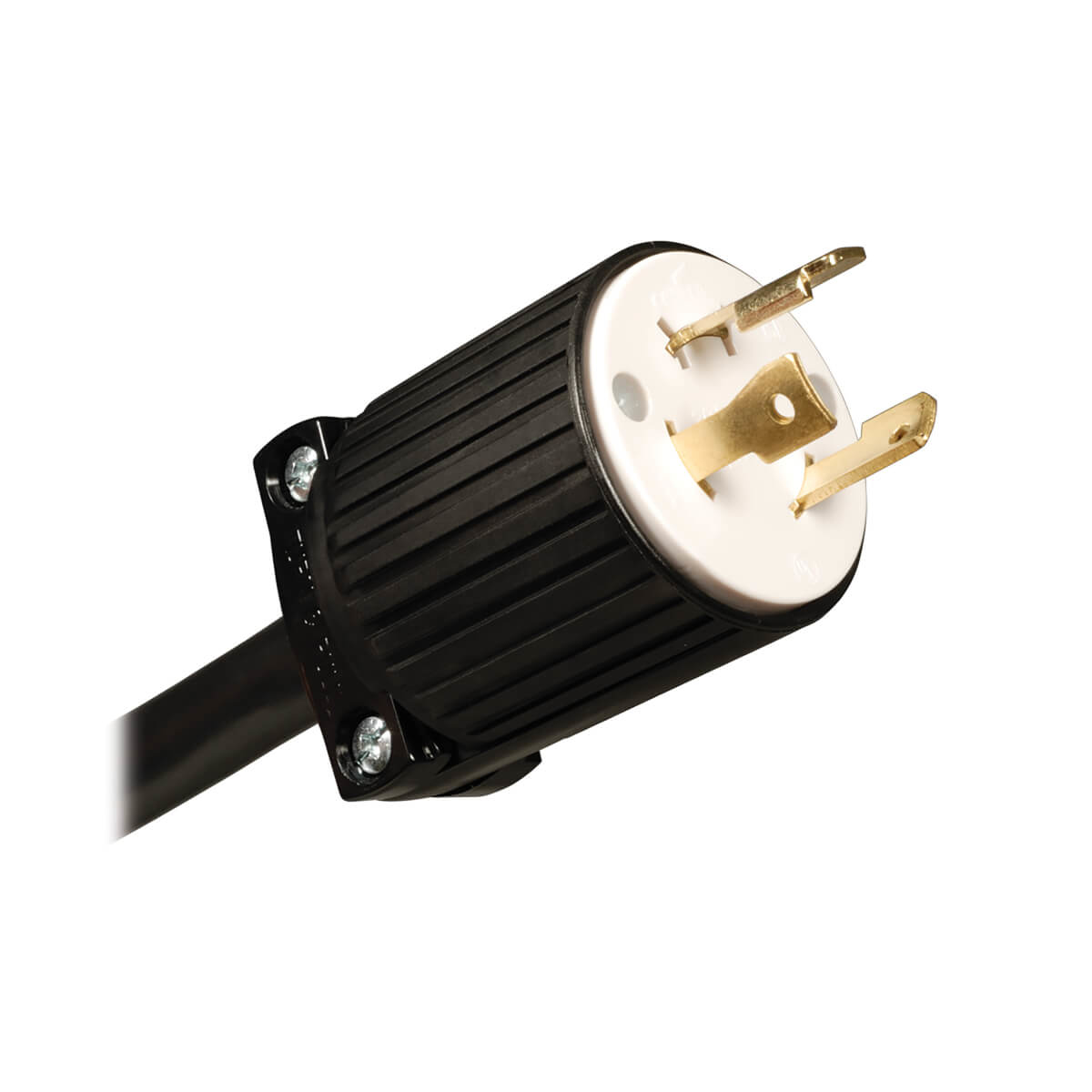

- Ships with installed L6-30P input plug, supports user supplied 50A replacement plug or hardwire input
- Integrated 8 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices

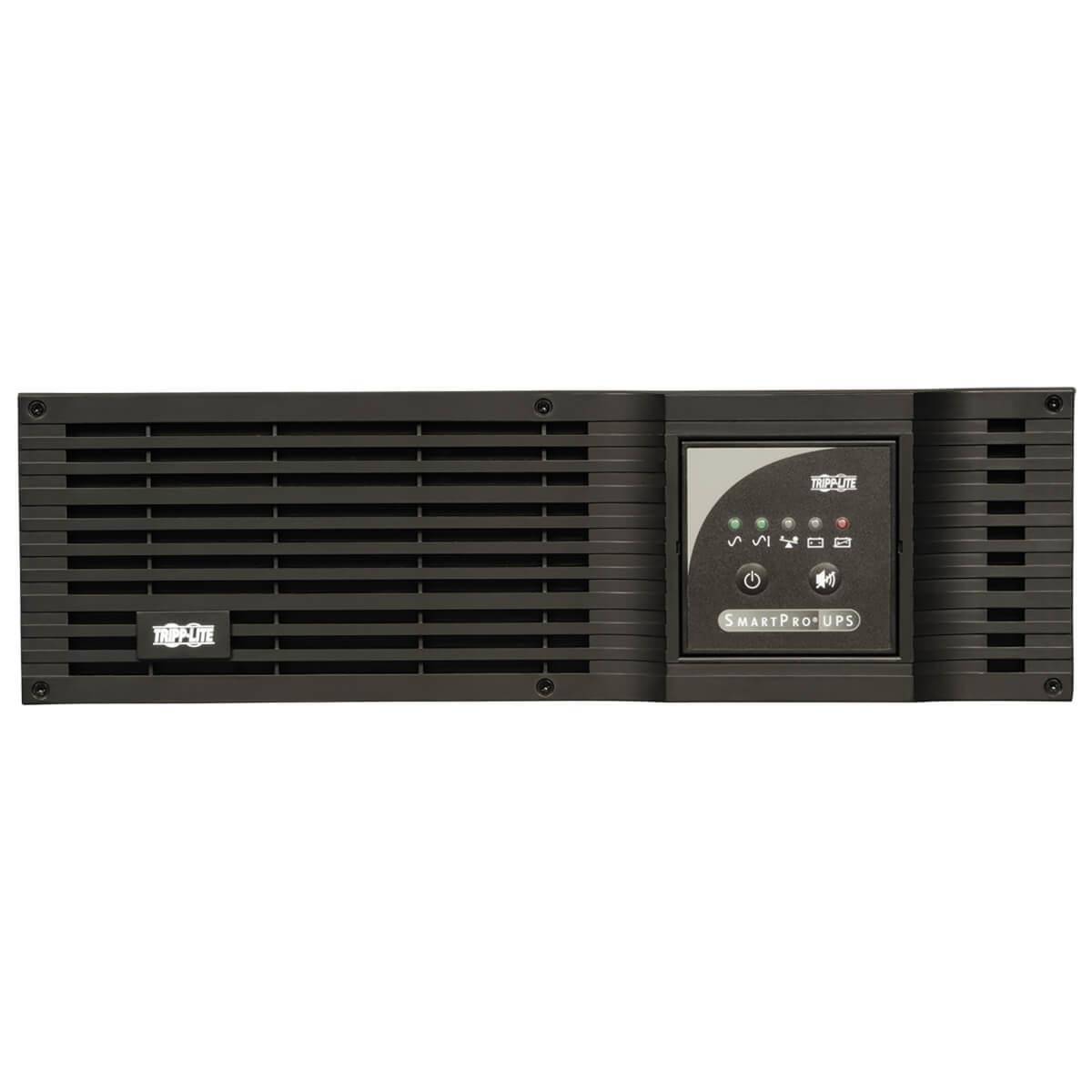

- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions

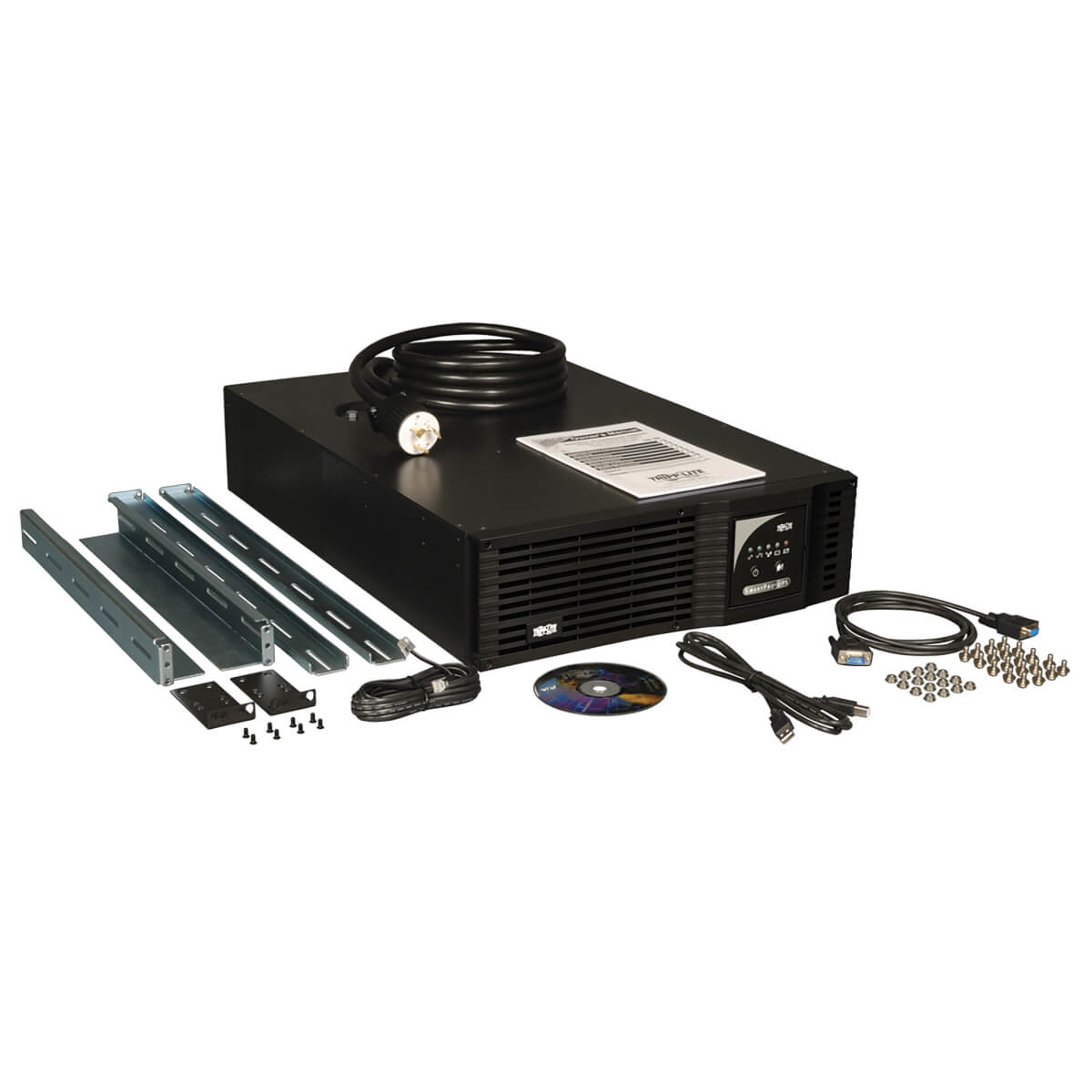

- Included adjustable mounting rails support installation in 4 post 19 inch racks
- UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user is required
- Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
- Supports upright tower placement with optional 2-9USTAND accessory

Specifications

Power
Output voltage regulation+/- 5%
Output power3750 W
Input operation voltage (min)167 V
Input operation voltage (max)260 V
Output operation voltage (min)120 V
Output operation voltage (max)208 V
Surge energy rating1020 J
Maximum current30 A
Efficiency97%
Emergency Power Off (EPO)Yes
Power factor0.75
Output power capacity5 kVA
Input frequency60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity11 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L6-20R, NEMA L6-30R
Power plugNEMA L6-30P
USB 2.0 ports quantity1
Serial ports quantity2
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Response time4 ms
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation+/- 5%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Response time4 ms
Output power3750 W
Input operation voltage (min)167 V
Input operation voltage (max)260 V
Output operation voltage (min)120 V
Output operation voltage (max)208 V
Surge energy rating1020 J
Maximum current30 A
Efficiency97%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.75
Audible alarm(s)Yes
Output power capacity5 kVA
Input frequency60 Hz
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h
Typical backup time at half load20 min
Typical backup time at full load8.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity3U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, NOM, FCC Part 15 Category A,
Cable length118.1" (3 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height12" (304.8 mm)
Weight143.3 lbs (65 kg)
Width17.5" (444.5 mm)
Package weight185 lbs (83.9 kg)
Height5.25" (133.4 mm)
Depth25" (635 mm)
Packaging data
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height12" (304.8 mm)
Package weight185 lbs (83.9 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23" (584.2 mm)
Master (outer) case length33" (838.2 mm)
Master (outer) case height12" (304.8 mm)
Master (outer) case gross weight185 lbs (83.9 kg)
Certificates
CertificationUL1778, CSA, NOM, FCC Part 15 Category A,
Other features
Output connections8 x 5-15/20R 2 x L6-20R 1 x L6-30R
