Tripp Lite SMX1000RT2U uninterruptible power supply (UPS) 1 kVA 700 W 6 AC outlet(s)

Tripp Lite SMX1000RT2U uninterruptible power supply (UPS) 1 kVA 700 W 6 AC outlet(s)

SmartPro 230V 1kVA 900W Line-Interactive Sine Wave UPS, 2U Rack/Tower, Network Card Options, LCD, USB, DB9, 6 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1000VA 900W UPS INTERNATIONALSMART RACKMOUNT AVR 230V C13 565437 Register free see stock
BlueStar TRIPP LITE, SMARTPRO 230V 1KVA 900W LINE-INTERACTIVE SINE WAVE UPS, 2U RACK/TOWER, NETWORK CARD OPTIONS, LCD, USB, DB9, 6 OUTLETS SMX1000RT2U
D&H 1000VA 230V UPS 2U SMX1000RT2U
Ingram Micro UPS SMART INT 1000VA 900W 230V GT1139
TD Synnex 1000VA 700W UPS INTERNATIONAL SMART RACKMOUNT AVR 230V C13 2U 1191121

Related Products

Description

The SMX1000RT2U SmartPro® 230V 1kVA 900W Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up point-of-sale applications, VoIP systems and small business networks, the SMX1000RT2U switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

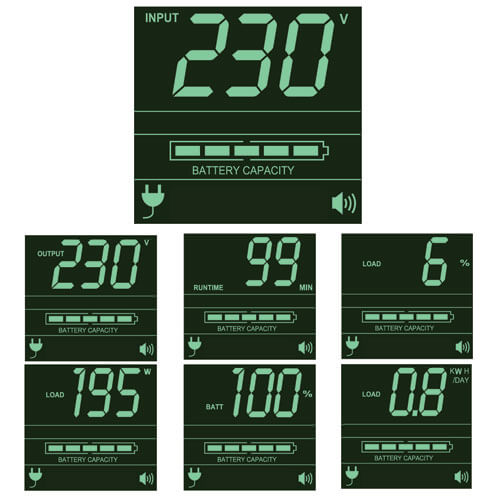

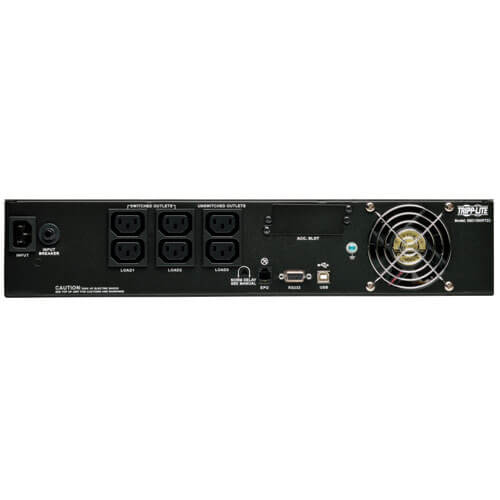

Featuring six C13 outlets (four switchable) and a C14 inlet that accepts a user-supplied AC power cord, the SMX1000RT2U has an internal battery that provides 11.9 minutes of support at half load and 3.6 minutes at full load. A front-panel LCD screen lets you configure settings and monitor important data, such as load level, voltage, battery charge and estimated runtimes.

Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 182V to 278V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 350-joule surge suppression rating protects your equipment from harmful power surges. With free downloadable PowerAlert® software, the SMX1000RT2U enables safe unattended system shutdown in case of a prolonged power failure. Adding an optional Network Management Card permits remote management of the UPS.

Specifications

Power
Output power700 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current4.8 A
Efficiency97%
Power factor0.9
Output power capacity1 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Performance
Surge protectionYes
Audible alarm(s)Yes
Features
Country of originChina
Output power700 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current4.8 A
Efficiency97%
Surge protectionYes
Power factor0.9
Audible alarm(s)Yes
Output power capacity1 kVA
Battery
Battery recharge time2 h
Typical backup time at half load11.9 min
Typical backup time at full load3.6 min
Design
Country of originChina
Rack capacity2U
Form factorRackmount
Product colourBlack
CertificationTested to UL1778, CE EN62040, GOST, SASO, IRAM
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Weight & dimensions
Package width23.1" (586.7 mm)
Package depth18.2" (462.3 mm)
Package height8.5" (215.9 mm)
Weight34 lbs (15.4 kg)
Width17.5" (444.5 mm)
Package weight45.9 lbs (20.8 kg)
Height3.5" (88.9 mm)
Depth13.5" (342.9 mm)
Packaging data
Package width23.1" (586.7 mm)
Package depth18.2" (462.3 mm)
Package height8.5" (215.9 mm)
Package weight45.9 lbs (20.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23.1" (586.7 mm)
Master (outer) case length18.2" (462.3 mm)
Master (outer) case height8.5" (215.9 mm)
Master (outer) case gross weight45.9 lbs (20.8 kg)
Certificates
CertificationTested to UL1778, CE EN62040, GOST, SASO, IRAM
Other features
Weight (imperial)33.4 lbs
Non-operating relative humidity (non-condensing)0 - 95%
