Tripp Lite SRW12USDPG power rack enclosure 12U Wall Black

Tripp Lite SRW12USDPG power rack enclosure 12U Wall Black

SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter WALL MOUNT RACK ENCL CABINETHINGED DEEP ACRYLIC WIN 12USRW12USDPG 812732 Register free see stock
ASI Corp Accessory SRW12USDPG 12U UPS-Depth Wall-Mount Rack Cabinet Retail 183090
BlueStar TRIPP LITE, SMARTRACK 12U UPS-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET WITH CLEAR ACRYLIC WINDOW, HINGED BACK SRW12USDPG
D&H 12U Wallmount Rack SRW12USDPG
Ingram Micro 12U WALL MOUNT RACK ENCLOSURE 1V4231
ScanSource Tripp Lite SRW12USDPG 12U Wall Mount POW-SRW12USDPG
TD Synnex 12U WM RACK DEEP HINGED W/ACRYLIC WINDOW 4412368
TD Synnex Liquidation Use Only 14335295

Related Products

Description

The SRW12USDPG SmartRack® 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

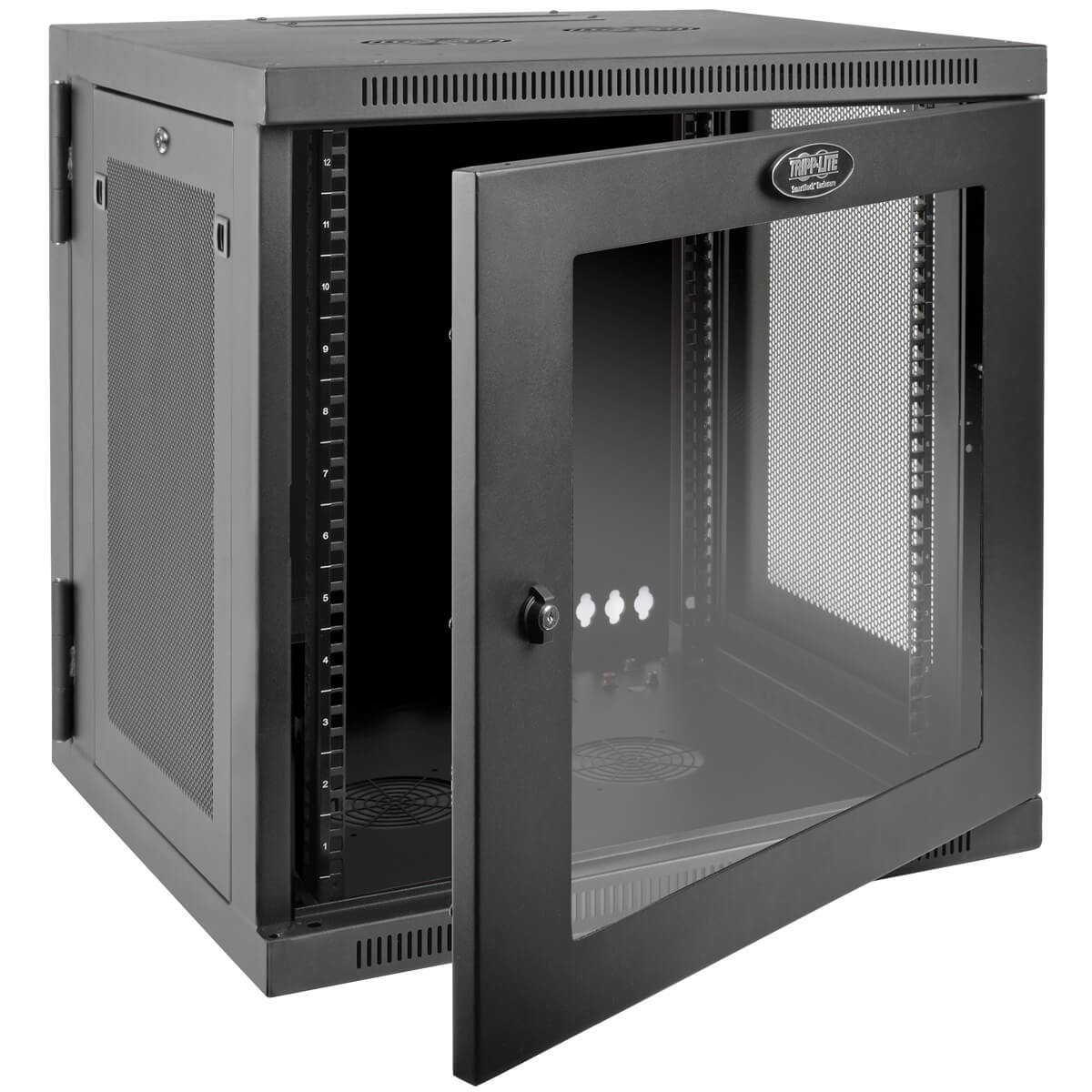

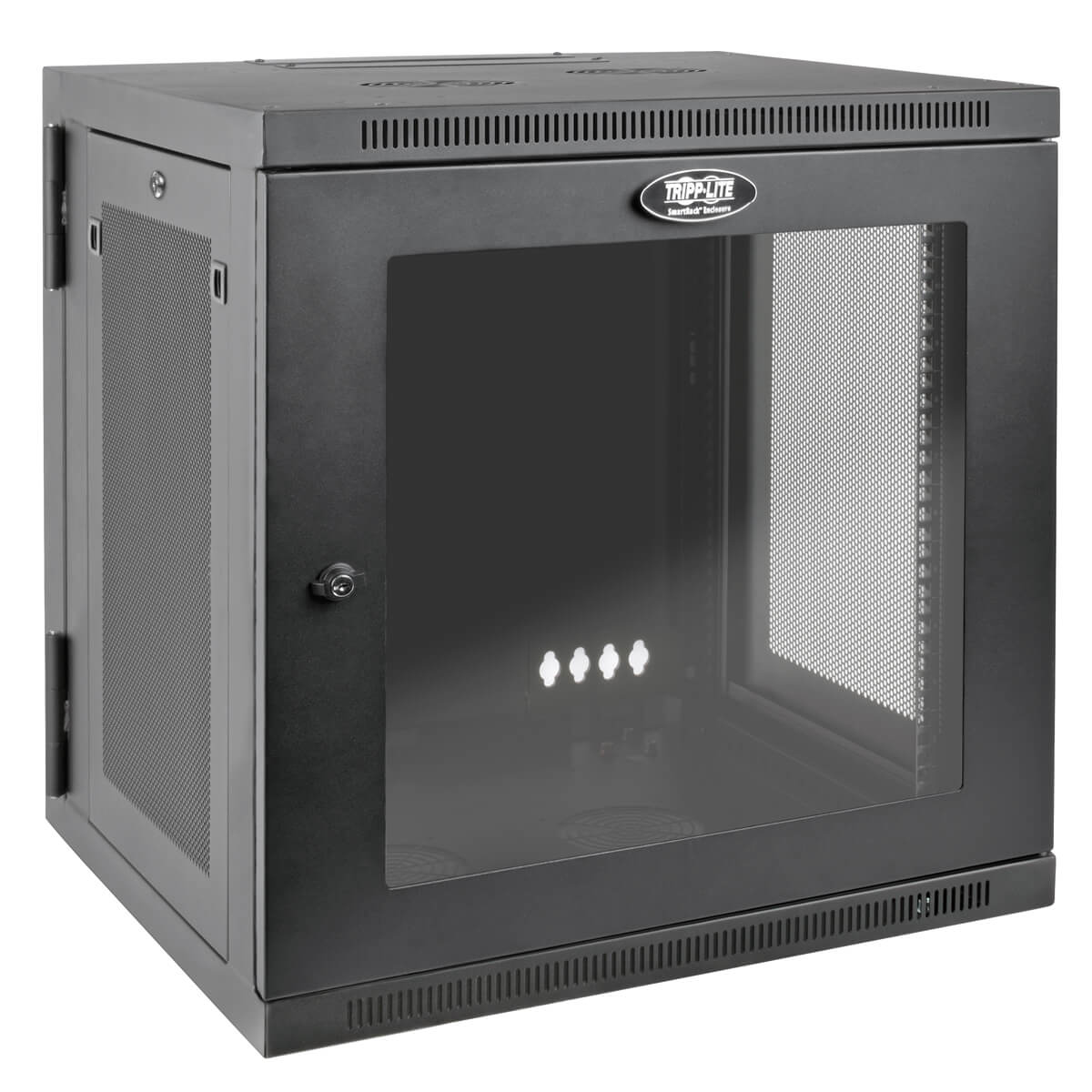

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

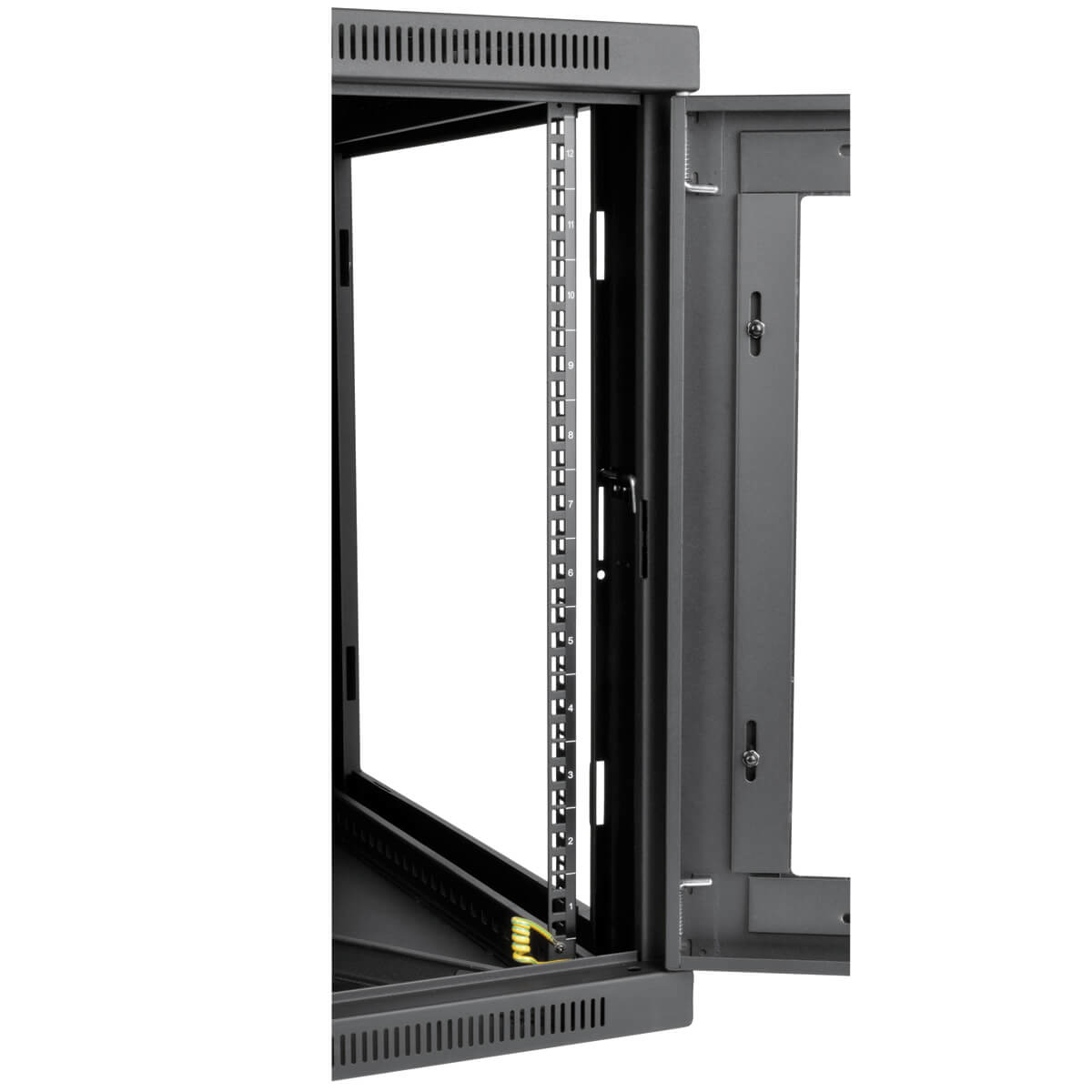

The SRW12USDPG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

Specifications

Technical details
LockingYes
Rack capacity12U
Maximum weight capacity198.4 lbs (90 kg)
Mounting typeWall
Reversible doorsYes
Cable entry locationRear
International Protection (IP) codeIP20
MaterialSteel
Product colourBlack
Products per master (outer) case1 pc(s)
Master (outer) case width28.1" (715 mm)
Master (outer) case gross weight91.9 lbs (41.7 kg)
Master (outer) case length29.9" (760 mm)
Master (outer) case height29.3" (745 mm)
Package width28.1" (715 mm)
Package height29.3" (745 mm)
Package depth29.9" (760 mm)
Compliance certificatesRoHS
Weight & dimensions
Width23.6" (600.2 mm)
Depth25.5" (647.7 mm)
Height25.1" (636.5 mm)
Weight81.6 lbs (37 kg)
Packaging content
Side panels includedYes
ManualYes
Packaging data
Package dimensions (WxDxH)28.1 x 29.9 x 29.3" (715 x 760 x 745 mm)
Package weight91.9 lbs (41.7 kg)
Package width28.1" (715 mm)
Package height29.3" (745 mm)
Package depth29.9" (760 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width28.1" (715 mm)
Master (outer) case gross weight91.9 lbs (41.7 kg)
Master (outer) case length29.9" (760 mm)
Master (outer) case height29.3" (745 mm)
