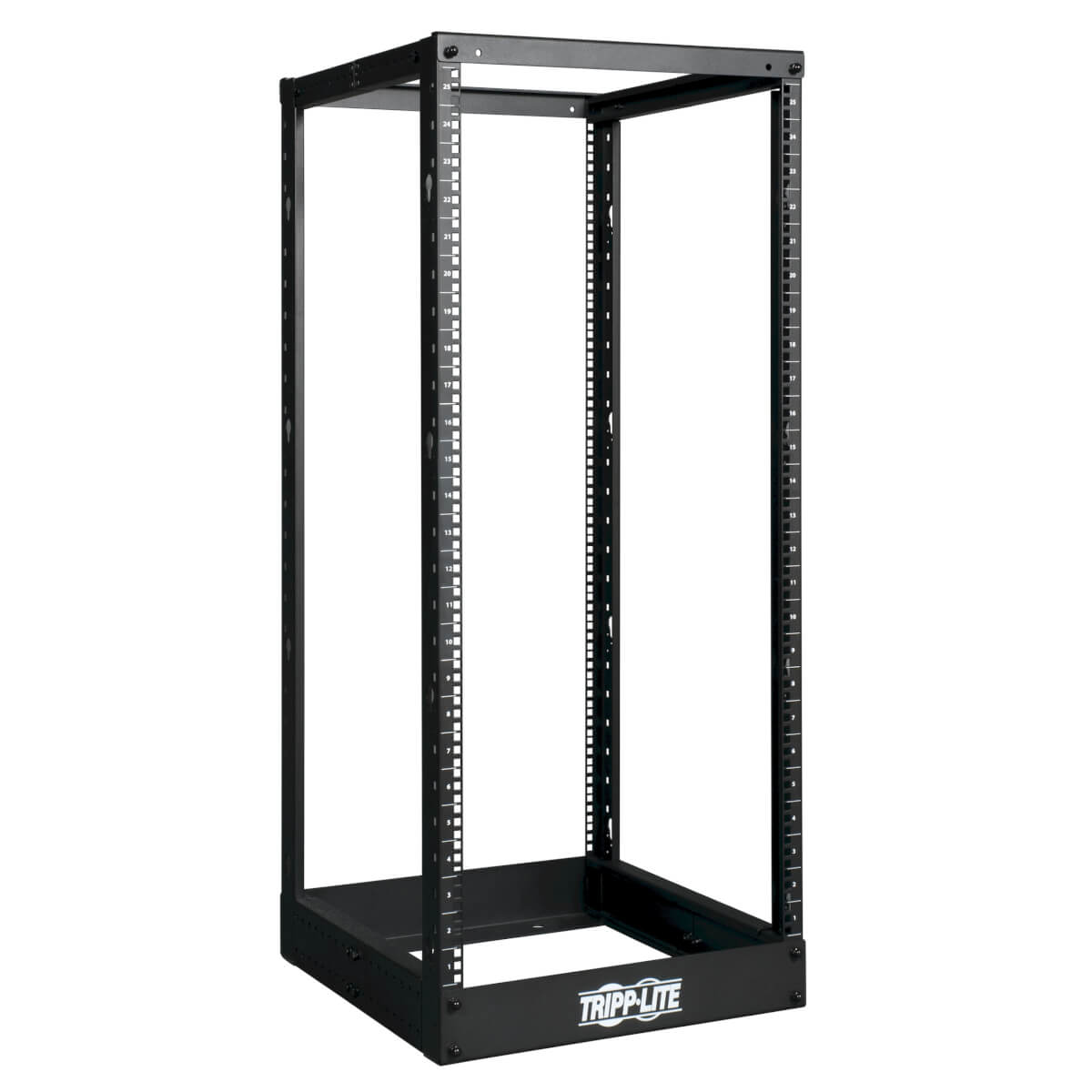

Tripp Lite SR4POST25 rack cabinet 25U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR4POST25
  • EAN: 0037332157942 0373321579426 09 ...1579426 0971471747810 0079531730243more
25U SmartRack 4-Post Open Frame Rack - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 25U 4-POST SMARTRACK 508708 Register free see stock
D&H 25U 4 Post Open Frame SR4POST25
Ingram Micro 25U 4 POST OPEN FRAME RACK KA1992
ScanSource Tripp Lite 25U 4-Post Open Frame Rack POW-SR4POST25
TD Synnex 25U 4-POST OPEN FRAME RACK 22-36IN DEPTH 2897294
TD Synnex LIQUIDATION USE ONLY 9745696

Related Products

Description

The 25U 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST25 is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 25U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1,000 pounds (453.6 kilograms). The SR4POST25 comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

The open design of the SR4POST25 provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST25 supports equipment depths from 22 to 36 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

Specifications

Weight & dimensions
Package depth53.7" (1364 mm)
Package width4.53" (115.1 mm)
Package height6.5" (165.1 mm)
Package weight48.9 lbs (22.2 kg)
Width20.2" (513.1 mm)
Depth39.3" (998.2 mm)
Height49.3" (1252.2 mm)
Weight45 lbs (20.4 kg)
Maximum weight capacity1000 lbs (453.6 kg)
Features
Rack capacity25U
TypeFreestanding rack
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Packaging data
Package depth53.7" (1364 mm)
Package width4.53" (115.1 mm)
Package height6.5" (165.1 mm)
Package weight48.9 lbs (22.2 kg)
Technical details
Package width4.53" (115.1 mm)
Package height6.5" (165.1 mm)
TypeFreestanding rack
Master (outer) case GTIN (EAN/UPC)10037332157949
Harmonized System (HS) code8517.79.0000
Rack capacity25U
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Logistics data
Master (outer) case width20.5" (520.7 mm)
Master (outer) case length54.7" (1389.4 mm)
Master (outer) case height15.3" (388.6 mm)
Master (outer) case gross weight501.6 lbs (227.5 kg)
Products per master (outer) case9 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
