50U Heavy-Duty 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 50U HEAVY-DUTY 4-POST SMARTRKOPEN FRM RK ORGANIZE & SECURENETWORK RK EQUIPMENT 641275 Register free see stock
Ingram Micro 50U 4 POST OPEN FRAME RACK ZL9520
TD Synnex 50U 4-POST OPEN FRAME RACK 3000LB LOAD 4185016

Related Products

Description

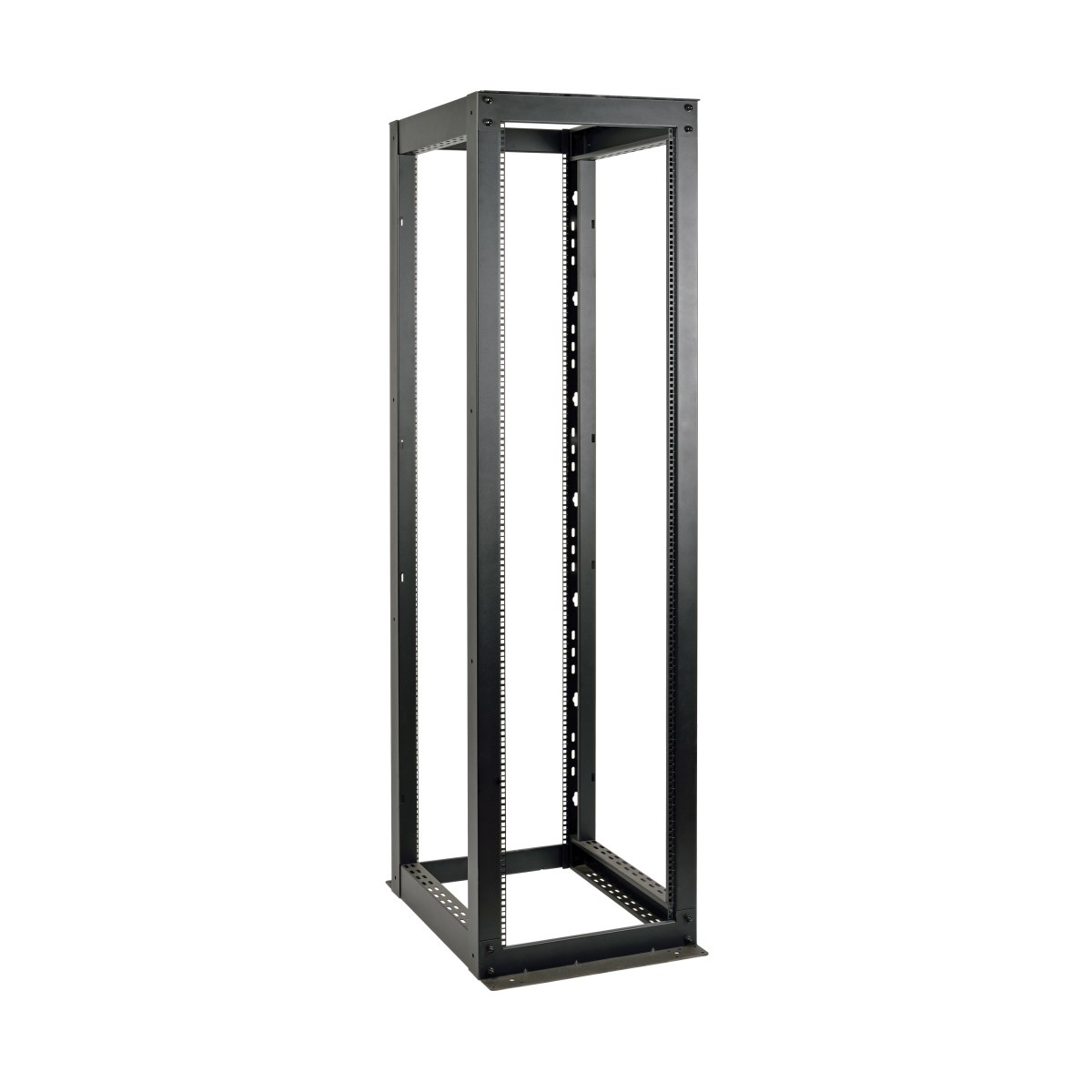

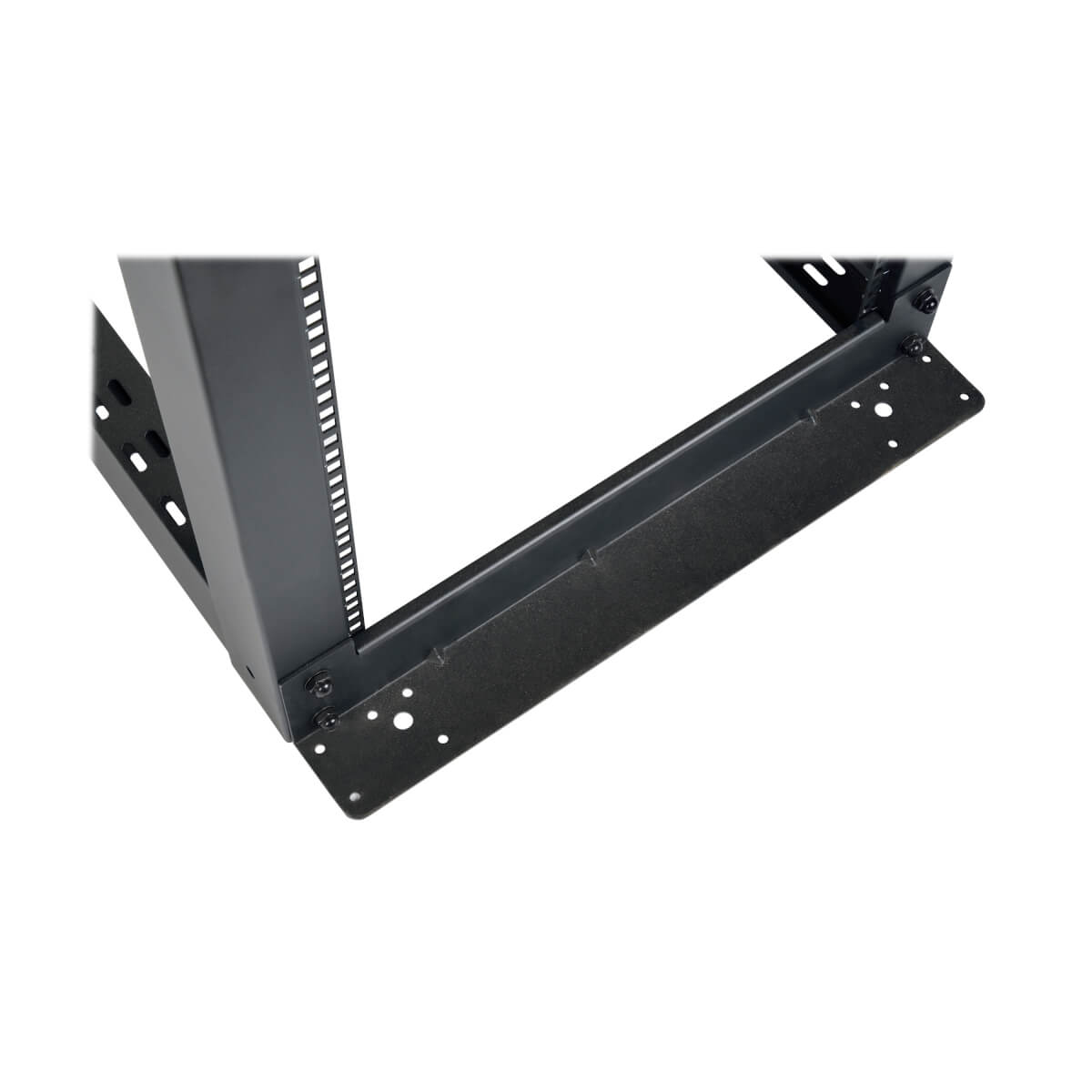

This 50U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST50HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 50U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 pounds (1360.8 kilograms). The SR4POST50HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

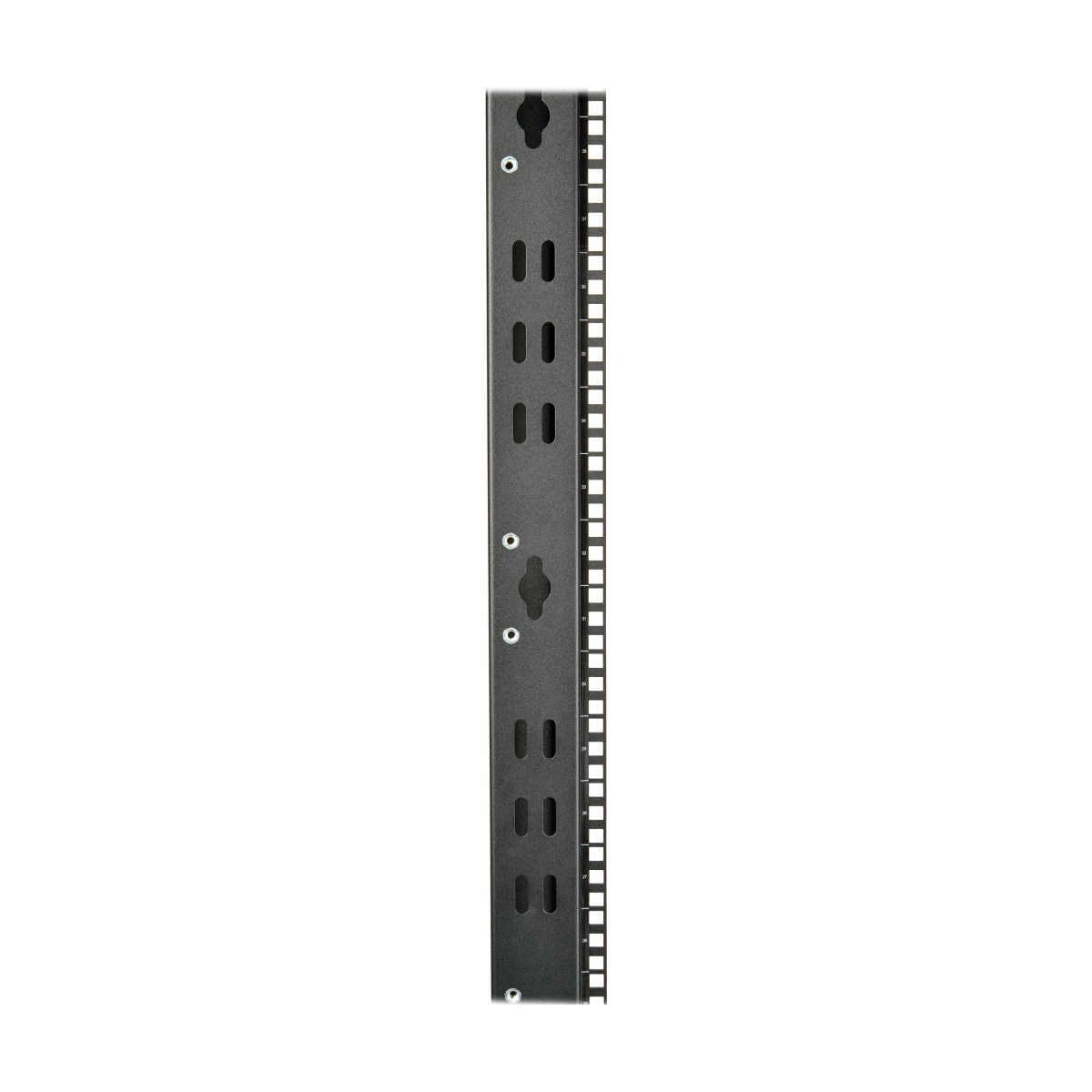

The open design of the SR4POST50HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST50HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST50HD. The SR4POST50HD also supports optional side panels with the SR50SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.

Specifications

Features
CertificationEIA-310-D, IEC 60297-3-100
Rack capacity50U
Maximum weight capacity3000.5 lbs (1361 kg)
Product colourBlack
Harmonized System (HS) code8517.79.0000
Housing materialSteel
Country of originChina
Weight & dimensions
Package width9.5" (241.3 mm)
Package height6.75" (171.4 mm)
Package depth97.3" (2470.2 mm)
Package weight119.9 lbs (54.4 kg)
Width24" (609.6 mm)
Weight113.1 lbs (51.3 kg)
Height93.5" (2374.9 mm)
Depth35.3" (895.4 mm)
Maximum weight capacity3000.5 lbs (1361 kg)
Packaging data
Package width9.5" (241.3 mm)
Package height6.75" (171.4 mm)
Package depth97.3" (2470.2 mm)
Package weight119.9 lbs (54.4 kg)
Quantity per pack1 pc(s)
Technical details
Rack capacity50U
Products per pallet1 pc(s)
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332185782
Colour
Product colourBlack
Logistics data
Master (outer) case width41.5" (1054.1 mm)
Master (outer) case length98.5" (2501.9 mm)
Master (outer) case height27" (685.8 mm)
Master (outer) case gross weight1440.1 lbs (653.2 kg)
Products per master (outer) case12 pc(s)
Products per pallet1 pc(s)
Harmonized System (HS) code8517.79.0000
Other features
Products per pallet1 pc(s)
