Tripp Lite SU2200XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1.96 kVA 1800 W 7 AC outlet(s)

Tripp Lite SU2200XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1.96 kVA 1800 W 7 AC outlet(s)

SmartOnline 100-127V 2.2kVA 1.8kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2200VA 1800W UPS SMART ONLINELCD TOWER 120V USB DB9 SNMP 565578 Register free see stock
Arlington Industries 2200VA/1800W 7-OUT ON-LINE UPS LCD TRPSU2200XLCD
ASI Corp Tripp Lite UPS SU2200XLCD SmartOnline 2.2kVA 1-Phase Double-Conversion 1800W 136789
BlueStar TRIPP LITE, SMART ONLINE EXPANDABLEW UPS BACKUP, INTERACTIVE LCD DISPLAY SU2200XLCD
D&H 2200VA UPS Online LCD SU2200XLCD
Ingram Micro SMART ONLINE UPS 2200VA 120V RA1431
TD Synnex UPS 2200VA SMART ONLINE TOWER USB LCD 3534325
TD Synnex Liquidation Use Only 14306662

Related Products

Description

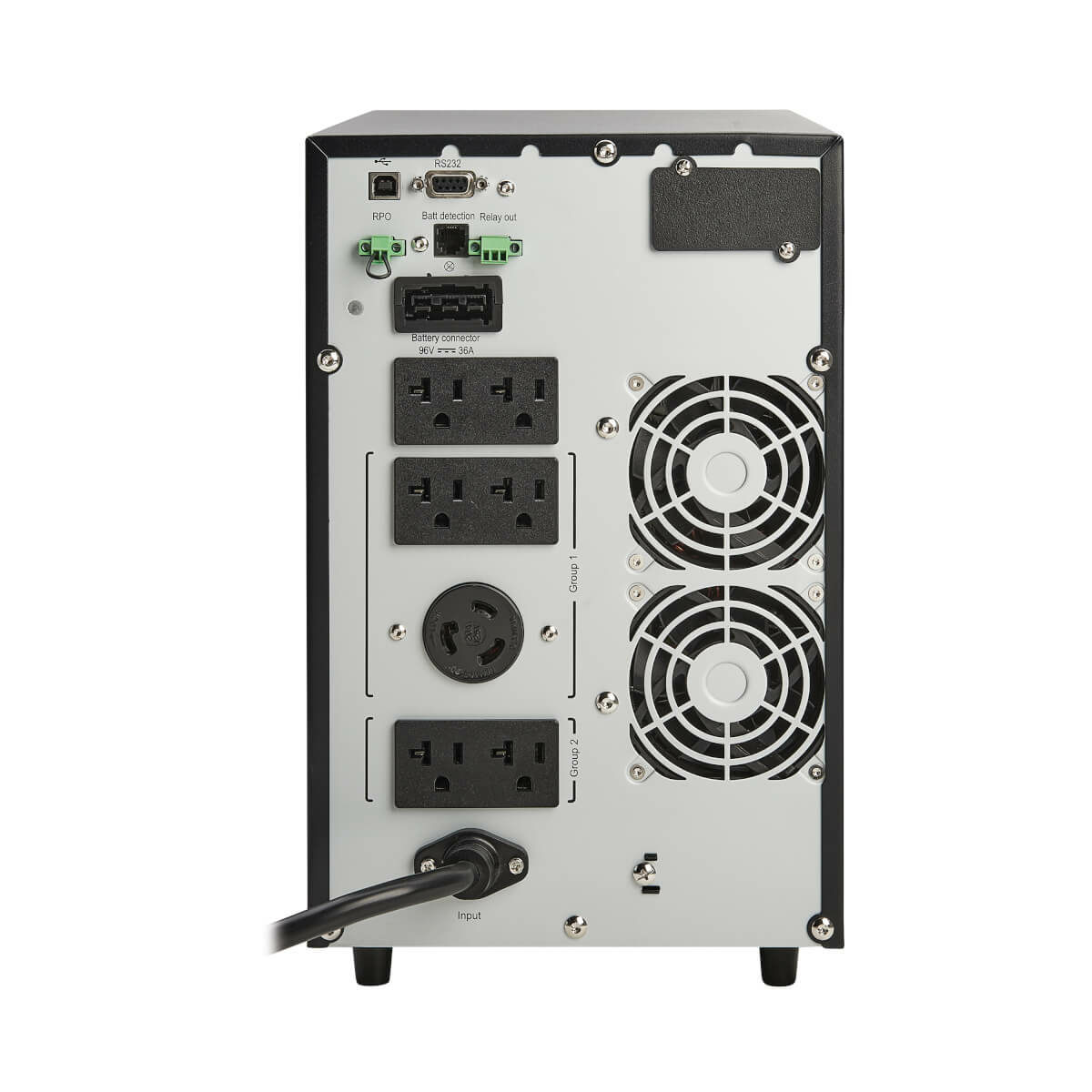

Do you need to protect medium- to large-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU2200XLCD SmartOnline® Tower UPS System is the solution! Featuring a 2200VA/1800W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU2200XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. The SU2200XLCD has 7 AC outlets (6 5-15/20R, 1 L5-20R), including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU2200XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- Emergency Power Off (EPO) Capability
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Peace of Mind

Specifications

Power
Output voltage regulation2%
Output power1800 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current16 A
Emergency Power Off (EPO)Yes
Output power capacity1.96 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-20R

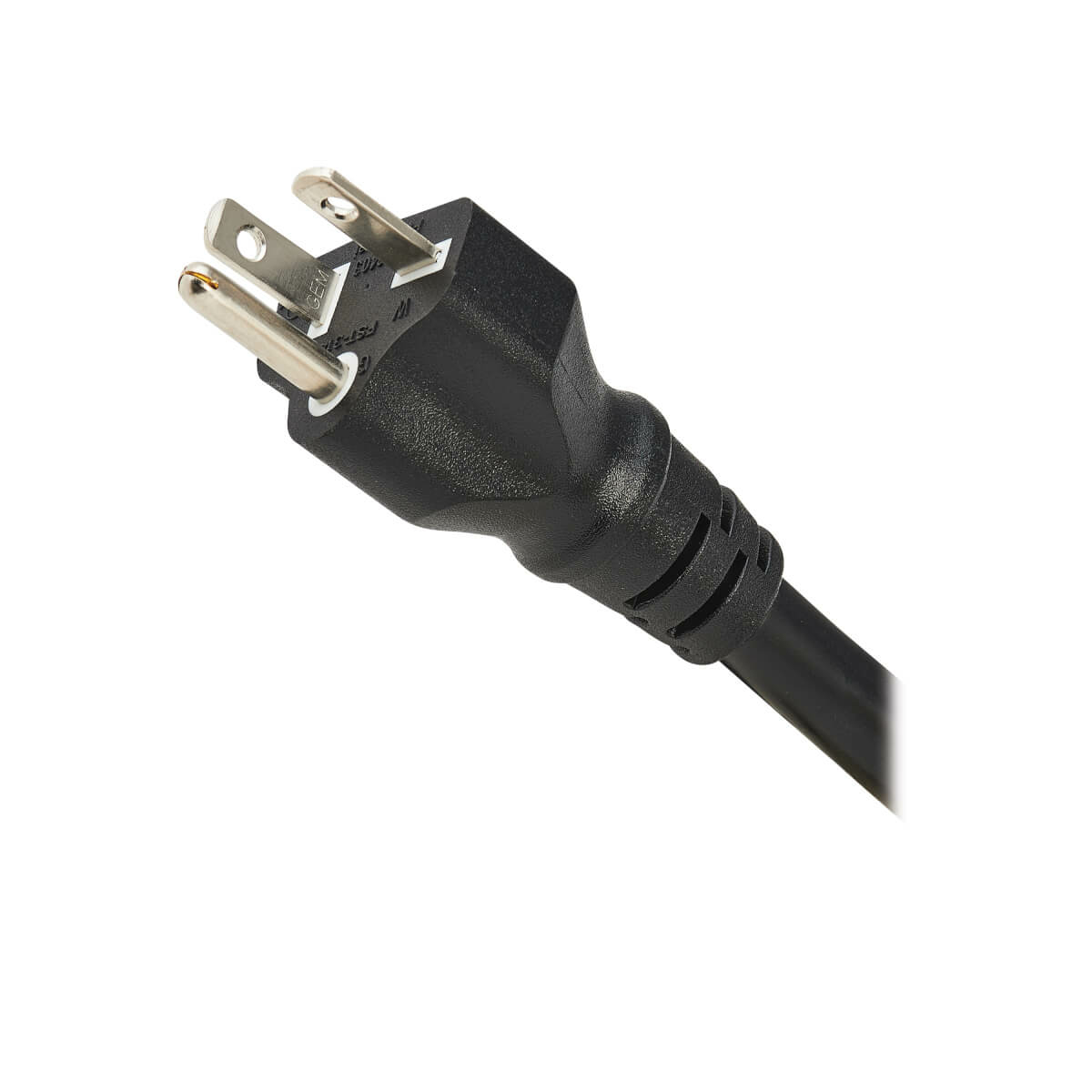

Power plugNEMA 5-20P
USB 2.0 ports quantity1
RS-232 ports1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Off-mode chargingYes
Auto-restartYes
LED indicatorsActivity, Charging, Power, Stand-by, Battery replacement
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation2%
Auto-restartYes
Output power1800 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current16 A
Emergency Power Off (EPO)Yes
Output power capacity1.96 kVA
Input frequency50/60 Hz
Battery
Off-mode chargingYes
Battery technologySealed Lead Acid (VRLA)
Typical backup time at half load13 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsActivity, Charging, Power, Stand-by, Battery replacement
Product colourBlack
Cooling typeActive
Cable length118.1" (3 m)
Built-in fanYes
Housing materialMetal
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width13.5" (342.9 mm)
Package depth23.1" (586.7 mm)
Package height14.7" (373.4 mm)
Weight52.9 lbs (24 kg)
Width9" (228.6 mm)
Package weight60 lbs (27.2 kg)
Height10.2" (259.1 mm)
Depth19.5" (495.3 mm)
Packaging data
Package width13.5" (342.9 mm)
Package depth23.1" (586.7 mm)
Package height14.7" (373.4 mm)
Package weight60 lbs (27.2 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width13.5" (342.9 mm)
Master (outer) case length23.1" (586.7 mm)
Master (outer) case height14.7" (373.4 mm)
Master (outer) case gross weight60 lbs (27.2 kg)
