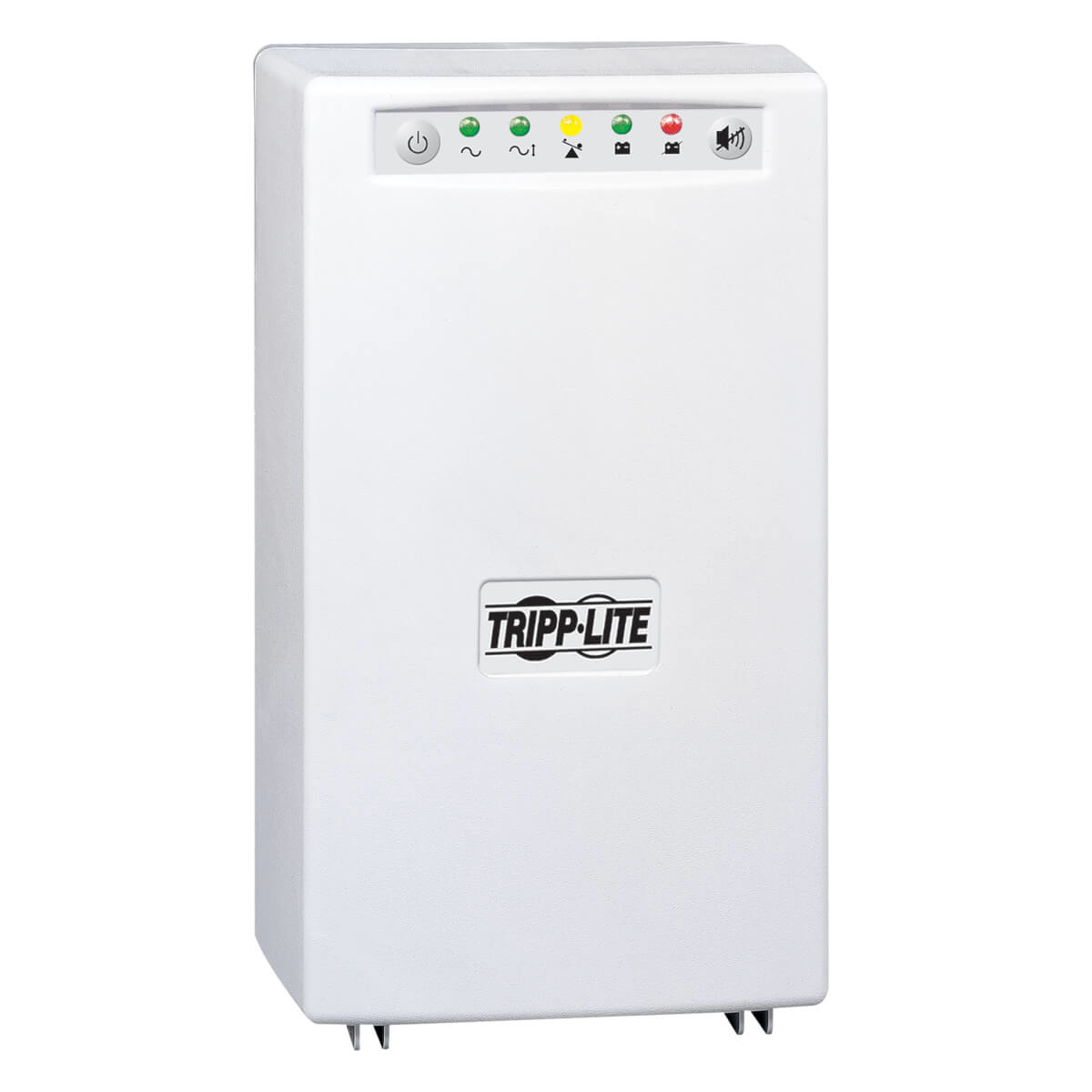

Tripp Lite SMART1200XLHG uninterruptible power supply (UPS) 1 kVA 750 W

Tripp Lite SMART1200XLHG uninterruptible power supply (UPS) 1 kVA 750 W

SmartPro XL Medical Grade UPS System - Intelligent, line-interactive power management system

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1000VA/750W TOWER UPS4 OUTLET28MIN HALFLOAD/11MIN FULL LOADHOSPITAL GRADE 245313 Register free see stock
Arlington Industries 4-OUT EX-RUN MEDICAL GRADE TOWER UPS TRPSMART1200XLHG
D&H 1000VA UPS Smart Pro Tower SMART1200XLHG
Ingram Micro UPS SMART 1000VA 750W MEDICAL 847980
TD Synnex UPS 1000VA SMART AVR MEDICAL TOWER 4 OUT 973876

Related Products

Description

Tripp Lite's SMART 1200XLHG offers medical-grade UPS protection with built-in line-interactive voltage regulation, expandable battery runtime and intelligent monitoring with unattended shutdown capability. UL 60601-1 listed as medical electrical equipment. Built-in isolation transformer with Faraday shield offers full line isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Includes high quality hospital-grade plug and outlets. Resistant to electrostatic discharge. 1000VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. External battery connector allows configuration for up to several hours of runtime during power failures by adding one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible). Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes diagnostic LEDs and 2 built-in communications ports (1 USB, 1 DB9) that work with included PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

Specifications

Power
Output power750 W
Surge energy rating480 J
Output power capacity1 kVA
Input frequency60 Hz
Ports & interfaces
Cable length72" (1.83 m)
Features
Country of originTaiwan
Output power750 W
Surge energy rating480 J
Output power capacity1 kVA
Input frequency60 Hz
Battery
Battery recharge time2 h
Typical backup time at half load28 min
Typical backup time at full load10 min
Design
Country of originTaiwan
CertificationUL1778 (USA, AGSM1200PSR3HG), UL 60601-1, cUL (Canada), Class A
Cable length72" (1.83 m)
Weight & dimensions
Package width11.4" (289.6 mm)
Package depth13.1" (332.7 mm)
Package height17" (431.8 mm)
Weight45.2 lbs (20.5 kg)
Width8.98" (228.1 mm)
Package weight48.3 lbs (21.9 kg)
Height12.7" (323.1 mm)
Depth7.52" (191 mm)
Packaging data
Package width11.4" (289.6 mm)
Package depth13.1" (332.7 mm)
Package height17" (431.8 mm)
Package weight48.3 lbs (21.9 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width11.4" (289.6 mm)
Master (outer) case length13.1" (332.7 mm)
Master (outer) case height17" (431.8 mm)
Master (outer) case gross weight48.3 lbs (21.9 kg)
Certificates
CertificationUL1778 (USA, AGSM1200PSR3HG), UL 60601-1, cUL (Canada), Class A
Other features

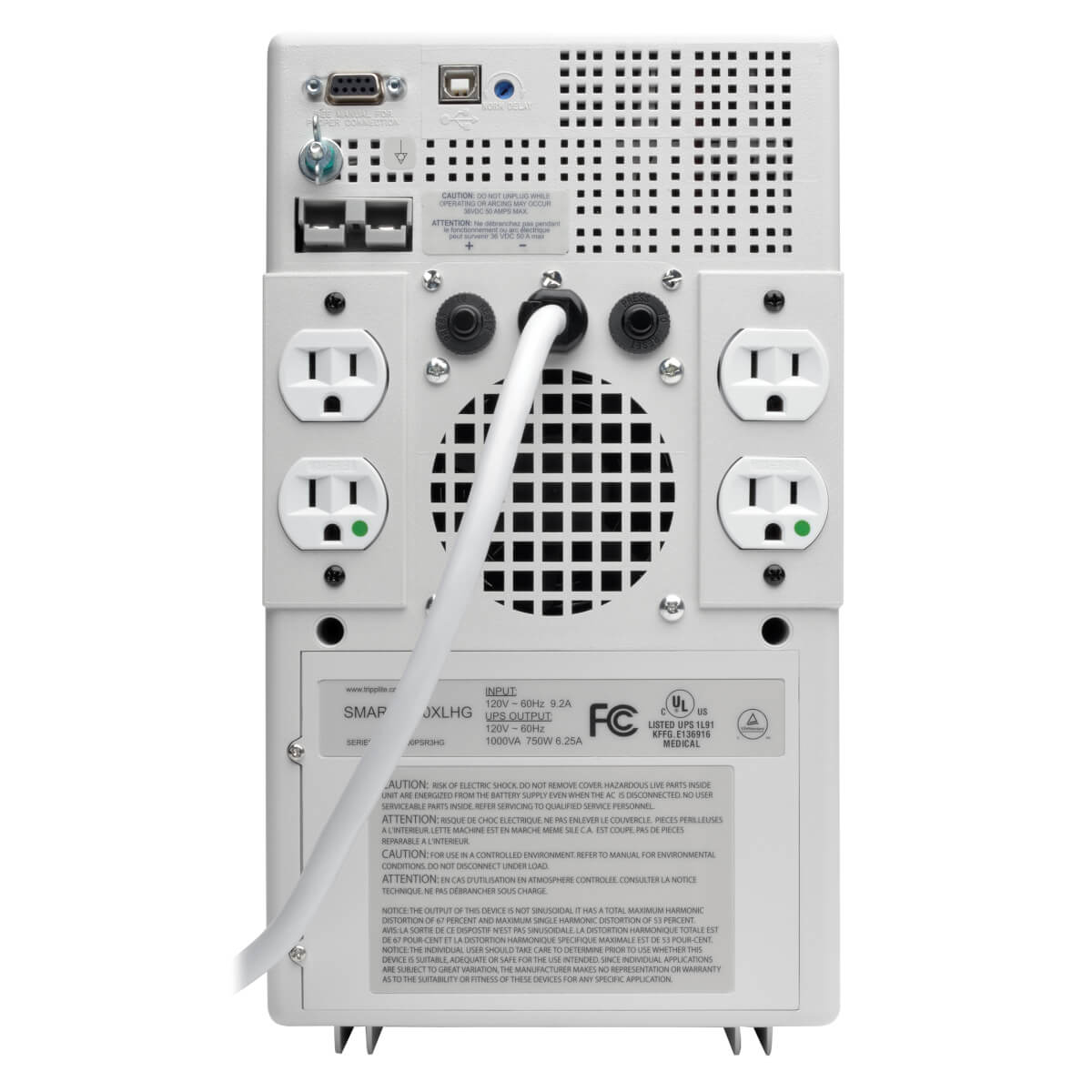

Output connections4 NEMA 5-15R-HG
Input connection typeNEMA 5-15P-HG
Dimensions (WxDxH)7.52 x 9.53 x 12.5" (191 x 242 x 317.5 mm)
Operating temperature (T-T)32 - 104 °F
Nominal output voltage120 V
Nominal input voltage120 V
