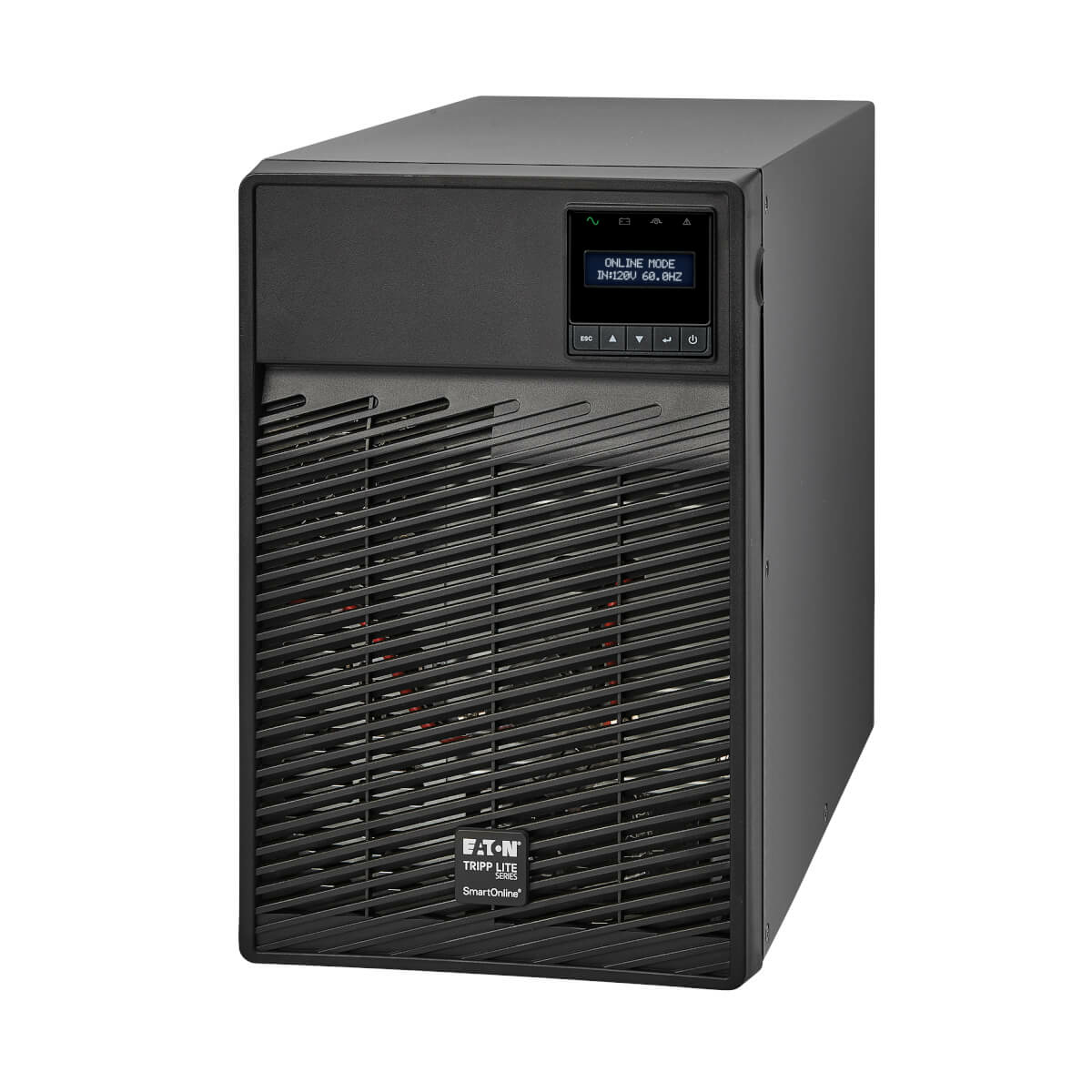

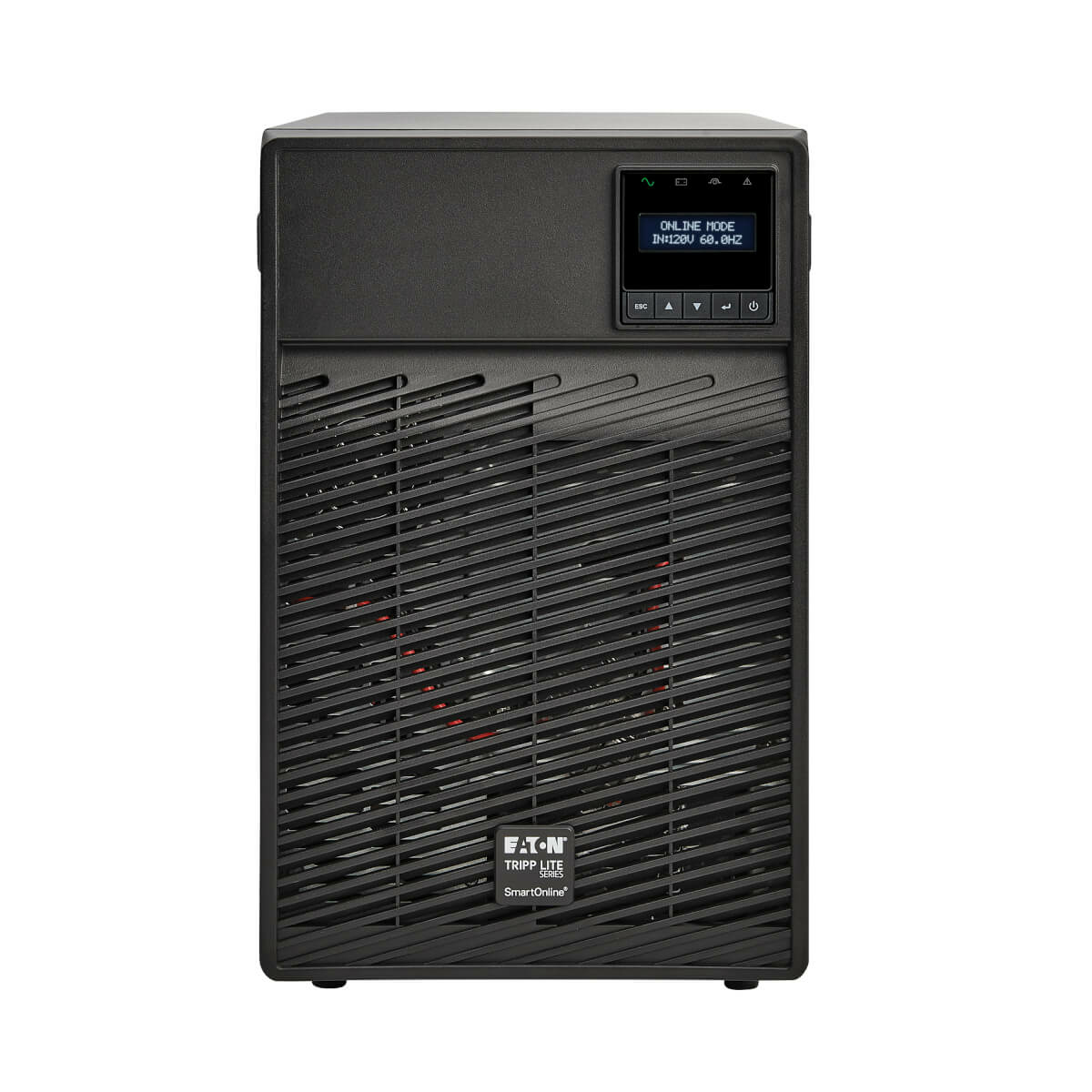

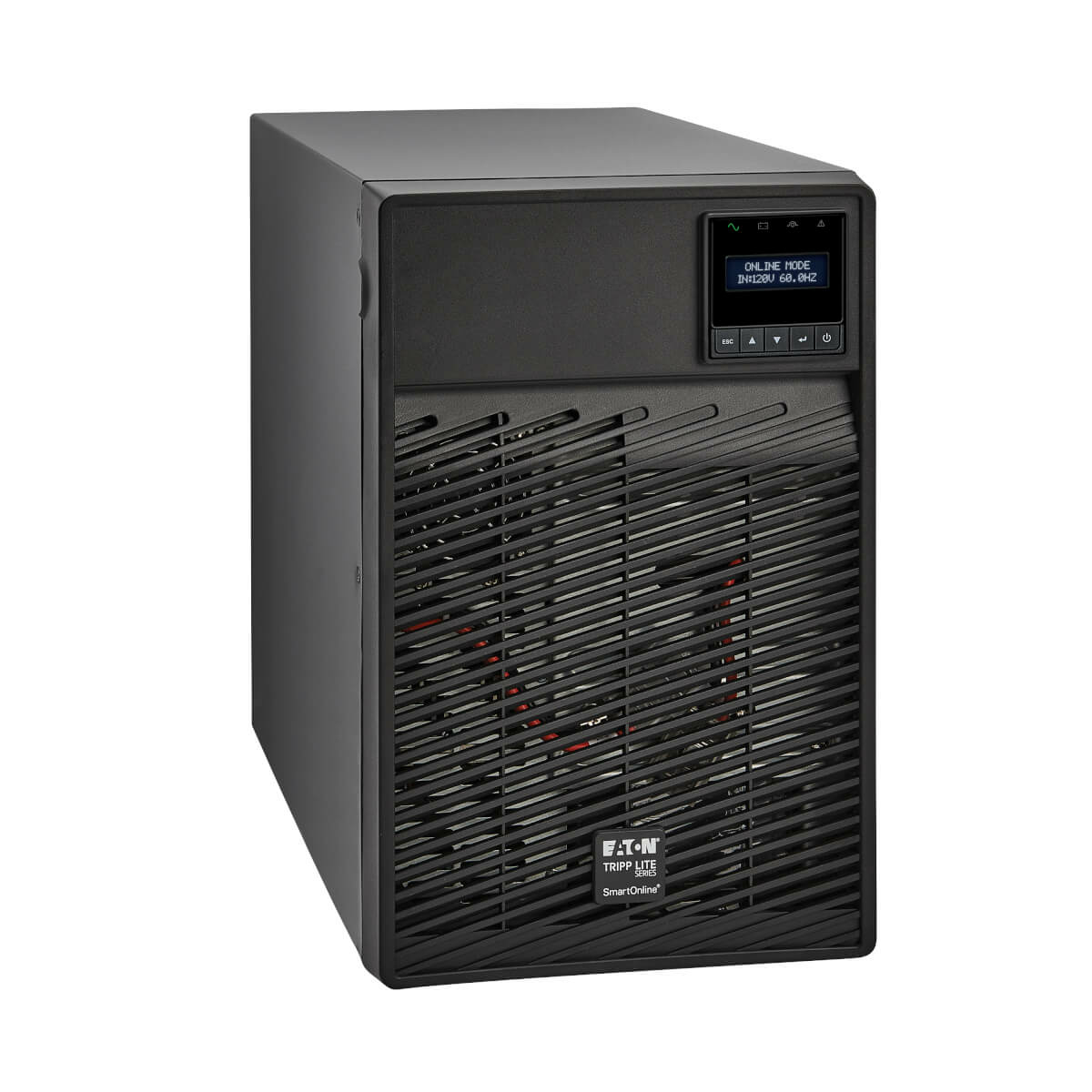

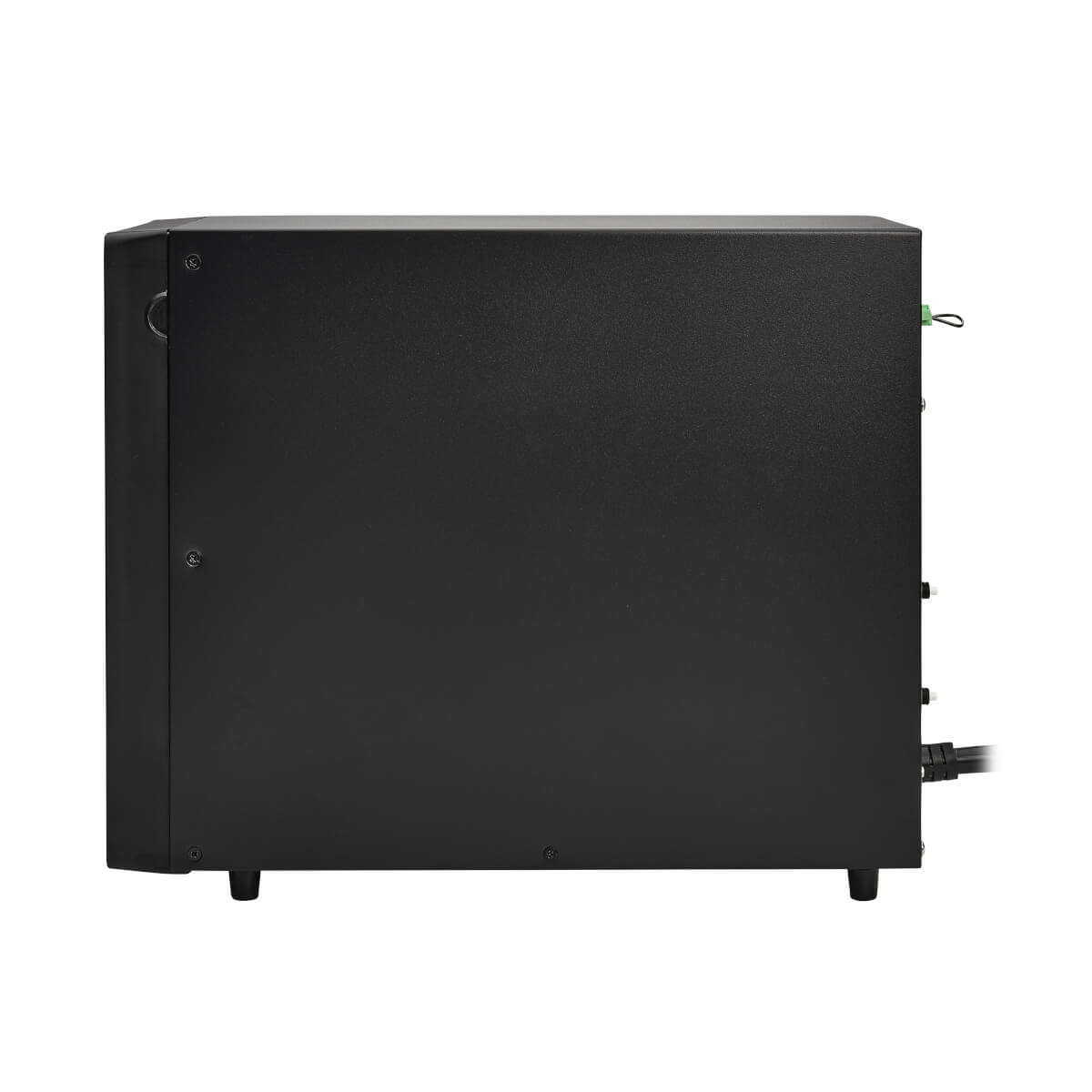

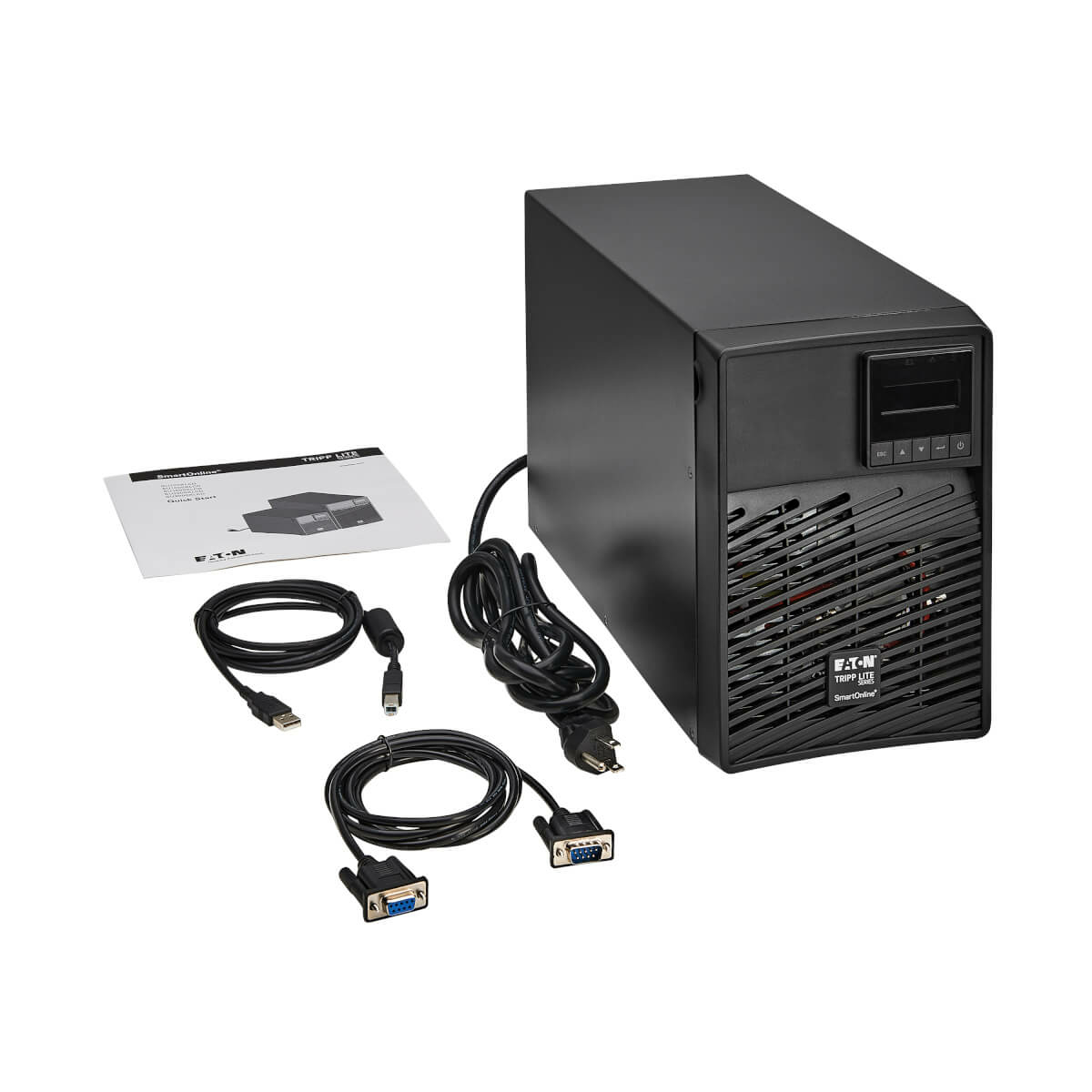

Tripp Lite SU1000XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)

Tripp Lite SU1000XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)

SmartOnline 100-127V 1kVA 900W On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1000VA 900W UPS SMART ONLINELCD TOWER 120V USB DB9 SNMP 565558 Register free see stock
Arlington Industries 1000VA/900W 6-OUT ON-LINE UPS LCD TRPSU1000XLCD
BlueStar TRIPP LITE, SMARTONLINE 1KVA ON-LINE DOUBLE-CONVERSION UPS, TOWER, INTERACTIVE LCD DISPLAY, 100/110/120/127V NEMA 5-15R OUTLETS SU1000XLCD
D&H 1000VA 900W UPS LCD SU1000XLCD
Ingram Micro SMART ONLINE UPS 1000VA 120V RA1522
TD Synnex UPS 1000VA SMART ONLINE TOWER USB LCD 3554374

Related Products

Description

Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU1000XLCD SmartOnline® Tower UPS System is the solution! Featuring a 1000VA/900W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU1000XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs (Tripp Lite model BP24V15RT2U, BP24V28-2U or BP24V70-3U), sold separately. The SU1000XLCD has 6 5-15R outlets, including 2 single-outlet load banks that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU1000XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
- Emergency Power Off (EPO) Capability
- Peace of Mind

Specifications

Power
Output voltage regulation4%
Output power factor0.9
Output power900 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Efficiency93%
Emergency Power Off (EPO)Yes
Crest factor3:1
Output power capacity1 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)

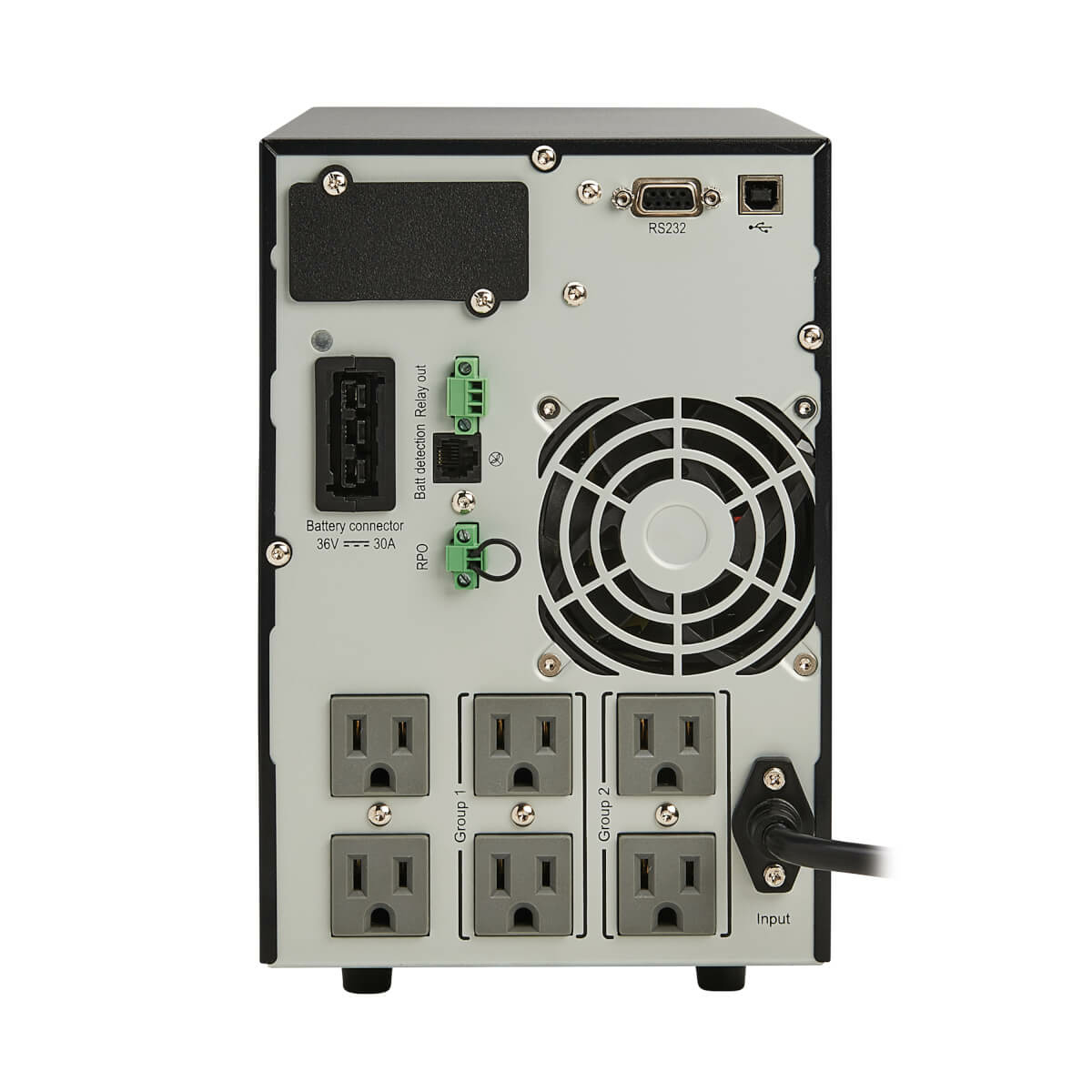

AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
RS-232 ports1
Ethernet LAN (RJ-45) ports1
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Noise level50 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation4%
Output power factor0.9
Output power900 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Efficiency93%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Noise level50 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load15 min
Typical backup time at full load4.8 min
Hot-swap batteryYes
Cold startYes
Automatic battery testYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778 , CSA, NOM, FCC
Cable length118.1" (3 m)
Built-in fanYes
Housing materialSteel
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width9.8" (248.9 mm)
Package depth18" (457.2 mm)
Package height13.9" (353.1 mm)
Weight28.7 lbs (13 kg)
Width6.8" (172.7 mm)
Package weight33.5 lbs (15.2 kg)
Height10" (254 mm)
Depth13.3" (337.8 mm)
Packaging data
Package width9.8" (248.9 mm)
Package depth18" (457.2 mm)
Package height13.9" (353.1 mm)
Package weight33.5 lbs (15.2 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width9.8" (248.9 mm)
Master (outer) case length18" (457.2 mm)
Master (outer) case height13.9" (353.1 mm)
Master (outer) case gross weight33.5 lbs (15.2 kg)
Certificates
CertificationUL1778 , CSA, NOM, FCC
