Tripp Lite SMART700DV uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 450 W 6 AC outlet(s)

Tripp Lite SMART700DV uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 450 W 6 AC outlet(s)

SmartPro 120V 700VA 450W Line-Interactive Sine Wave UPS, Dual Voltage, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, UPS SMARTPRO TOWER 700VA DUAL VOT 6 OUT RS232/USB SNMP SLOT SMART700DV Register free see stock
D&H UPS 700VA 450W Smart Tower AVR SMART700DV
Ingram Micro UPS SMART 700VA 450WAVR 120V N17402
TD Synnex 700VA 450W UPS SMART TOWER AVR 120V / 230V USB DB9 TAA GSA 1929377

Related Products

Description

Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage. Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures. 700VA/450W power handling capability supports a variety of networking, telecom and other applications, including multiple network workstations. Includes 6 UPS-supported outlets. Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports. Works with PowerAlert UPS monitoring and unattended shutdown software available via free download. Includes complete USB and serial cabling. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.
- Tripp Lite's dual-voltage SMART700DV line-interactive UPS system maintains 120V nominal output when fed with North American 120V or international 230V input voltage
- Includes detachable input cord with NEMA 5-15P input plug
- Built-in C14 inlet supports a variety of user-supplied international high- and low-voltage input cables
- Protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges
- Large internal batteries offer 54.5 min. half-load runtime and 22.2 min. full load runtime during power failures
- 700VA/450W power handling capability supports a variety of networking, telecom and various other applications types, including multiple network workstations
- Includes 6 UPS-supported outlets

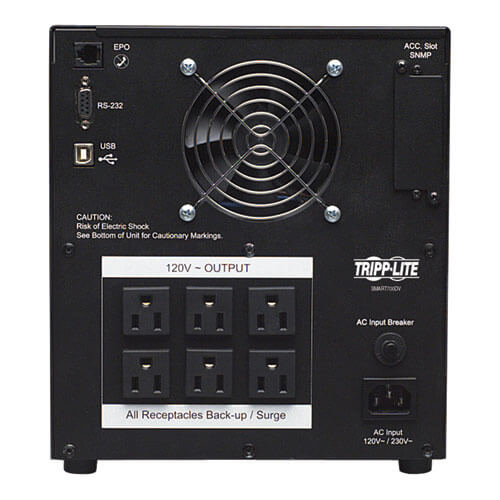

- Supports remote monitoring of UPS and site power conditions via built-in USB and RS-232 enabled DB9 ports
- Works with PowerAlert UPS monitoring and unattended shutdown software, available via free download
- Includes complete USB and serial cabling

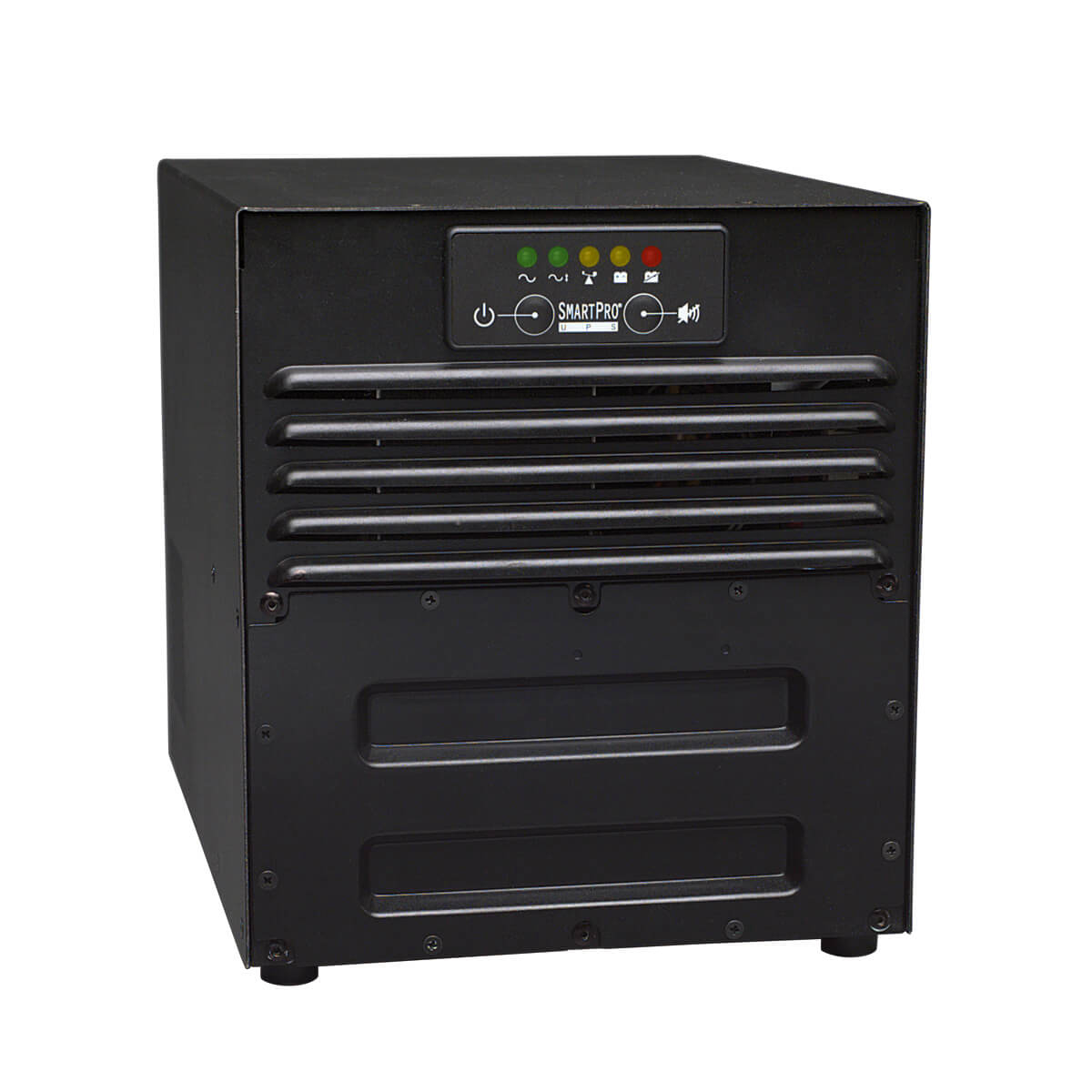

- Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and load level
- Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Power
Output voltage regulation-21, +8%
Output power450 W
Input operation voltage (min)83 V
Input operation voltage (max)230 V
Output operation voltage (min)120 V
Surge energy rating570 J
Maximum current6 A
Efficiency94%
Emergency Power Off (EPO)Yes
Power factor0.6
Output power capacity0.7 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
RS-232 ports1
Modem (RJ-11) ports1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-21, +8%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power450 W
Input operation voltage (min)83 V
Input operation voltage (max)230 V
Output operation voltage (min)120 V
Surge energy rating570 J
Maximum current6 A
Efficiency94%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.6
Audible alarm(s)Yes
Output power capacity0.7 kVA
Input frequency50/60 Hz
Battery
Battery recharge time4 h
Typical backup time at half load54.5 min
Typical backup time at full load22.2 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, CE, FCC,
Cable length70.9" (1.8 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Sustainability certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width14.3" (362 mm)
Package depth17.7" (450.8 mm)
Package height15.3" (387.4 mm)
Weight61.9 lbs (28.1 kg)
Width9" (228.6 mm)
Package weight78 lbs (35.4 kg)
Height10.3" (260.4 mm)
Depth12.5" (317.5 mm)
Packaging data
Package width14.3" (362 mm)
Package depth17.7" (450.8 mm)
Package height15.3" (387.4 mm)
Package weight78 lbs (35.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width14.3" (362 mm)
Master (outer) case length17.7" (450.8 mm)
Master (outer) case height15.3" (387.4 mm)
Master (outer) case gross weight78 lbs (35.4 kg)
Certificates
CertificationUL1778, CSA, CE, FCC,
Other features
Nominal output voltage120 V
