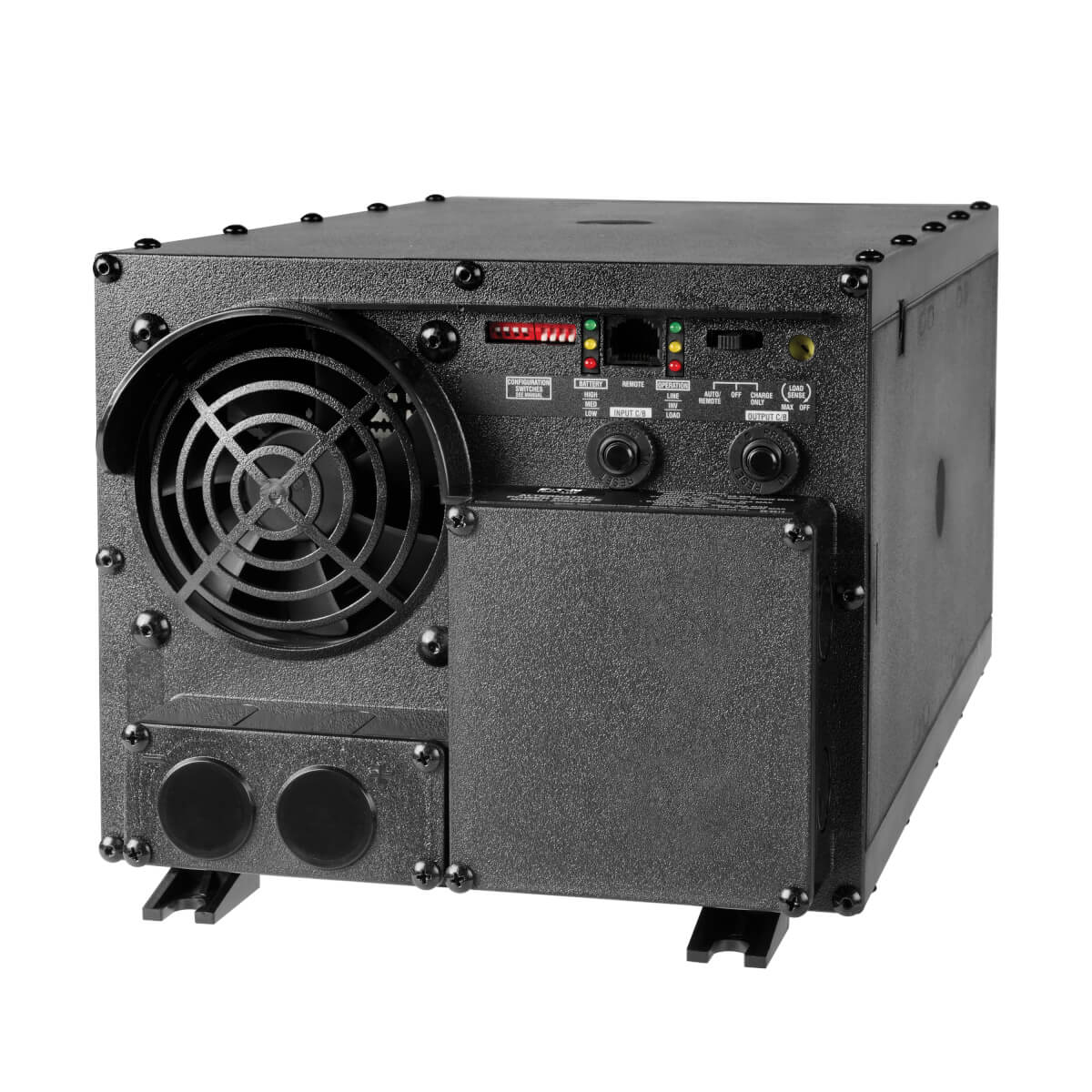

Tripp Lite APS2424 power adapter/inverter 2400 W Black
- Brand: Tripp Lite
- Category:
- SKU: APS2424
- EAN: 0037332090256 0033172796167 03 ...2796167 0373320902560more
PowerVerter APS Inverter/Charger with Auto-Transfer Switching
Offer details
Description
Tripp Lite's APS2424 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2400 watts of continuous 120V AC power from any 24V battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 14/55 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separate). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel/SLA battery types and selectable line to battery power transfer voltages.
Specifications
Features | |
---|---|
Input voltage | 24 V |
Output power | 2400 W |
Output voltage | 120 V |
Efficiency | 90% |
Country of origin | China |
Product colour | Black |
Input frequency | 60 Hz |
Power | |
Input voltage | 24 V |
Output power | 2400 W |
Output voltage | 120 V |
Efficiency | 90% |
Design | |
Product colour | Black |
Weight & dimensions | |
Weight | 39 lbs (17.7 kg) |
Width | 8.5" (215.9 mm) |
Depth | 16.3" (412.8 mm) |
Height | 7.25" (184.2 mm) |
Packaging data | |
Package width | 14.8" (375.9 mm) |
Package depth | 21.4" (543.6 mm) |
Package height | 12.9" (327.7 mm) |
Package weight | 44.1 lbs (20 kg) |
Logistics data | |
Products per master (outer) case | 1 pc(s) |
Master (outer) case width | 14.8" (375.9 mm) |
Master (outer) case gross weight | 44.1 lbs (20 kg) |
Master (outer) case length | 21.4" (543.6 mm) |
Master (outer) case height | 12.9" (327.7 mm) |
Harmonized System (HS) code | 8504.40.9570 |
Other features | |
Dimensions (WxDxH) | 8.5 x 16.3 x 7.25" (215.9 x 412.8 x 184.2 mm) |
Country of origin | China |
