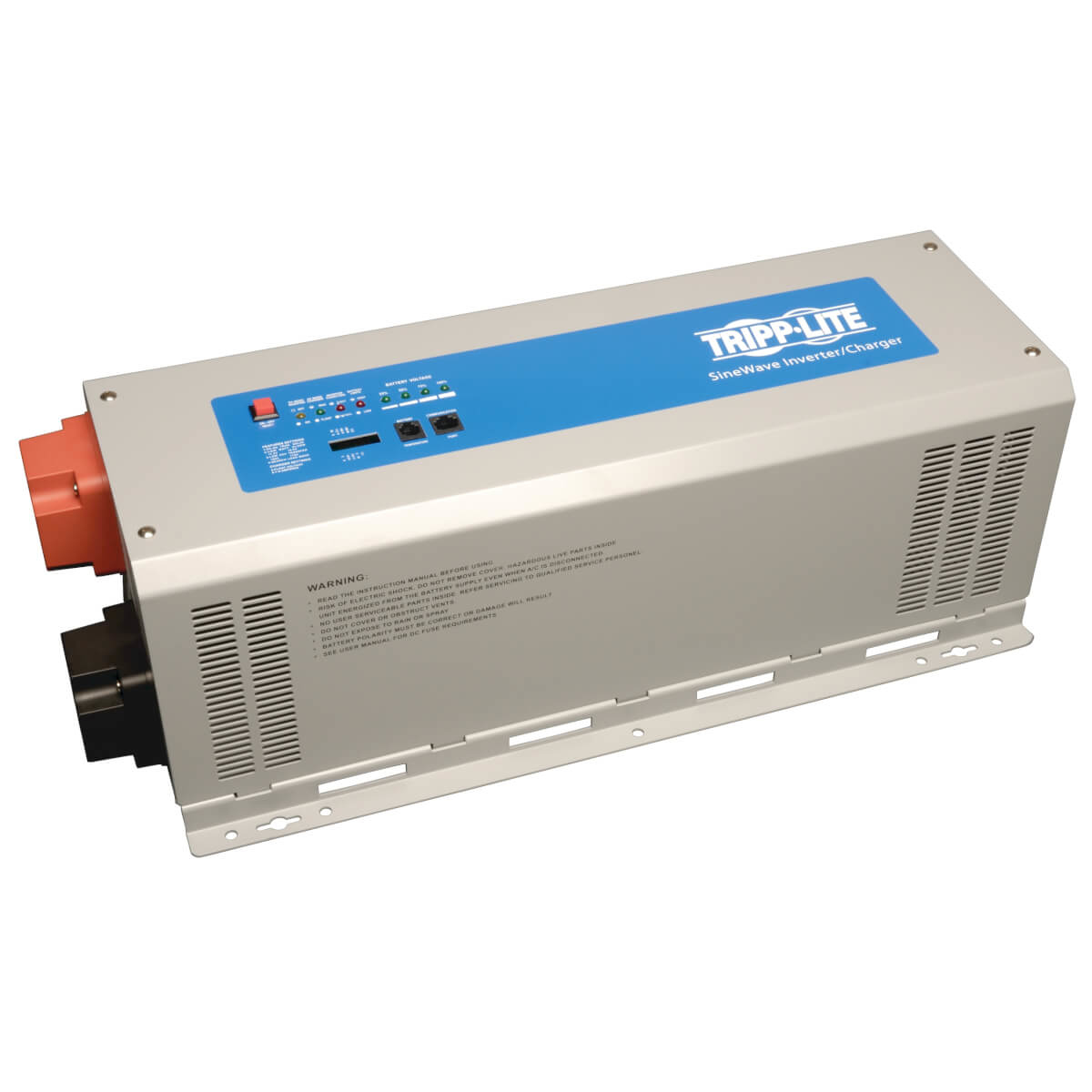

Tripp Lite APSX2012SW power adapter/inverter Indoor 2000 W Gray
- Brand: Tripp Lite
- Category:
- SKU: APSX2012SW
- EAN: 0373321613458 0037332161345
2000W APS X Series 12VDC 230V Inverter/Charger with Pure Sine-Wave Output, Hardwired
Offer details
Description
The APSX2012SW 2000W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of power tools, computers, audio/video components and other sensitive electronics at mobile, emergency and remote sites. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.
The DC-to-AC pure sine-wave inverter delivers network-grade power to sensitive electronics. Its automatic line-to-battery transfer switch and integrated charging system allow the unit to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 2000W of continuous power or 4000W of peak power during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, commercial and fleet vehicles and emergency vehicles, the APSX2012SW converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 6-60A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX2012SW responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate battery voltage, charger and inverter status.
The DC-to-AC pure sine-wave inverter delivers network-grade power to sensitive electronics. Its automatic line-to-battery transfer switch and integrated charging system allow the unit to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 2000W of continuous power or 4000W of peak power during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, commercial and fleet vehicles and emergency vehicles, the APSX2012SW converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 6-60A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX2012SW responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate battery voltage, charger and inverter status.
Specifications
Features | |
---|---|
Adjustable output voltage | Yes |
Input voltage | 230 V |
Output power | 2000 W |
Output voltage | 230 V |
Output frequency | 50 Hz |
Output current | 15 A |
Power supply type | Indoor |
Power protection features | Overload |
Power current type | AC1-to-AC2 |
LED indicators | Yes |
Housing material | Steel |
Country of origin | Taiwan |
Product colour | Gray |
Input frequency | 50 Hz |
Power | |
Adjustable output voltage | Yes |
Input voltage | 230 V |
Output power | 2000 W |
Output voltage | 230 V |
Output frequency | 50 Hz |
Output current | 15 A |
Performance | |
Power supply type | Indoor |
Power protection features | Overload |
Power current type | AC1-to-AC2 |
Design | |
LED indicators | Yes |
On/off switch | Yes |
Housing material | Steel |
Product colour | Gray |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Weight | 49.4 lbs (22.4 kg) |
Width | 9" (228.6 mm) |
Depth | 22.5" (571.5 mm) |
Height | 7.5" (190.5 mm) |
Packaging data | |
Package width | 11.6" (294.6 mm) |
Package depth | 12.1" (307.3 mm) |
Package height | 26.1" (662.9 mm) |
Package weight | 56 lbs (25.4 kg) |
Technical details | |
Peak power | 4000 W |
Logistics data | |
Products per master (outer) case | 1 pc(s) |
Master (outer) case width | 11.6" (294.6 mm) |
Master (outer) case gross weight | 56 lbs (25.4 kg) |
Master (outer) case length | 12.1" (307.3 mm) |
Master (outer) case height | 26.1" (662.9 mm) |
Harmonized System (HS) code | 8504.40.9570 |
Other features | |
Country of origin | Taiwan |
Audible alarm(s) | Yes |
