Tripp Lite APSINT3636VR power adapter/inverter Indoor 3600 W Black

Tripp Lite APSINT3636VR power adapter/inverter Indoor 3600 W Black

3600W APS INT Series 36VDC 230V Inverter/Charger with Auto-Transfer Switching, Line-Interactive AVR

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter INTERNATIONALINVERTER/CHARGER 3600W AVR 565057 Register free see stock
Ingram Micro 3600W INT INVERTER CHARGER 230V 3F8721
TD Synnex 3600W APS 36VDC 230V INVERTER/CHARGER 6002538

Related Products

Description

The APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools, pumps and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 3600W of continuous power, 5400W up to one hour or 7200W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSINT3636VR converts stored power from any 36V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.

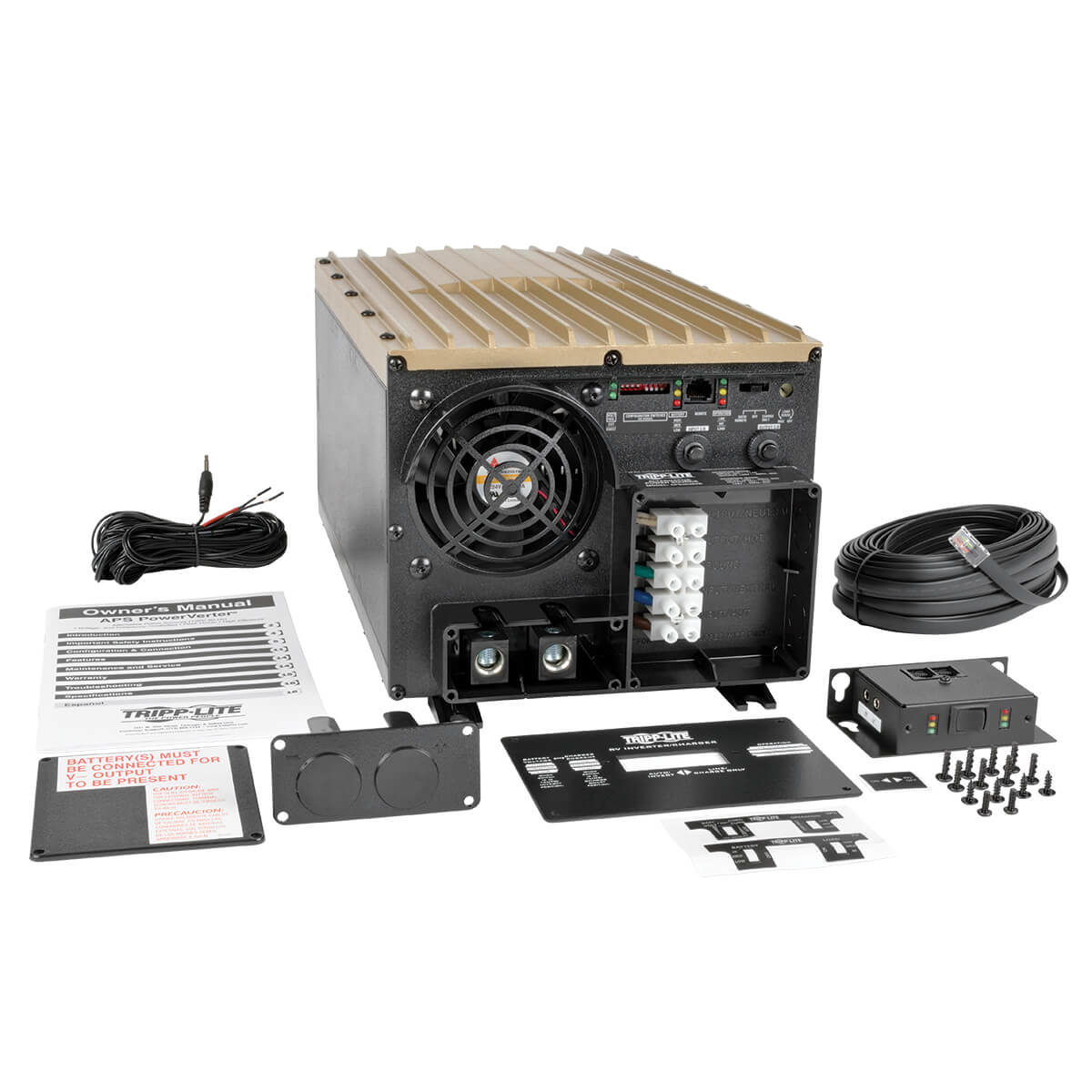

When used as a UPS, the APSINT3636VR’s automatic voltage regulation feature protects your equipment against blackouts, brownouts, surges and line noise. The APSRM4 module with “traffic light” LEDs is included to provide complete remote monitoring and control of the unit.

Specifications

Features
Adjustable output voltageYes
Input voltage230 V
Output power3600 W
Output voltage230 V
Output frequency50 Hz
Power supply typeIndoor
PurposeUniversal
Power protection featuresOver voltage
LED indicatorsYes
Housing materialPolycarbonate (PC)
Country of originChina
Product colourBlack
CertificationRoHS
Input frequency50 Hz
Power
Adjustable output voltageYes
Input voltage230 V
Output power3600 W
Output voltage230 V
Output frequency50 Hz
Performance
Power supply typeIndoor
PurposeUniversal
Power protection featuresOver voltage
CertificationRoHS
Design
LED indicatorsYes
Housing materialPolycarbonate (PC)
Product colourBlack
Operational conditions
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Weight58 lbs (26.3 kg)
Width8.5" (215.9 mm)
Depth14" (355.6 mm)
Height7" (177.8 mm)
Packaging data
Package width14.5" (368.3 mm)
Package depth20.9" (530.9 mm)
Package height13.4" (340.4 mm)
Package weight64.6 lbs (29.3 kg)
Technical details
Peak power7200 W
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width14.5" (368.3 mm)
Master (outer) case gross weight64.6 lbs (29.3 kg)
Master (outer) case length20.9" (530.9 mm)
Master (outer) case height13.4" (340.4 mm)
Harmonized System (HS) code8504.40.9570
Other features
Country of originChina
