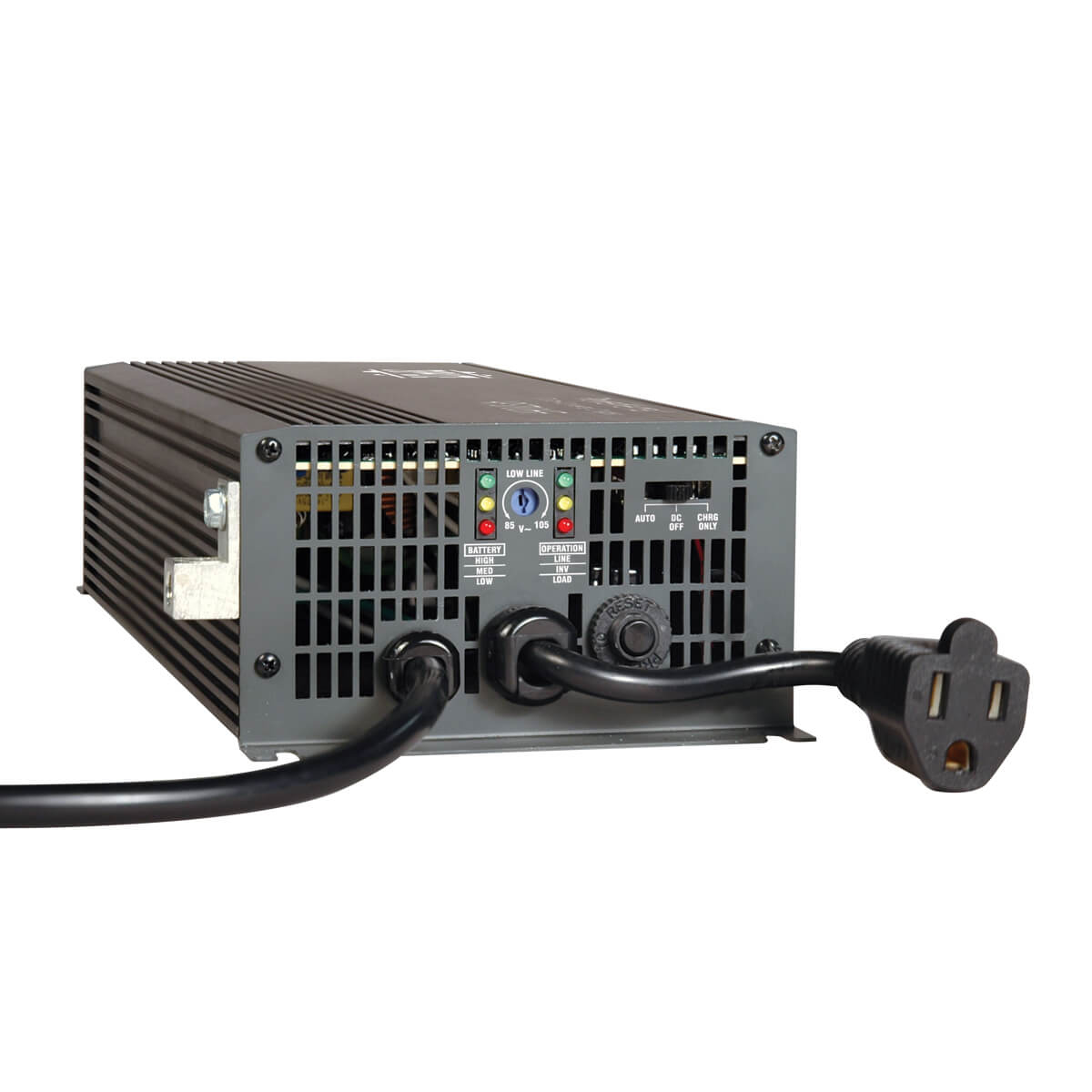

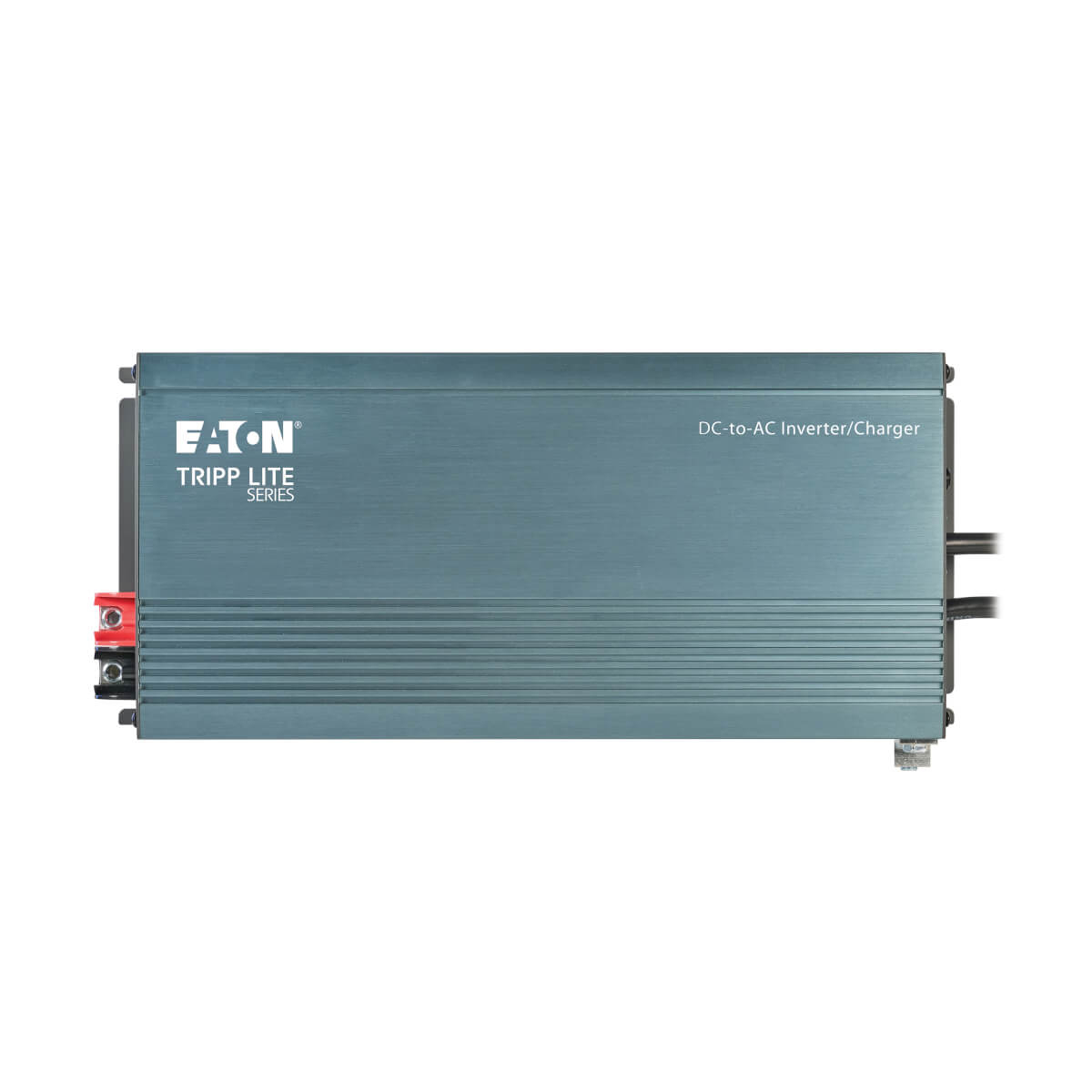

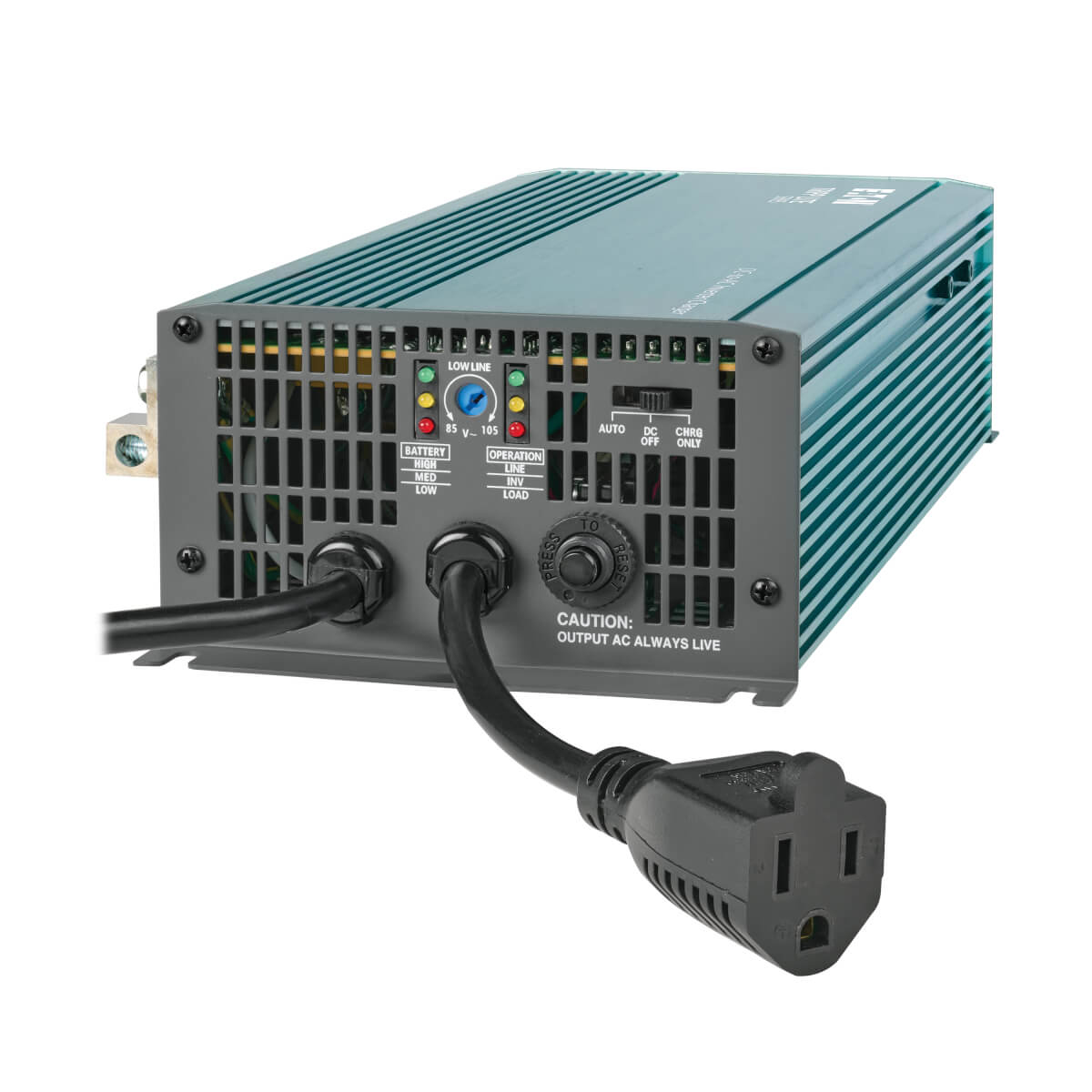

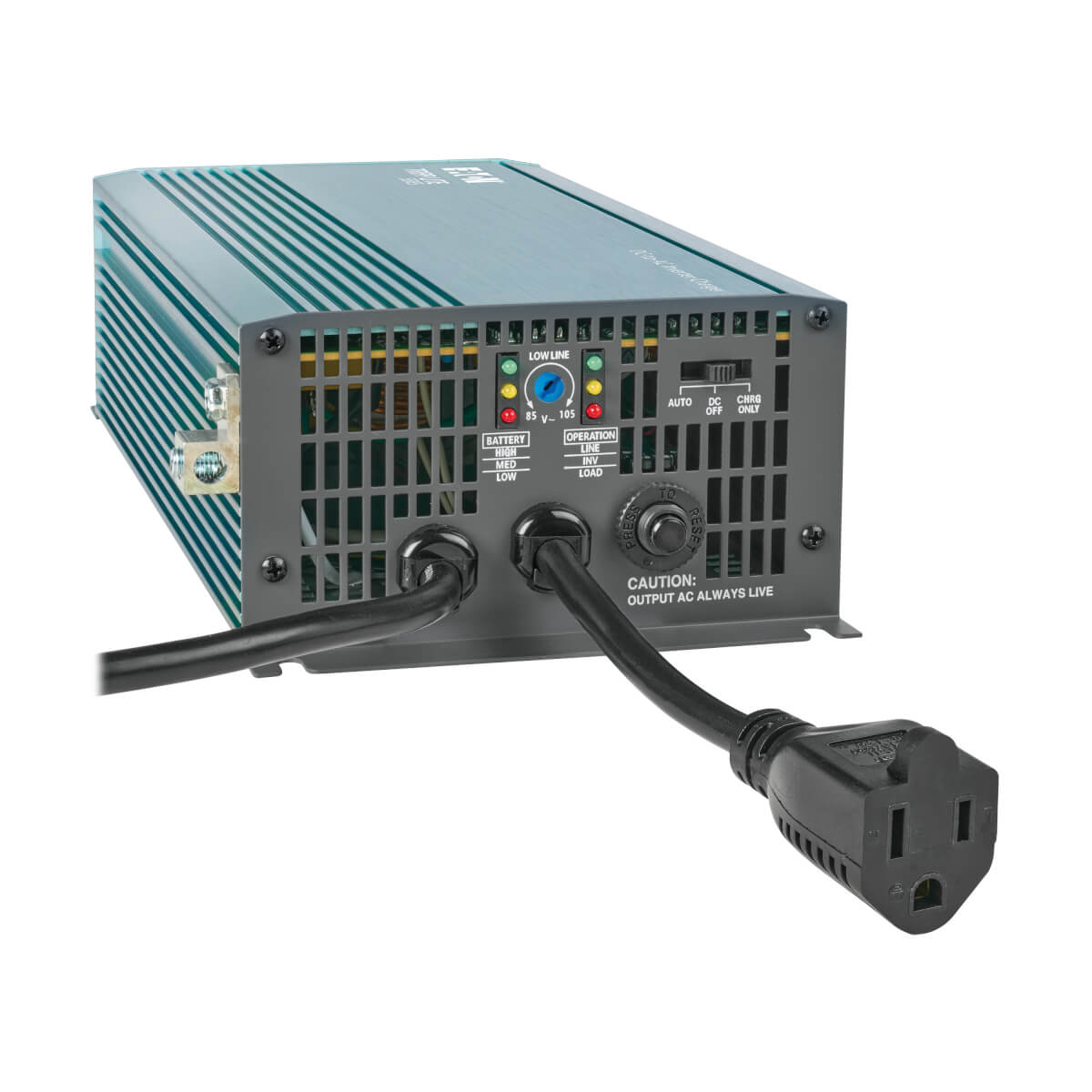

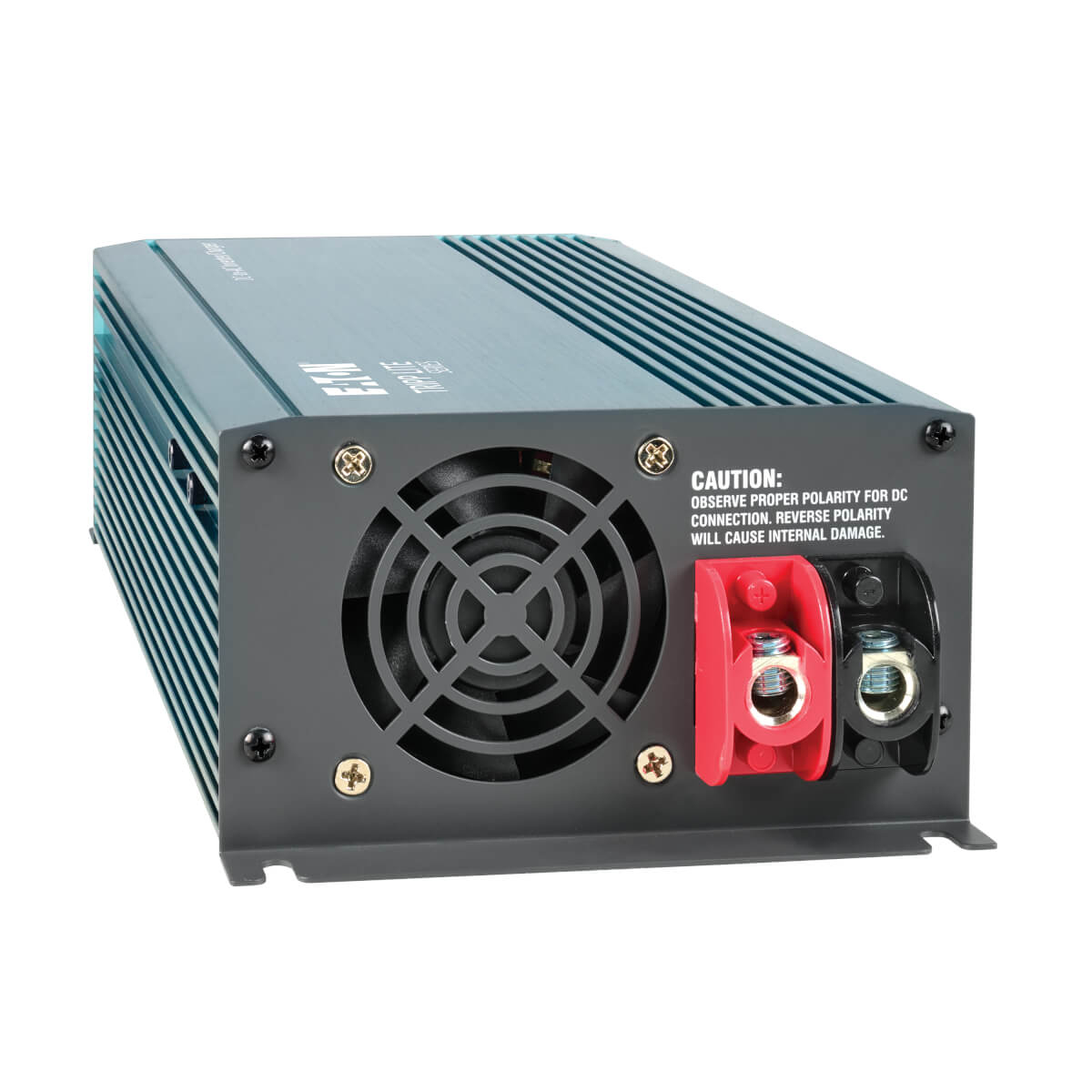

Tripp Lite APS700HF power adapter/inverter 1400 W Black

PowerVerter APS Ultra-Compact Inverter/Charger, Auto-Transfer Switching

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

12V DC TO AC COMPACT INVERTERWITH AUTOMATIC

 565055 Register free see stock

Related Products

Description

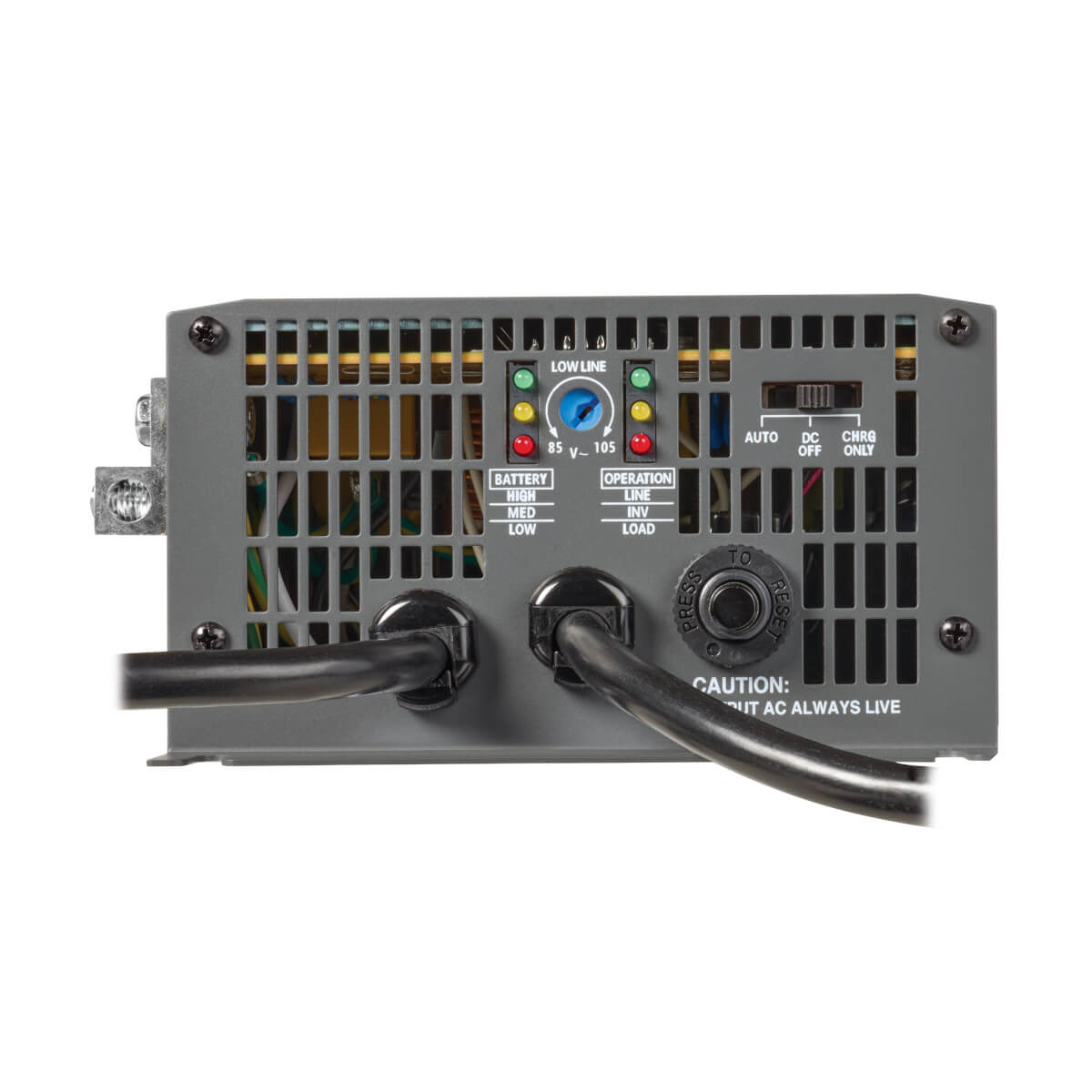

Tripp Lite's APS700HF Ultra-Compact DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 700 watts of continuous 120V AC power to 1 AC outlet from any 12V battery or automotive DC source. OverPower inverter output feature provides up to 120% of the continuous output for up to 5 seconds, and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 2 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3-stage, 6-amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power mode, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Supports an unlimited amount of runtime with any number of user-supplied batteries connected.

- 12V DC or 120V AC input; 120V AC output; 1 outlet
- 700 watts continuous, 1050 watts OverPower and 1400 watts DoubleBoost inverter output
- 6 amp rated, 3-stage, built-in battery charger

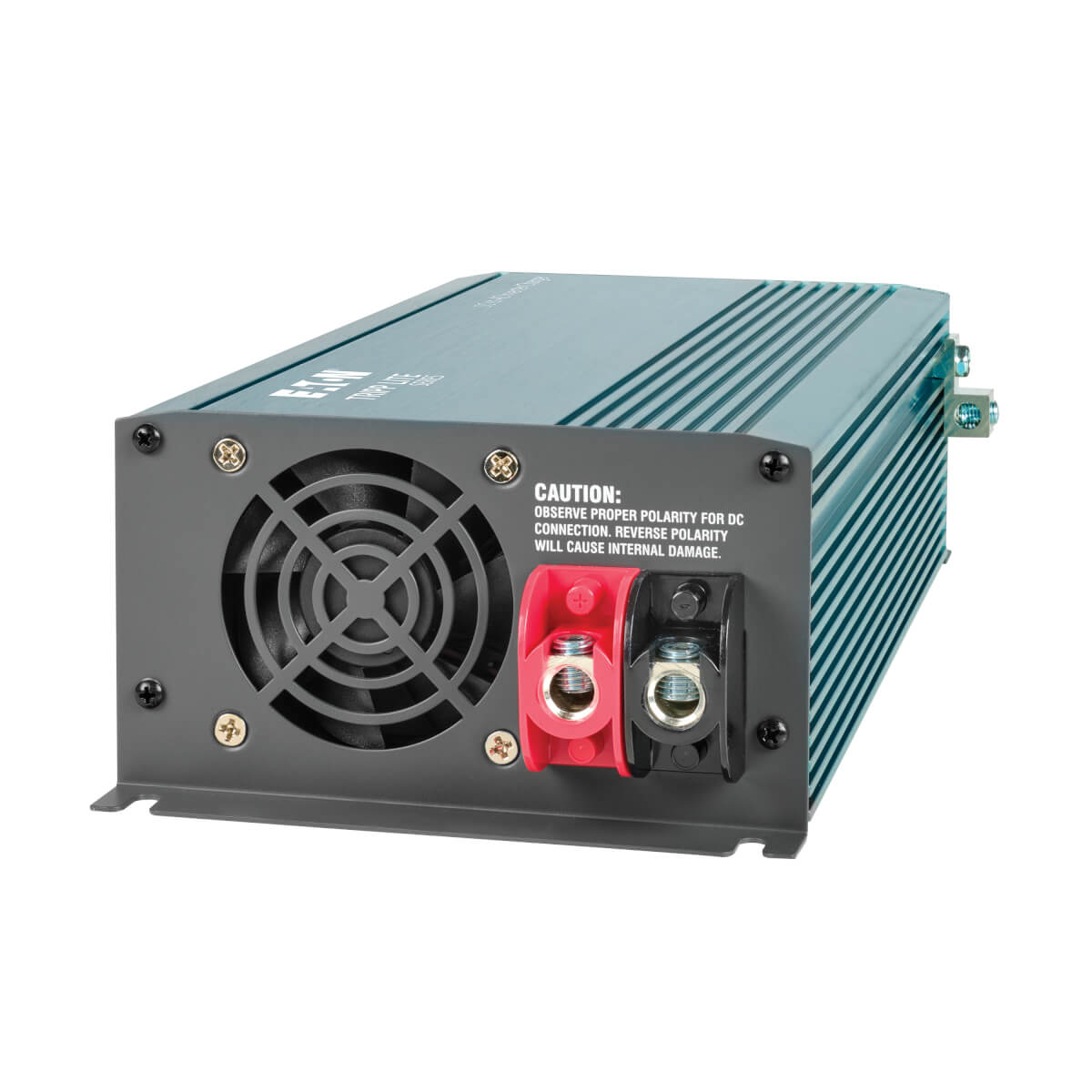

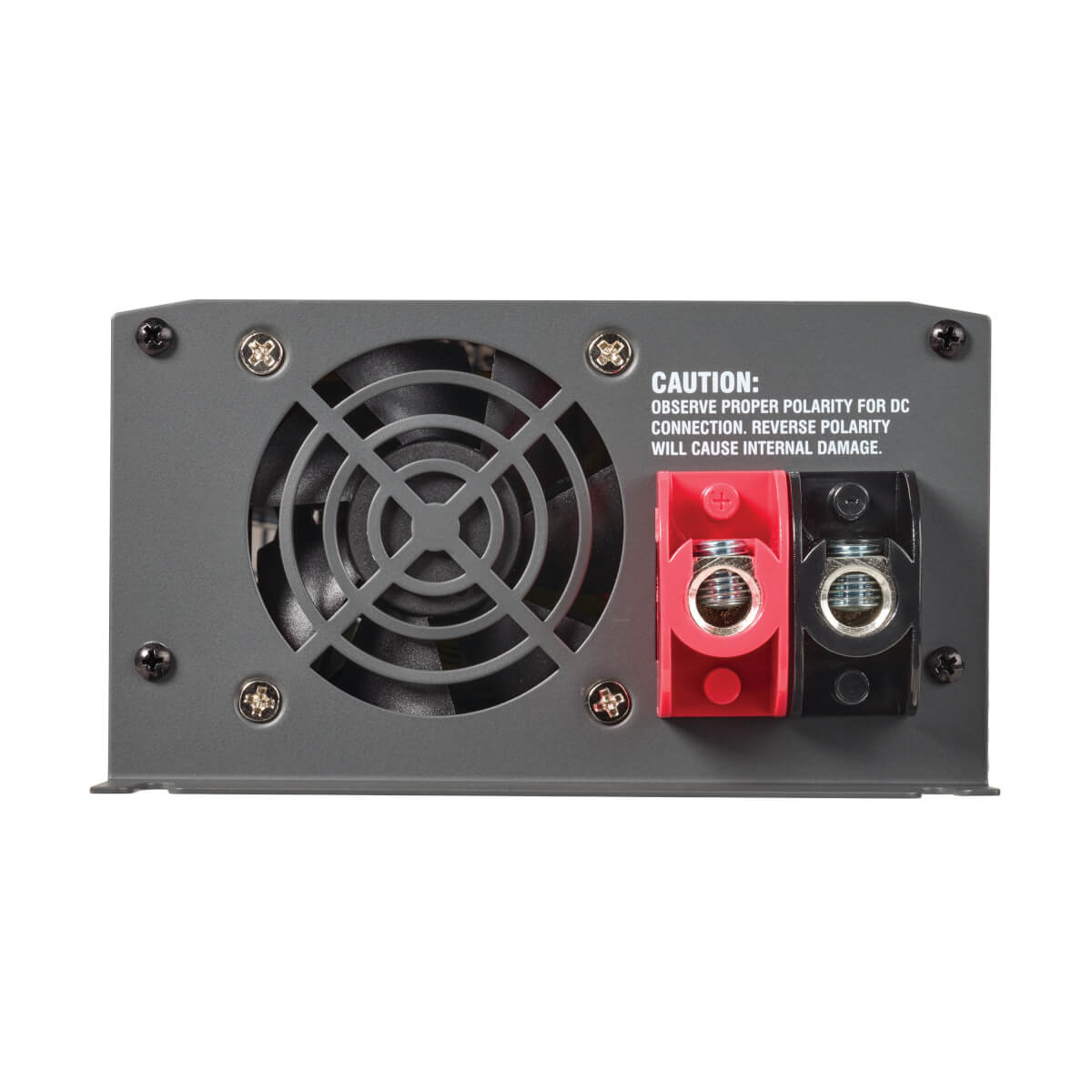

- Auto Transfer Switching option for battery backup / UPS operation - with ISOBAR AC surge suppression

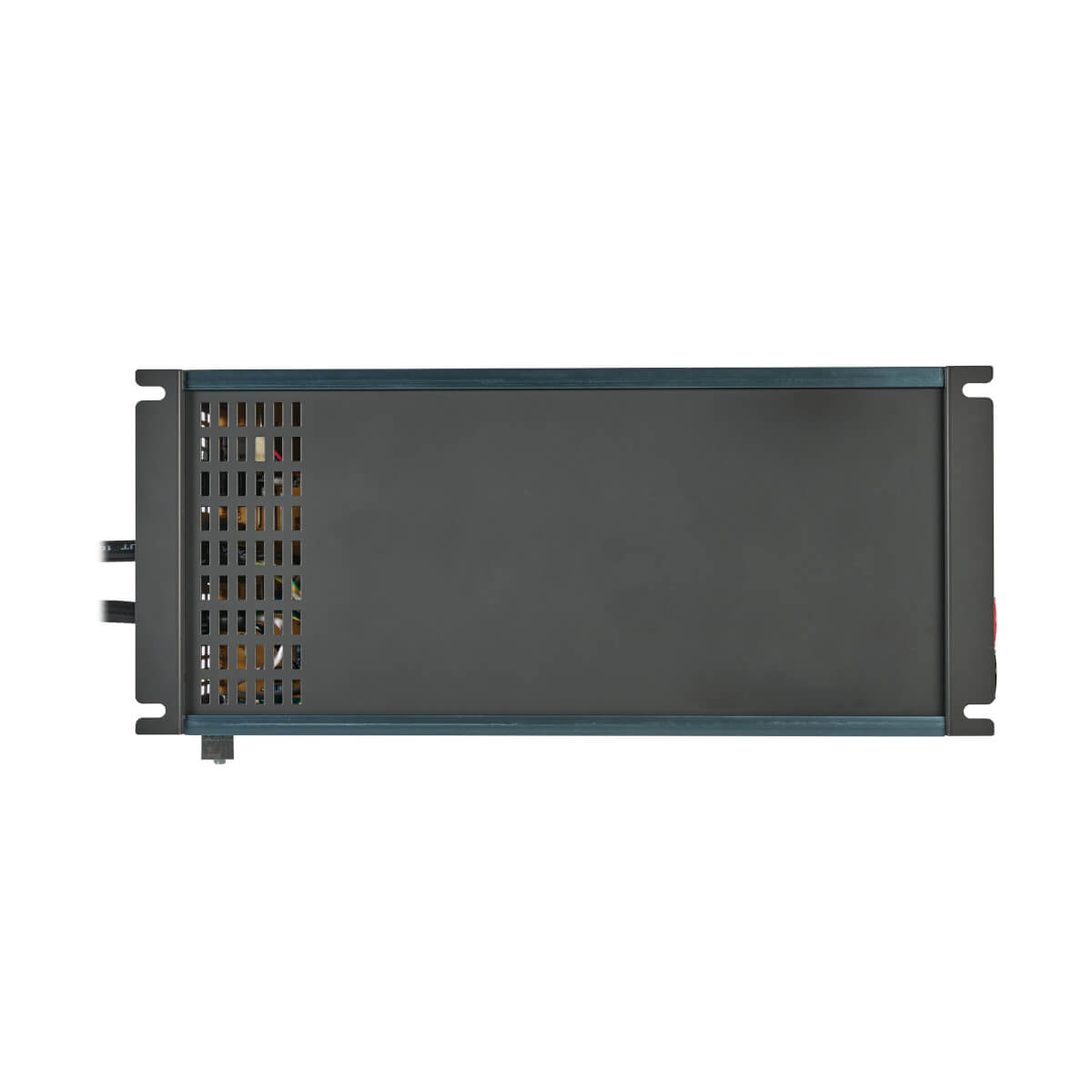

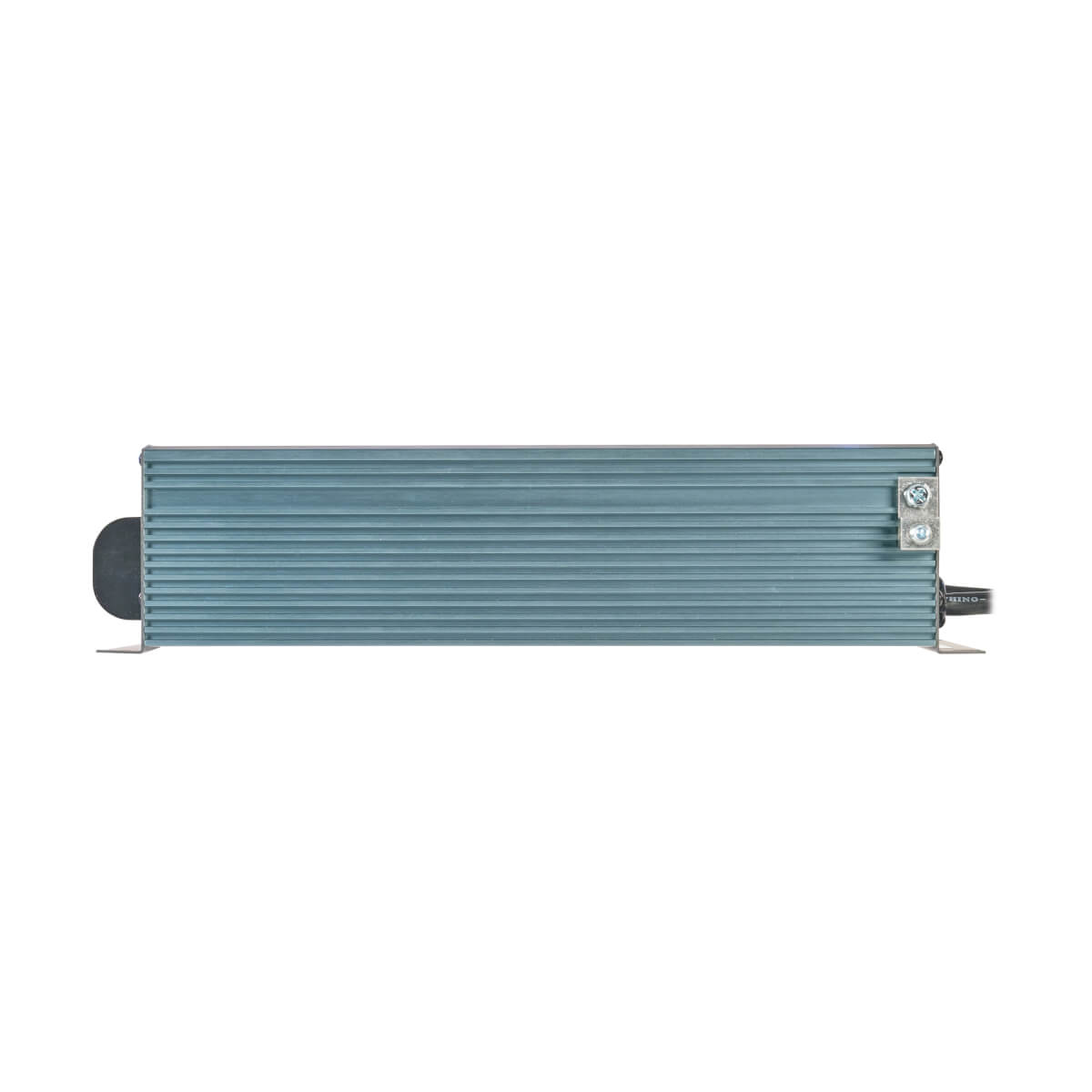

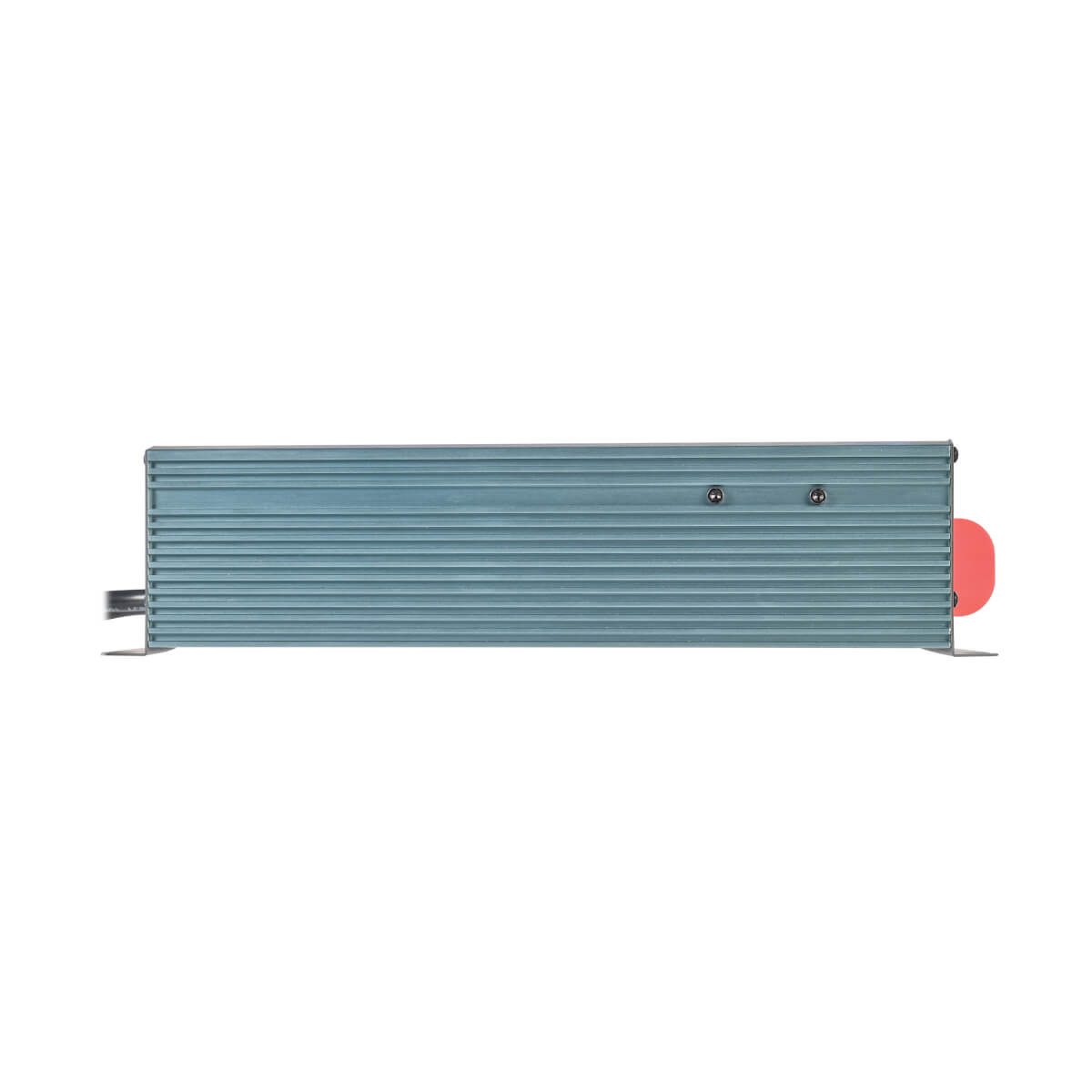

- Ultra-compact, lightweight aluminum housing weighs only 4 lbs. / 1.8 kg

Specifications

Features
Output power1400 W
Output voltage120 V
LED indicatorsYes
Country of originChina
Product colourBlack
Input frequency60 Hz
Power
Output power1400 W
Output voltage120 V
Design
LED indicatorsYes
Product colourBlack
Weight & dimensions
Weight3.99 lbs (1.81 kg)
Width1.45" (36.8 mm)
Depth0.85" (21.6 mm)
Height0.85" (21.6 mm)
Packaging data
Package width14.5" (368.3 mm)
Package depth8.5" (215.9 mm)
Package height8.5" (215.9 mm)
Package weight5.49 lbs (2.49 kg)
Logistics data
Products per master (outer) case4 pc(s)
Master (outer) case width17" (431.8 mm)
Master (outer) case length14.7" (374.6 mm)
Master (outer) case height8.75" (222.2 mm)
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332126945
Harmonized System (HS) code8504.40.9570
Other features
Overload protectionYes
Dimensions (WxDxH)1.45 x 0.85 x 0.85" (36.8 x 21.6 x 21.6 mm)
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332126945
