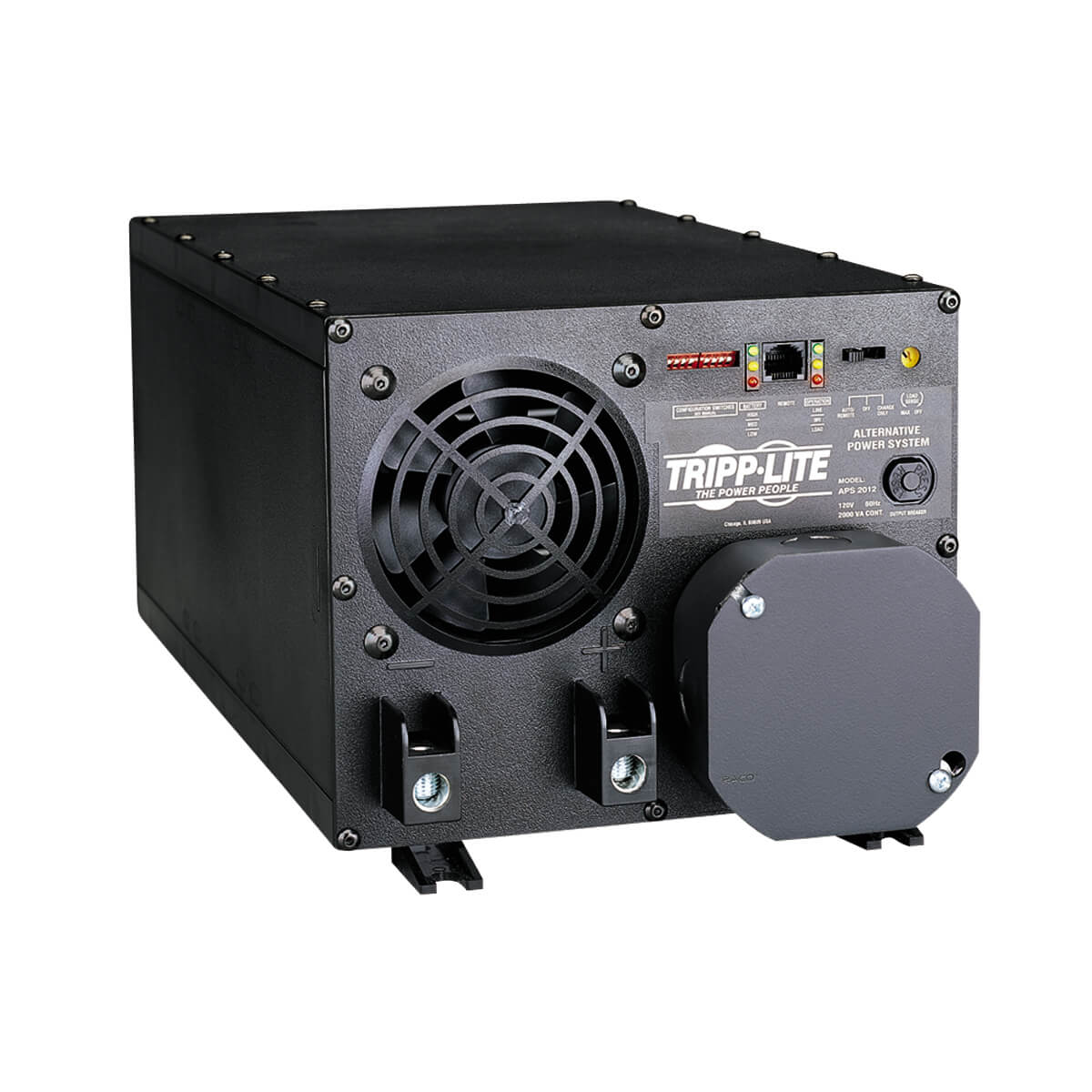

Tripp Lite APSINT2012 power adapter/inverter 2000 W Black

2000W APS INT Series 12VDC 230V Inverter/Charger with Auto Transfer Switching, Hardwired

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2000 CONTINUOUS WATTS 3000OVERPOWER WATTS 4000 565051 Register free see stock
Ingram Micro 2000W INT INVERTER CHARGER 230V 3F8719

Related Products

Description

The APSINT2012 2000W APS INT Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 2000W of continuous power, 3000W up to one hour, or 4000W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSINT2012 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime in heavy-load conditions. When powered by an external AC source, the unit keeps the user-supplied battery charged via a three-stage 15/60A selectable charging system while simultaneously delivering AC power to connected equipment.

When used as a UPS, the APSINT2012 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs indicate AC/DC operational modes, overload status, DC voltage level, shutdown and system fault.

Reliable Power for Mobile, Emergency and Remote Sites
Generates safe, stable, computer-grade 230V AC power from 12V battery bank
Ideal for powering tools, saws, motors, pumps, portable lighting, appliances and computer equipment in heavy-load conditions
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans
Functions as a vehicle inverter, standalone AC power source or extended-run UPS
Unlimited runtime with variety of user-supplied batteries

Meets Normal and Peak Power Demands
2000W of continuous power
3000W of reserve power up to 1 hr.
4000W of peak power up to 10 sec. to accommodate surge power demands during equipment startup and cycling
Automatic overload detector, built-in cooling fan and resettable AC circuit breakers protect unit from damage
High-current DC input terminals for simple hardwired installation

Automatic Transfer Switching
Transfer relay switches to inverter power during blackout in 20 ms
3-position switch enables Auto, Charge Only or System Off mode
DIP switches configure high and low voltage auto-transfer

3-Stage 15/60A Selectable Battery Charger
Serves as battery charger when external 230V AC power is supplied and powering connected equipment
Protects battery from overcharging and overdischarging
Low-battery protection prevents excessive battery depletion
DIP switches configure wet/gel charging profiles

Optional Remote Control Capability
RJ45 communication port allows connection of optional remote control module, such as Tripp Lite’s APSRM4

Front-Panel LEDs
Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status

Rugged Polycarbonate Housing
Resists moisture, vibration and impact
Built-in mounting feet for installation on any rigid horizontal surface

Specifications

Features
Adjustable output voltageYes
Input voltage230 V
Output power2000 W
Output voltage230 V
PurposeBattery charger
Power protection featuresOver voltage, Overload
LED indicatorsYes
Housing materialPolycarbonate (PC)
Country of originChina
Product colourBlack
Input frequency50 Hz
Power
Adjustable output voltageYes
Input voltage230 V
Output power2000 W
Output voltage230 V
Performance
PurposeBattery charger
Power protection featuresOver voltage, Overload
Design
LED indicatorsYes
Housing materialPolycarbonate (PC)
Product colourBlack
Operational conditions
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Weight42.1 lbs (19.1 kg)
Width8.5" (215.9 mm)
Depth14" (355.6 mm)
Height7" (177.8 mm)
Packaging data
Package width15" (381 mm)
Package depth21.1" (536.7 mm)
Package height13.3" (336.6 mm)
Package weight46.1 lbs (20.9 kg)
Technical details
Peak power4000 W
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width15" (381 mm)
Master (outer) case gross weight46.1 lbs (20.9 kg)
Master (outer) case length21.1" (536.7 mm)
Master (outer) case height13.3" (336.6 mm)
Harmonized System (HS) code8504.40.9570
Other features
Country of originChina
