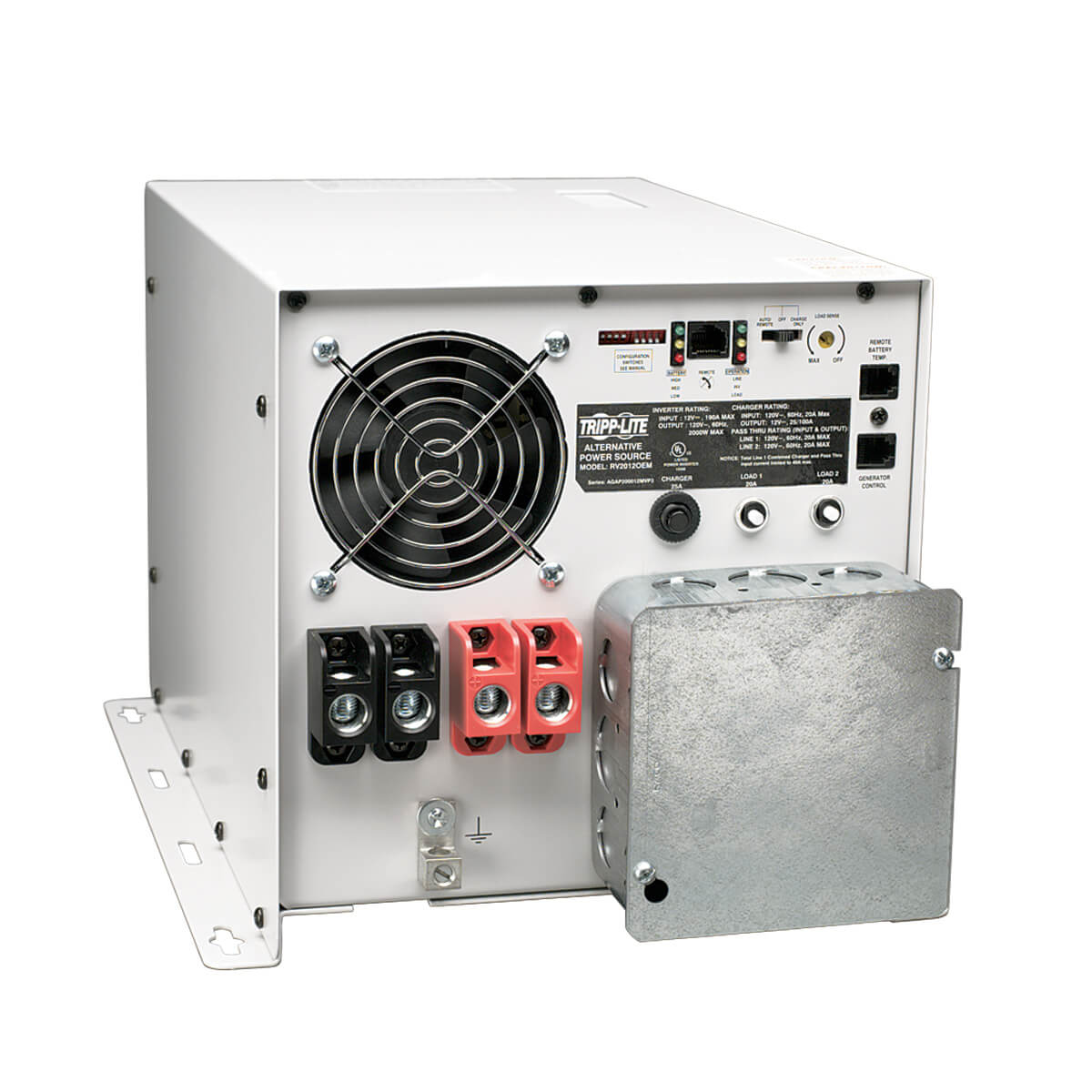

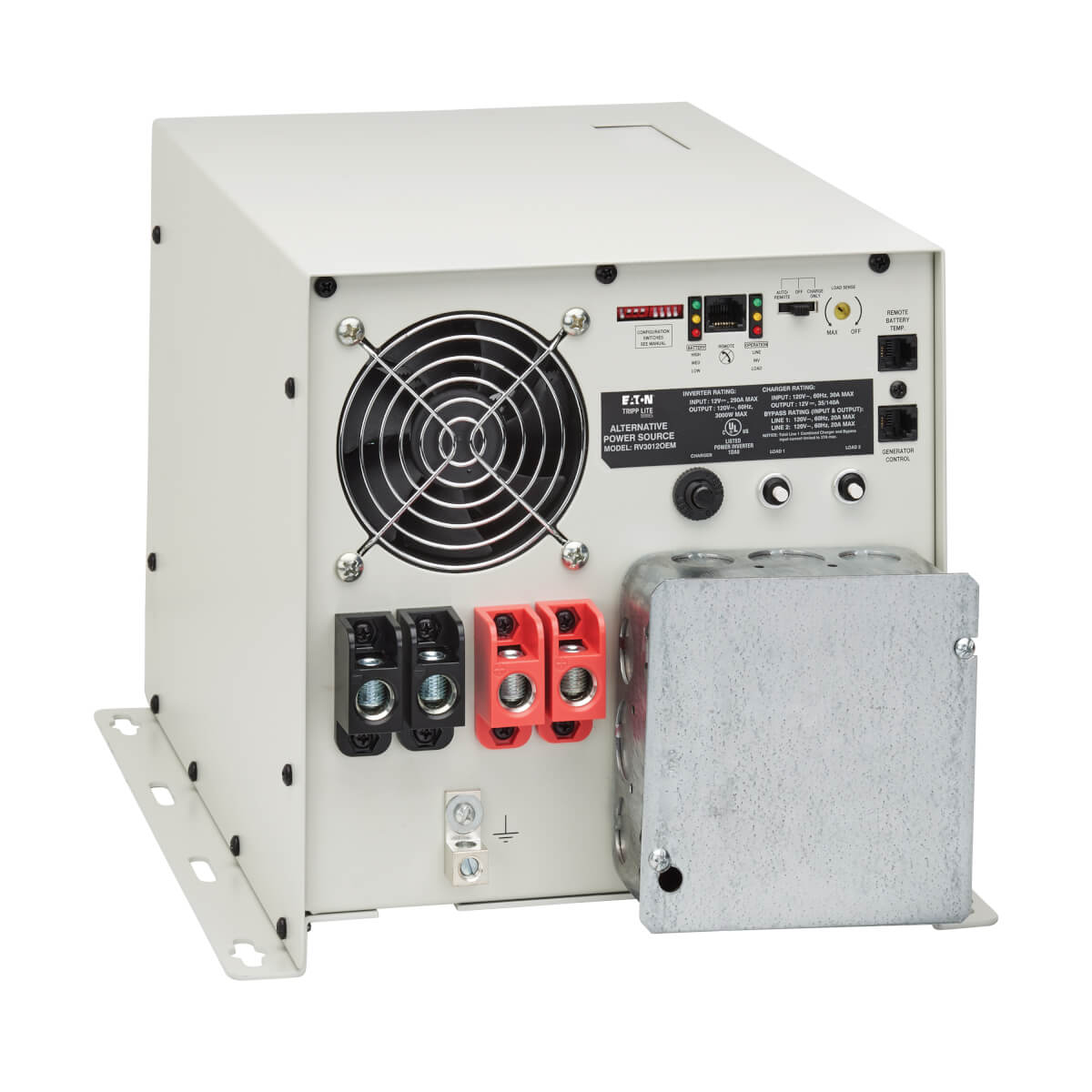

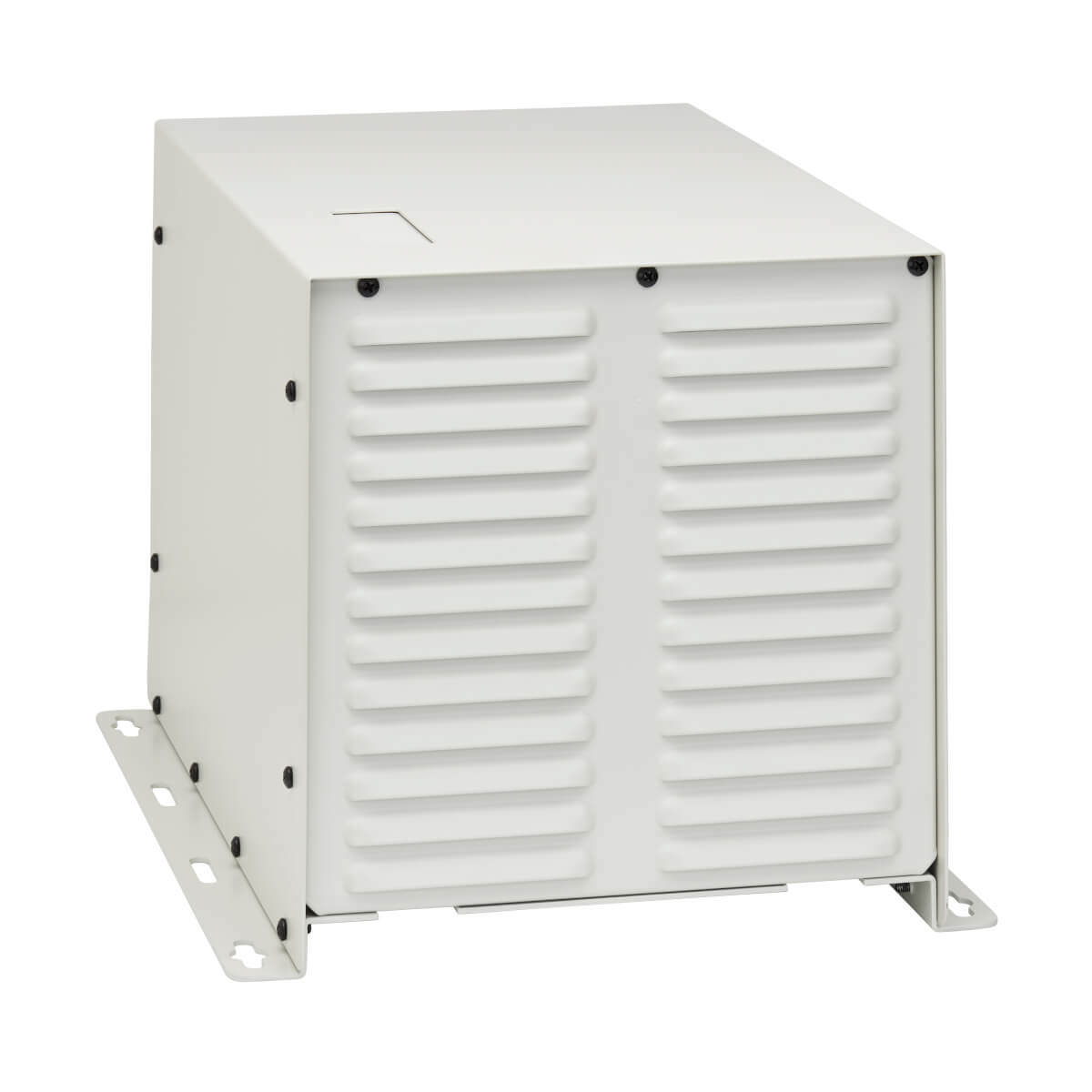

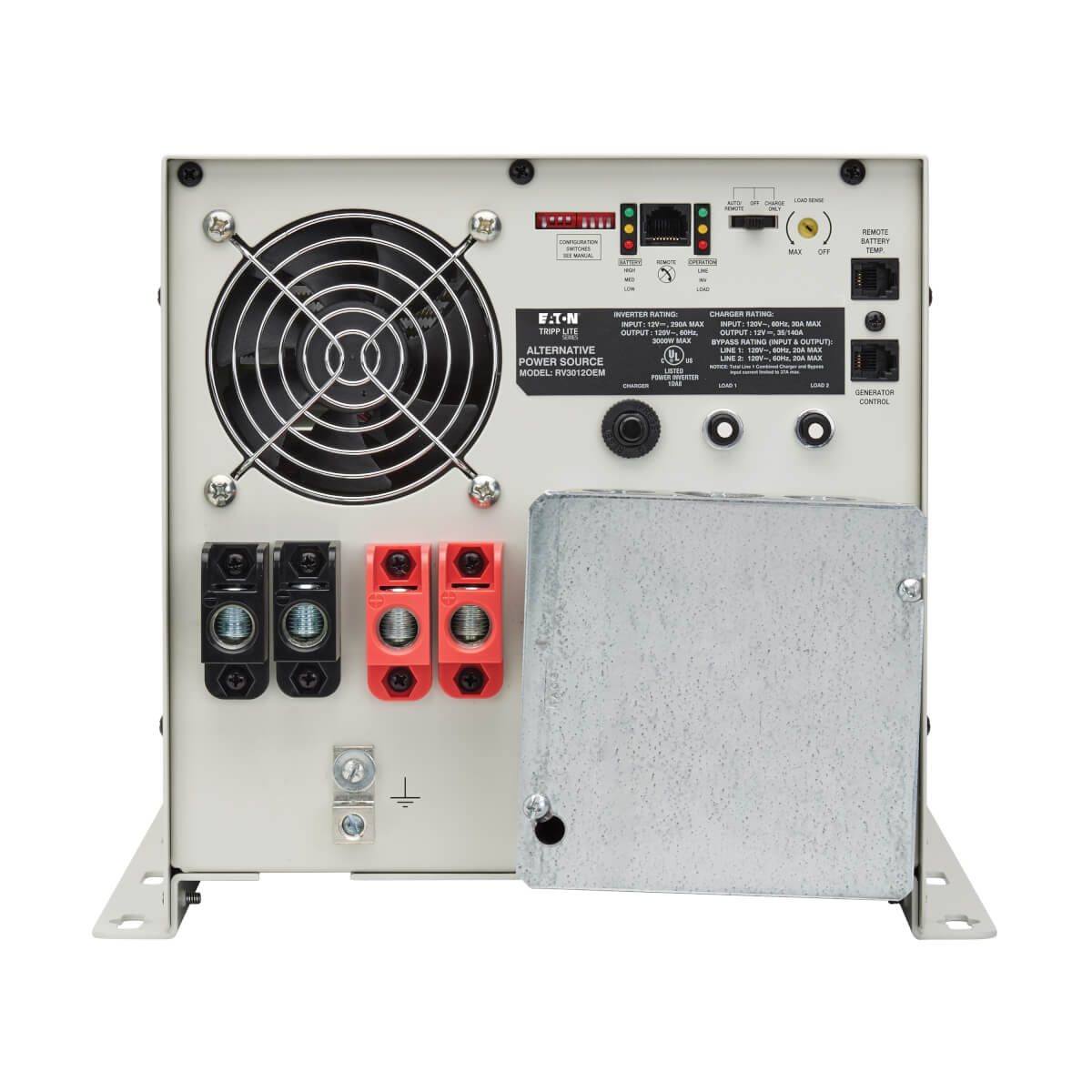

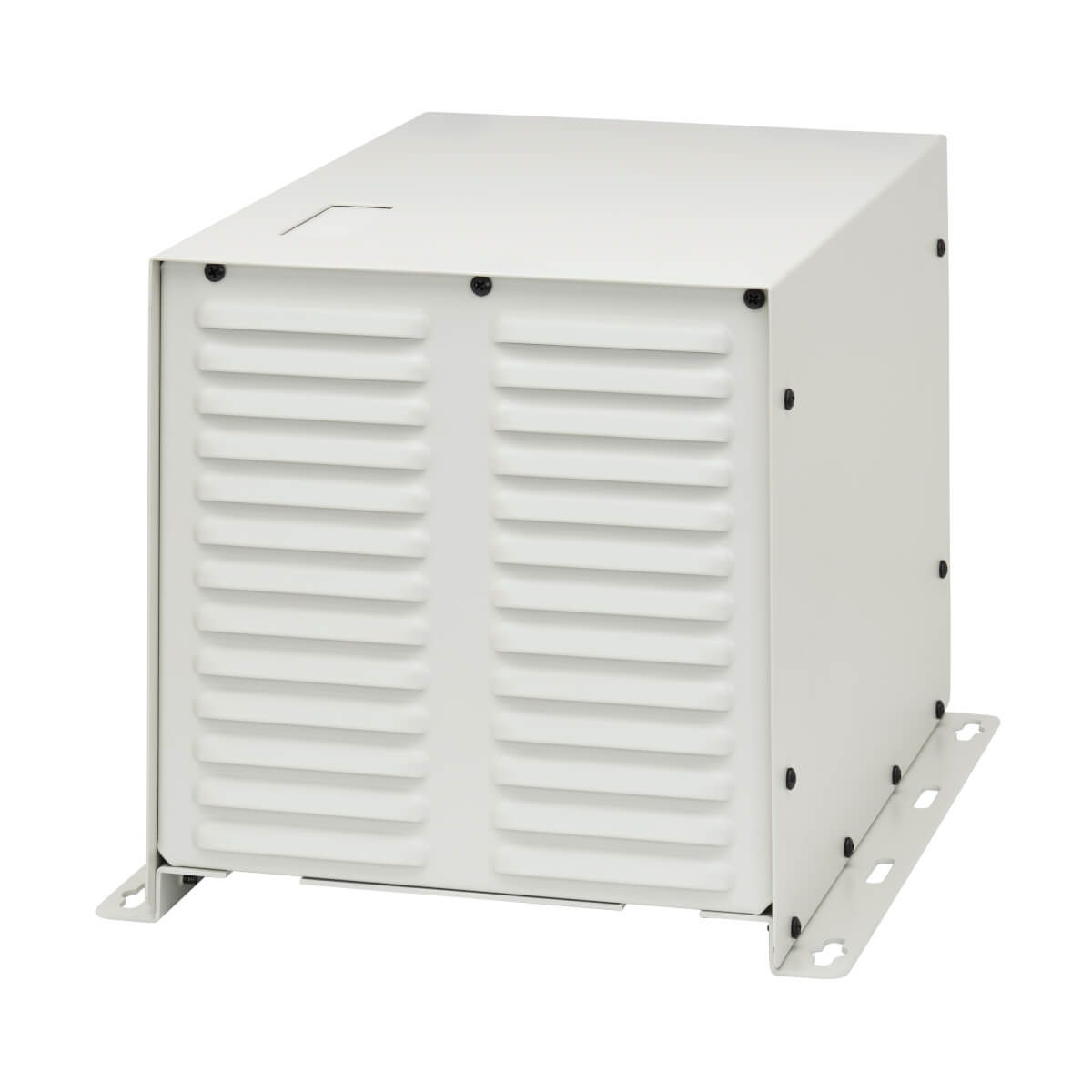

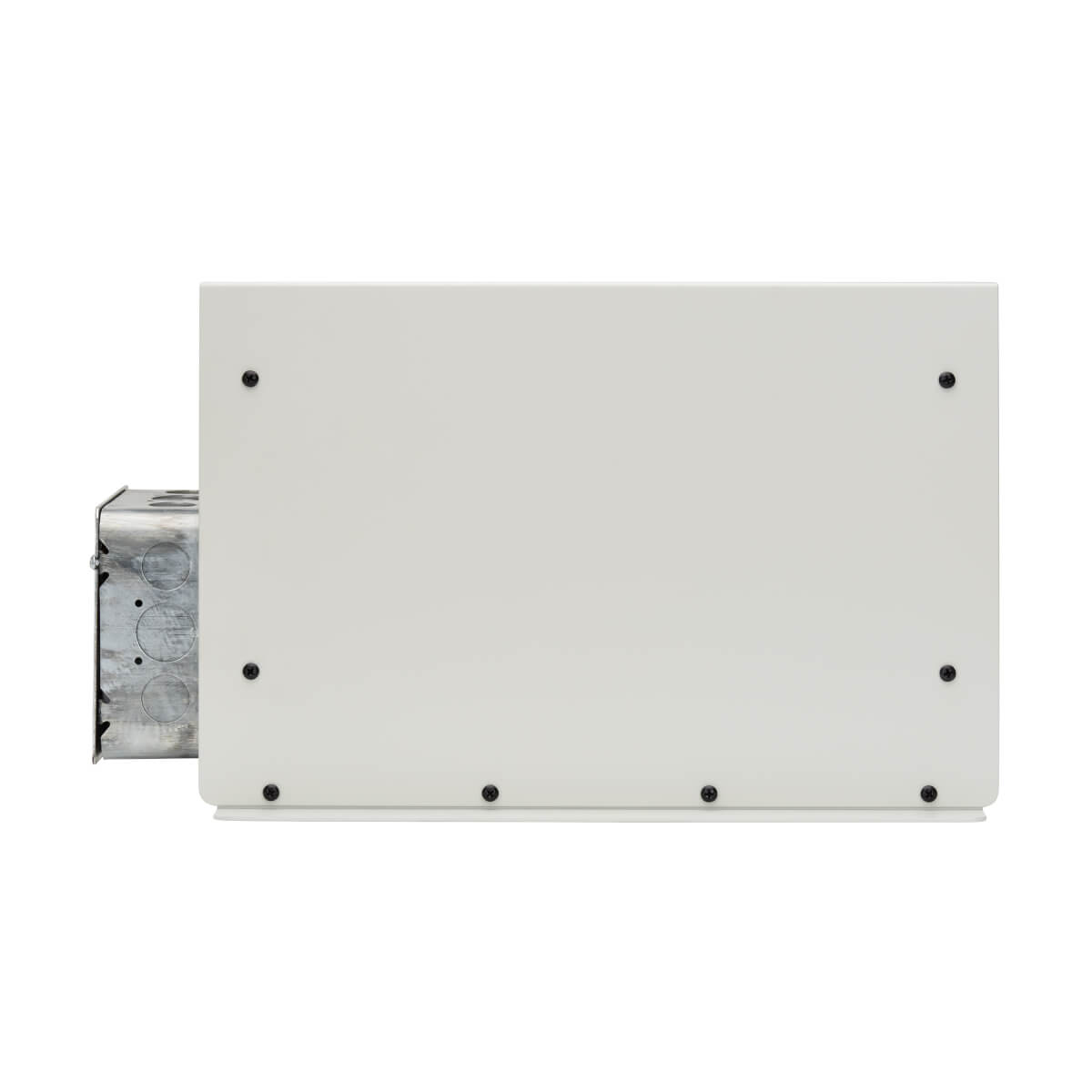

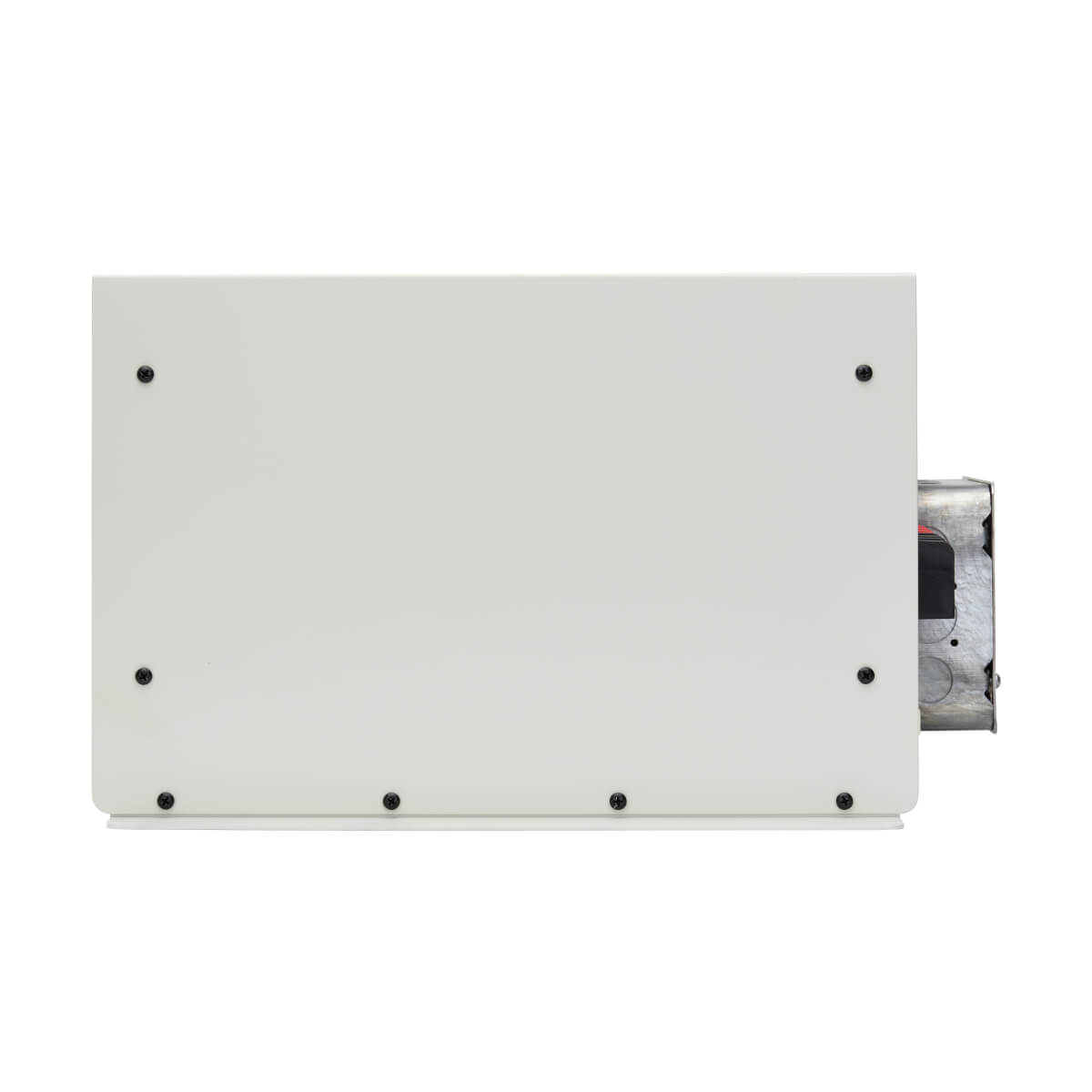

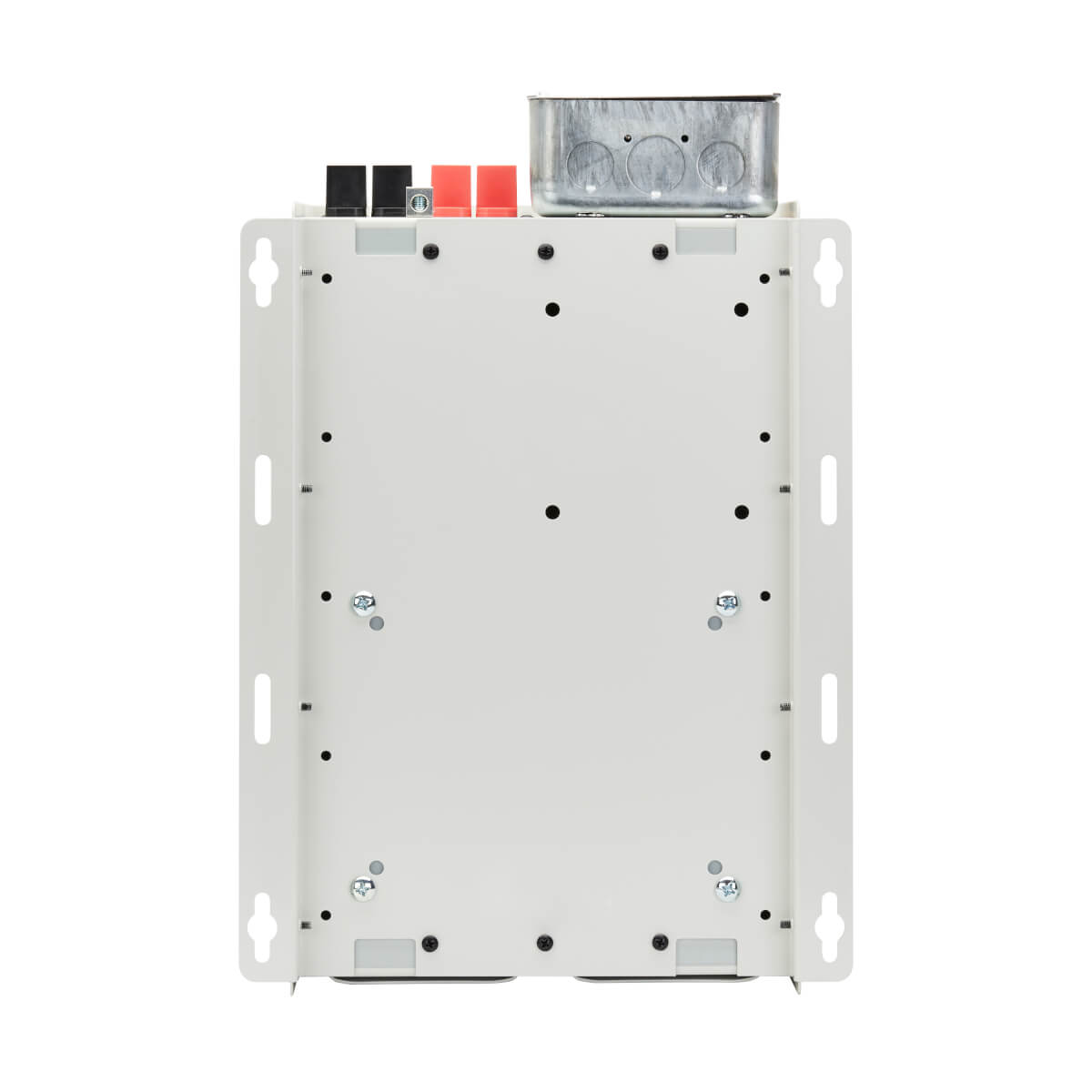

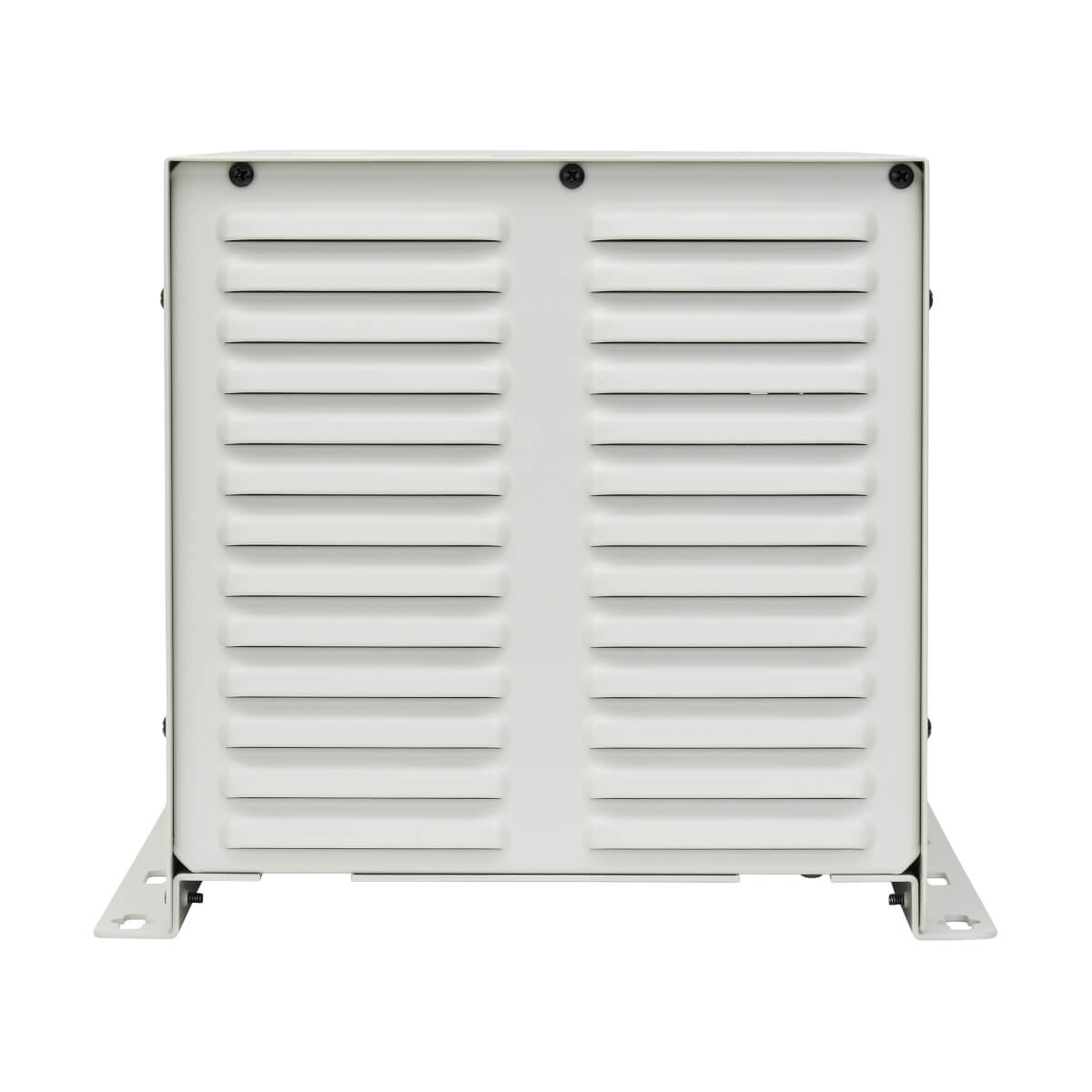

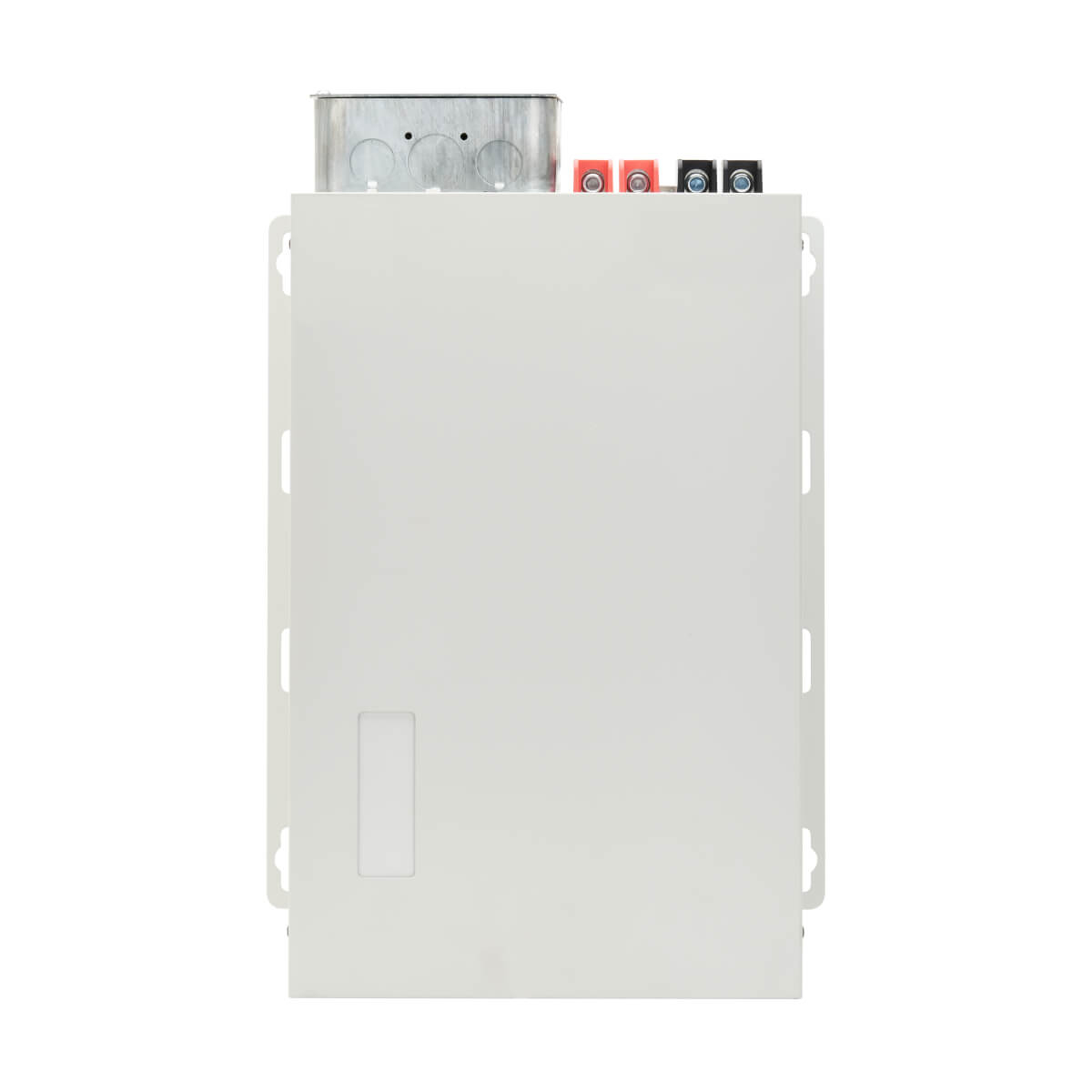

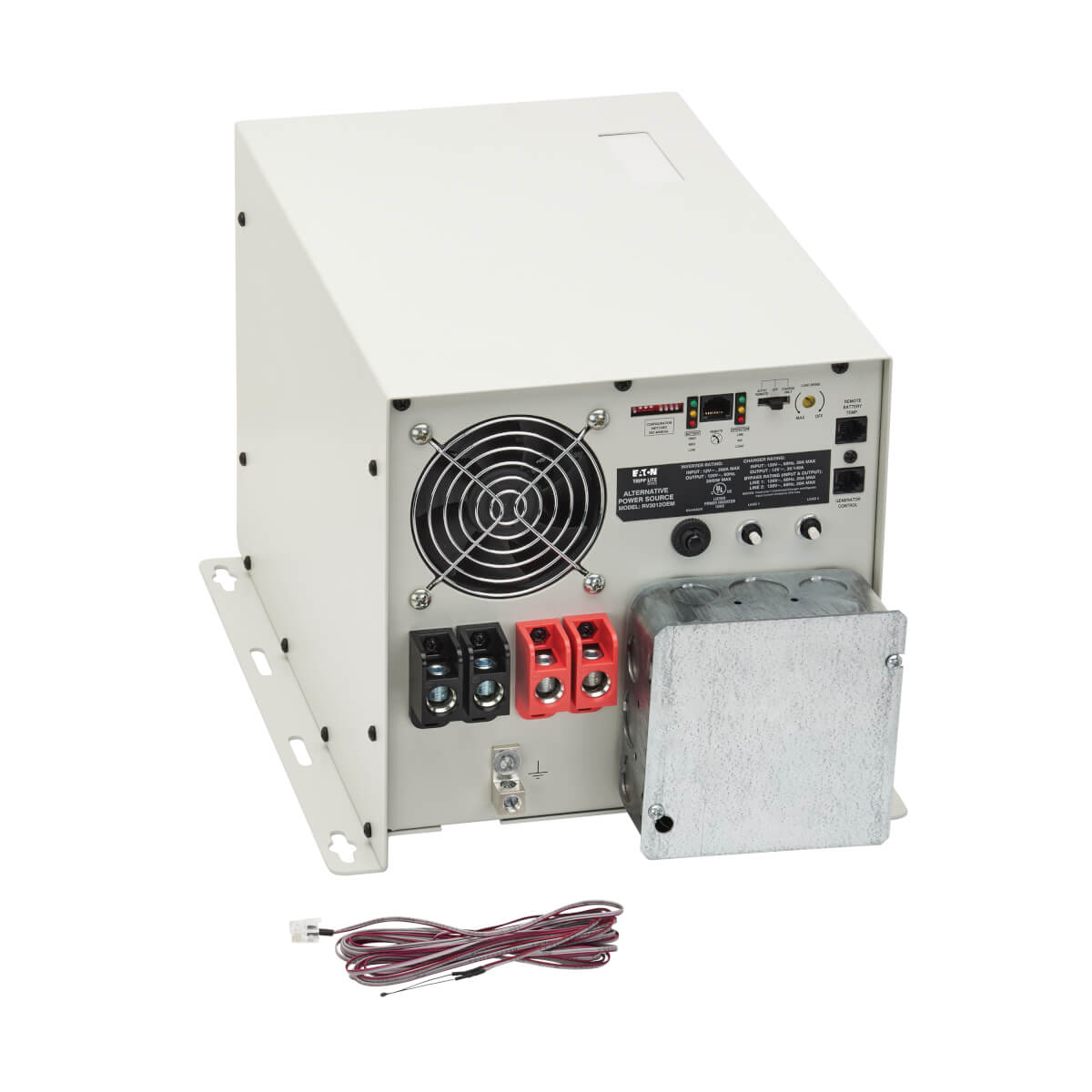

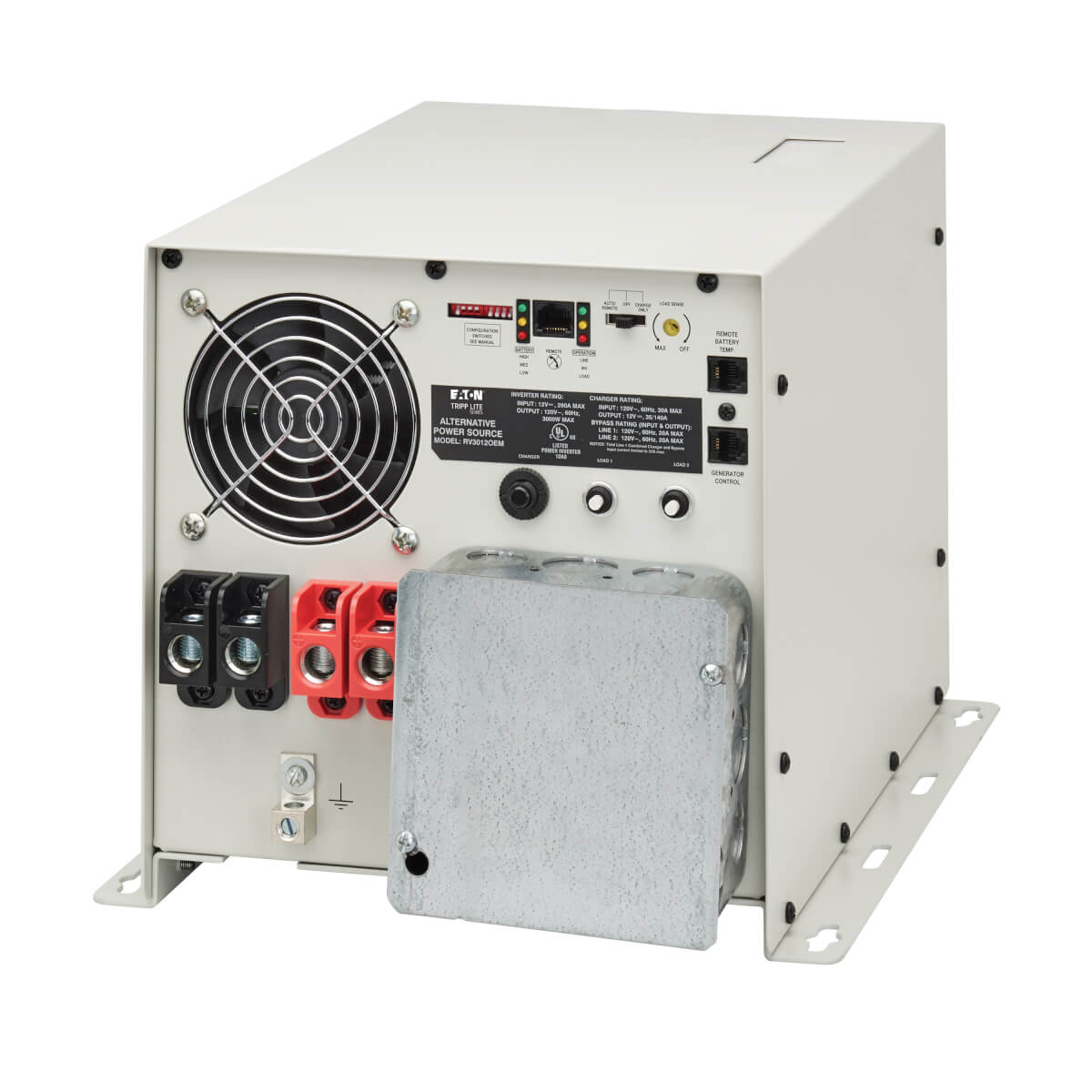

Tripp Lite RV3012OEM power adapter/inverter Indoor 3000 W White

PowerVerter RV3012OEM, 3000W, 450J, 12V DC / 120V AC in, 120V out, 28.4kg, White

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

3000W POWERVERTER RV INVERTER/CHARGER WITH HARDWIRE INPUT/OUTPUT

 641223 Register free see stock
ASI Corp

RV3012OEM 3000W PowerVerter Inverter Charger w Hardwire Input Output

 195548

Related Products

Description

Tripp Lite's RV3012OEM Inverter/Charger is the quiet alternative to gas generators with no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter suitable for rugged RV applications. Supplies up to 3000 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 35/140 amp charging system. Includes optional dual-circuit hardwire AC input to enable full charger output from circuit 1 with a 120V 20A input and full AC pass-through from circuit 2 with a second 120V 20A input feed. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

Specifications

Features
Input voltage120 V
Output power3000 W
Output voltage120 V
Output frequency60 Hz
Power supply typeIndoor
PurposeUniversal
Power current typeAC1-to-AC2
LED indicatorsYes
Housing materialSteel
Country of originChina
Product colourWhite
CertificationRoHS
Input frequency60 Hz
Power
Input voltage120 V
Output power3000 W
Output voltage120 V
Output frequency60 Hz
Performance
Power supply typeIndoor
PurposeUniversal
Power current typeAC1-to-AC2
CertificationRoHS
Design
LED indicatorsYes
Housing materialSteel
Product colourWhite
Operational conditions
Operating relative humidity (H-H)0 - 95%
Certificates
CertificationRoHS
Weight & dimensions
Weight62.6 lbs (28.4 kg)
Width11.5" (292.1 mm)
Depth16.7" (425.4 mm)
Height9.75" (247.6 mm)
Packaging data
Package width14.9" (378.5 mm)
Package depth15.4" (391.2 mm)
Package height23.2" (589.3 mm)
Package weight70.1 lbs (31.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width14.9" (378.5 mm)
Master (outer) case gross weight70.1 lbs (31.8 kg)
Master (outer) case length15.4" (391.2 mm)
Master (outer) case height23.2" (589.3 mm)
Country of originChina
Harmonized System (HS) code8504.40.9570
Other features
Country of originChina
