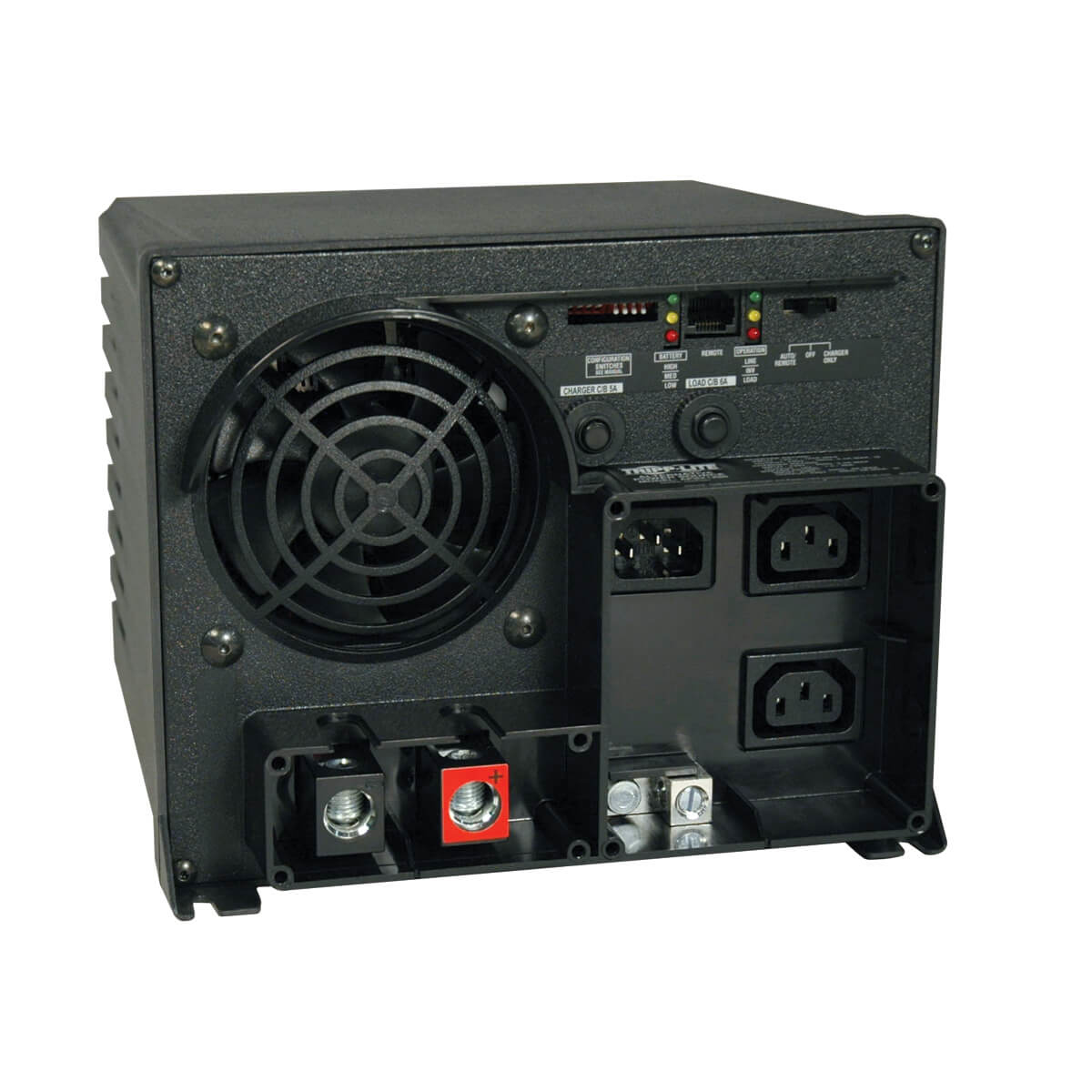

Tripp Lite APSX1250 power adapter/inverter 1250 W Black
- Brand: Tripp Lite
- Category:
- SKU: APSX1250
- EAN: 0037332121660 0373321216604
1250W APS X Series 12VDC 230V Inverter/Charger with Auto Transfer Switching, 2 C13 Outlets
Offer details
Description
The APSX1250 1250W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.
The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 1250W of continuous power, 1875W up to one hour, or 2500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX1250 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power and sends it to two C13 outlets for unlimited runtime. When powered by an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX1250 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.
The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 1250W of continuous power, 1875W up to one hour, or 2500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.
Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX1250 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power and sends it to two C13 outlets for unlimited runtime. When powered by an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.
When used as a UPS, the APSX1250 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.
Specifications
Features | |
---|---|
Adjustable output voltage | Yes |
Input voltage | 230 V |
Output power | 1250 W |
Output voltage | 230 V |
Output frequency | 50 Hz |
Output current | 5 A |
Purpose | Universal |
Power protection features | Overload |
LED indicators | Yes |
Housing material | Polycarbonate (PC) |
Country of origin | China |
Product colour | Black |
Certification | RoHS |
Input frequency | 50 Hz |
Power | |
Adjustable output voltage | Yes |
Input voltage | 230 V |
Output power | 1250 W |
Output voltage | 230 V |
Output frequency | 50 Hz |
Output current | 5 A |
Performance | |
Purpose | Universal |
Power protection features | Overload |
Connector(s) | 2 x C13 |
Certification | RoHS |
AC outlets quantity | 2 AC outlet(s) |
Design | |
LED indicators | Yes |
Housing material | Polycarbonate (PC) |
Product colour | Black |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
Weight | 24 lbs (10.9 kg) |
Width | 8.75" (222.2 mm) |
Depth | 9" (228.6 mm) |
Height | 7" (177.8 mm) |
Packaging data | |
Package width | 11" (279.4 mm) |
Package depth | 10.7" (273 mm) |
Package height | 12.5" (317.5 mm) |
Package weight | 26 lbs (11.8 kg) |
Technical details | |
Peak power | 2500 W |
Logistics data | |
Products per master (outer) case | 1 pc(s) |
Master (outer) case width | 11" (279.4 mm) |
Master (outer) case gross weight | 26 lbs (11.8 kg) |
Master (outer) case length | 10.7" (273 mm) |
Master (outer) case height | 12.5" (317.5 mm) |
Harmonized System (HS) code | 8504.40.9570 |
Other features | |
Rise time | 10 ms |
Country of origin | China |
