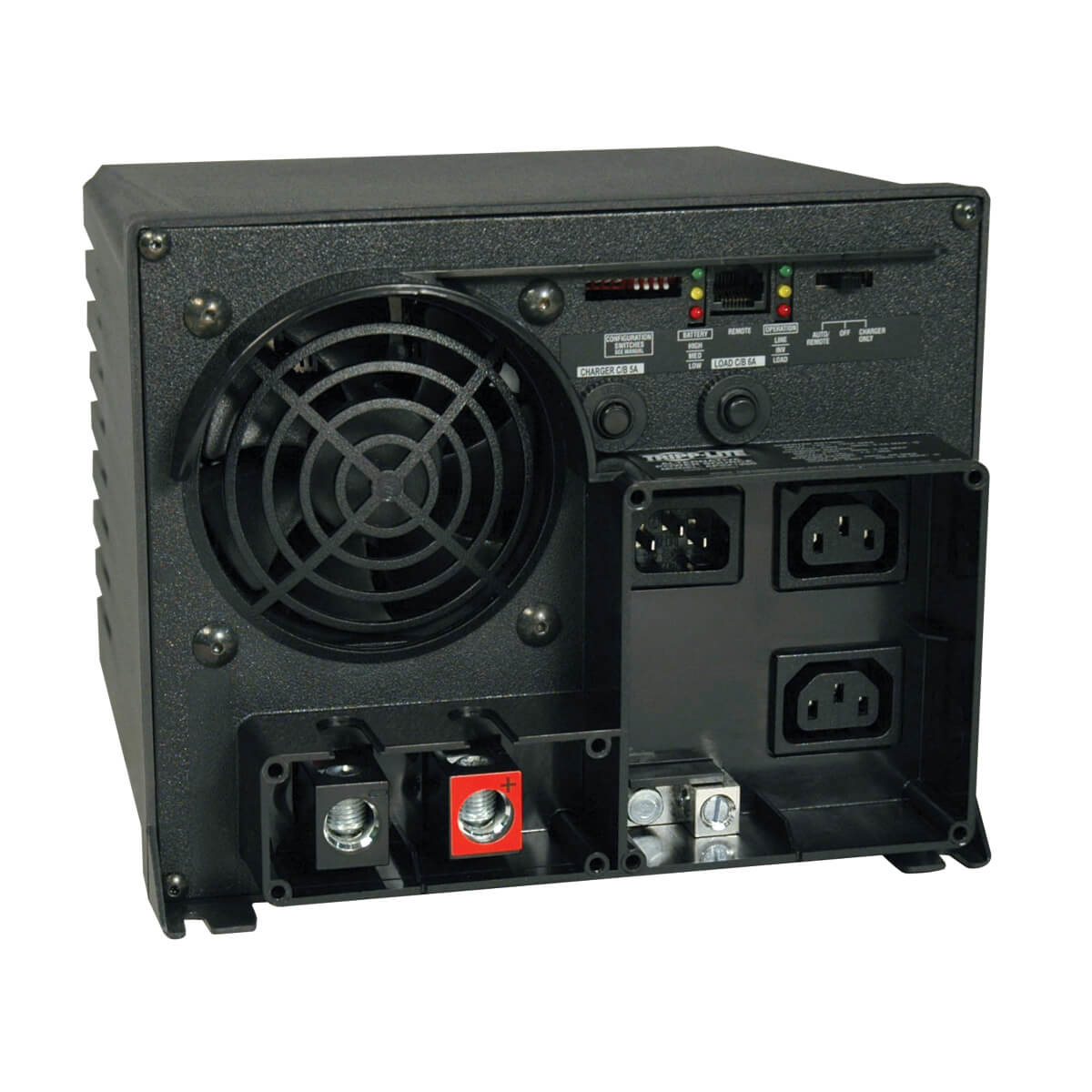

Tripp Lite APSX750 power adapter/inverter Indoor 750 W Black

750W APS X Series 12VDC 230V Inverter/Charger with Auto-Transfer Switching, 2 C13 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 750W INTERNATIONAL INVERTER /CHARGER 12VDC TO 230VAC 565065 Register free see stock
Ingram Micro 750W INT INVERTER CHARGER 230V J92732
ScanSource 750W International Inverter / POW-APSX750
TD Synnex 750W INTERNATIONAL INVERTER / CHARGER 12VDC TO 230VAC 5/20A C13 2373380

Related Products

Description

The APSX750 750W APS X Series 12V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power.

The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, 1125W up to one hour, or 1500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and conversion vans, the APSX750 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 5/20A selectable charging system while simultaneously delivering AC power to connected equipment.

When used as a UPS, the APSX750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate load percentage and battery charge level.

Specifications

Features
Adjustable output voltageYes
Input voltage230 V
Output power750 W
Output voltage230 V
Power supply typeIndoor
Power protection featuresOverload
LED indicatorsYes
Housing materialPolycarbonate (PC)
Country of originChina
Product colourBlack
Input frequency50 Hz
Power
Adjustable output voltageYes
Input voltage230 V
Output power750 W
Output voltage230 V
Performance
Power supply typeIndoor
Power protection featuresOverload
Design
LED indicatorsYes
Housing materialPolycarbonate (PC)
Product colourBlack
Weight & dimensions
Weight18.6 lbs (8.44 kg)
Width8.75" (222.2 mm)
Depth9" (228.6 mm)
Height7" (177.8 mm)
Packaging data
Package width10.5" (266.7 mm)
Package depth10.7" (271.8 mm)
Package height12.4" (315 mm)
Package weight24.5 lbs (11.1 kg)
Technical details
Peak power1500 W
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width10.5" (266.7 mm)
Master (outer) case gross weight24.5 lbs (11.1 kg)
Master (outer) case length10.7" (271.8 mm)
Master (outer) case height12.4" (315 mm)
Harmonized System (HS) code8504.40.9570
Other features
Country of originChina
