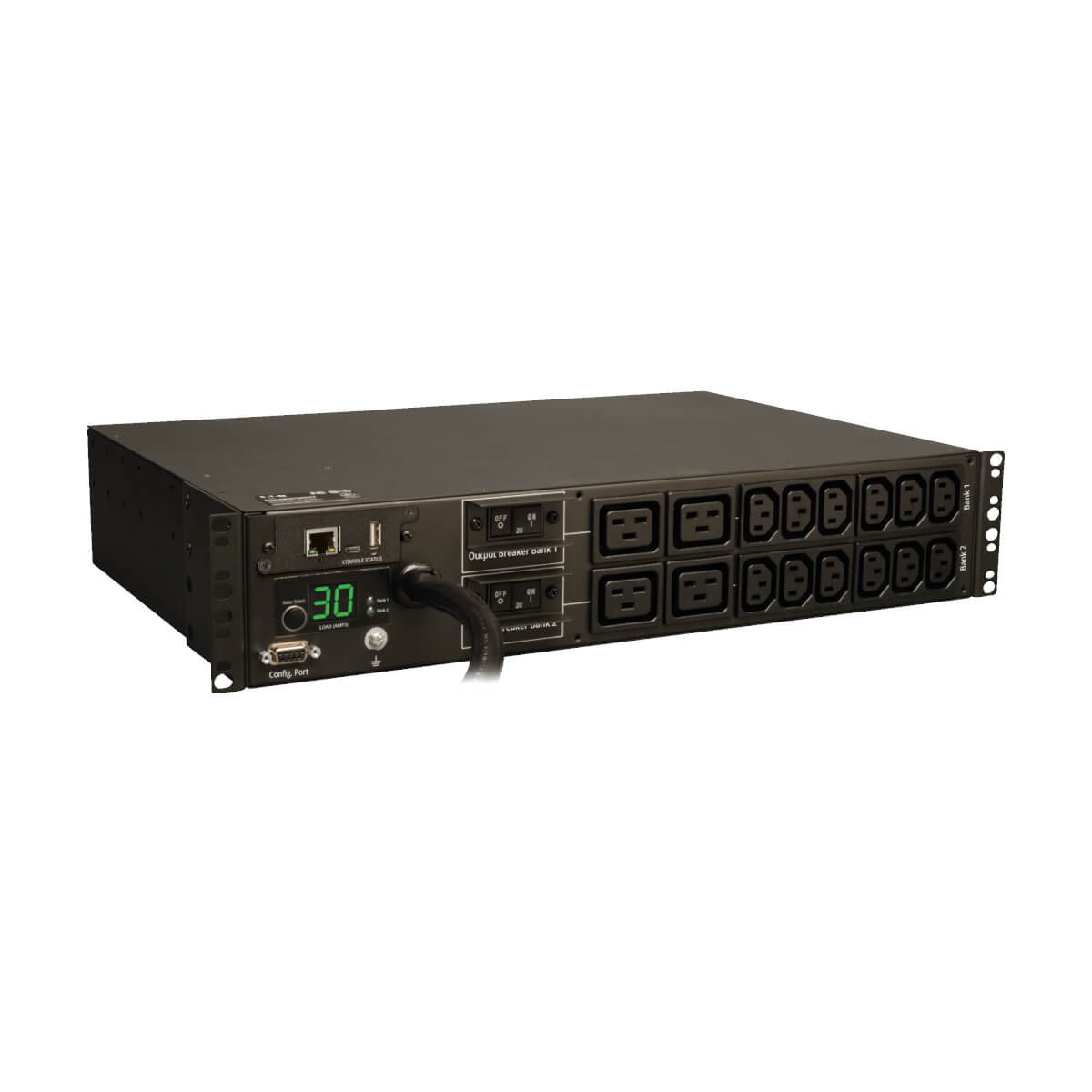

Tripp Lite PDUMNH30HV power distribution unit (PDU) 16 AC outlet(s) 2U Black

Tripp Lite PDUMNH30HV power distribution unit (PDU) 16 AC outlet(s) 2U Black

5/5.8kW Single-Phase Monitored PDU, 208/240V Outlets (12-C13 and 4-C19), L6-30P, 12ft Cord, 2U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter PDU MONITORED 208V/240V 30A12 C13; 4 C19 L6-30P 565320 Register free see stock
ASI Corp PDUMNH30HV Monitored PDU 240V Power Distribution Unit 30A Retail 194939
D&H PDU Monitored 208 240V 30A L6 PDUMNH30HV
Ingram Micro PDU MONITORED 5/5.8KW 208-240V LH7341
TD Synnex PDU MONITORED 30A 208/240V C13/C19 L630P 2987100

Related Products

Description

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 208/240V Monitored Power Distribution Unit / PDU (agency derated to 24A continuous)

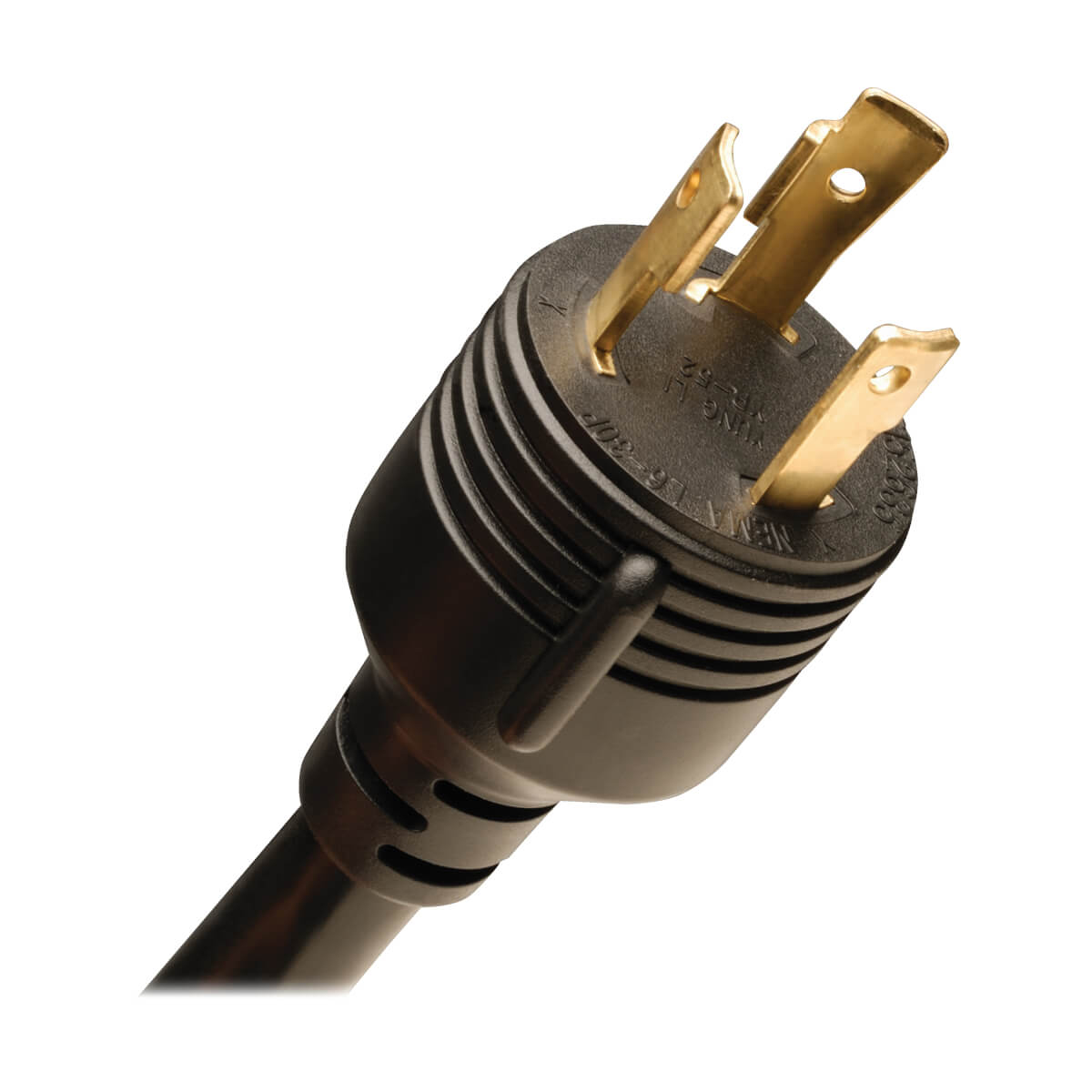

- Attached NEMA L6-30P input with 10ft / 3m line cord
- 2U horizontal rackmount format supports installation in 2 or 4 post equipment racks

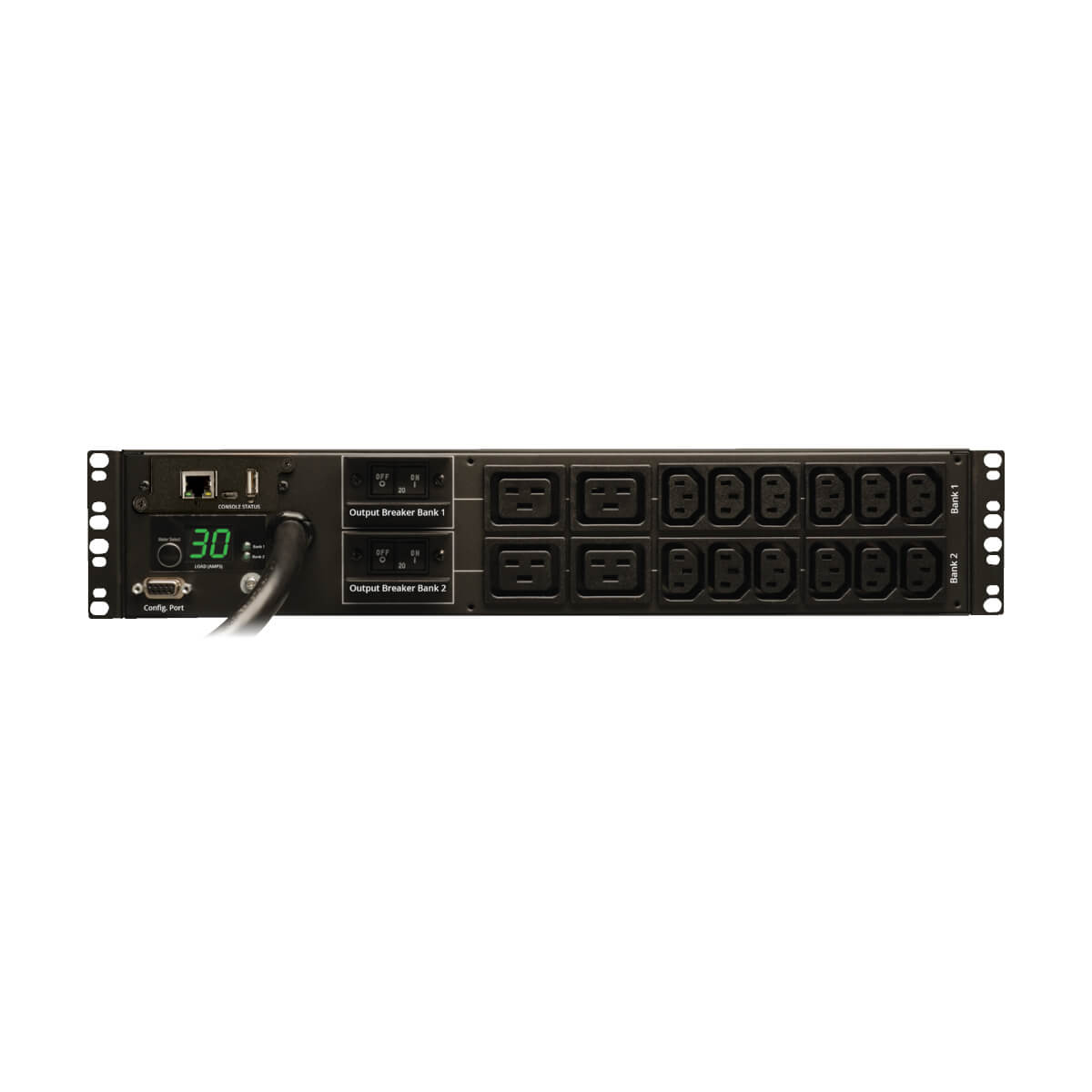

- 16 outlets (12 C13, 4 C19)
- Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)
- Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
- Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements.
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software

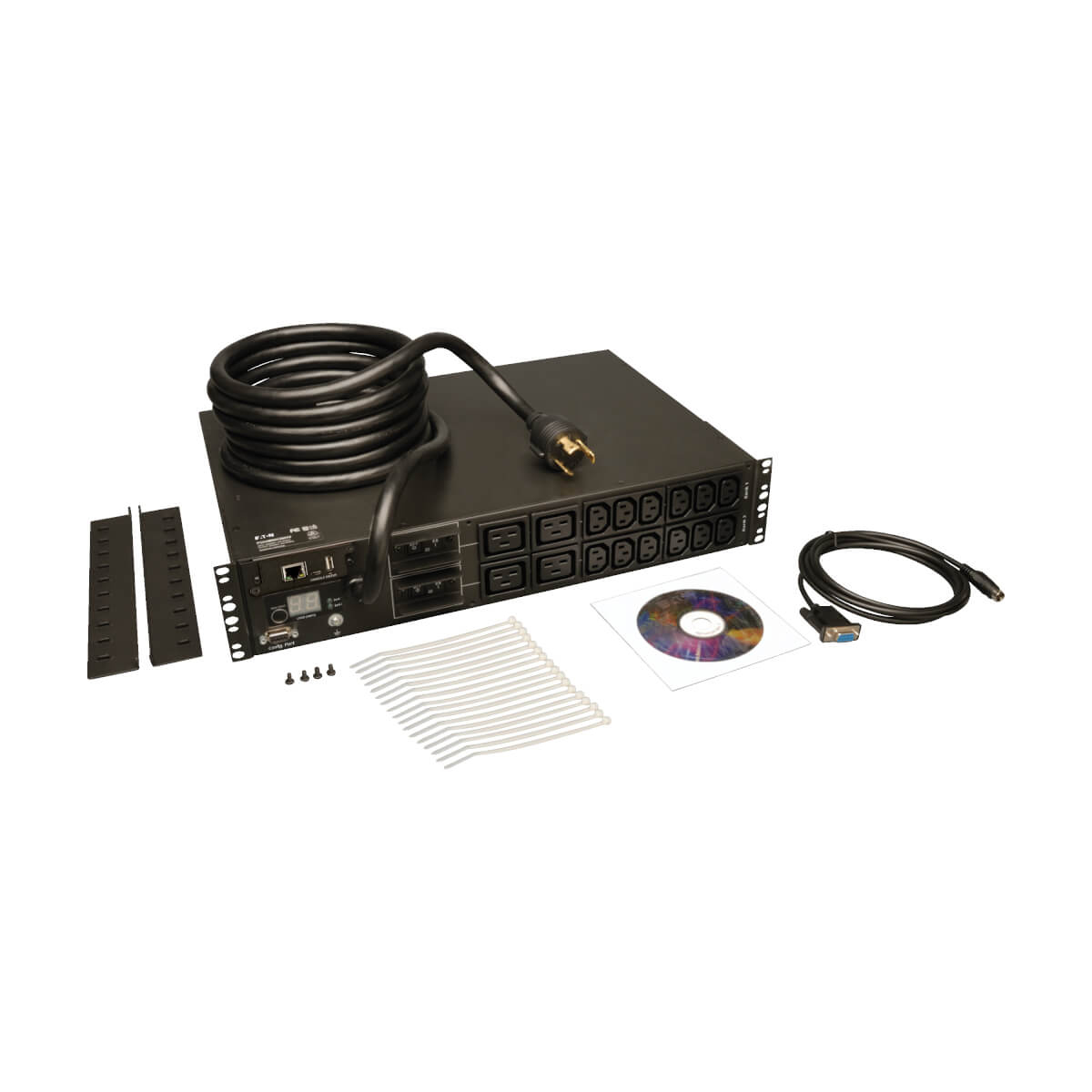

- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- TAA Compliant Version Available - Order Tripp Lite PDUMNH30HVTAA

Specifications

Design
PDU typesMonitored
MountingHorizontal
Product colourBlack
CertificationUL (USA), CSA (Canada), NOM (Mexico), Class A (emissions)
Rack capacity2U
Housing materialMetal
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesType K, C13 coupler, C19 coupler
Power plugNEMA L6-30P
Features
Cable length143.7" (3.65 m)
LED indicatorsYes
CertificationUL (USA), CSA (Canada), NOM (Mexico), Class A (emissions)
Ergonomics
Cable length143.7" (3.65 m)
LED indicatorsYes
Power
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 12.5 x 3.5" (445 x 317.5 x 89 mm)
Weight13.7 lbs (6.21 kg)
Width17.5" (444.5 mm)
Depth12.5" (317.5 mm)
Height3.5" (88.9 mm)
Package width16.8" (426.7 mm)
Package depth19.9" (505.5 mm)
Package height7.8" (198.1 mm)
Package weight16.4 lbs (7.44 kg)
Packaging data
Package width16.8" (426.7 mm)
Package depth19.9" (505.5 mm)
Package height7.8" (198.1 mm)
Package weight16.4 lbs (7.44 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
