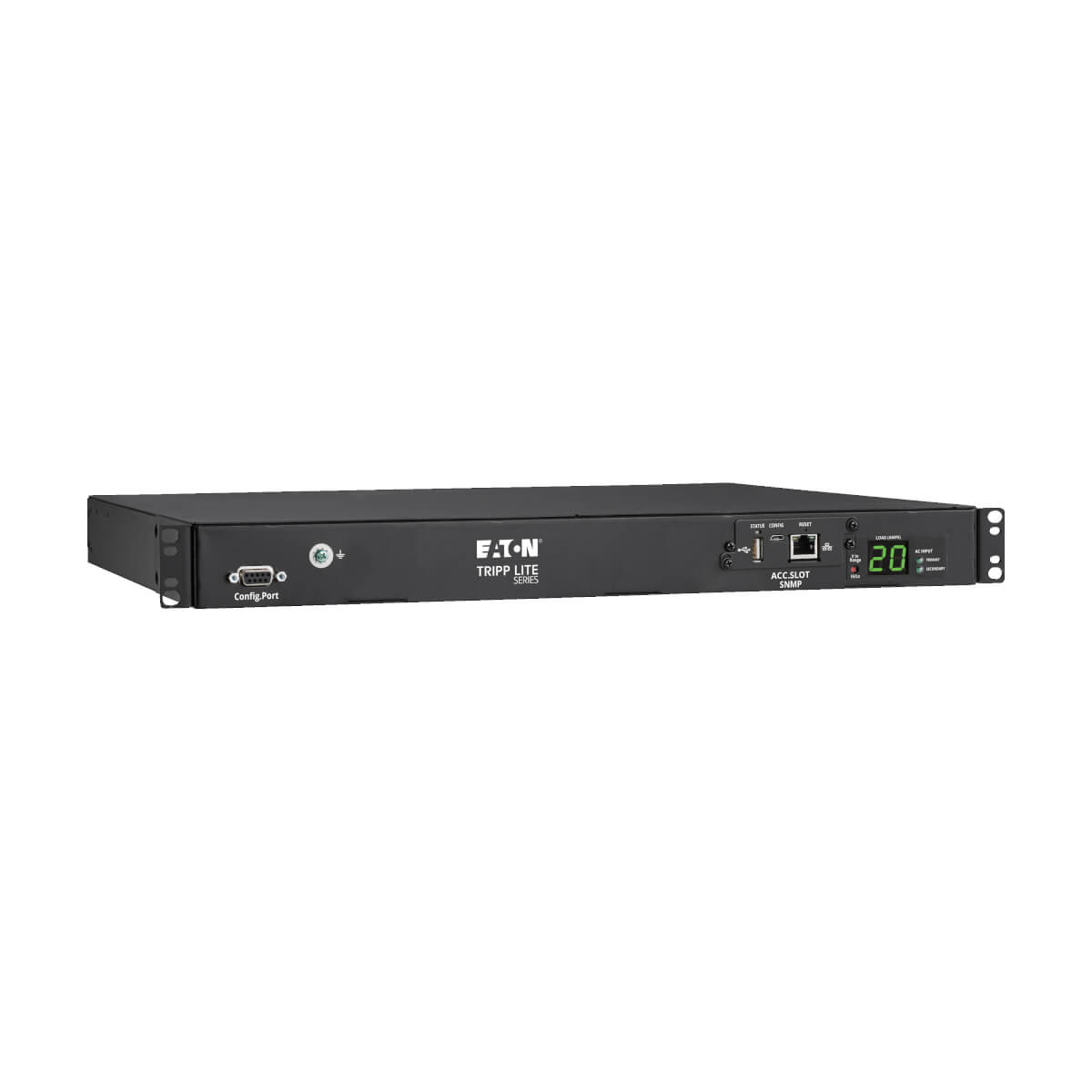

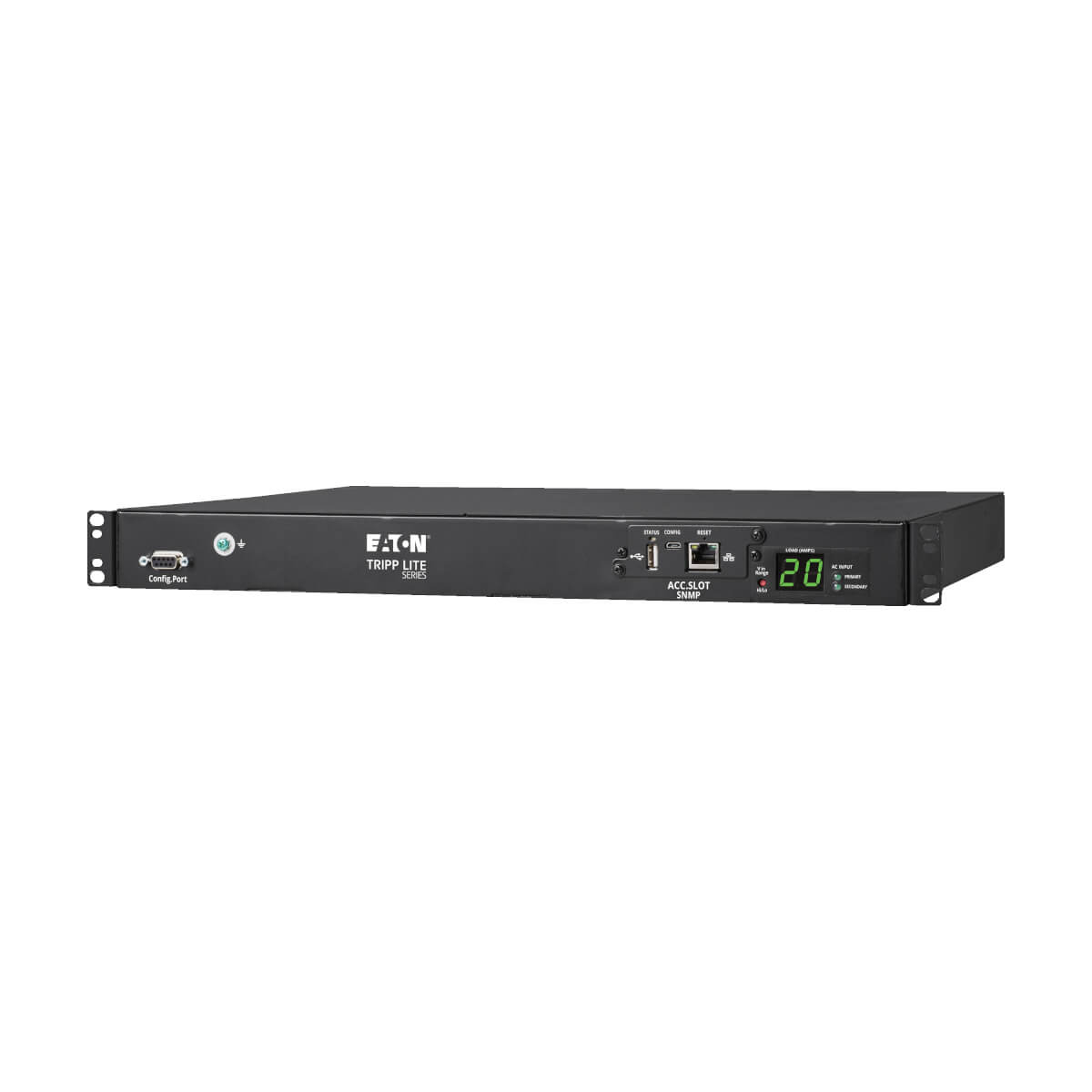

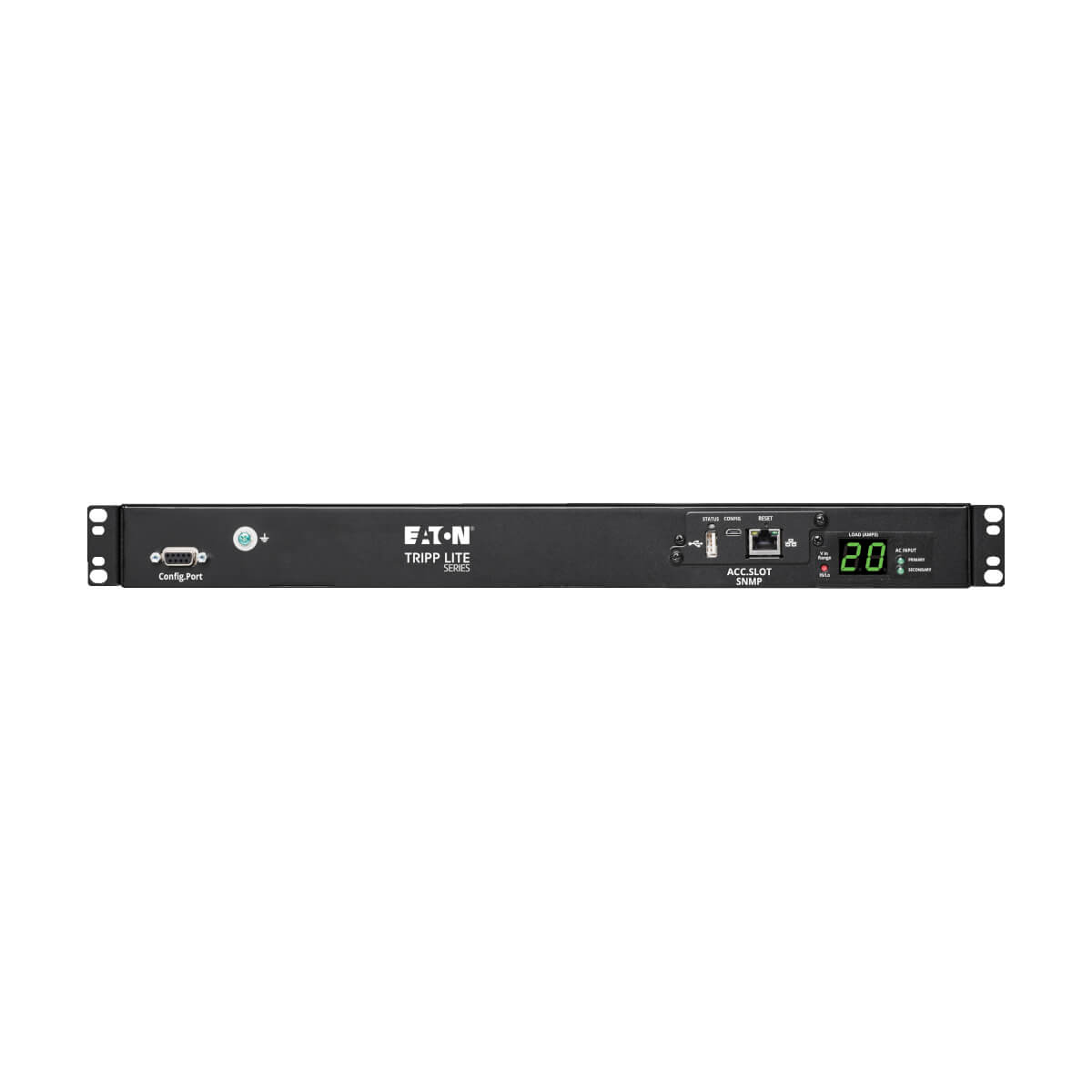

Tripp Lite PDUMNH20HVAT1 power distribution unit (PDU) 10 AC outlet(s) 1U Black

Tripp Lite PDUMNH20HVAT1 power distribution unit (PDU) 10 AC outlet(s) 1U Black

3.8kW 200–240V Single-Phase ATS/Monitored PDU - 8 C13 and 2 C19 Outlets, Dual C20 Inlets, 12 ft. Cords, Network Card, 1U, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 3-8KW-SINGLE-PHASE-SWITCHD PDUATS 8X C13 2X C19 OUTPUTS 1UTAA 10214836 Register free see stock
Ingram Micro PDU ATS/METERED 200-240V 8 C13 9HC999
TD Synnex PDU ATS/METERED 8 C13 2 C19 NETWORK CARD 6353203

Related Products

Description

Single-Phase 20A ATS rack PDU (rPDU) Distributes and Monitors Network-Grade Power in Real Time

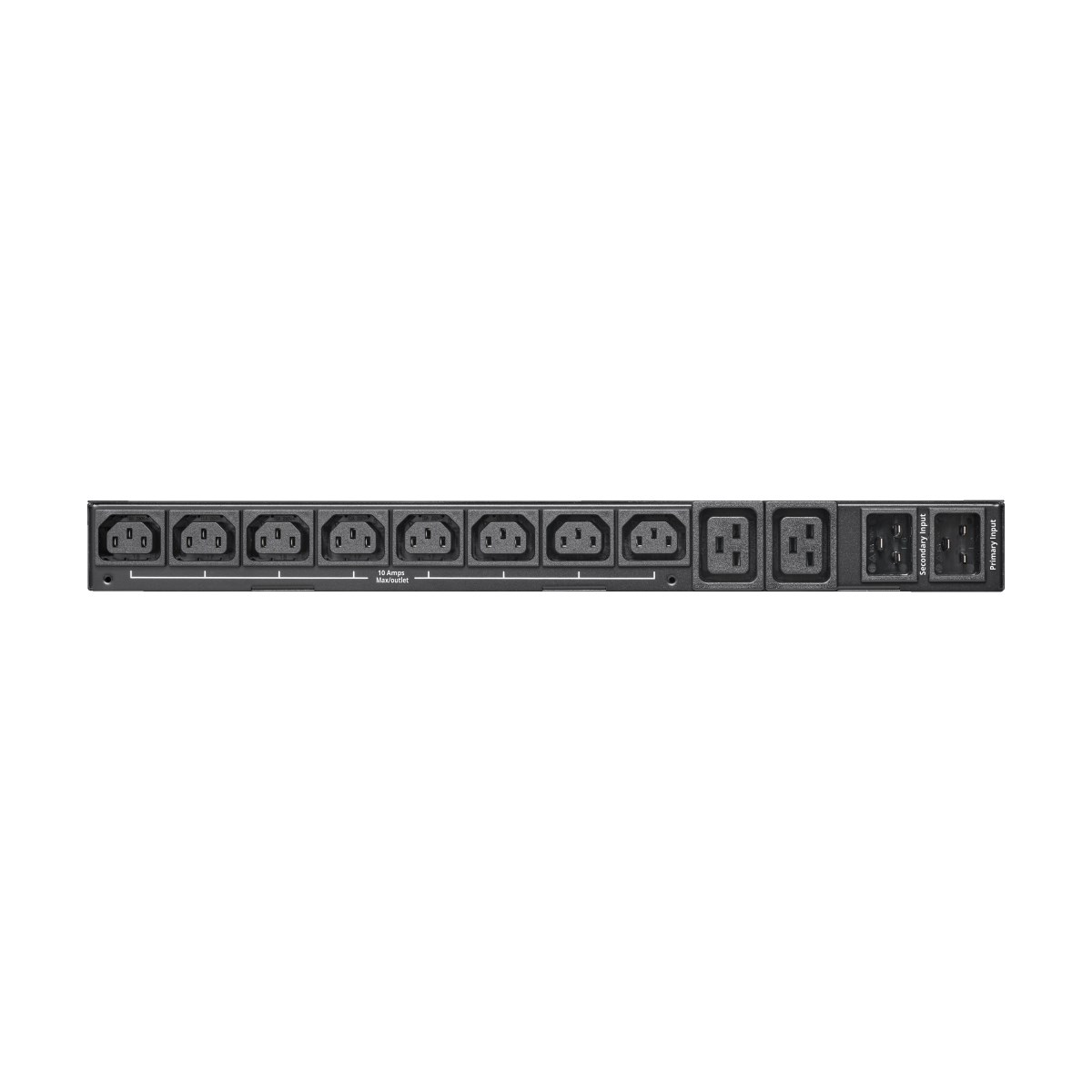

This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20HVAT1 features eight C13 and two C19 200–240V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.

Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2–7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.

Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

Mounts into 1U of Rack Space
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.

TAA-Compliant for GSA Schedule Purchases
The PDUMNH20HVAT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Design
On/off switchYes
TypeSingle-phase
PDU typesMetered, Monitored
MountingHorizontal
DisplayLCD
Product colourBlack
Rack capacity1U
Ports & interfaces
USB ports quantity2
AC outlets quantity10 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Features
Cable length144.1" (3.66 m)
LED indicatorsYes
Management features
MonitoringCurrent, Voltage
Ergonomics
Cable length144.1" (3.66 m)
LED indicatorsYes
DisplayLCD
Power
Maximum power3840 W
Nominal input voltage208 - 240 V
Output voltage200 - 240 V
Maximum current20 A
AC input frequency50 - 60 Hz
Weight & dimensions
Weight10.3 lbs (4.69 kg)
Width17.3" (440.2 mm)
Depth14.8" (375.2 mm)
Height1.72" (43.7 mm)
Package width20.8" (528.3 mm)
Package depth23.4" (594.4 mm)
Package height5.4" (137.2 mm)
Package weight17 lbs (7.71 kg)
Packaging data
Package width20.8" (528.3 mm)
Package depth23.4" (594.4 mm)
Package height5.4" (137.2 mm)
Package weight17 lbs (7.71 kg)
Operational conditions
Storage temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)5 - 95%
Technical details
Sustainability complianceYes
Compliance certificatesCE, RoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
