Tripp Lite PDUMNH32HVAT power distribution unit (PDU) 2 AC outlet(s) 1U Black

Tripp Lite PDUMNH32HVAT power distribution unit (PDU) 2 AC outlet(s) 1U Black

7.7kW Single-Phase 200-240V Monitored Automatic Transfer Switch PDU, Two 32A IEC309 32A Blue Inputs, 1 IEC309 32A Outlet, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter PDU MONITORED 7.4KW230V ATS IEC309 32A2 BLUE INPUTS 1URM 814912 Register free see stock
Ingram Micro PDU MONITORED 7.4KW 230V 32A 1U 4G5002
TD Synnex PDU ATS/MONITORED 230V 32A 7.4KW IEC 309 4593586

Related Products

Description

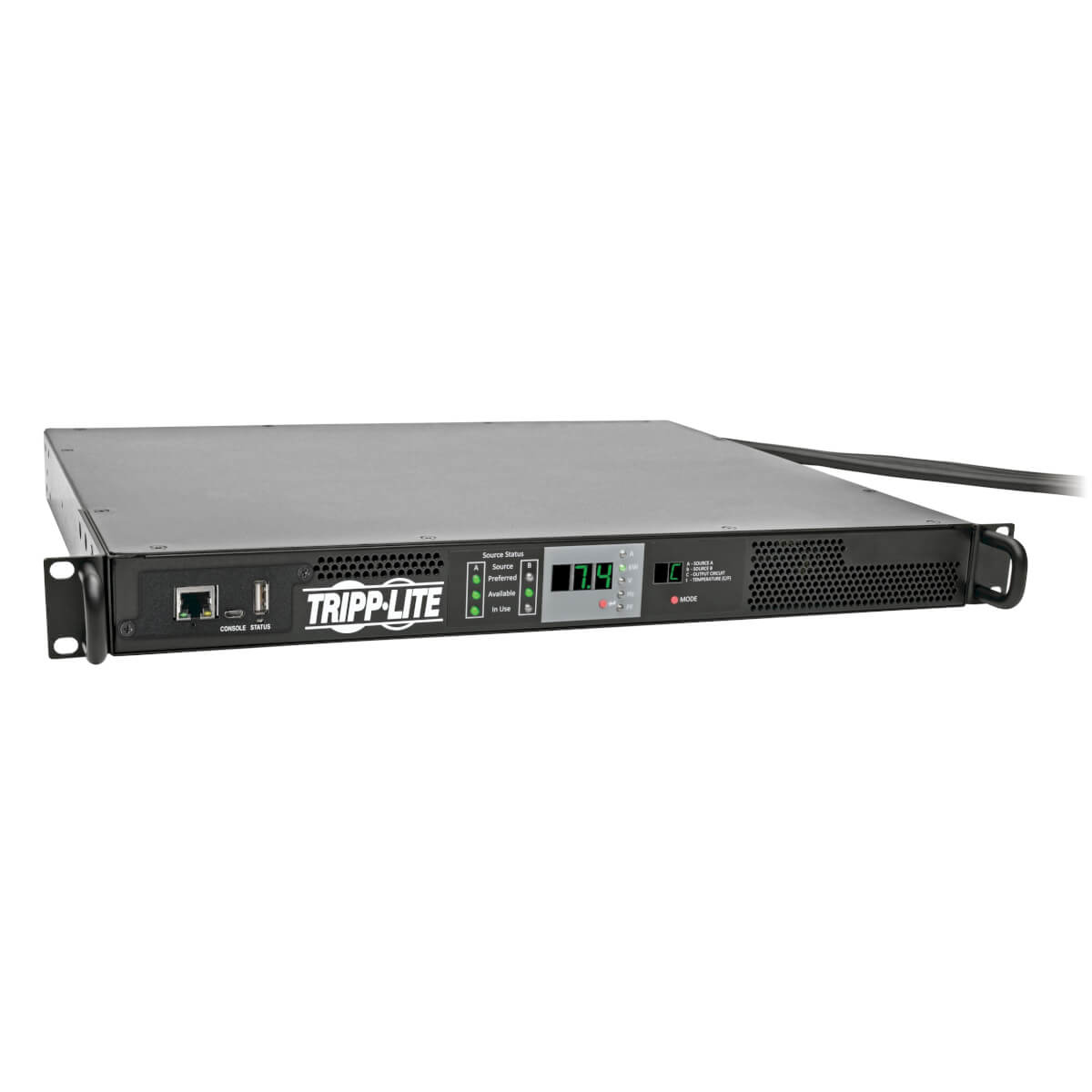

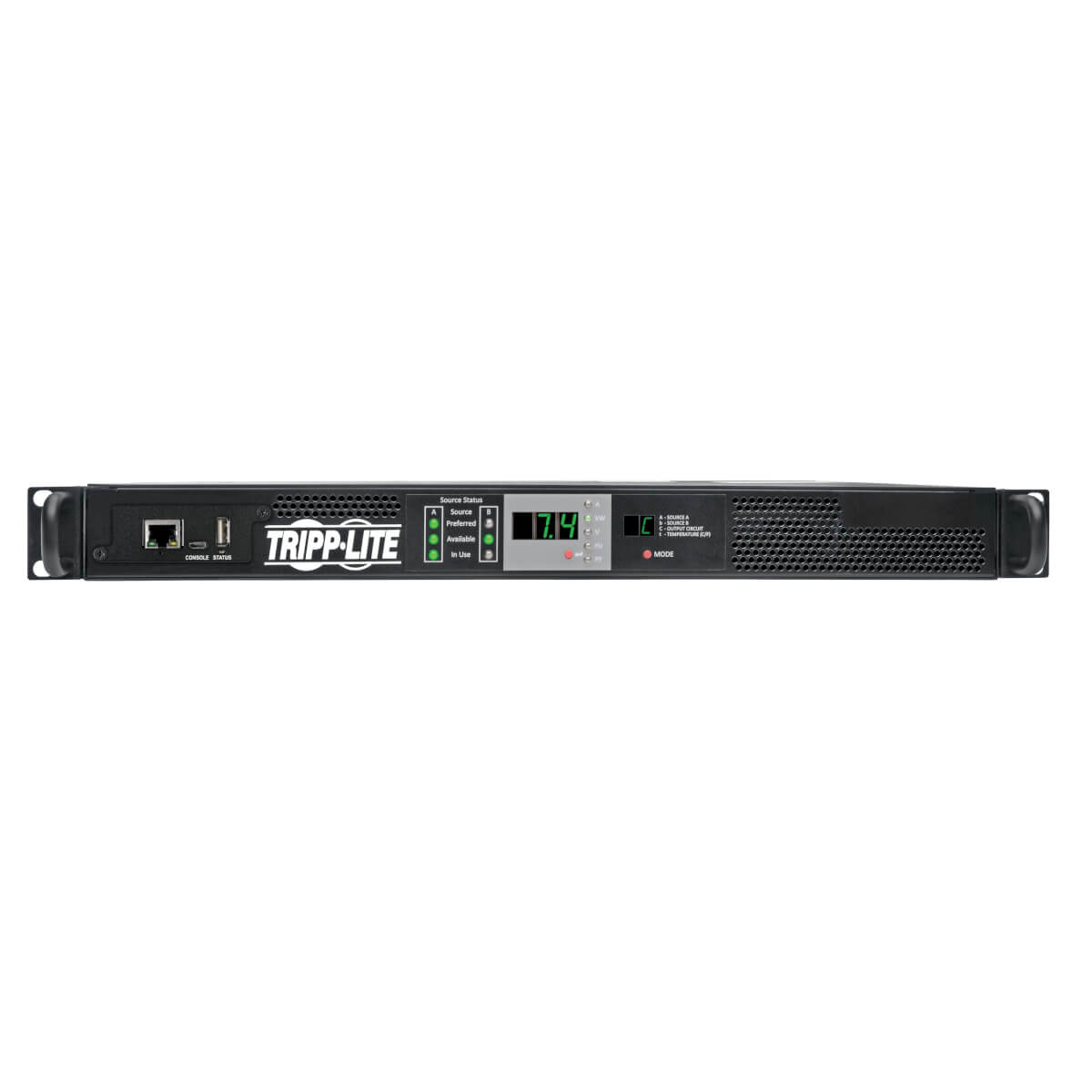

The PDUMNH32HVAT 7.7kW Single-Phase 200-240V Monitored Automatic Transfer Switch/ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and has one IEC 309 32A Blue outlet for connecting a single device or an additional 230V multi-outlet PDU with IEC 309 32A Blue plug, such as the PDUMV32HV.

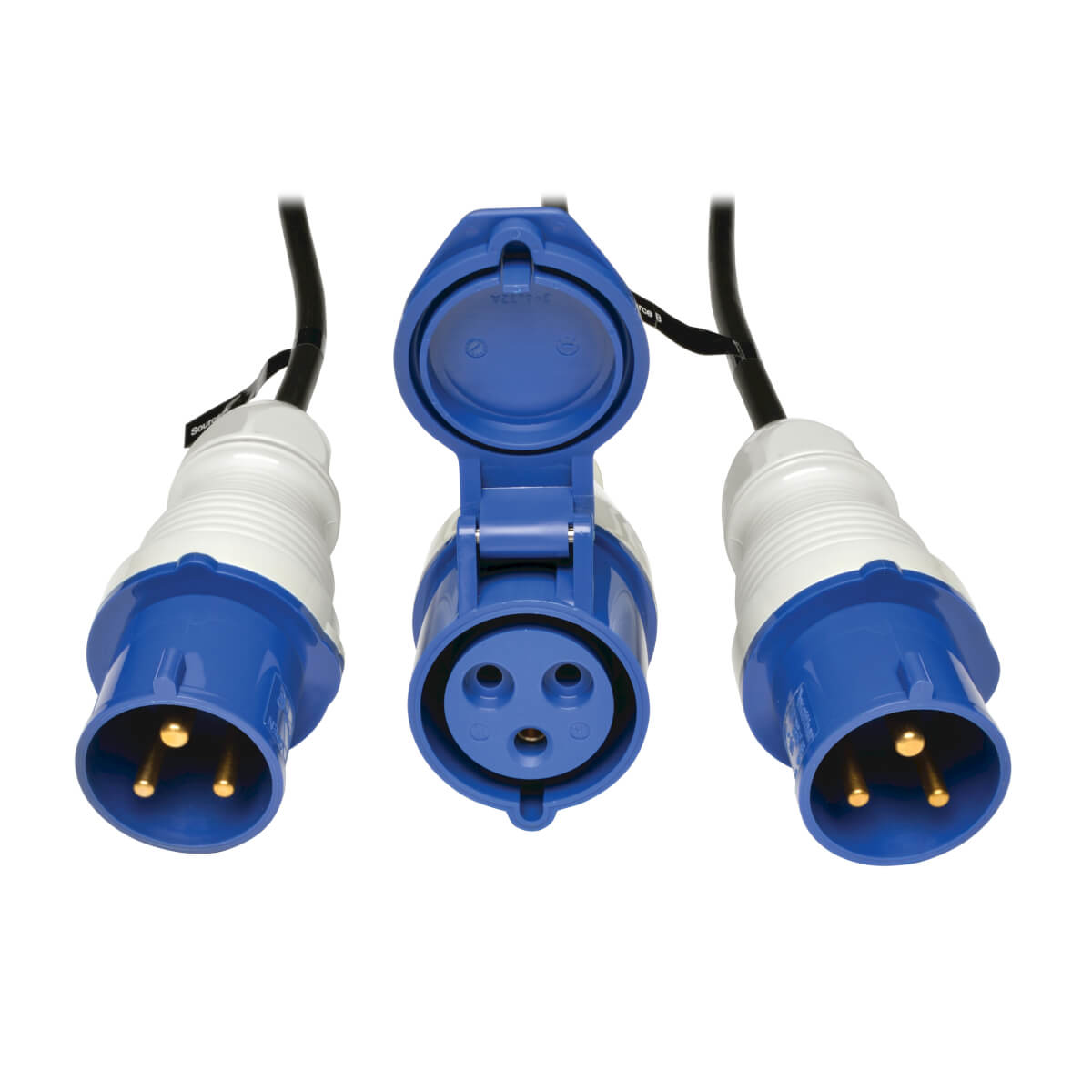

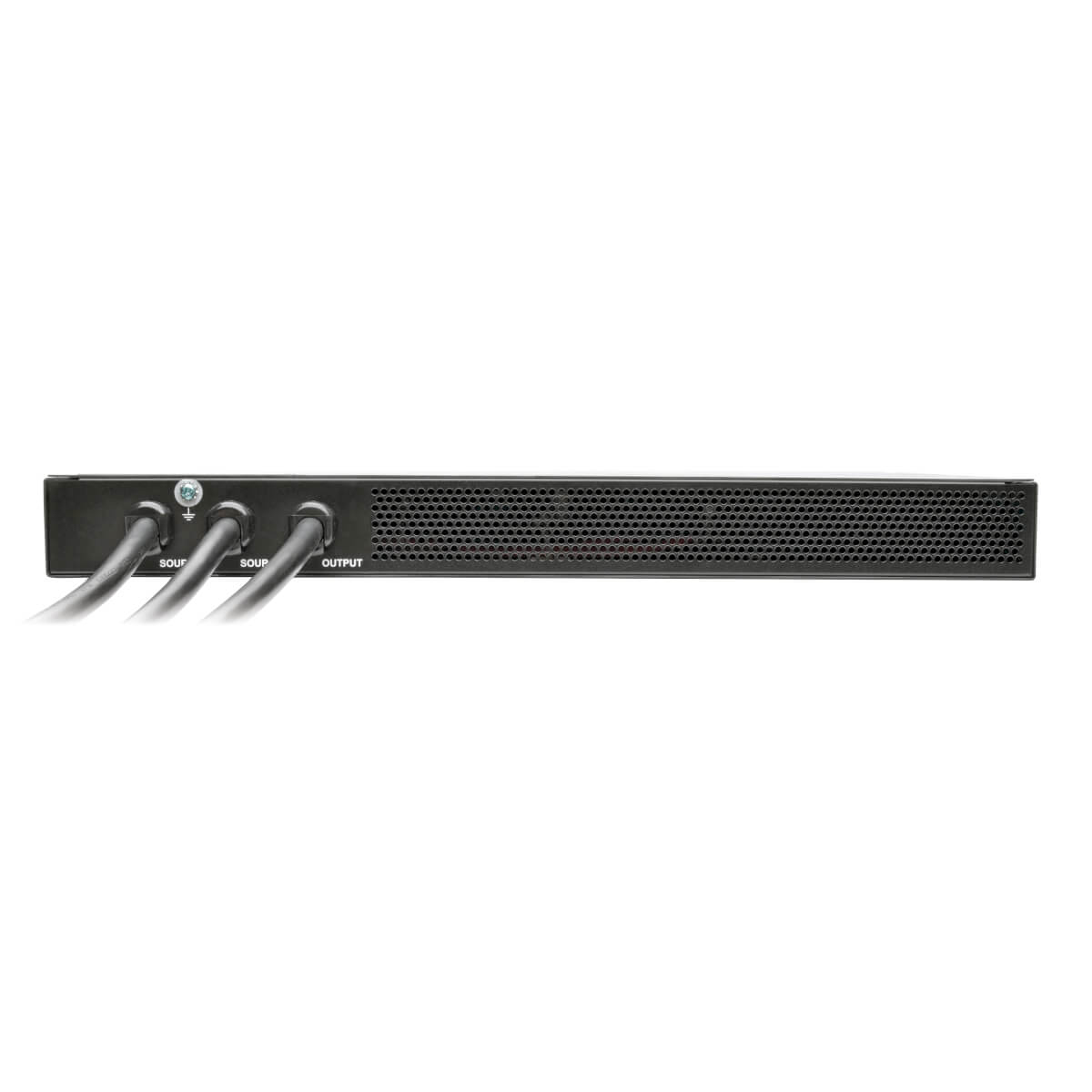

Dual 10-foot (3.1-meter) input cords, each with IEC 309 32A Blue input plug, connect to any two separate primary and secondary input power sources, including out-of-phase input sources. The PDU constantly evaluates the power quality of both inputs. To ensure connected equipment remains powered, dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds if the primary source fails or becomes unstable.

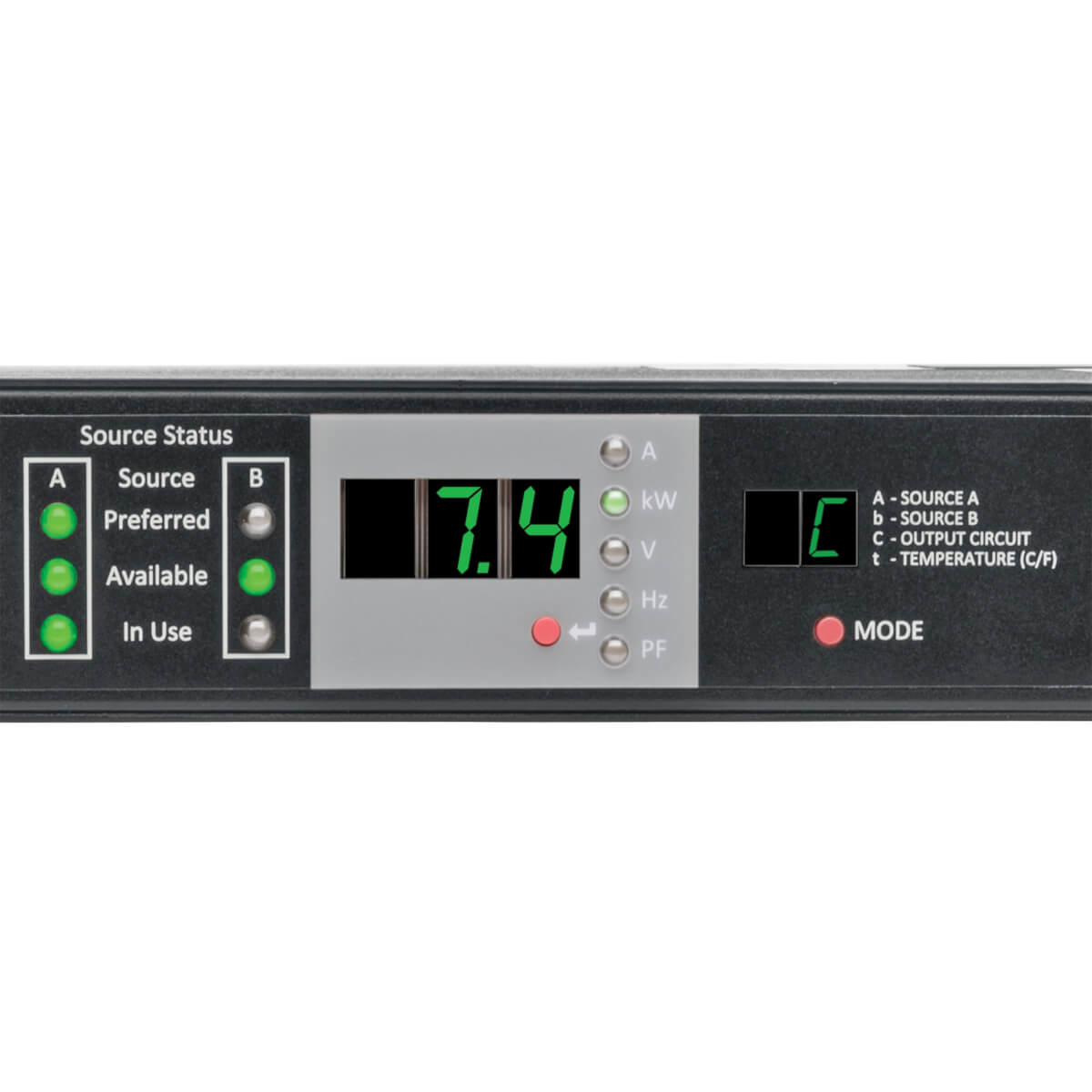

Built-in LX Platform network management interface allows remote access to the PDU for power monitoring, configuration, control and to receive user-configurable notifications. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. Provides real-time load/current data with billing-grade accuracy (±1 percent). It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Specifications

Design
PDU typesMonitored
MountingHorizontal
DisplayLCD
Product colourBlack
CertificationCE
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity2 AC outlet(s)
Power plugIEC309
Features
Cable length120.1" (3.05 m)
CertificationCE
Ergonomics
Cable length120.1" (3.05 m)
DisplayLCD
Power
Maximum power7400 W
Nominal input voltage200-240 V
Nominal output voltage230 V
Maximum current32 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)16.9 x 14 x 1.73" (430 x 356 x 44 mm)
Weight15.1 lbs (6.85 kg)
Width16.9" (430 mm)
Depth14" (355.6 mm)
Height1.72" (43.7 mm)
Package width21.3" (541 mm)
Package depth22.5" (571.5 mm)
Package height7.2" (182.9 mm)
Package weight21.6 lbs (9.8 kg)
Package dimensions (WxDxH)21.7 x 20.7 x 7.48" (550 x 525 x 190 mm)
Packaging data
Package width21.3" (541 mm)
Package depth22.5" (571.5 mm)
Package height7.2" (182.9 mm)
Package weight21.6 lbs (9.8 kg)
Package dimensions (WxDxH)21.7 x 20.7 x 7.48" (550 x 525 x 190 mm)
Operational conditions
Operating temperature (T-T)-15 - 50 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originChina
