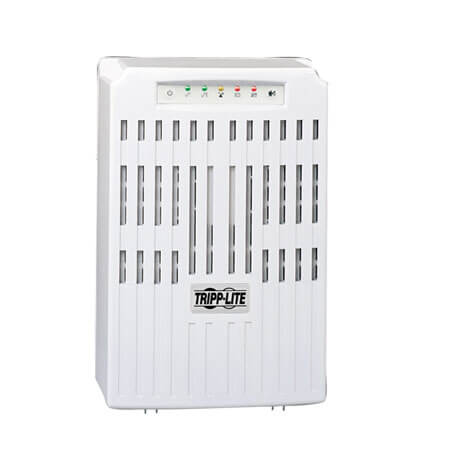

Tripp Lite SMARTINT3000VS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2250 W 9 AC outlet(s)

Tripp Lite SMARTINT3000VS uninterruptible power supply (UPS) Line-Interactive 3 kVA 2250 W 9 AC outlet(s)

SmartPro 230V 3kVA 2.25kW Line-Interactive UPS, Tower, Extended Run, Network Card Options, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 3000VA 2250W UPSINTERNATIONAL SMART TOWER 565435 Register free see stock
Ingram Micro UPS SMART INT 3000VA 2250W USB 3F8737
TD Synnex 3000VA 2250W UPS INTERNATIONAL SMART TOWER AVR 230V 3KVA C19 C13 1075119

Related Products

Description

SMARTINT3000VS intelligent line-interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 14 minutes half load runtime and four minutes at full load. Runtime is expandable with optional external battery packs. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 3000VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of nine outlets with three load banks that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. PowerAlert® UPS monitoring software is available via free download. Built-in accessory slot supports Network Management Card option. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of five front-panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme.

Specifications

Power
Output voltage regulation-19 +8%
Output power2250 W
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current15.4 A
Efficiency94%
Emergency Power Off (EPO)Yes
Power factor0.75
Output power capacity3 kVA
Input frequency50/60 Hz
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Noise level47 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-19 +8%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power2250 W
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current15.4 A
Efficiency94%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power protection featuresOver voltage, Under voltage
Power factor0.75
Noise level47 dB
Audible alarm(s)Yes
Output power capacity3 kVA
Input frequency50/60 Hz
Ports & interfaces

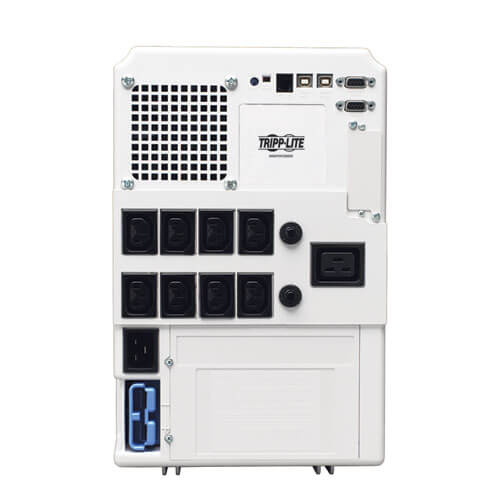

AC outlets quantity9 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB 2.0 ports quantity2
Serial ports quantity2
Battery
Battery recharge time4 h
Typical backup time at half load14 min
Typical backup time at full load4 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourWhite
Cooling typeActive
CertificationCE 62040
Housing materialPolycarbonate (PC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Sustainability certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width15.1" (383.5 mm)
Package depth16.1" (408.9 mm)
Package height19.9" (505.5 mm)
Weight53.4 lbs (24.2 kg)
Width9.2" (233.7 mm)
Package weight67.9 lbs (30.8 kg)
Height14.2" (360.6 mm)
Depth12" (304.8 mm)
Packaging data
Package width15.1" (383.5 mm)
Package depth16.1" (408.9 mm)
Package height19.9" (505.5 mm)
Package weight67.9 lbs (30.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width15.1" (383.5 mm)
Master (outer) case length16.1" (408.9 mm)
Master (outer) case height19.9" (505.5 mm)
Master (outer) case gross weight67.9 lbs (30.8 kg)
Certificates
CertificationCE 62040
Other features
InterfaceUSB; DB9
