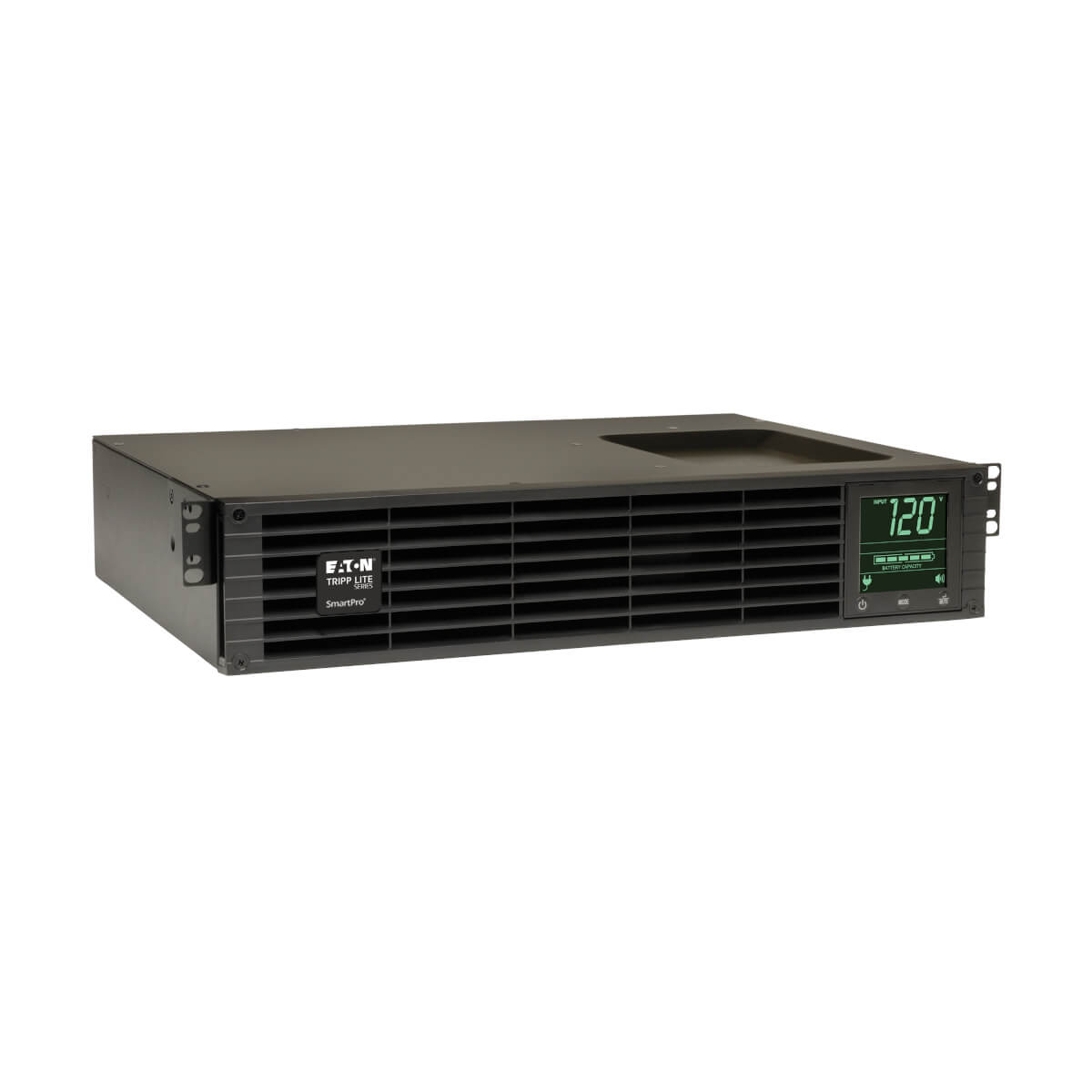

Tripp Lite SM1000RM2UTAA uninterruptible power supply (UPS) 1 kVA 700 W 6 AC outlet(s)

Tripp Lite SM1000RM2UTAA uninterruptible power supply (UPS) 1 kVA 700 W 6 AC outlet(s)

TAA Compliant SmartPro Rack/Tower UPS

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter TAA COMPLIANT 1000VA UPSSMART PRO RACK/TOWER 6 565408 Register free see stock
BlueStar TRIPP LITE, TAA COMPLIANT 1000VA UPS SMART PRO RACK/TOWER 6 OUTLETS SM1000RM2UTAA
D&H TAA Compliant 1000VA UPS rack SM1000RM2UTAA
Ingram Micro UPS SMART 1000VA 800WAVR 120V CE9874
TD Synnex UPS 1000VA SMART 120V 800W USB 2URM TAA 2561927

Related Products

Description

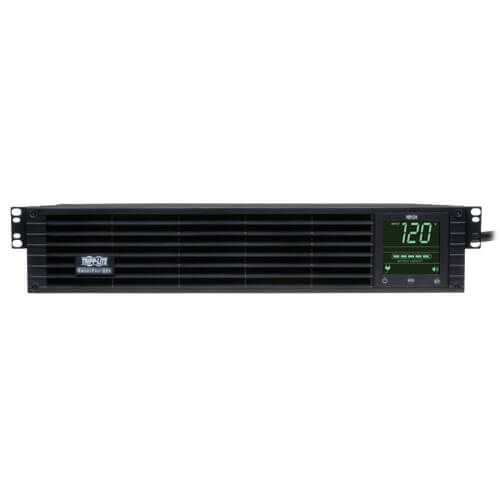

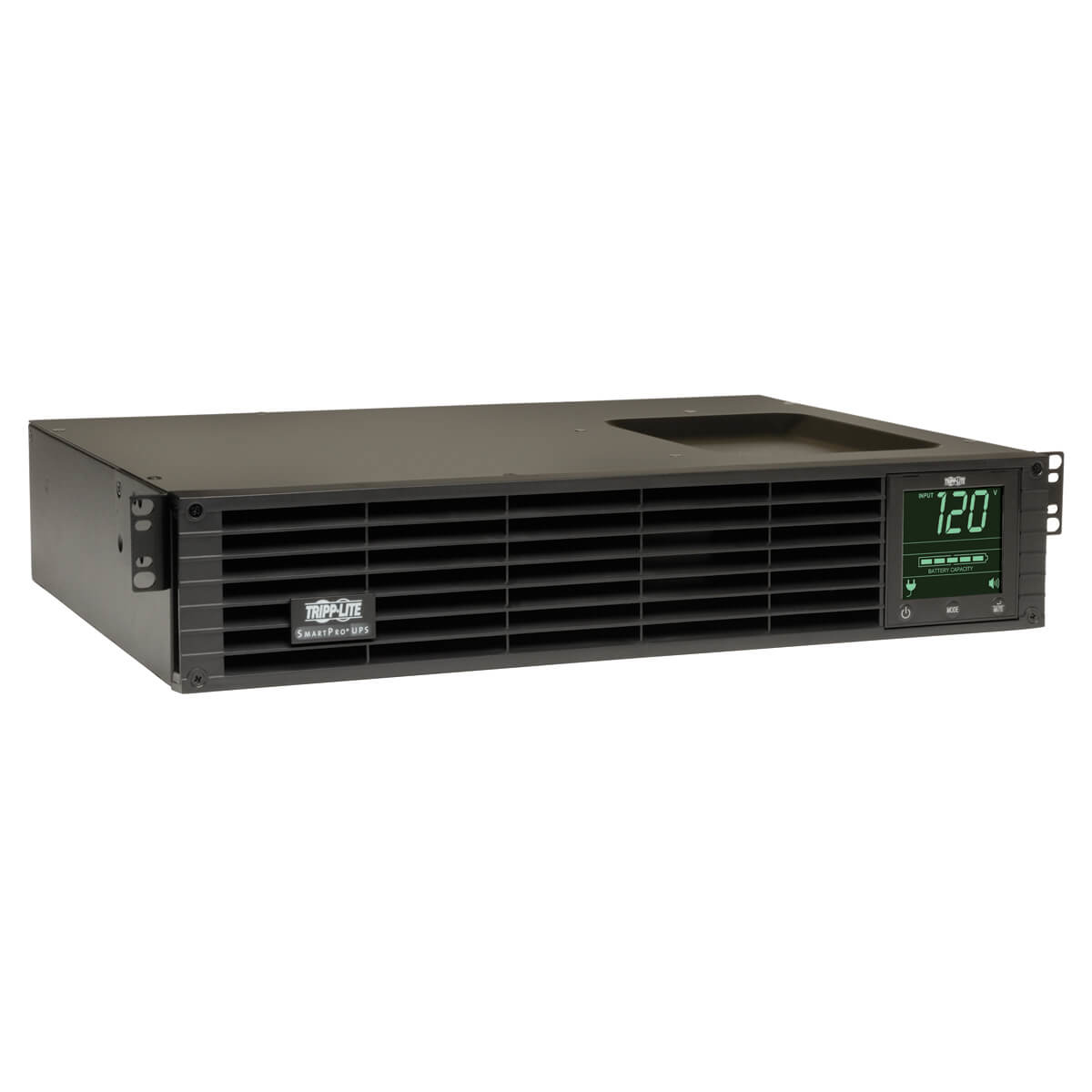

Tripp Lite's SM1000RM2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This intelligent, line-interactive sine wave rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 17 minutes half load runtime and 7 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 83 to 147V. 1000VA/700 watt power handling capability and full time sine wave output supports networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets arranged in 2 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications ports support messaging of detailed UPS operating parameters and line power status. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).

Specifications

Power
Output power700 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Power factor0.7
Output power capacity1 kVA
Input frequency60 Hz
Ports & interfaces

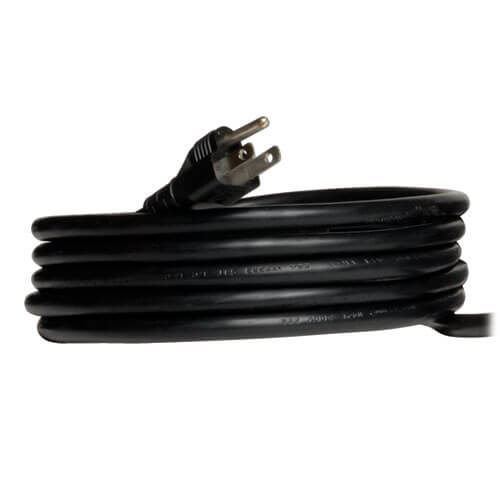

Cable length118.1" (3 m)

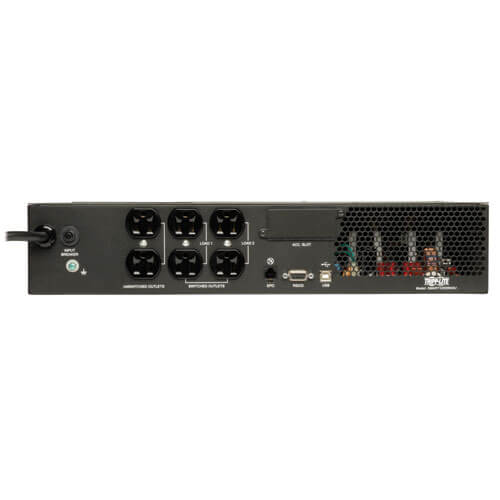

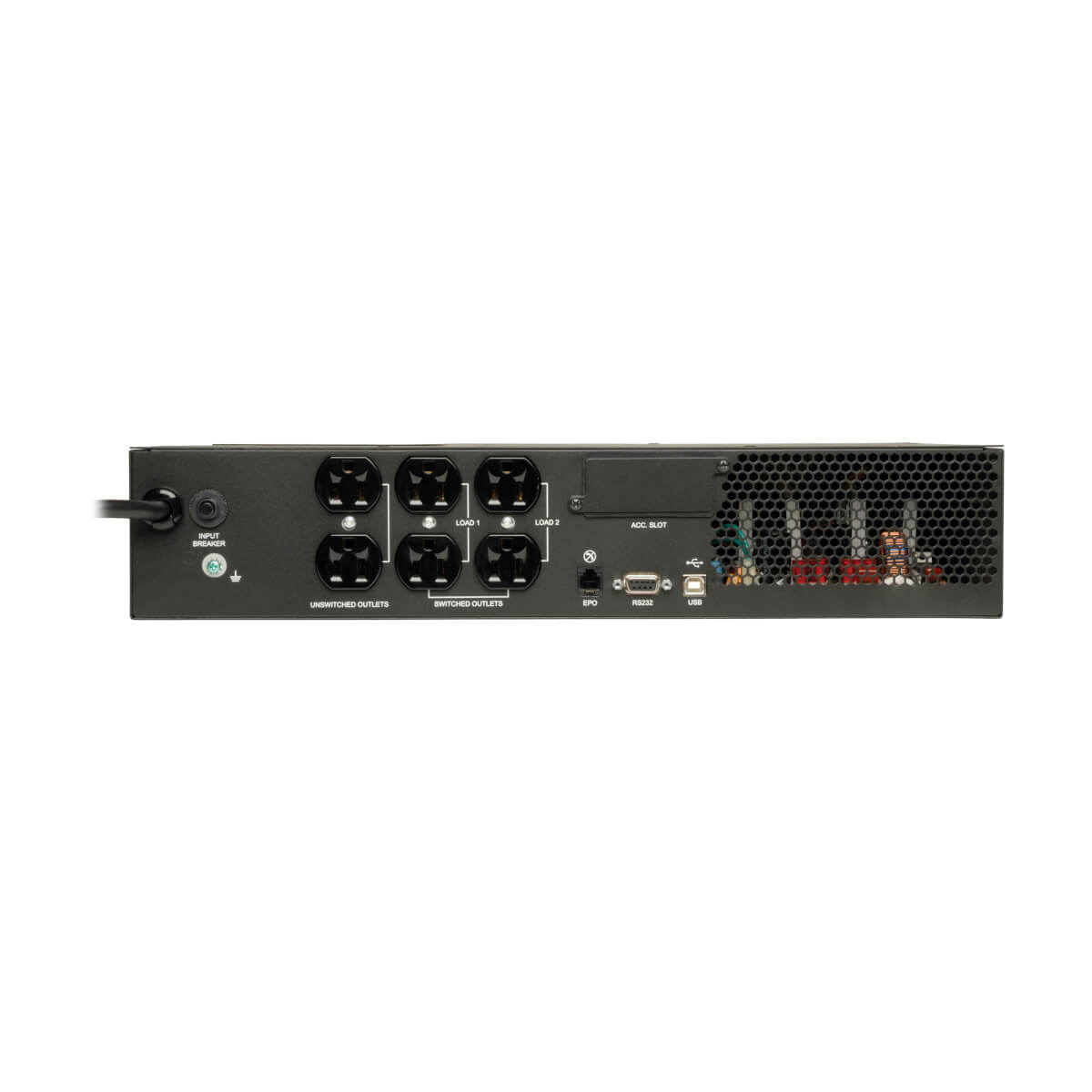

AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Performance

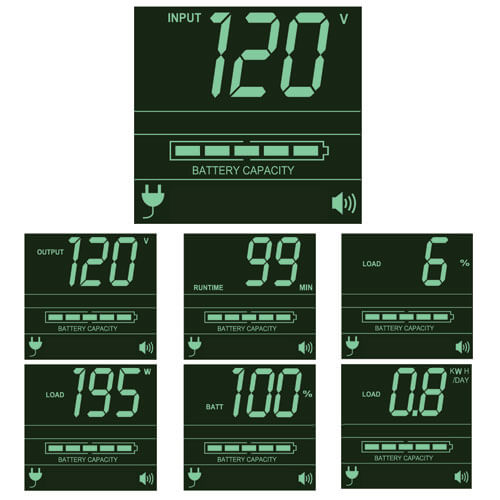

LED indicatorsYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originTaiwan
Output power700 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Power protection featuresOver voltage, Under voltage
Power factor0.7
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency60 Hz
Battery
Battery recharge time4 h
Typical backup time at half load17 min
Typical backup time at full load7 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity2U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationTAA
Cable length118.1" (3 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Package width18.5" (469.9 mm)
Package depth23" (584.2 mm)
Package height8.8" (223.5 mm)
Weight35.5 lbs (16.1 kg)
Width17.4" (440.7 mm)
Package weight45 lbs (20.4 kg)
Height3.45" (87.6 mm)
Depth12.5" (317.5 mm)
Packaging data
Package width18.5" (469.9 mm)
Package depth23" (584.2 mm)
Package height8.8" (223.5 mm)
Package weight45 lbs (20.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width18.5" (469.9 mm)
Master (outer) case length23" (584.2 mm)
Master (outer) case height8.8" (223.5 mm)
Master (outer) case gross weight45 lbs (20.4 kg)
Certificates
CertificationTAA
Other features
Nominal output voltage120 V
Nominal input voltage120 V
