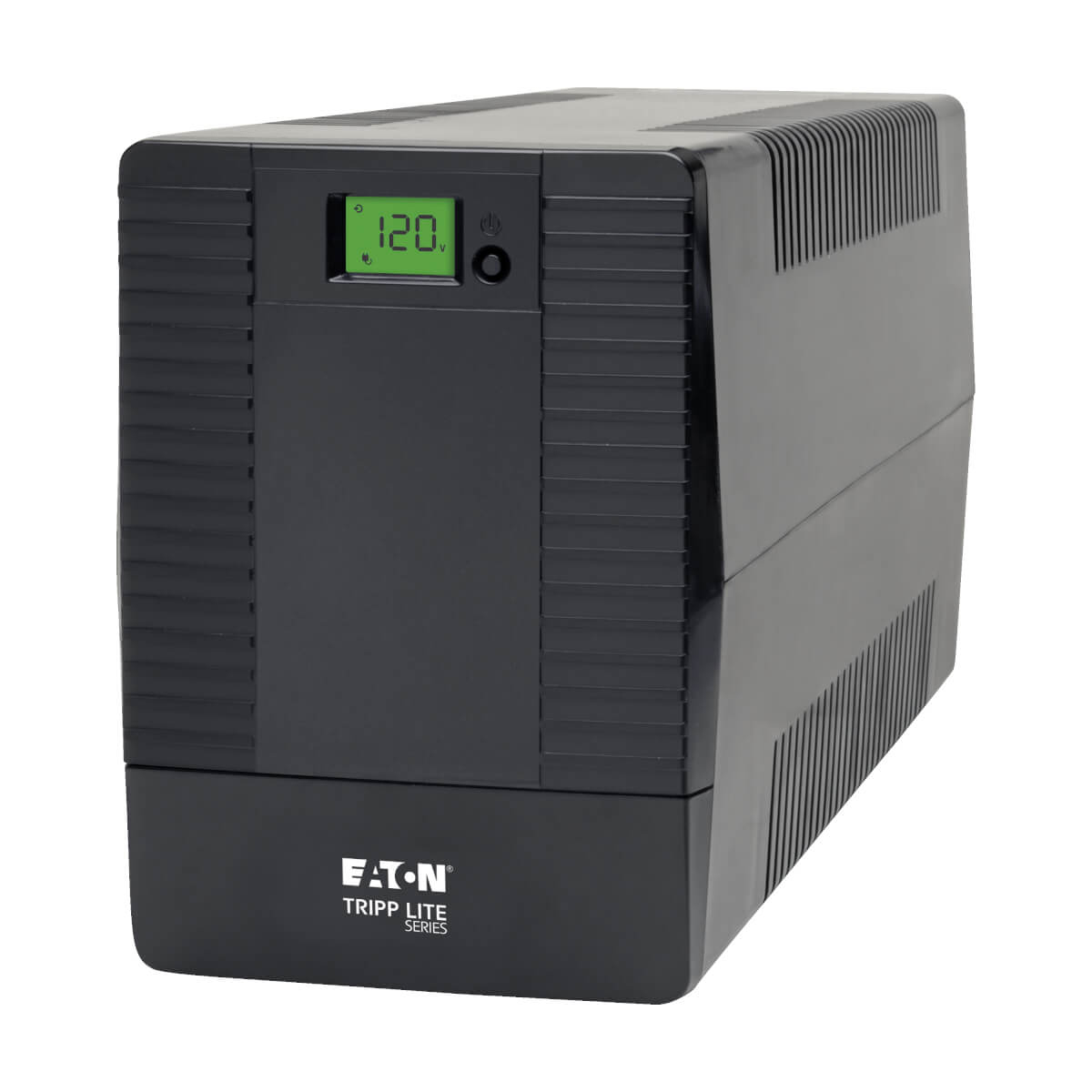

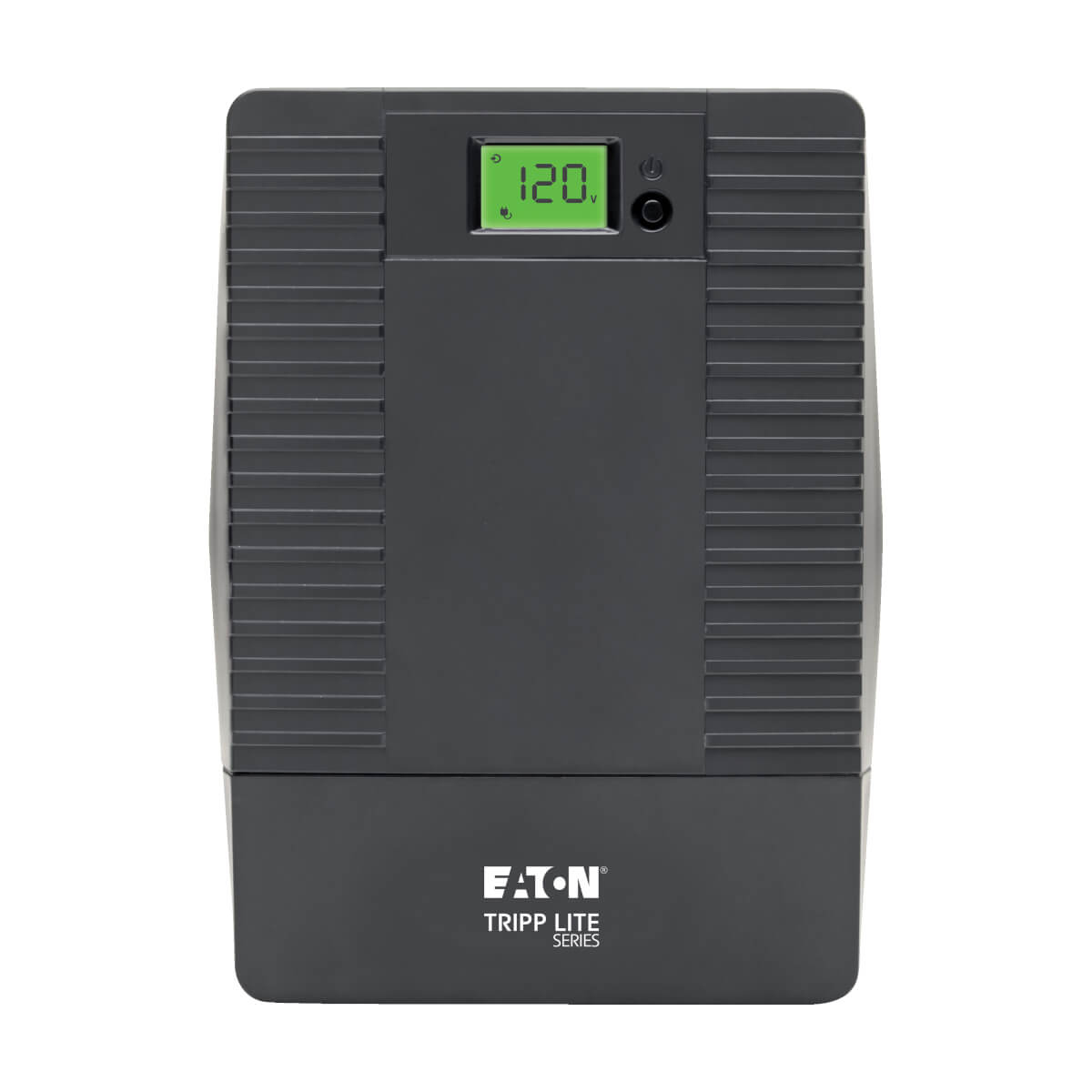

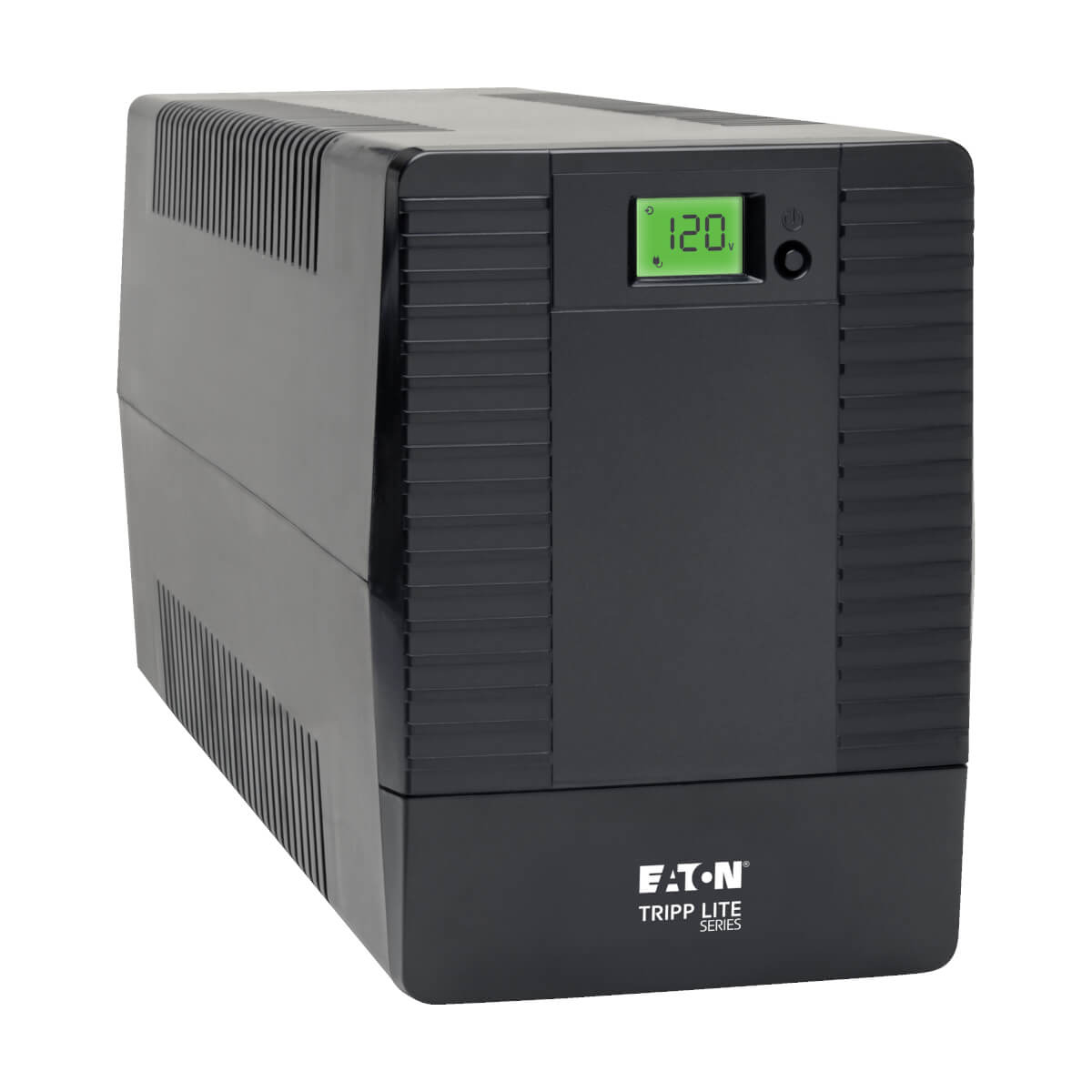

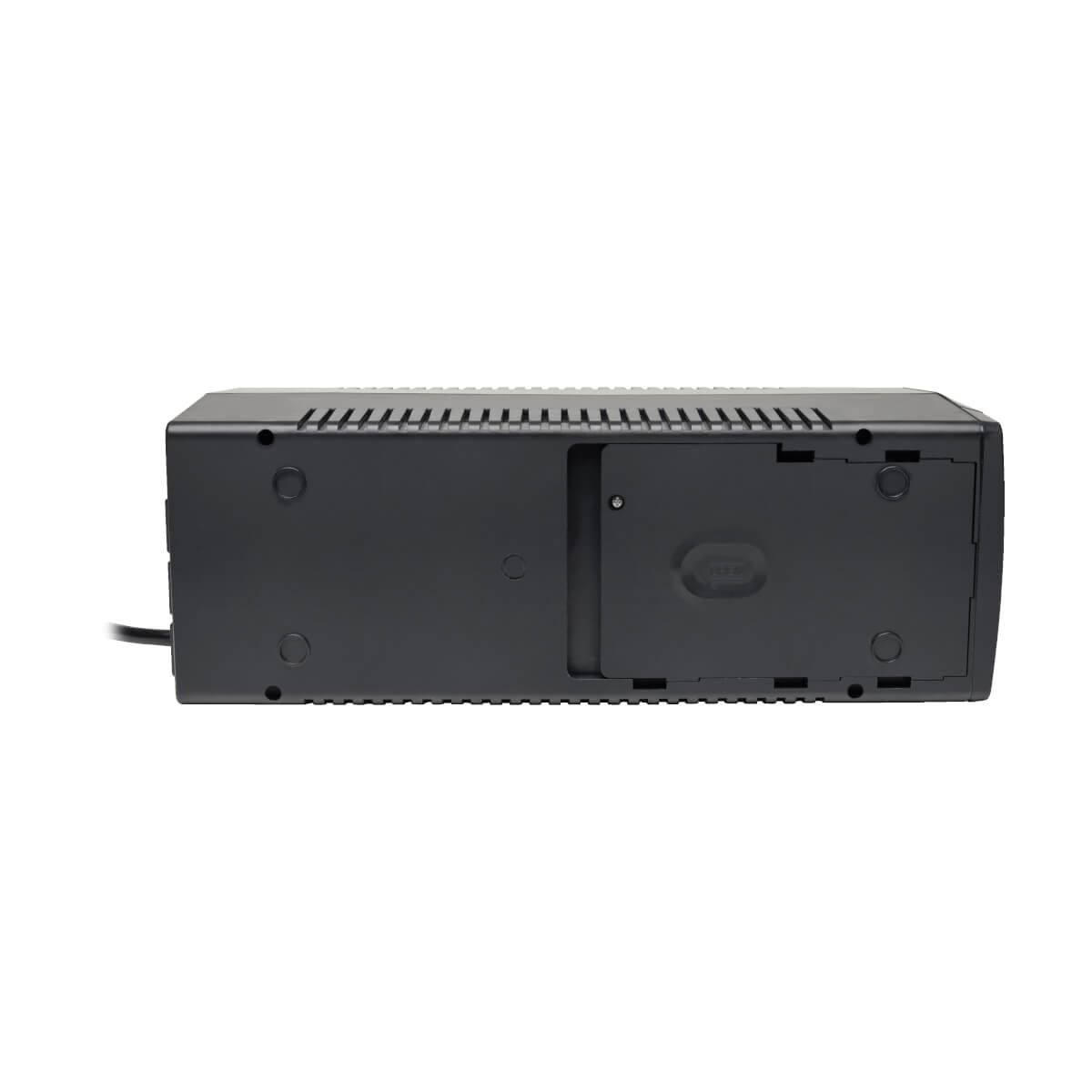

Tripp Lite SMART1500TSU uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1200 W 8 AC outlet(s)

Tripp Lite SMART1500TSU uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1200 W 8 AC outlet(s)

Tripp Lite SMART1500TSU, Line-Interactive, 1.44 kVA, 1200 W, Pure sine, 110 V, 120 V

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

UPS, 1440VA, 1200W, 120V,LINE-INTERACTIVE, 50/60HZ,8XNEMA 5-15R

 10115064 Register free see stock

Related Products

Description

Tripp Lite SMART1500TSU. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1200 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 1.5 min, Typical backup time at half load: 6 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Cables included: Serial, USB cable

Specifications

Power
Output frequency50/60 Hz
Output power1200 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current12 A
Power factor0.83
Output power capacity1.44 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length59.1" (1.5 m)
USB portYes
Serial interfaceYes

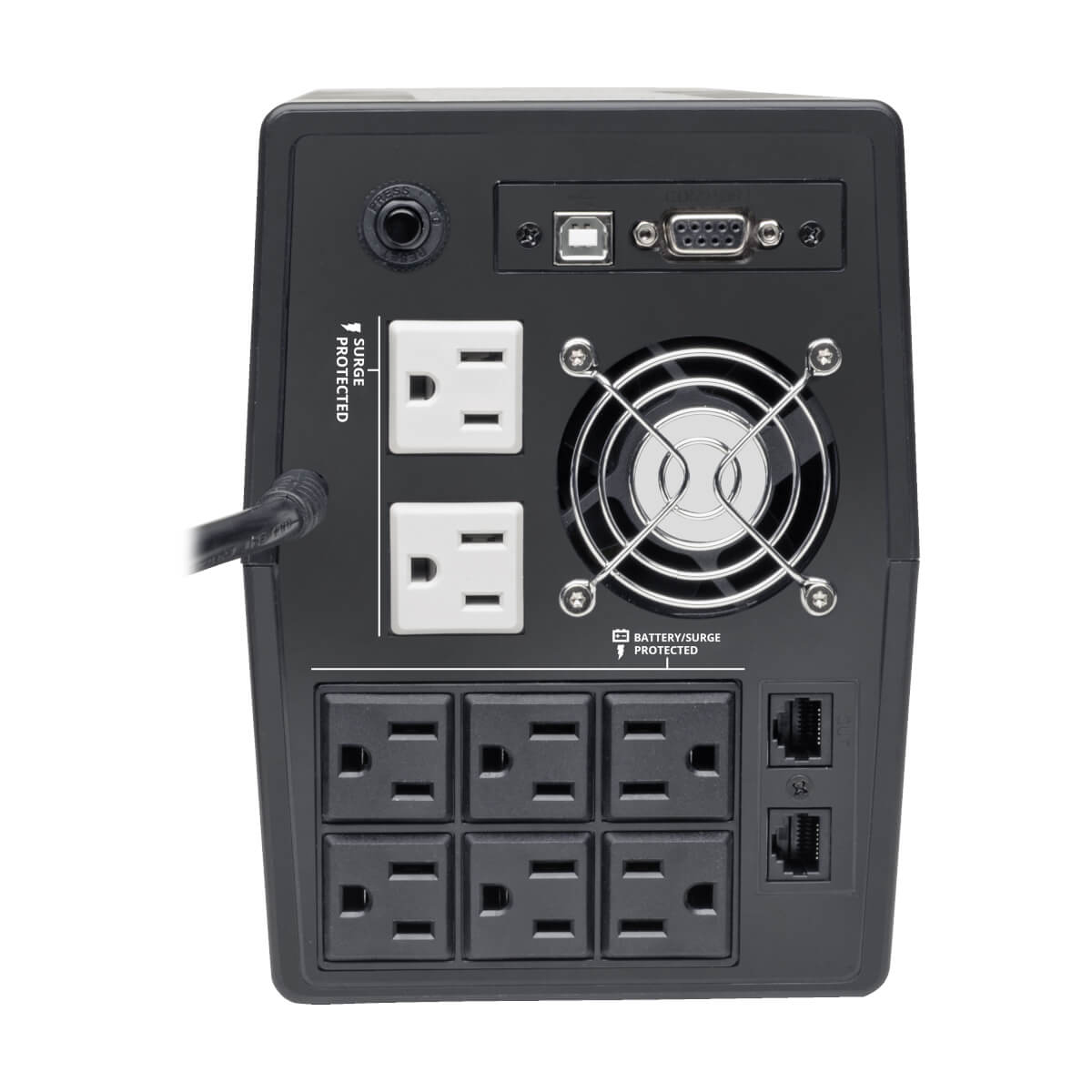

AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Serial ports quantity1
Ethernet LAN (RJ-45) ports2
USB port typeUSB Type-B
Performance
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topologyLine-Interactive
WaveformPure sine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network, Telephone
Noise level50 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topologyLine-Interactive
WaveformPure sine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power1200 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current12 A
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network, Telephone
Power factor0.83
Noise level50 dB
Audible alarm(s)Yes
Output power capacity1.44 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load6 min
Typical backup time at full load1.5 min
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
Cable length59.1" (1.5 m)
Built-in fanYes
Housing materialAcrylonitrile butadiene styrene (ABS)
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%
Technical details
Output frequency50/60 Hz
Packaging content
ManualYes
Cables includedSerial, USB cable
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width9.3" (236.2 mm)
Package depth19.5" (495.3 mm)
Package height11.7" (297.2 mm)
Weight32.2 lbs (14.6 kg)
Width5.5" (139.7 mm)
Package weight33.3 lbs (15.1 kg)
Height7.5" (190.5 mm)
Depth15" (381 mm)
Packaging data
ManualYes
Cables includedSerial, USB cable
Package width9.3" (236.2 mm)
Package depth19.5" (495.3 mm)
Package height11.7" (297.2 mm)
Package weight33.3 lbs (15.1 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width9.3" (236.2 mm)
Master (outer) case length19.5" (495.3 mm)
Master (outer) case height11.7" (297.2 mm)
Master (outer) case gross weight33.3 lbs (15.1 kg)
