Tripp Lite B140-101 video splitter DVI

  • Brand: Tripp Lite
  • Category:
  • SKU: B140-101
  • EAN: 0037332154088 0999992936490 03 ...2936490 0373321540884more
DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DVI OVER CAT5 PASSIVEEXTENDER KIT TRANSMITTER 565160 Register free see stock
Ingram Micro DVI OVER CAT5/6 EXTENDER KIT CR3368
TD Synnex DVI CAT5/6 PASSIVE EXTENDER KIT 100FT 2658944
TD Synnex Liquidation Use Only 14306666

Related Products

Description

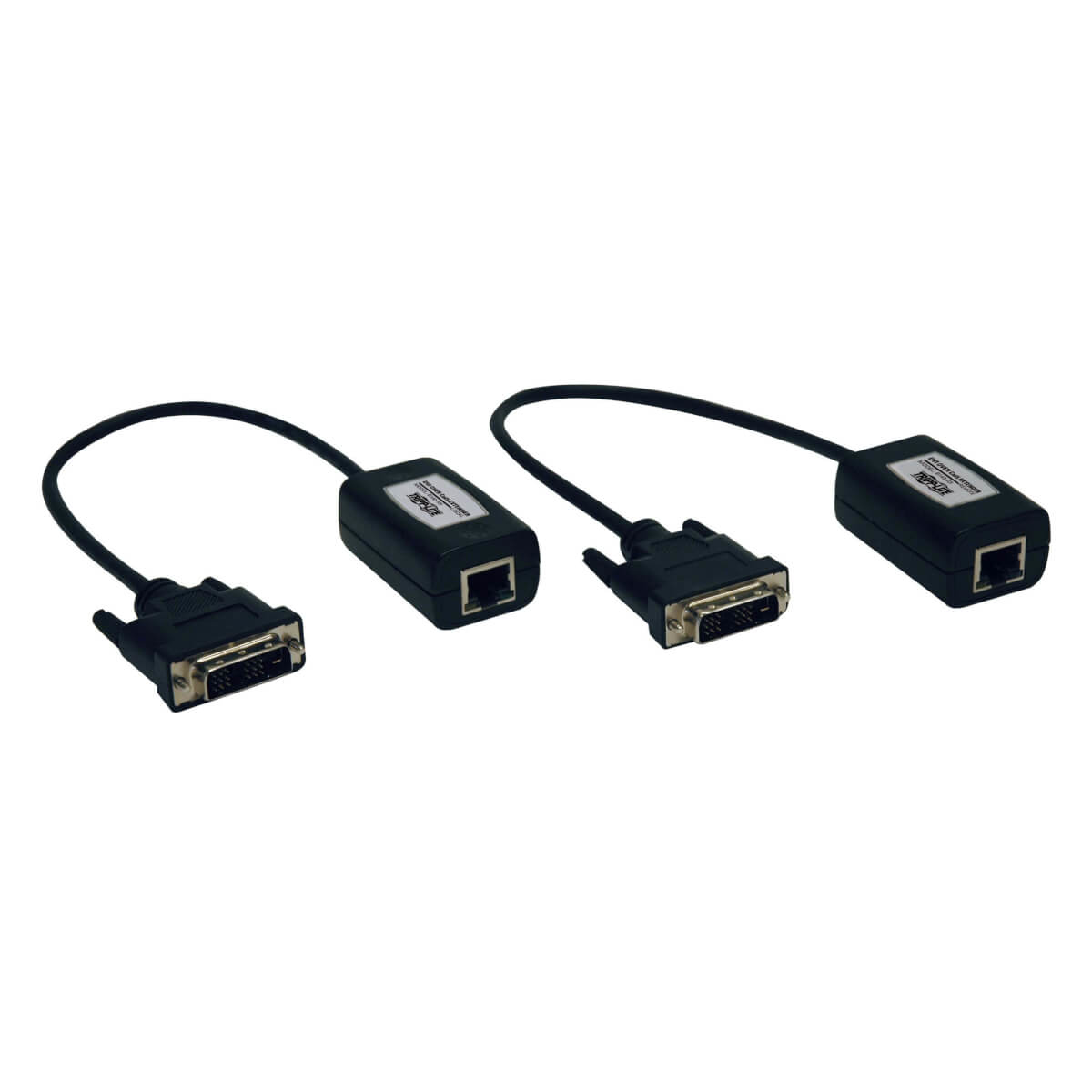

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100 feet (30.5 meters) away using a single Cat5e/6 Ethernet cable. To achieve maximum distance and resolution, use 24 AWG Solid Wire Cat5e/6 cable (N202-Series). The B140-101 is compatible with all operating systems and is plug and play with no external power, software or drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 at 60 Hz signal can be extended up to 50 feet (15.2 meters) from the source or a 1024 x 768 at 60 Hz signal up to 100 feet.

Specifications

Ports & interfaces
Video ports quantity1
Video port typeDVI
Ethernet LAN (RJ-45) ports1
Cable types supportedCat5e, Cat6
Ethernet LANYes
Features
LED indicatorsYes
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Plug and PlayYes
Product colourBlack
Country of originTaiwan
Network
Cable types supportedCat5e, Cat6
Ethernet LANYes
Packaging data
Package weight7.05 oz (200 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Packaging content
ManualYes
Video
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Colour
Product colourBlack
Indication
LED indicatorsYes
Technical details
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Plug and PlayYes
Weight & dimensions
Package weight7.05 oz (200 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Logistics data
Master (outer) case width18.4" (467.4 mm)
Master (outer) case length8.9" (226.1 mm)
Master (outer) case height12.3" (311.2 mm)
Master (outer) case gross weight10.1 lbs (4.58 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332154085
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
