Tripp Lite B132-100A-WP-1 AV extender AV receiver White

Tripp Lite B132-100A-WP-1 AV extender AV receiver White

  • Brand: Tripp Lite
  • Category:
  • SKU: B132-100A-WP-1
  • EAN: 0037332160096 0373321600960 50 ...1600960 5054629730942 0012300208147more
Cat5e, Cat6, VGA, 3.5 mm, White

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter VGA + AUDIO OVER CAT5EXTENDER RECEIVER RJ45 565146 Register free see stock
Ingram Micro VGA W/ AUDIO OVER CAT5 RECEIVER KA1913
TD Synnex VGA W/ AUDIO CAT5/6 EXTENDER WALLPLATE 2880407

Related Products

Description

Tripp Lite's B132-100A-WP-1 works with a local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.) 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc.

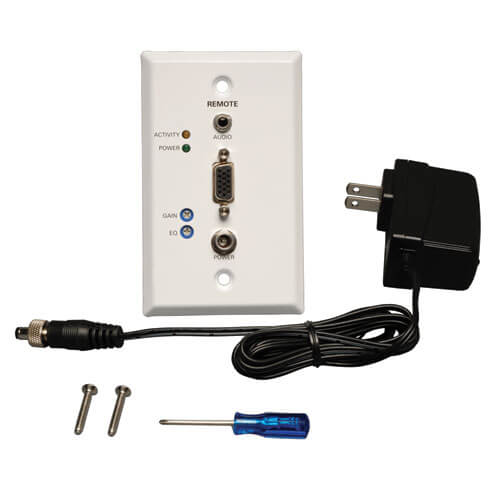

● For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia


● Works with a local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.)
● 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
● For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

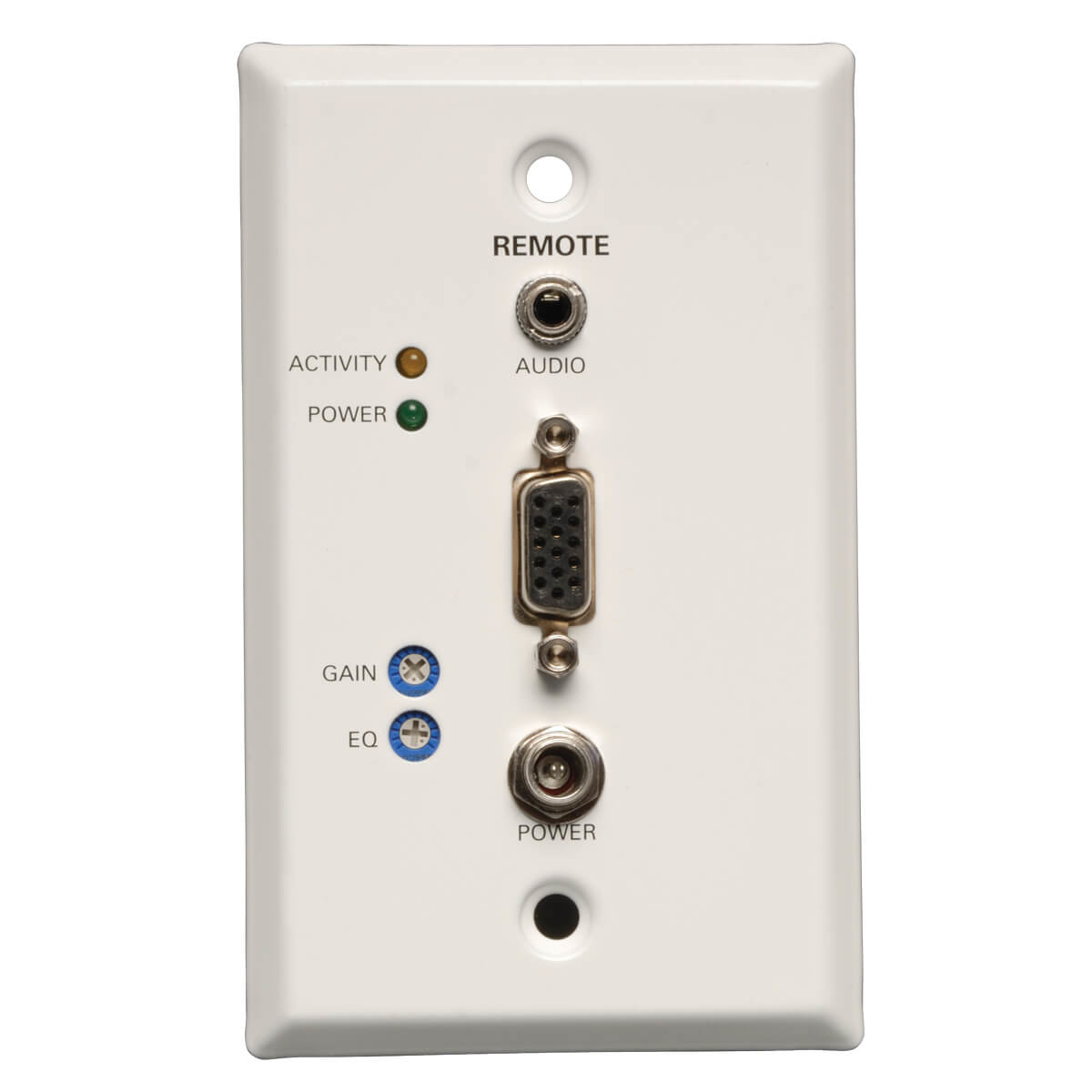

● Features built-in Equalization and Gain controls to adjust the video image

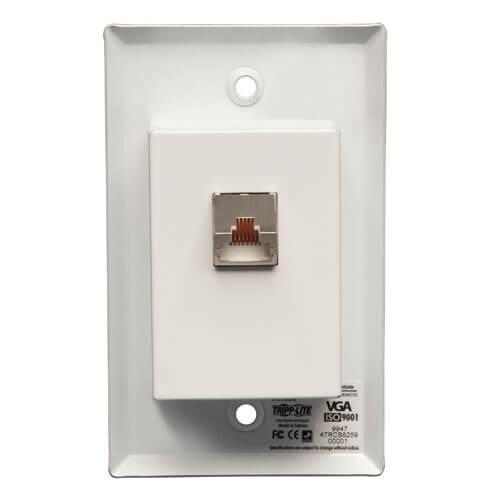

● RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
● Ideal for digital signage situations, such as retail, schools, churches, etc..
● 1 year limited waranty

Specifications

Features
TypeAV receiver
Maximum resolution1920 x 1440 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance12000" (304.8 m)
LED indicatorsYes
Product colourWhite
Ports & interfaces
RJ-45 input ports1
VGA (D-Sub) output ports1
DC-in jackYes
Power
External power adapterYes
Operating voltage240 V
Current0.5 A
Weight & dimensions
Width2.8" (71.1 mm)
Height4.5" (114.3 mm)
Depth1.5" (38.1 mm)
Weight3.88 oz (110 g)
Packaging data
Package depth2.2" (55.9 mm)
Package width6.5" (165.1 mm)
Package height7.2" (182.9 mm)
Package weight14.5 oz (410 g)
Technical details
Country of originTaiwan
Logistics data
Master (outer) case width13.7" (348 mm)
Master (outer) case length8.7" (221 mm)
Master (outer) case height23.2" (589.3 mm)
Master (outer) case gross weight18 lbs (8.16 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332160093
