Tripp Lite B136-101 video splitter

Tripp Lite B136-101 video splitter

  • Brand: Tripp Lite
  • Category:
  • SKU: B136-101
  • EAN: 0037332155467 0373321554676 09 ...1554676 0999992531602 0999993871820more
Component Video with Stereo Audio over Cat5/Cat6 Extender Kit, In-Line Transmitter and Receiver, Up to 700 ft. (213 m)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter COMPONENT VIDEO WITH STEREOAUDIO OVER CAT5 EXTENDER 565153 Register free see stock
Ingram Micro COMPONENT VIDEO WITH STEREO CY7677

Related Products

Description

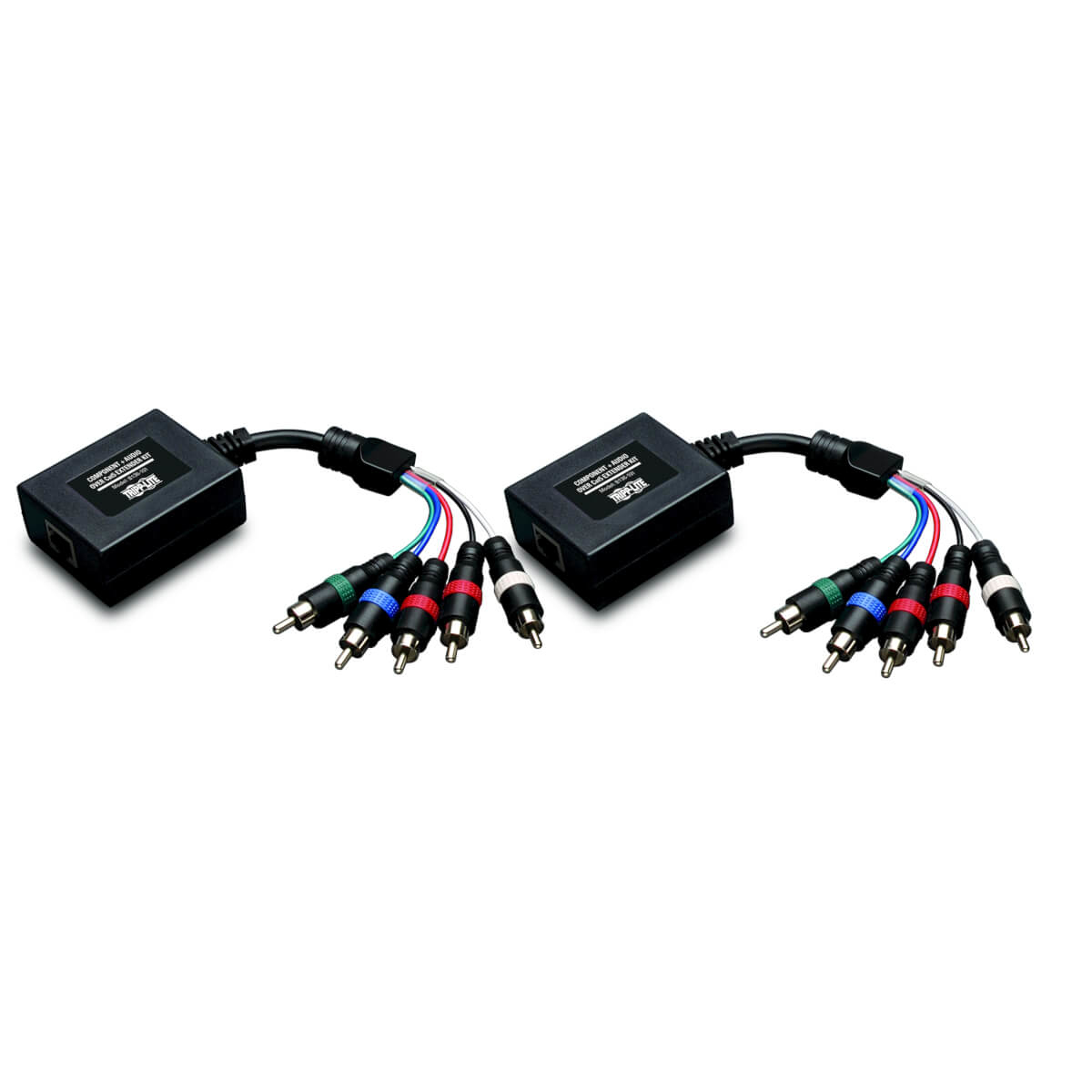

This B136-101 Component Video + Stereo Audio extender kit comes with both local and remote units, allowing you to place a TV, Projector, etc. up to 700 feet (213.4 meters) away from the source. A 1080i (60 Hz) Component Video and Stereo Audio signal can be extended up to 300 feet (91.4 meters) when using 24 AWG Solid Wire UTP cable (N202-Series) or up to 400 feet (122 meters) when using Zero-Skew UTP cable (P524-01K). A 480p (60 Hz) Component Video and Stereo Audio signal can be extended up to 500 feet (152.4 meters) when using 24 AWG Solid Wire UTP cable (N202-Series) or up to 700 feet when using Zero-Skew UTP cable (P524-01K). Built-in RCA connectors plug directly into the source and display without the need for additional cables....no power required. Please note: Left and Right channel audio are combined on the transmitter end for one complete sound.

Comes with both local and remote units
Built-in RCA connectors plug directly into the source and display, without the need for additional cables
Extends a 1080i (60 Hz) Component Video and Stereo Audio signal up to 300-ft. (91.44 m) when using 24 AWG Solid Wire UTP cable (N202-Series); or, up to 400-ft. (121.92 m) when using Zero-Skew UTP cable (P524-01K)
No external power required

Specifications

Ports & interfaces
Video ports quantity0

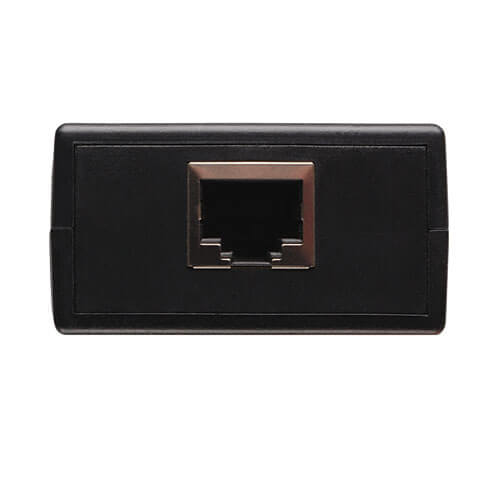

Ethernet LAN (RJ-45) ports2
Connector(s)10 x RCA
Ethernet LANYes
Features
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
Supported video modes480i, 480p, 720p, 1080i
Maximum operating distance4763.8" (121 m)
Product colourBlack
CertificationRoHS
Country of originTaiwan
Network
Ethernet LANYes
Packaging data
Package weight8.82 oz (250 g)
Package depth4.84" (122.9 mm)
Package width5.28" (134.1 mm)
Package height1.61" (40.9 mm)
Video
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Maximum resolution1920 x 1080 pixels
Full HDYes
Supported video modes480i, 480p, 720p, 1080i
Colour
Product colourBlack
Certificates
CertificationRoHS
Technical details
Package width5.28" (134.1 mm)
Package height1.61" (40.9 mm)
Maximum operating distance4763.8" (121 m)
Weight & dimensions
Package weight8.82 oz (250 g)
Package depth4.84" (122.9 mm)
Package width5.28" (134.1 mm)
Package height1.61" (40.9 mm)
Logistics data
Master (outer) case width18.7" (474 mm)
Master (outer) case length15" (381 mm)
Master (outer) case height11" (279.9 mm)
Master (outer) case gross weight27.8 lbs (12.6 kg)
Products per master (outer) case50 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332155464
Harmonized System (HS) code8517.62.0090
Country of originTaiwan
