Tripp Lite B132-100A video splitter VGA

Tripp Lite B132-100A video splitter VGA

  • Brand: Tripp Lite
  • Category:
  • SKU: B132-100A
  • EAN: 0037332148773 0761345435512 00 ...5435512 0033585530075 0373321487738more
VGA with Audio over Cat5/Cat6 Extender, Box-Style Receiver, 1920x1440 at 60Hz, Up to 305 m (1,000-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter VGA + AUDIO OVER CAT5RECEIVER FOR B132-002A 565145 Register free see stock
D&H VGA Over Cat5 Remote Unit B132100A
Ingram Micro VGA AUDIO OVER CAT5/6 EXTENDER BC4029
TD Synnex VGA W/ AUDIO OVER CAT5/6 EXTENDER 1000FT 2443931

Related Products

Description

Tripp Lite's B132-100A works with a B132-002A-2 or B132-004A-2 local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.) 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
- Works with a B132-002A-2 or B132-004A-2 local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.)
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections
- Extender remote (Receiver) unit
- Mini-Screwdriver for EQ/Gain adjustment
- Mounting Hardware

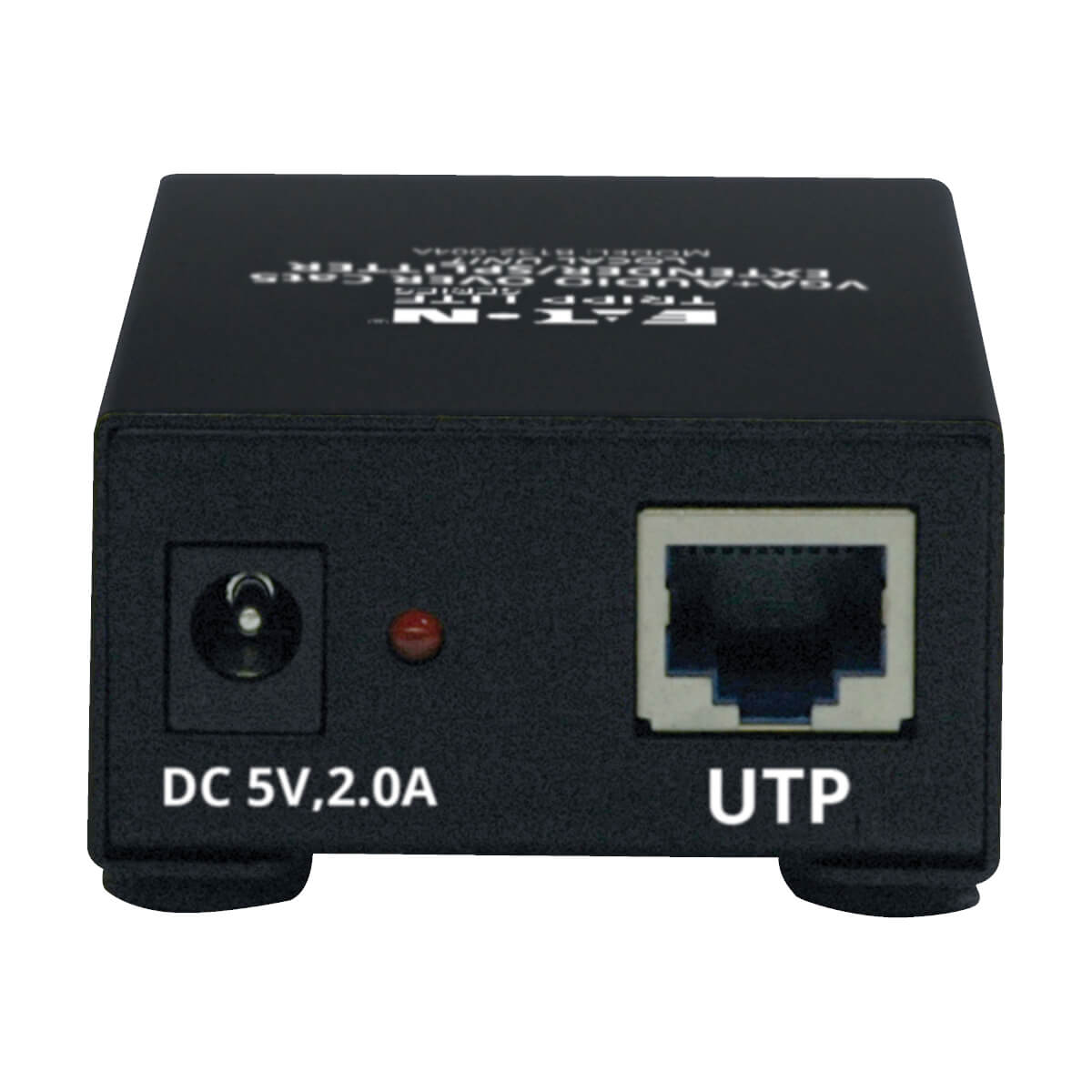

- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Owner’s Manual
- Works with a B132-002A-2 or B132-004A-2 local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.)
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

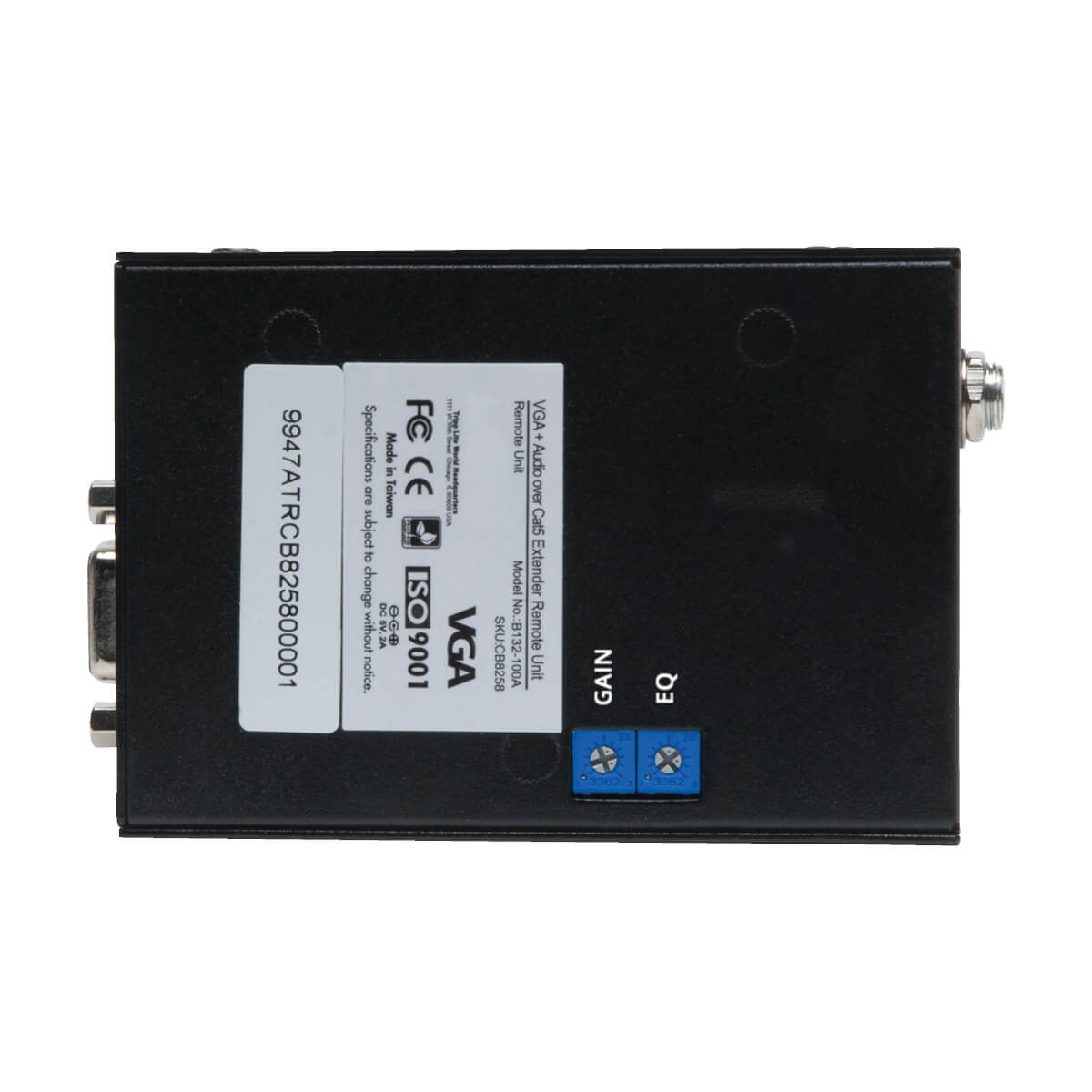

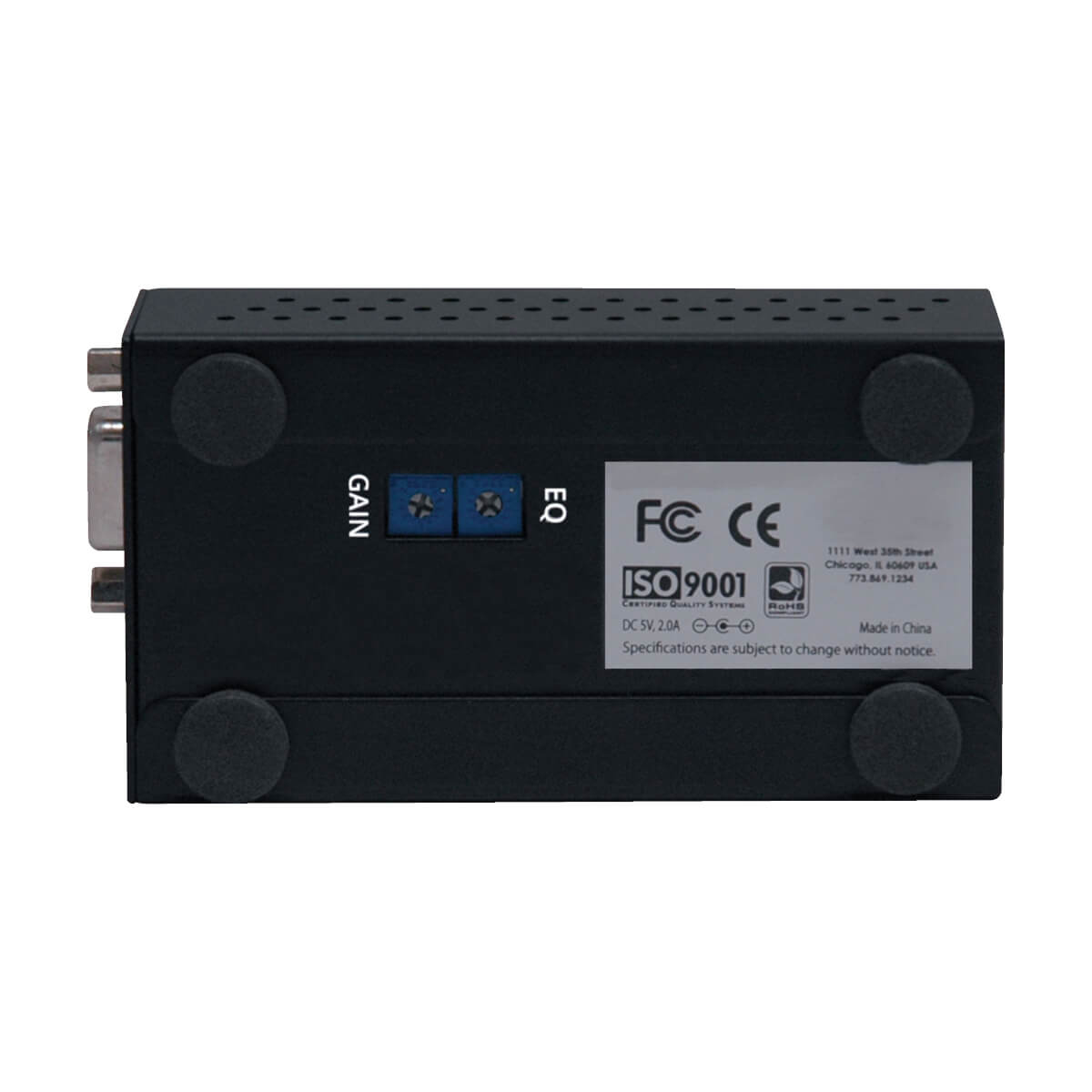

- Features built-in Equalization and Gain controls to adjust the video image
- Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
- Ideal for digital signage situations, such as retail, schools, churches, etc..
- 1 year limited waranty

Specifications

Ports & interfaces
Video ports quantity1
Video port typeVGA
Features
Maximum resolution1920 x 1440 pixels
Maximum operating distance11811" (300 m)
Product colourBlack
Country of originTaiwan
Weight & dimensions
Weight7.05 oz (200 g)
Dimensions (WxDxH)2 x 3.75 x 1.1" (50.8 x 95.2 x 27.9 mm)
Width2.5" (63.5 mm)
Depth3.6" (91.4 mm)
Height1" (25.4 mm)
Package weight15.9 oz (450 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Packaging data
Package weight15.9 oz (450 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Packaging content
ManualYes
Video
Maximum resolution1920 x 1440 pixels
Colour
Product colourBlack
Technical details
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Maximum operating distance11811" (300 m)
Logistics data
Master (outer) case width23.1" (586.7 mm)
Master (outer) case length13.7" (348 mm)
Master (outer) case height8.7" (221 mm)
Master (outer) case gross weight22 lbs (9.98 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332148770
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
