Tripp Lite BP192V12RT3US UPS battery cabinet Rackmount/Tower
- Brand: Tripp Lite
- Category:
- SKU: BP192V12RT3US
- EAN: 0037332238610
192V External Battery Pack for Select UPS Systems, 3U Rack/Tower, TAA
Offer details
Description
External Battery Pack Gives Your Compatible UPS System Extended Runtime

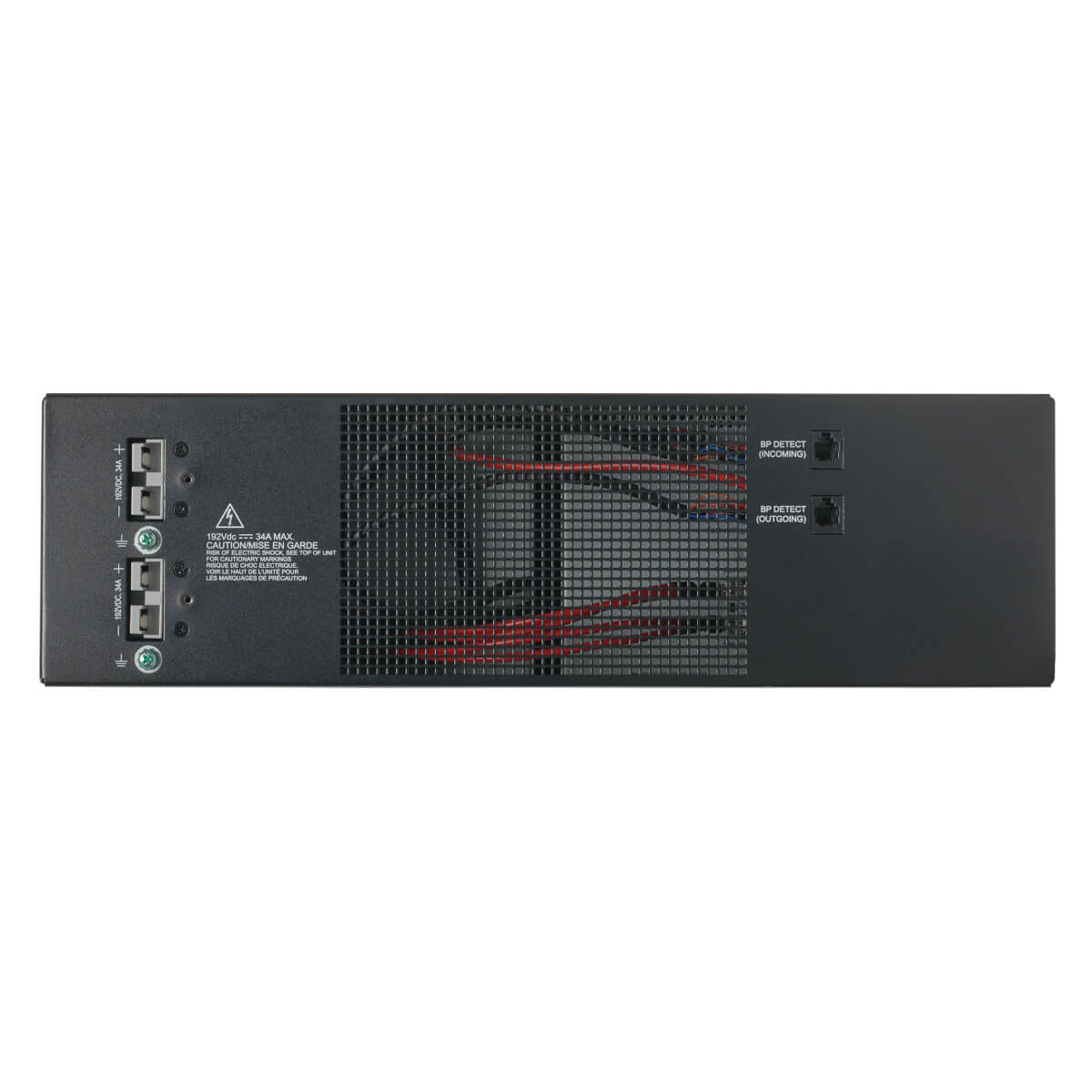

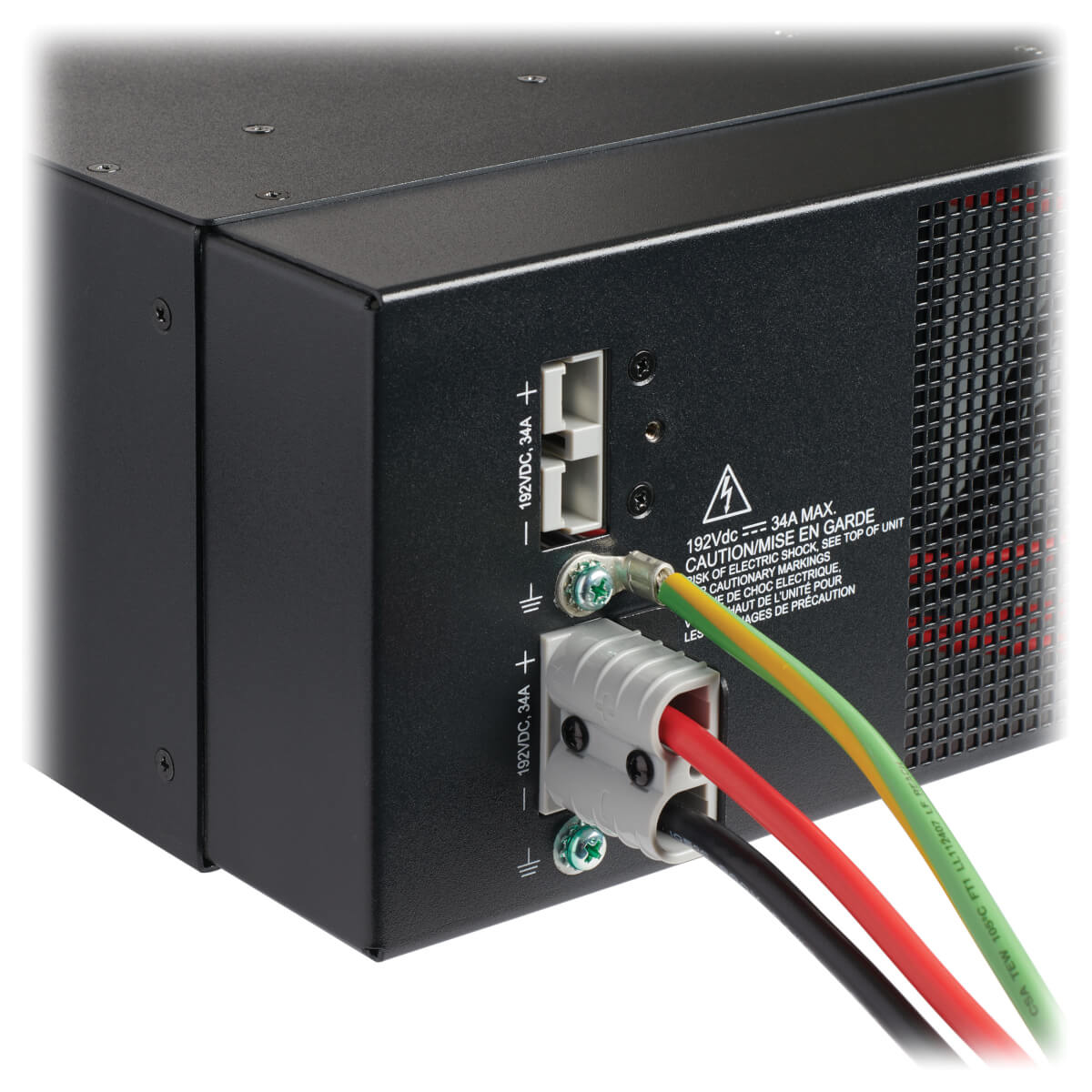

The BP192V12RT3US is compatible only with UPS systems that specify the use of this battery pack (see System Requirements below). Not only does this external battery pack provide extended runtime, but it can also be daisy-chained using its input/output connectors to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation.
Smart Battery Communicates with Your UPS for Optimal Performance
This external battery pack with included power and data cabling is automatically sensed by the UPS for highly accurate runtime reporting and ideal charge current settings. An additional data cable reports battery pack temperature to the UPS to enable temperature-compensated charging to extend battery lifespan and fast recharge.
Mounts in 3U of Space in 19 in. 4-Post Racks

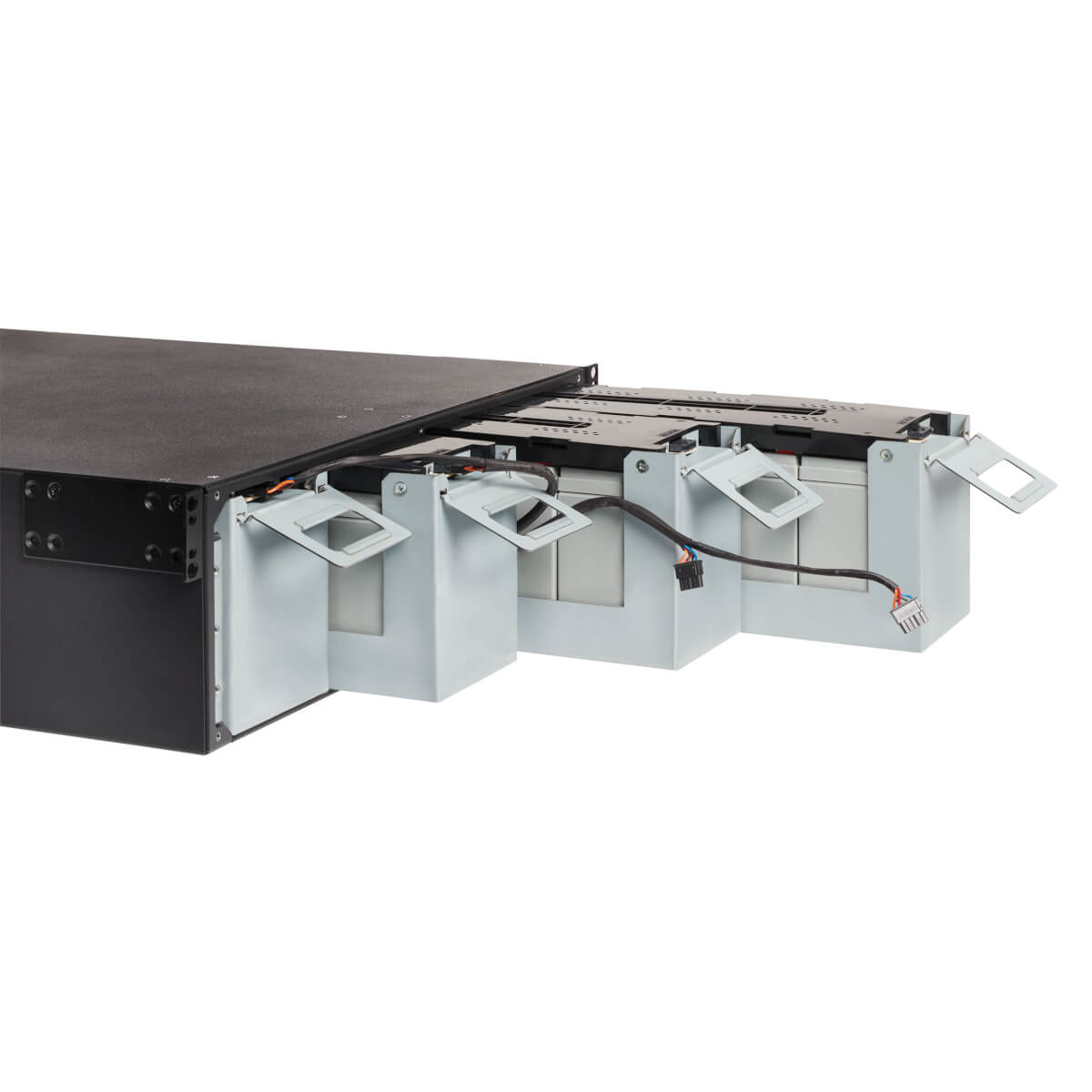

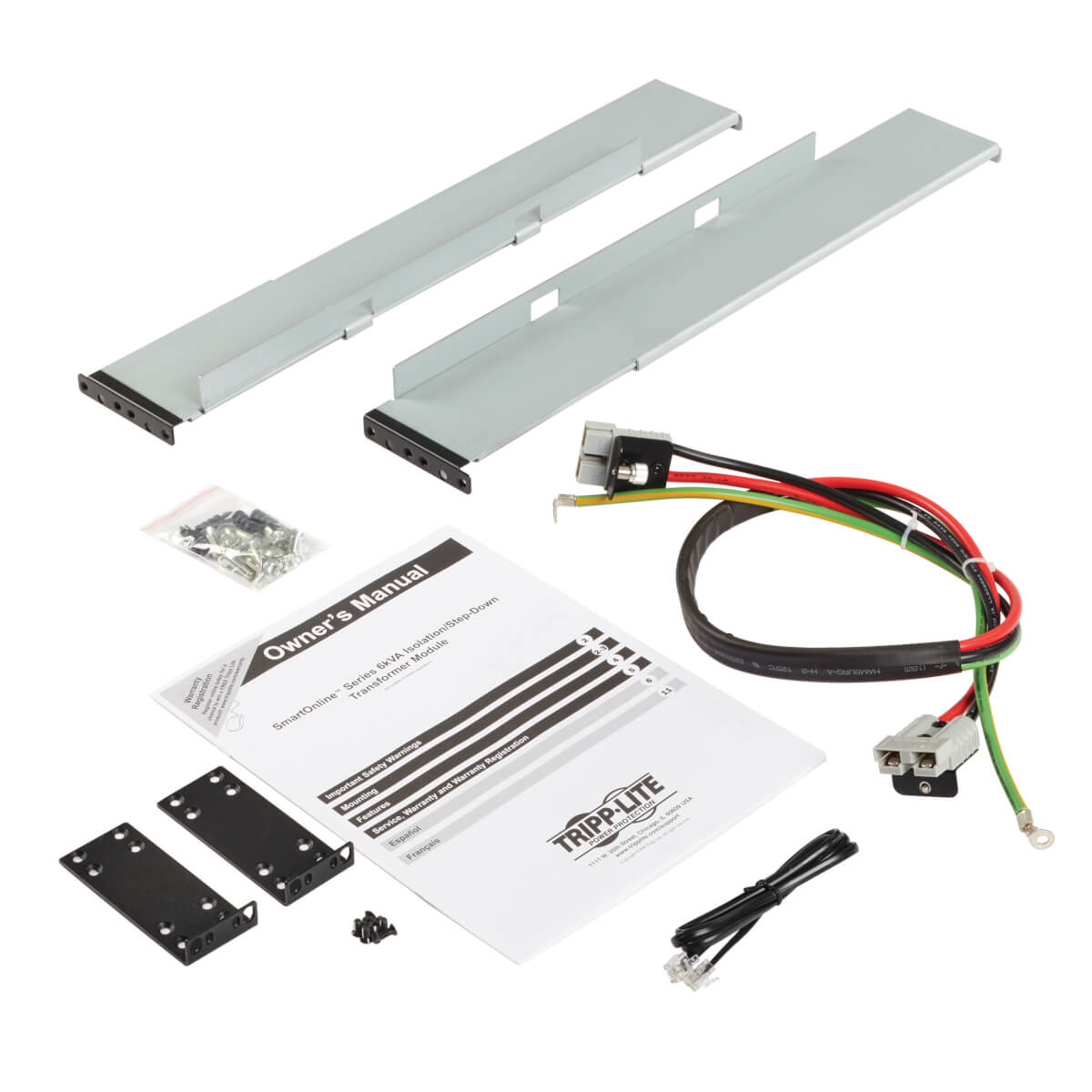

This smart battery pack’s multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The four replaceable internal battery trays can be easily removed to make the battery pack lighter for rack-mount installation. The BP192V12RT3US is also compatible with 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).
The BP192V12RT3US is compatible only with UPS systems that specify the use of this battery pack (see System Requirements below). Not only does this external battery pack provide extended runtime, but it can also be daisy-chained using its input/output connectors to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation.
Smart Battery Communicates with Your UPS for Optimal Performance
This external battery pack with included power and data cabling is automatically sensed by the UPS for highly accurate runtime reporting and ideal charge current settings. An additional data cable reports battery pack temperature to the UPS to enable temperature-compensated charging to extend battery lifespan and fast recharge.
Mounts in 3U of Space in 19 in. 4-Post Racks
This smart battery pack’s multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The four replaceable internal battery trays can be easily removed to make the battery pack lighter for rack-mount installation. The BP192V12RT3US is also compatible with 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).
Specifications
Design | |
---|---|
Form factor | Rackmount/Tower |
Rack mounting | Yes |
Product colour | Black |
Housing material | Steel |
Rack capacity | 3U |
Battery | |
Battery voltage | 192 V |
Weight & dimensions | |
Width | 17.5" (444.5 mm) |
Depth | 27.7" (704.6 mm) |
Height | 5.14" (130.6 mm) |
Weight | 173.9 lbs (78.9 kg) |
Package width | 23" (584.2 mm) |
Package depth | 33" (838.2 mm) |
Package height | 11" (279.4 mm) |
Package weight | 211.2 lbs (95.8 kg) |
Packaging content | |
Quantity | 1 |
Manual | Yes |
Rack mount kit | Yes |
Logistics data | |
Country of origin | Taiwan |
Master (outer) case width | 23" (584.2 mm) |
Master (outer) case length | 33" (838.2 mm) |
Master (outer) case height | 11" (279.4 mm) |
Master (outer) case gross weight | 211.2 lbs (95.8 kg) |
Products per master (outer) case | 1 pc(s) |
