Tripp Lite BP24V36-2US UPS battery 24 V

Tripp Lite BP24V36-2US UPS battery 24 V

  • Brand: Tripp Lite
  • Category:
  • SKU: BP24V36-2US
  • EAN: 0373321780846 0037332178084
External 24V 2U Rack-Mount Battery Pack for Select UPS Systems (BP24V36-2US)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

24VDC EXTERNAL BATTERY PACKSELECT AVR ONLINE RACKMOUNT

 565184 Register free see stock
ASI Corp

Tripp Lite Accessory BP24V36-2US External 24V Battery Pack for UPS System RTL

 177556
BlueStar

TRIPP LITE, EXTERNAL 24V 2U RACK-MOUNT BATTERY PACK FOR SELECT TRIPP LITE UPS SYSTEMS (BP24V36-2US)

 BP24V36-2US

Related Products

Description

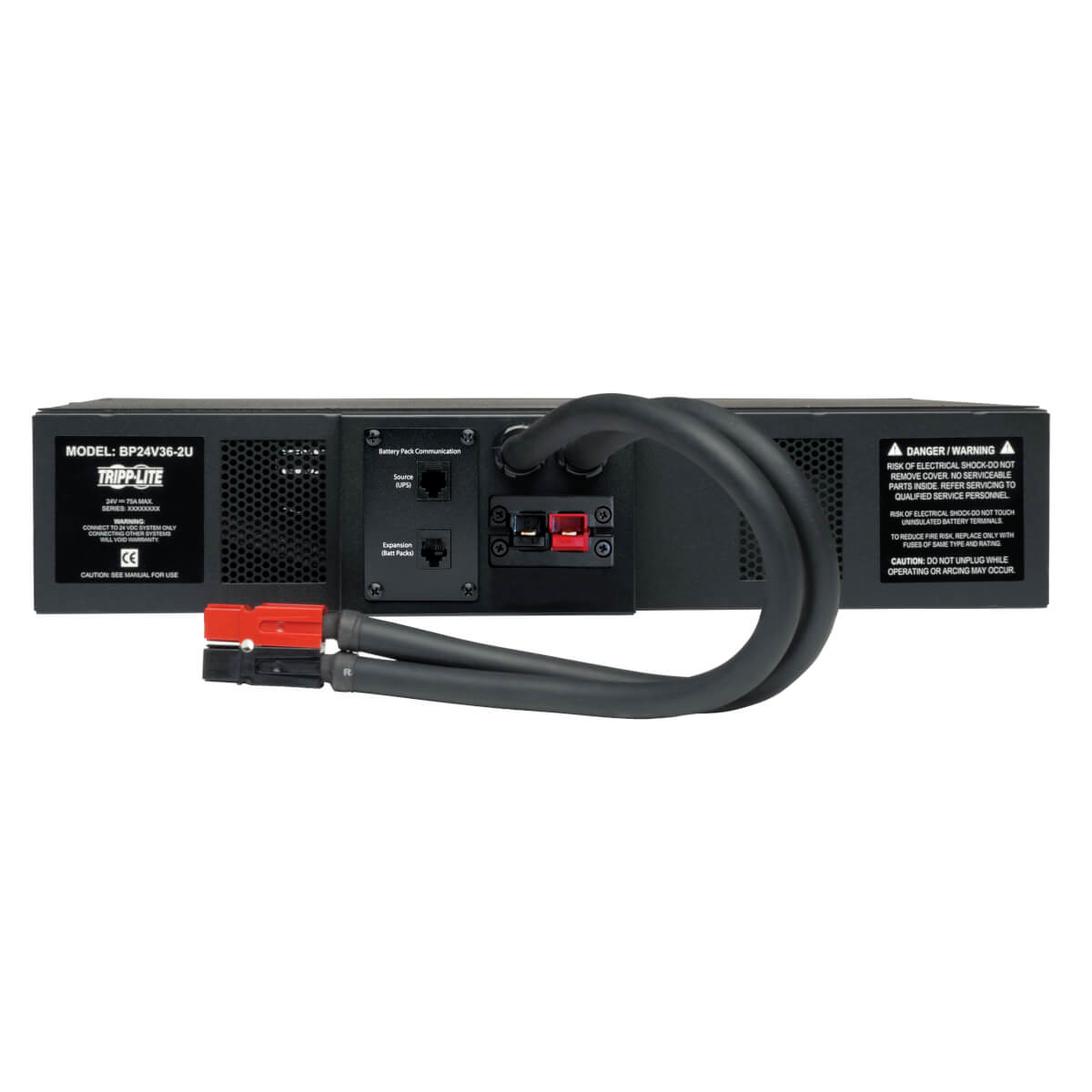

BP24V36-2US rack-mount external battery pack offers extended battery runtime when used in conjunction with expandable 24V rack-mount UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 24V external battery packs to the host UPS. Included mounting accessories support 2U rack-mount installation in 4-post racks. Options for 2-point front-rail mounting, 2-post center-mounting and wall-mount installation available.

Compatible with these UPS systems: SMART750RMXL2U, SU750RTXL2U, SU1000RTXL2UA, SUINT1000RTXL2UA and other UPS systems that specify the use of this battery pack.

Specifications

Features
Battery voltage24 V
Battery life6 year(s)
Product colourBlack
CompatibilityTrippLite SMART750RMXL2U, SU750RTXL2U, SU750RTXLCD2U, SU1000RTXL2UA, SU1000RTXLCD2U, SUINT1000RTXL2UA
Country of originTaiwan
Technical details
Compliance certificatesRoHS
Weight & dimensions
Weight59.3 lbs (26.9 kg)
Width17.3" (439.4 mm)
Height3.41" (86.6 mm)
Depth13.8" (351 mm)
Packaging data
Package width22.9" (581.7 mm)
Package height9" (228.6 mm)
Package depth21.1" (535.9 mm)
Package weight72.1 lbs (32.7 kg)
Logistics data
Master (outer) case width22.9" (581.7 mm)
Master (outer) case length21.1" (535.9 mm)
Master (outer) case height9" (228.6 mm)
Master (outer) case gross weight72.1 lbs (32.7 kg)
Products per master (outer) case1 pc(s)
