Tripp Lite BP72RT UPS battery Sealed Lead Acid (VRLA) 72 V
- Brand: Tripp Lite
- Category:
- SKU: BP72RT
- EAN:
72V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
EXTERNAL BATTERY PACK FORSU2200RTXLCD2U 2023 |
10412970 |
Related Products
-
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries -
Category: UPS Batteries
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
Description

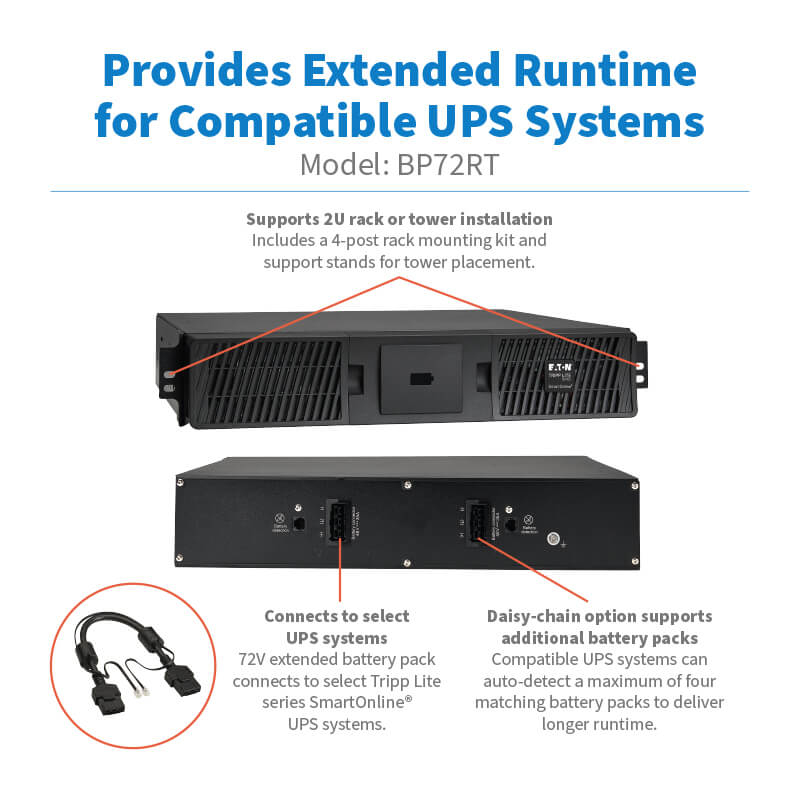

Backup Battery Module Gives Your Compatible UPS System Extended Runtime

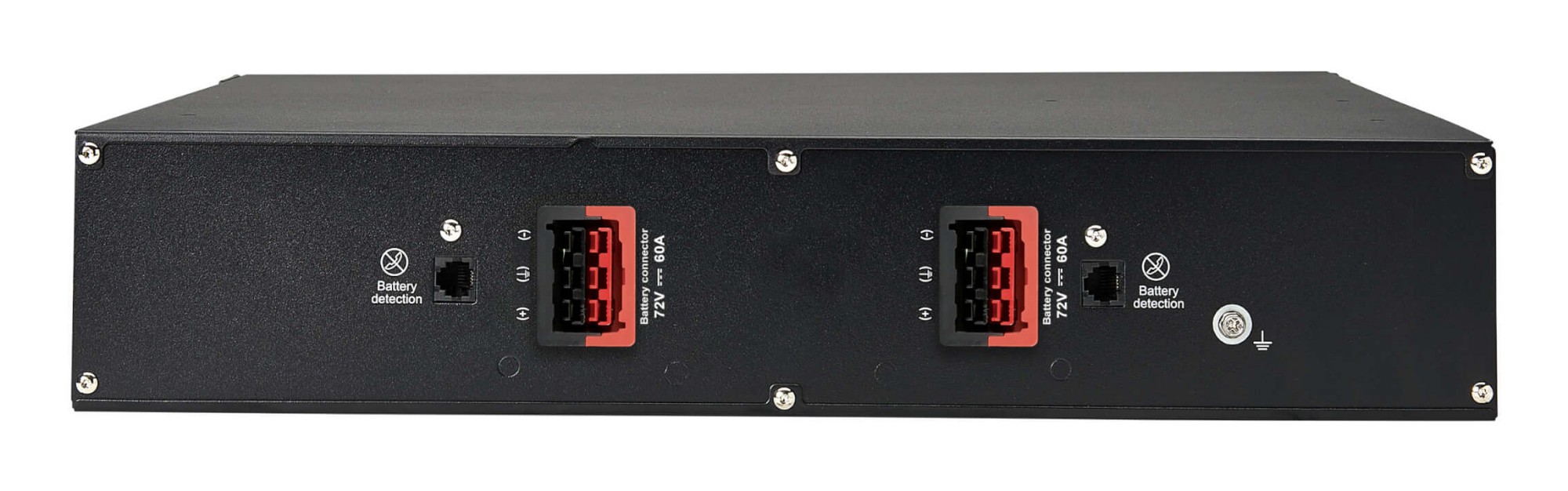

The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options

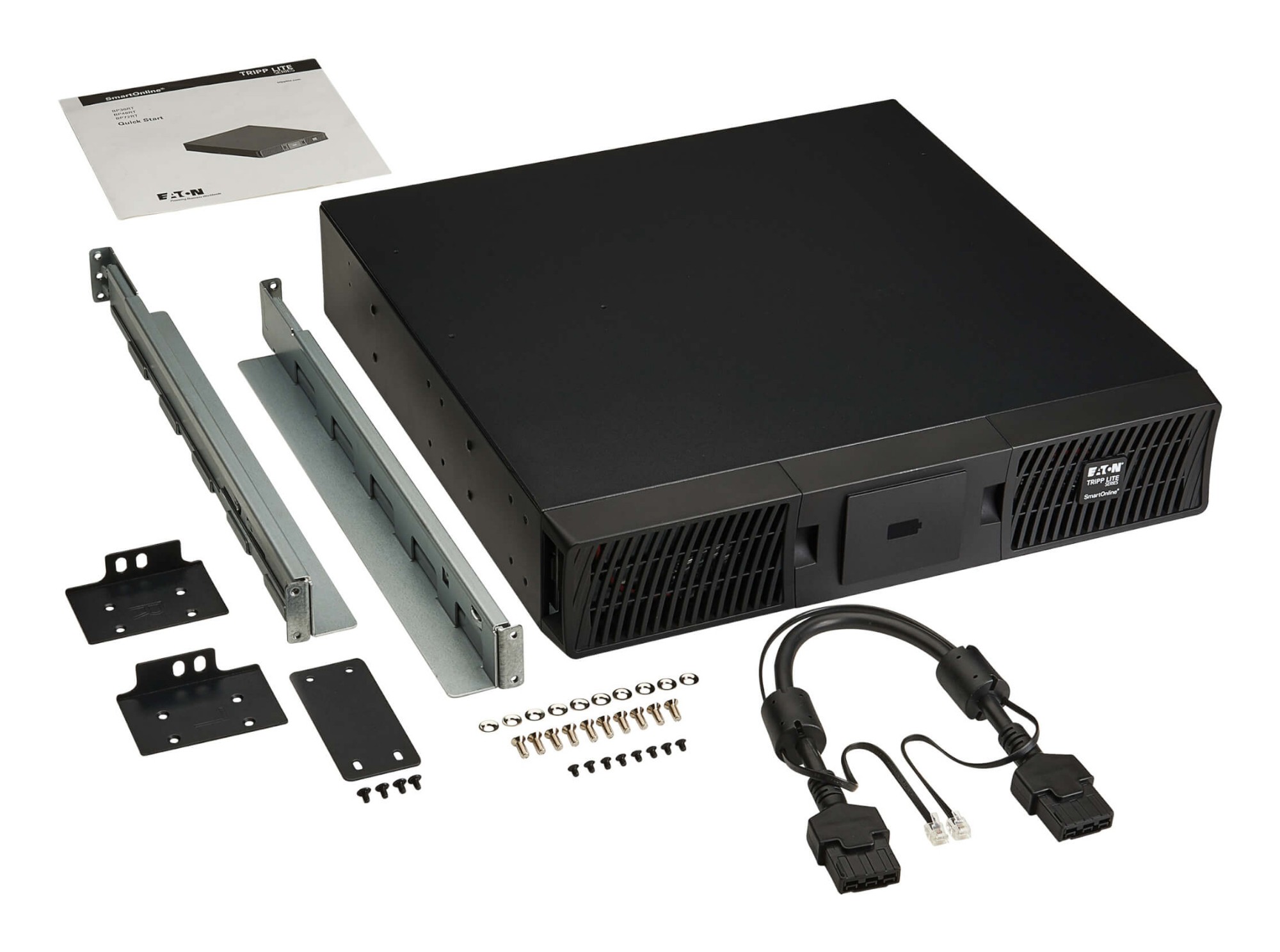

You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system’s support stands.
The valve-regulated lead-acid (VRLA) BP72RT offers extended battery runtime when used in conjunction with SU2200RTXLCD2U, SU2200RTXLCDN, SU3000RTXLCD2U, SU3000RTXLCD2UN, SUINT2200LCD2U and SUINT3000LCD2U SmartOnline® UPS systems. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the BP72RT in 2U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system’s support stands.
Specifications
| Features | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 72 V |
| Hot-swap battery | Yes |
| Number of batteries included | 1 pc(s) |
| Product colour | Black |
| Placement supported | Horizontal/Vertical |
| Rack rails | Yes |
| Replaceable battery | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UL |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UL |
| Weight & dimensions | |
| Weight | 86.4 lbs (39.2 kg) |
| Width | 17.3" (440.2 mm) |
| Height | 3.41" (86.6 mm) |
| Depth | 23.8" (605 mm) |
| Packaging data | |
| Package width | 22.8" (579.1 mm) |
| Package height | 9.4" (238.7 mm) |
| Package depth | 30.3" (769.6 mm) |
| Package weight | 100.3 lbs (45.5 kg) |
| Package weight | 100.3 lbs (45.5 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
