Tripp Lite BP192V787C-1PH UPS battery 192 V
- Brand: Tripp Lite
- Category:
- SKU: BP192V787C-1PH
- EAN: 0037332146731 0037332203601

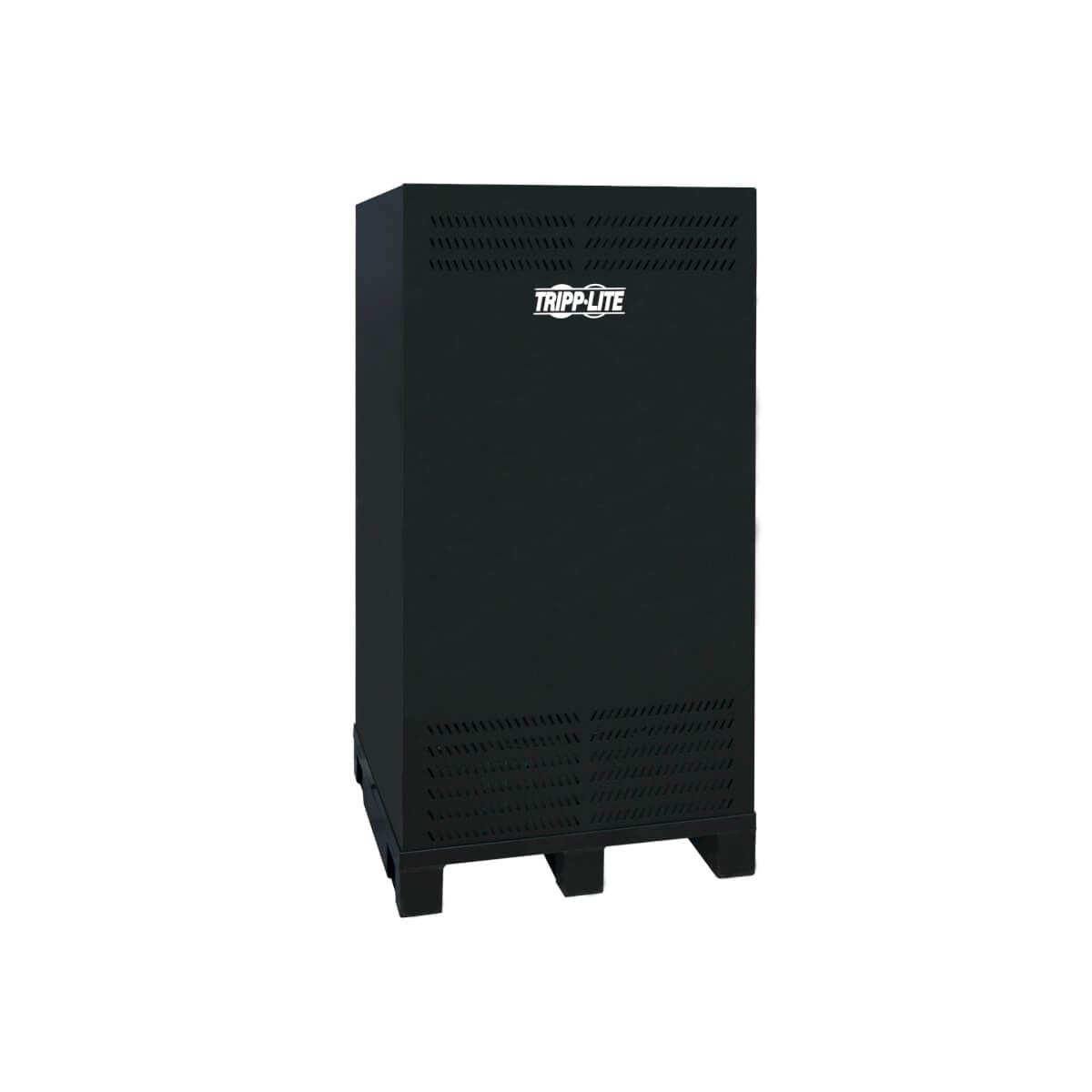

External 192V Tower Battery Pack for select Tripp Lite UPS Systems (BP192V787C-1PH )
Offer details
Description
Tripp Lite's BP192V787C-1PH External Battery Pack with built-in 7A charger offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Includes heavy gauge cabling to connect to host UPS. Multiple BP192V787C-1PH batteries can be daisy-chained for longer runtime configurations with appropriate contractor-supplied battery pack interconnection cabling (see manual). Internal battery charger is powered via hardwire connection to 120V 30A electrical service.COMPATIBLE UPS SYSTEMS: SU5000RT4U, SU6000RT4U, SU8000RT4U and other Tripp Lite UPS systems specifying the use of this battery pack.
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- 10 year design life
- Multiple battery packs can be daisy-chained through each other to the UPS for even longer extended run operation
- Cabling to connect one BP192V787C-1PH to the host UPS is included - cabling for additional battery packs is contractor supplied
- Includes built-in 7A charger powered via hardwire 120VAC 30A input connection
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- 10 year design life
- Multiple battery packs can be daisy-chained through each other to the UPS for even longer extended run operation
- Cabling to connect one BP192V787C-1PH to the host UPS is included - cabling for additional battery packs is contractor supplied
- Includes built-in 7A charger powered via hardwire 120VAC 30A input connection
Specifications
Features | |
---|---|
Battery voltage | 192 V |
Certification | TAA |
Battery life | 10 year(s) |
Product colour | Black |
Country of origin | Taiwan |
Technical details | |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 1545.9 lbs (701.2 kg) |
Width | 29" (736.6 mm) |
Height | 59" (1498.6 mm) |
Depth | 31.5" (800.1 mm) |
Packaging data | |
Package width | 46" (1168.4 mm) |
Package height | 66" (1676.4 mm) |
Package depth | 48" (1219.2 mm) |
Package weight | 1655.9 lbs (751.1 kg) |
Logistics data | |
Master (outer) case width | 46" (1168.4 mm) |
Master (outer) case length | 48" (1219.2 mm) |
Master (outer) case height | 66" (1676.4 mm) |
Master (outer) case gross weight | 1655.9 lbs (751.1 kg) |
Products per master (outer) case | 1 pc(s) |
