Tripp Lite BP192V18-4U UPS battery 192 V
- Brand: Tripp Lite
- Category:
- SKU: BP192V18-4U
- EAN: 0373321392698

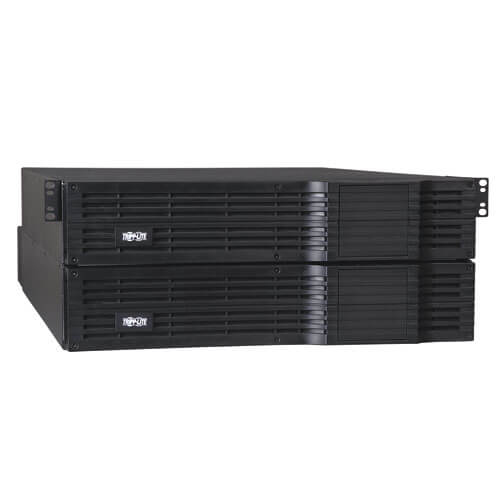

External 192V 4U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP192V18-4U)
Offer details
Description
Tripp Lite's BP192V18-4U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Multi-use form factor supports configuration in rackmount or stacking applications using only 4 rack spaces (4U). Upright tower configuration supported with optional 2-9USTAND accessory. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Additional output connector allows multiple BP192V18-4U battery packs to be daisy-chained to the UPS for even longer extended run operation.COMPATIBLE UPS SYSTEMS - SU12000RT4U, SU12000RT4UHW, SU16000RT4U, SU16000RT4UHW, and other Tripp Lite UPS systems that specify the use of this battery pack.
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- Supports stacking or rackmount installation using only 4 rack spaces (4U)
- Supports upright tower installation with optional 2-9USTAND accessory (holds 2 battery packs in tower configuration)
- Set of input/output connectors allows multiple BP192V18-4U battery packs to be daisy-chained to the UPS for even longer extended run operation
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Simple maintenance chassis contains (4) 40lb. single-user replaceable battery modules
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- Supports stacking or rackmount installation using only 4 rack spaces (4U)
- Supports upright tower installation with optional 2-9USTAND accessory (holds 2 battery packs in tower configuration)
- Set of input/output connectors allows multiple BP192V18-4U battery packs to be daisy-chained to the UPS for even longer extended run operation
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- Simple maintenance chassis contains (4) 40lb. single-user replaceable battery modules
Specifications
| Features | |
|---|---|
| Battery voltage | 192 V |
| Battery life | 6 year(s) |
| Product colour | Black |
| Country of origin | China |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 239 lbs (108.4 kg) |
| Width | 17.5" (444.5 mm) |
| Height | 7" (177.8 mm) |
| Depth | 27.8" (706.1 mm) |
| Packaging data | |
| Package width | 33" (838.2 mm) |
| Package height | 13" (330.2 mm) |
| Package depth | 23" (584.2 mm) |
| Package weight | 284 lbs (128.8 kg) |
| Logistics data | |
| Master (outer) case width | 33" (838.2 mm) |
| Master (outer) case length | 23" (584.2 mm) |
| Master (outer) case height | 13" (330.2 mm) |
| Master (outer) case gross weight | 284 lbs (128.8 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
