Tripp Lite DWM3770X TV mount 70" Black

Tripp Lite DWM3770X TV mount 70" Black

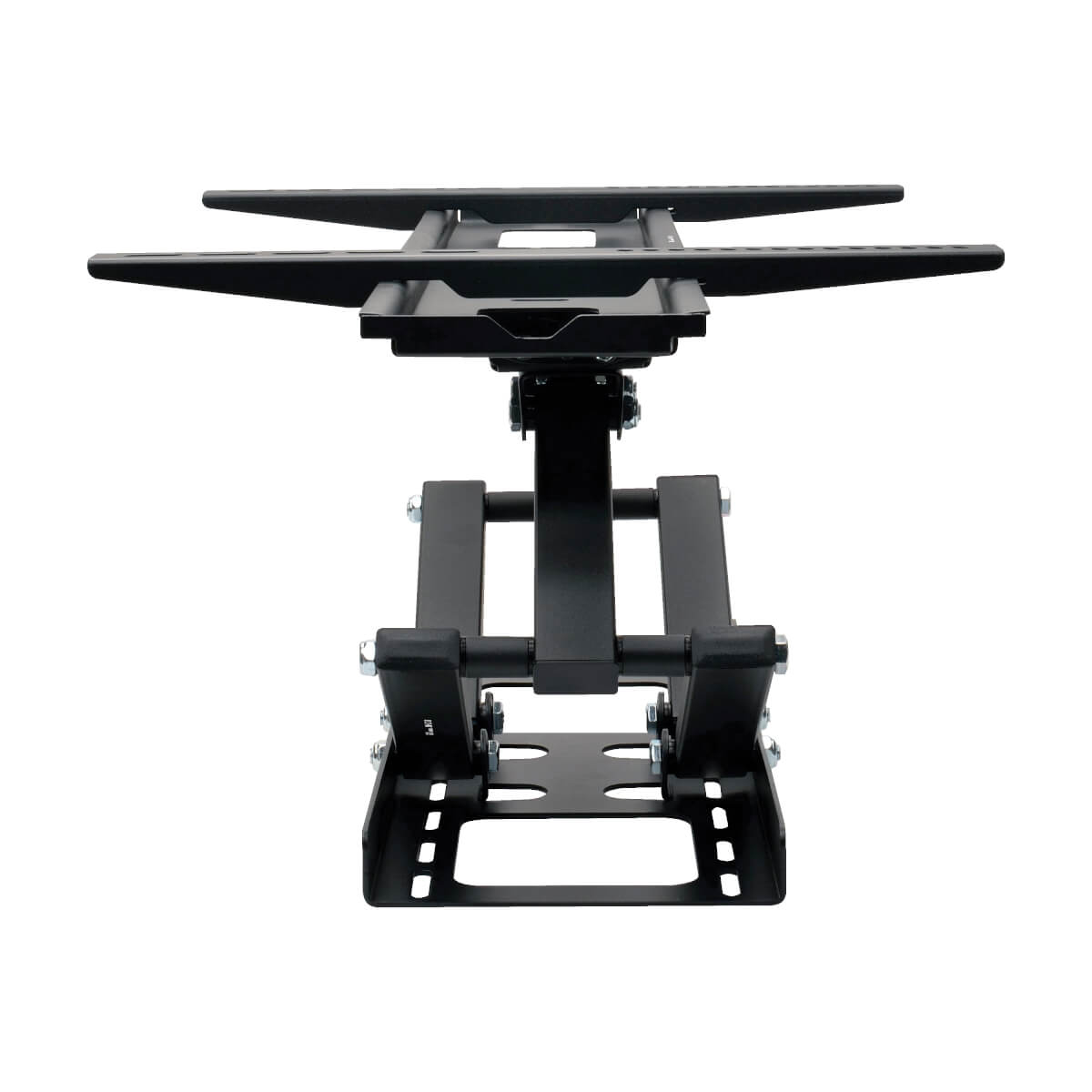

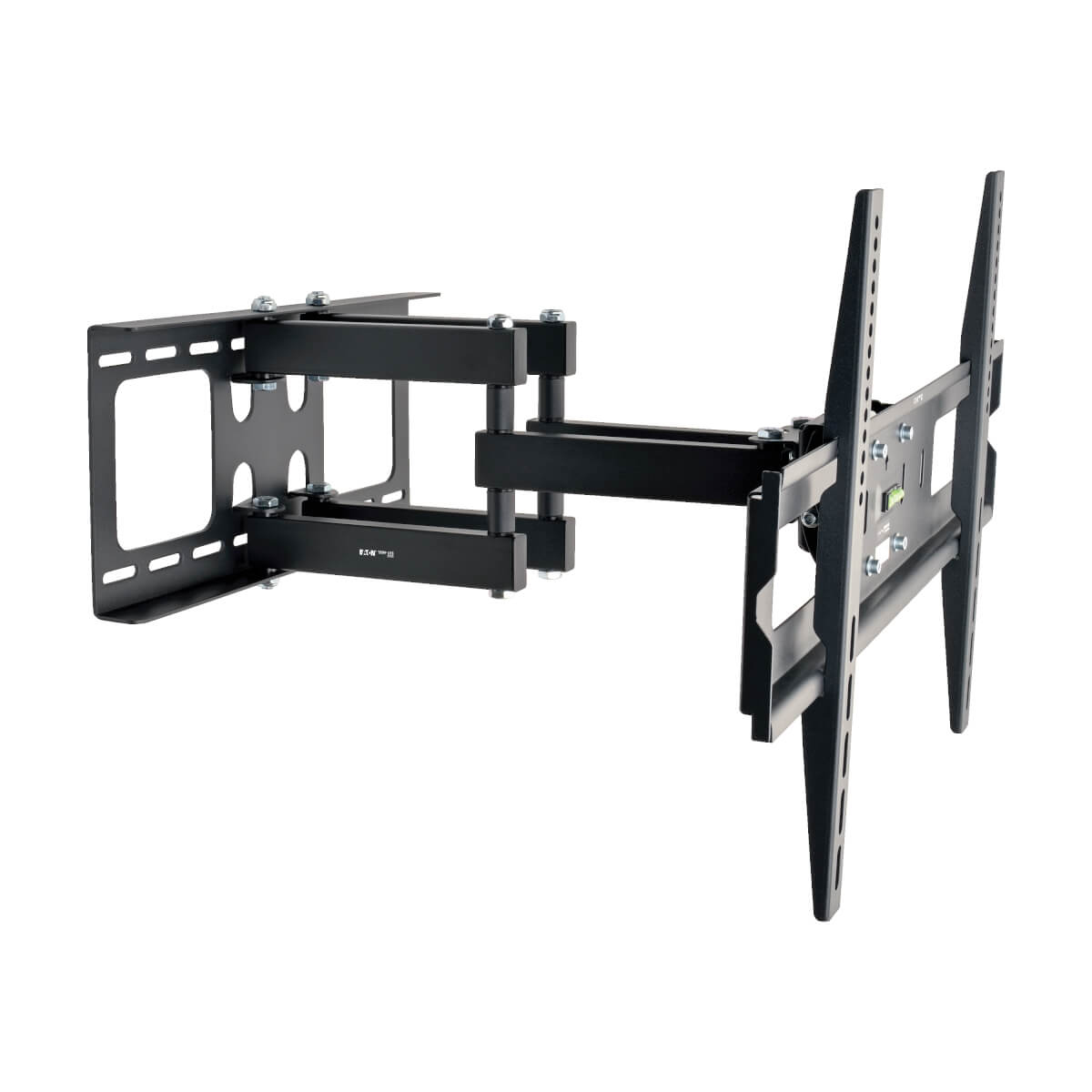

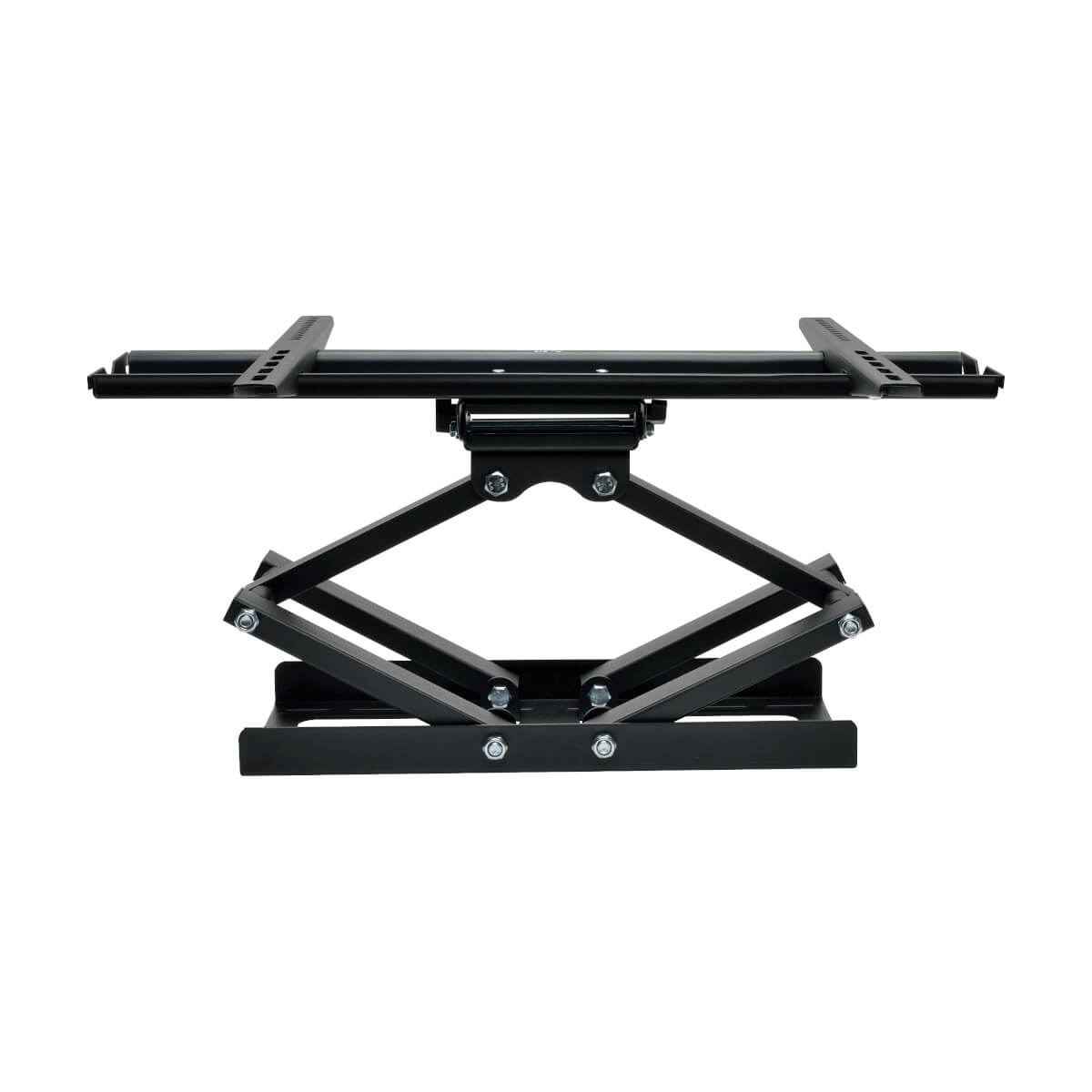

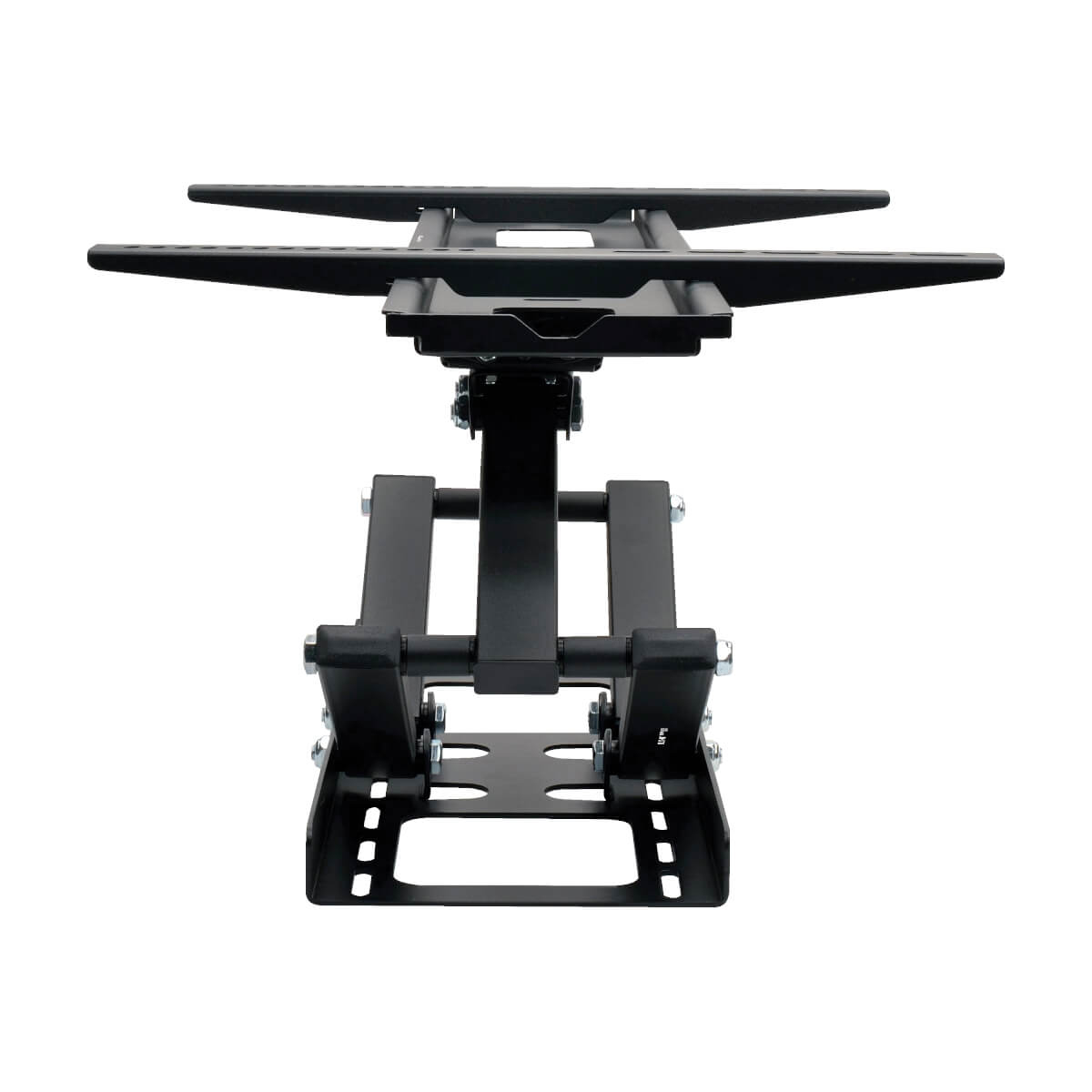

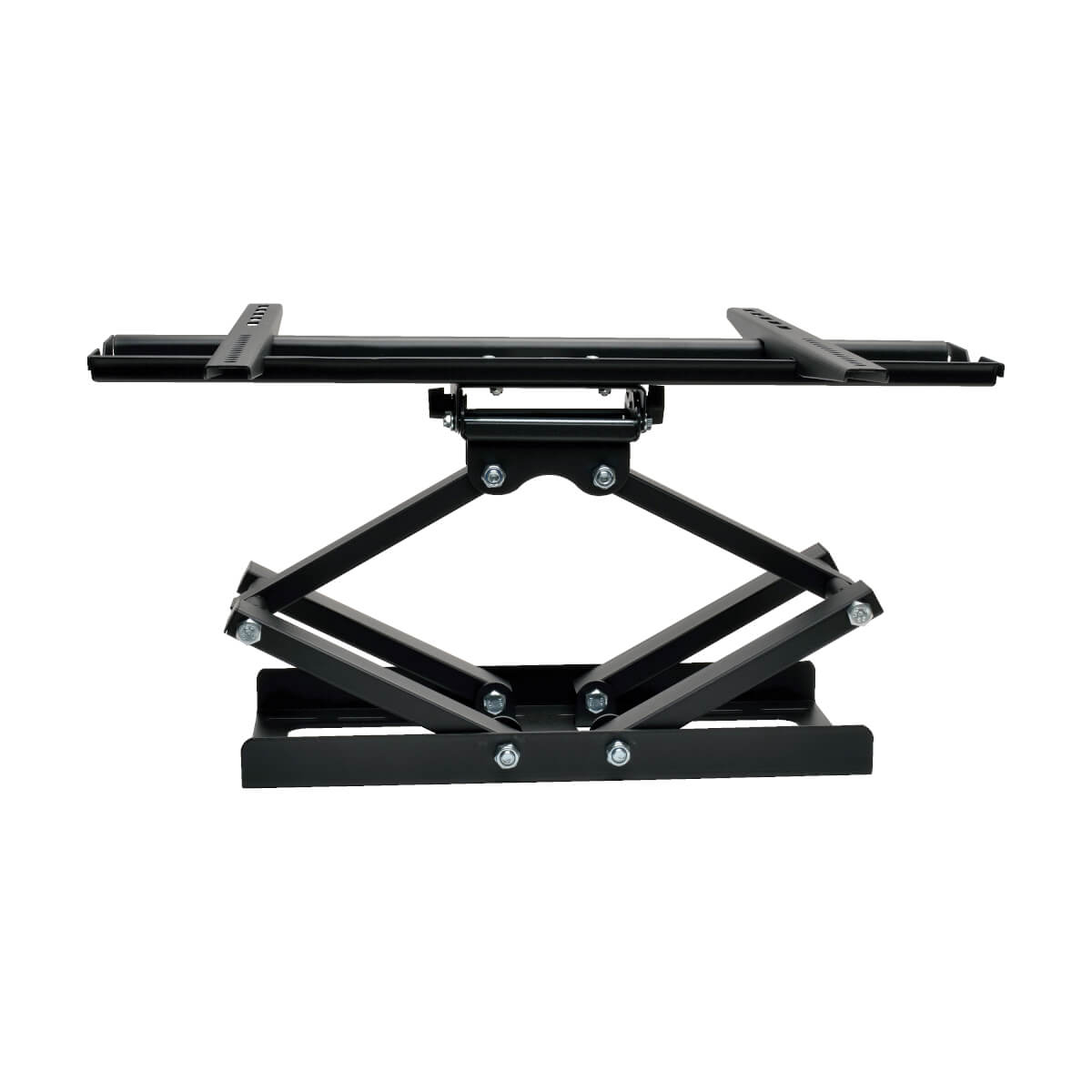

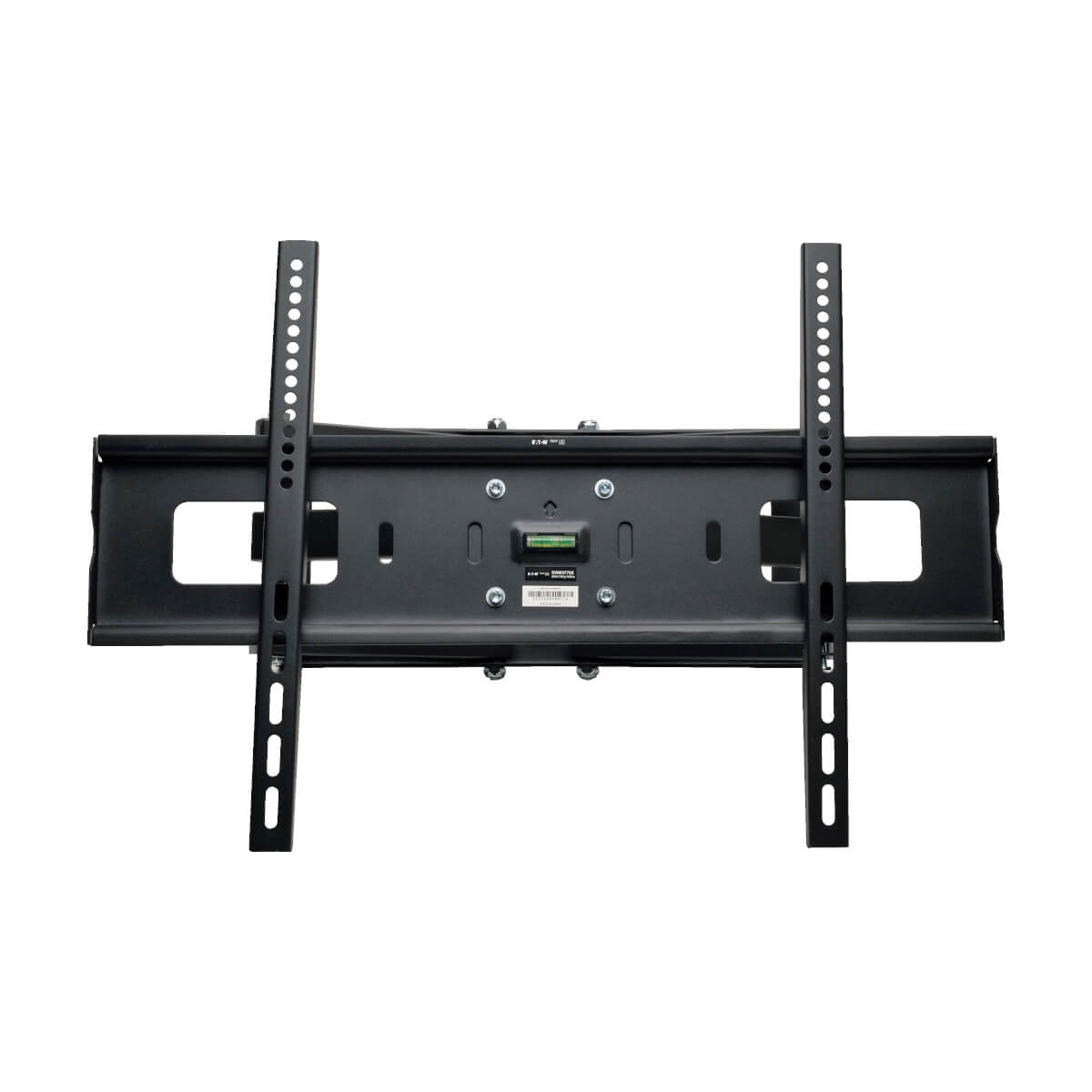

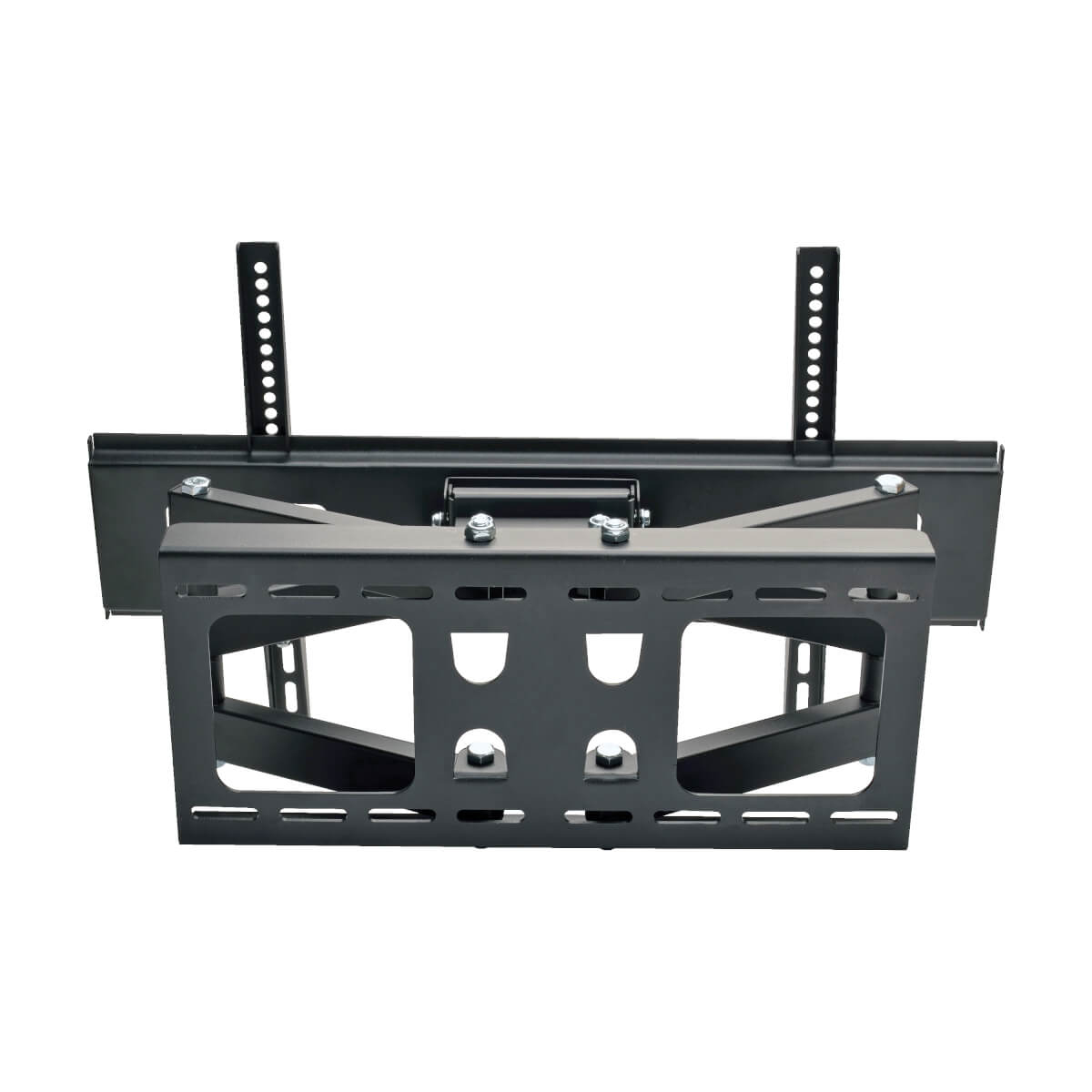

Swivel/Tilt Wall Mount for 37" to 70" TVs and Monitors

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DISPLAY TV LCD WALL MOUNTSWIVEL TILT 37IN-70IN FLT SCRNPANEL DWM3770X 781381 Register free see stock
Arlington Industries SWIVEL/TILT WALL MOUNT 37" TO 70" TRPDWM3770X
ASI Corp Tripp Lite AC DWM3770X Swivel Tilt Wall Mount f 37 to 70 TVs and Monitors 182695
BlueStar TRIPP LITE, DISPLAY TV LCD WALL MOUNT SWIVEL TILT 37"-70" FLAT SCREEN PANEL DWM3770X
D&H Dsply TV WallMnt 37-70" DWM3770X
Ingram Micro WALL MONITOR TV MOUNT 37-70IN ZL9512
ScanSource Tripp Lite Display TV Wall Mount Mounts POW-DWM3770X
Seventh Genius Full-Motion Wall Mount For 37" To 70" Tvs and Monitors DWM3770X DWM3770X
TD Synnex DISPLAY WALL MOUNT SWIVEL / TILT 37-70IN 4185008

Related Products

Description

The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.

The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.

Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm

Specifications

Mounting
Mounting typeWall
Minimum screen size37"
Panel mounting interface100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,500 x 200,500 x 300,500 x 400,600 x 300,600 x 400
Number of displays supported1
Minimum VESA mount3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount23.6 x 15.7" (600 x 400 mm)
Maximum screen size70"
Maximum weight capacity165.3 lbs (75 kg)
Ergonomics
Height adjustmentYes
Tilt angle range-15 - 15°
Swivel angle range-3 - 3°
Swivel angle120°
Technical details
Number of displays supported1
Product colourBlack
Mounting typeWall
Country of originChina
Design
Product colourBlack
Packaging content
Mounting kitYes
ManualYes
Weight & dimensions
Width23.7" (601 mm)
Depth20.6" (524 mm)
Height17.3" (440 mm)
Weight17.4 lbs (7.88 kg)
Packaging data
Package width9.5" (241.3 mm)
Package depth27.9" (708.7 mm)
Package height4.4" (111.8 mm)
Package weight20.6 lbs (9.34 kg)
Mounting kitYes
ManualYes
Logistics data
Master (outer) case width9.9" (251.5 mm)
Master (outer) case length28.3" (718.8 mm)
Master (outer) case height10" (254 mm)
Master (outer) case gross weight42.1 lbs (19.1 kg)
Products per master (outer) case2 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332187434
Harmonized System (HS) code85299097
Other features
Mounting typeWall
Country of originChina
