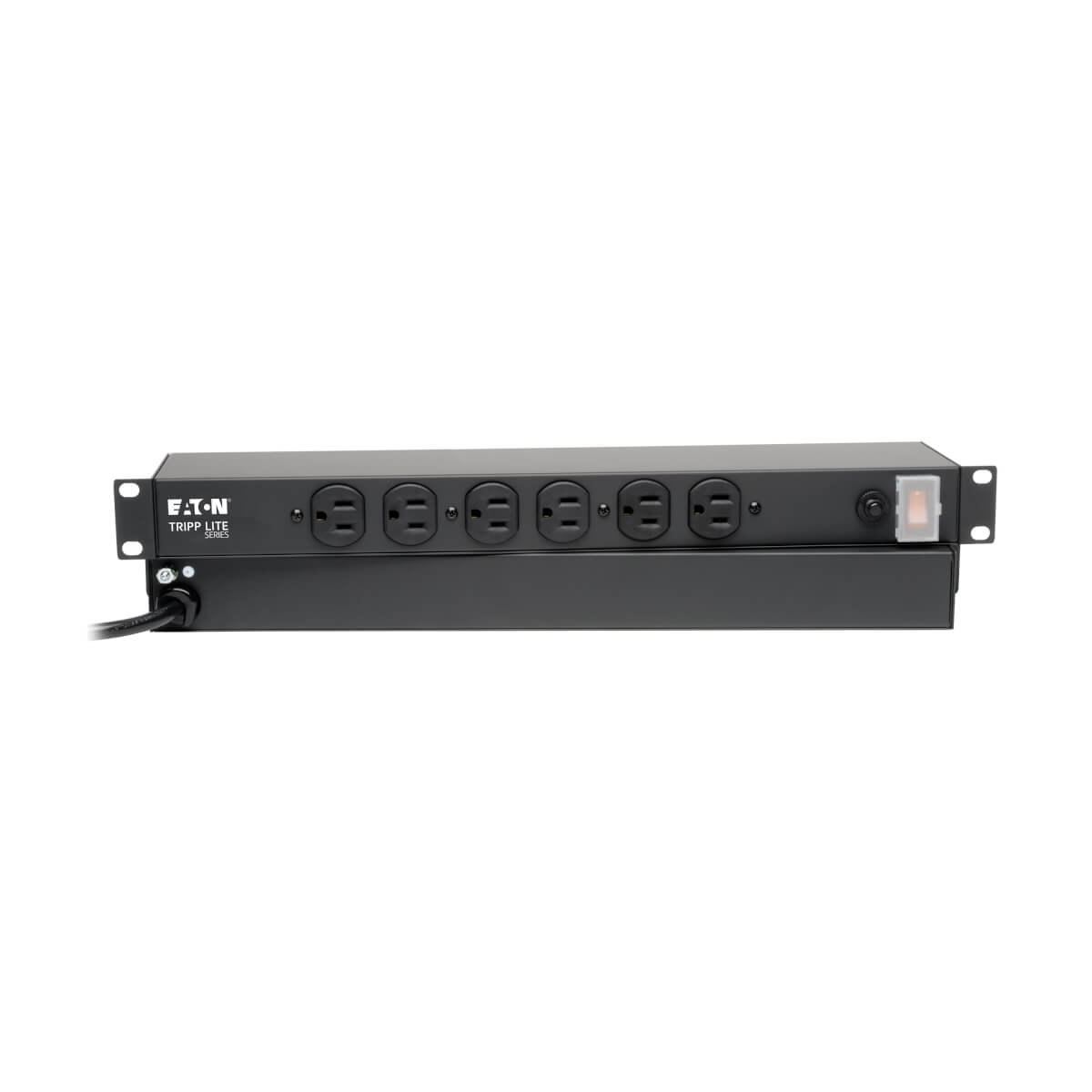

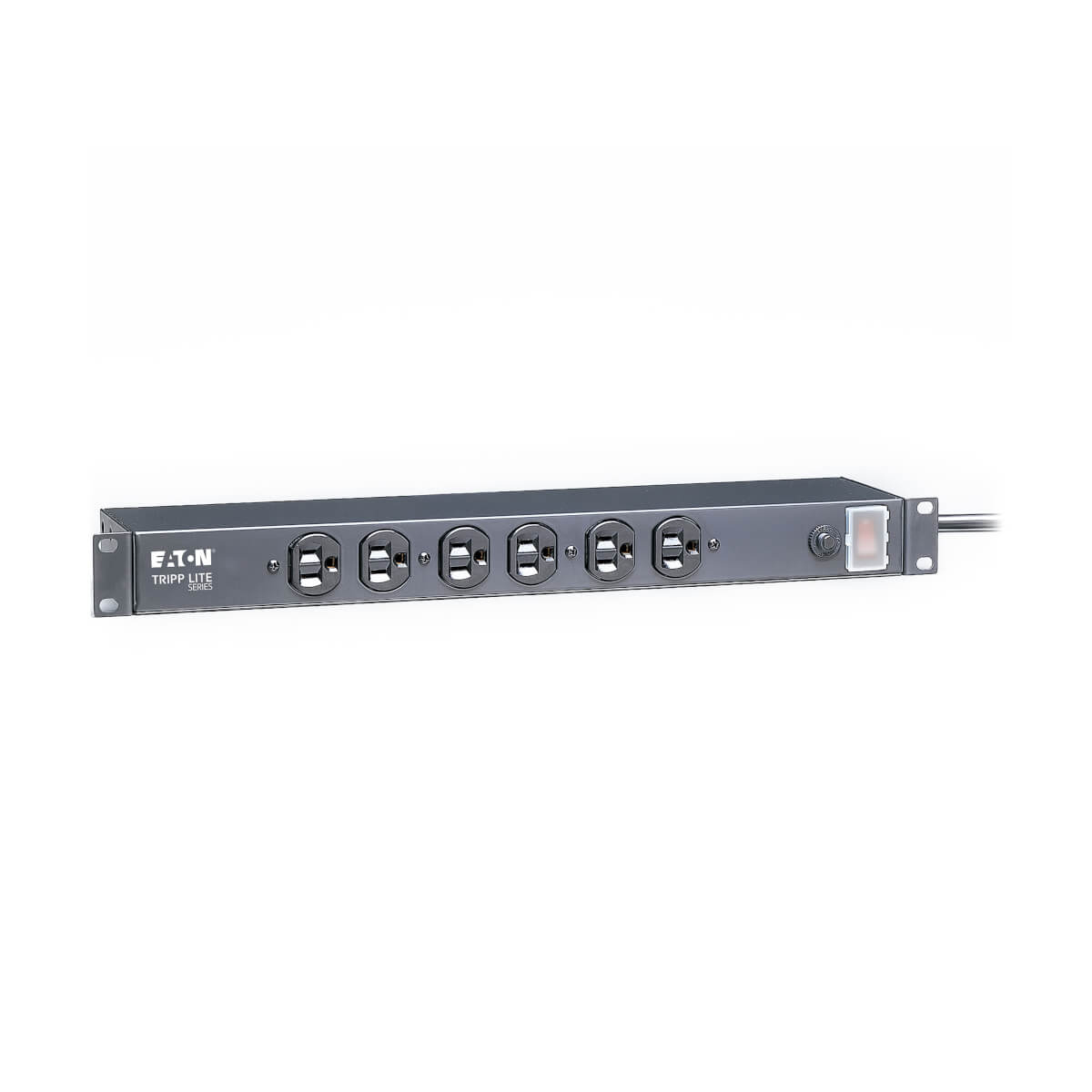

Tripp Lite RS-0615-F surge protector Black 6 AC outlet(s) 120 V 179.9" (4.57 m)

  • Brand: Tripp Lite
  • Category:
  • SKU: RS-0615-F
  • EAN: 0037332115799 0373321157990
Power Strip - Multiple outlets wherever you need them

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "6-FRONT OUTLET 19"" RACKMOUNTPOWERSTRIP 1U 120V FRONTFACING15' CORD" 355029 Register free see stock
BlueStar TRIPP LITE, 1U RACK-MOUNT NETWORK SERVER POWER STRIP, 120V, 15A, 6-OUTLET (FRONT-FACING), 15-FT. CORD RS-0615-F
D&H 6 Outlet 15A RM Power Strip RS0615F
Ingram Micro 6 OUTLET RACKMOUNT POWER STRIP U05335
TD Synnex 6-OUTLET RACK POWER STRIP FRONT 1U 15A 1061126

Related Products

Description

Tripp Lite's RS-0615-F power strip offers 15 amp capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch rack meeting EIA standards. Unfiltered electrical pass-through makes RS-0615-F ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 6 front-facing NEMA5-15R outlets, 15 ft AC power cord and lighted switch with latching safety cover prevents risk of accidental turn-off.

PLUG/OUTLETS: Input: NEMA 5-15P/Output: 6 Front-facing NEMA5-15R

ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)

FORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- 6 front facing NEMA5-15R output receptacles
- 15 foot AC cord NEMA5-15P plug connection
- Lighted power switch confirms power on/off status
- Latching switch guard prevents accidental turn off
- 15 amp electrical capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility

Applications

- Offers multiple outlet power distribution for multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.

Package Includes

- RS-0615-F Power Strip
- Warranty information
- Instruction manual

Specifications

Power
AC outlets quantity6 AC outlet(s)
Nominal input voltage120 V
Ports & interfaces
Cable length179.9" (4.57 m)
Features
Country of originChina
Product colourBlack
Weight & dimensions
Weight5 lbs (2.27 kg)
Cable length179.9" (4.57 m)
Width17.5" (444.5 mm)
Depth4" (101.6 mm)
Height1.75" (44.4 mm)
Packaging data
Package weight5 lbs (2.27 kg)
Package width9.4" (238.8 mm)
Package depth20.5" (520.7 mm)
Package height2" (50.8 mm)
Other features
Country of originChina
Dimensions (WxDxH)17.5 x 4.49 x 17.5" (444 x 114 x 444 mm)
Logistics data
Master (outer) case width13.9" (353.1 mm)
Master (outer) case length20.8" (528.3 mm)
Master (outer) case height10.5" (266.7 mm)
Products per master (outer) case6 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332115796
Master (outer) case gross weight32.4 lbs (14.7 kg)
