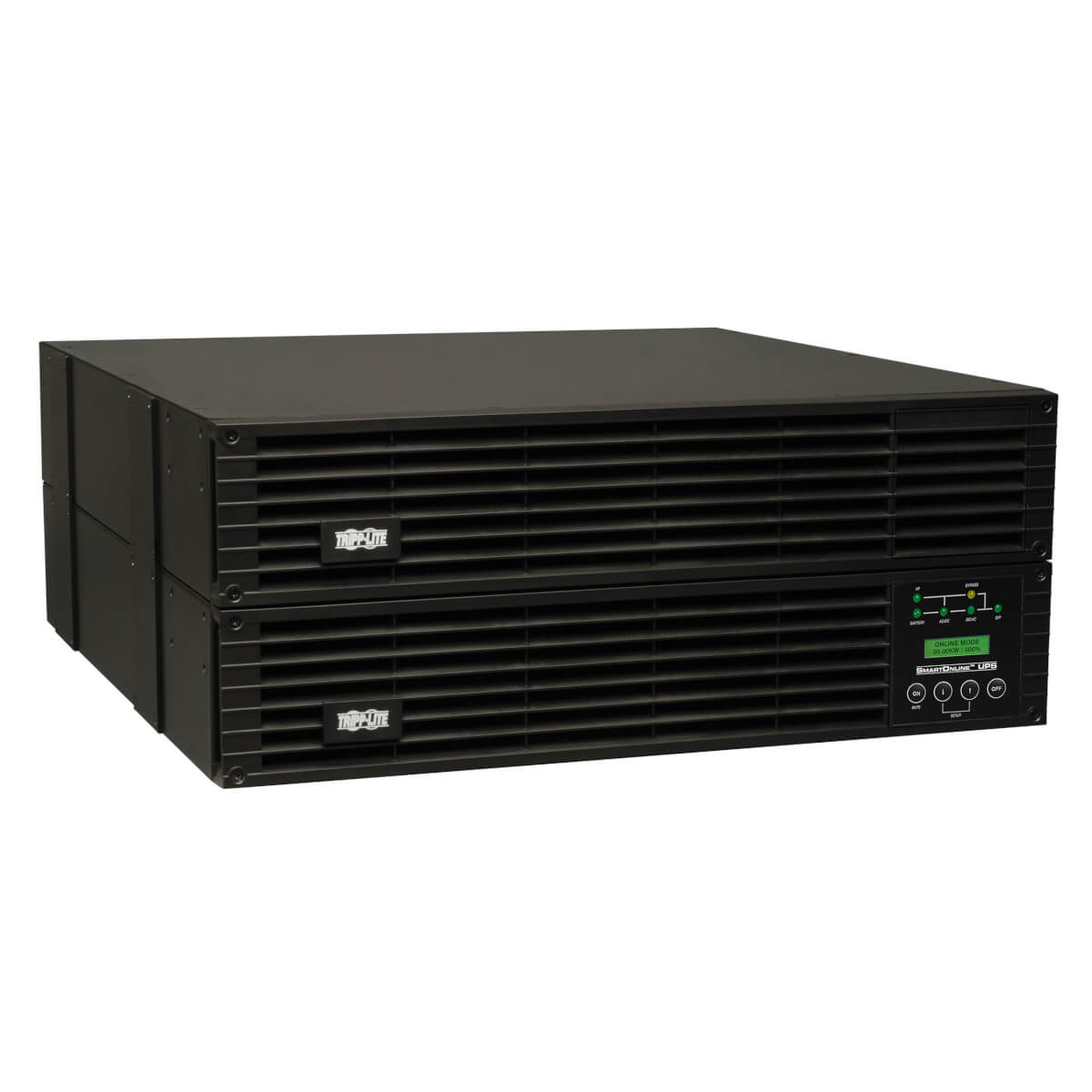

Tripp Lite SU6000RT4UHVHW uninterruptible power supply (UPS) 6 kVA 5400 W

Tripp Lite SU6000RT4UHVHW uninterruptible power supply (UPS) 6 kVA 5400 W

SmartOnline 208/240, 230V 6kVA 5.4kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, Hardwire

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 6000VA ONLINE UPS4U ALL-IN-ONE RACK/TOWER UPSDOUBLE-CONVERSION 423798 Register free see stock
Arlington Industries 6000VA/5400W 4U HV 4-OUT ON-LINE UPS TRPSU6000RT4UHVHW

Related Products

Description

Featuring true on-line operation with pure sine wave output, zero transfer time to battery and complete UPS replacement capability with no downtime, the SU6000RT4UHVHW provides the highest level of protection available for mission-critical equipment from power outages, voltage fluctuations and transient surges. It converts incoming AC power to DC, and re-converts it back to filtered AC output with a pure sine wave, isolating connected components from all power problems in high-voltage environments. The SU6000RT4UHVHW has a 6kVA/5400W capacity and hardwire output.

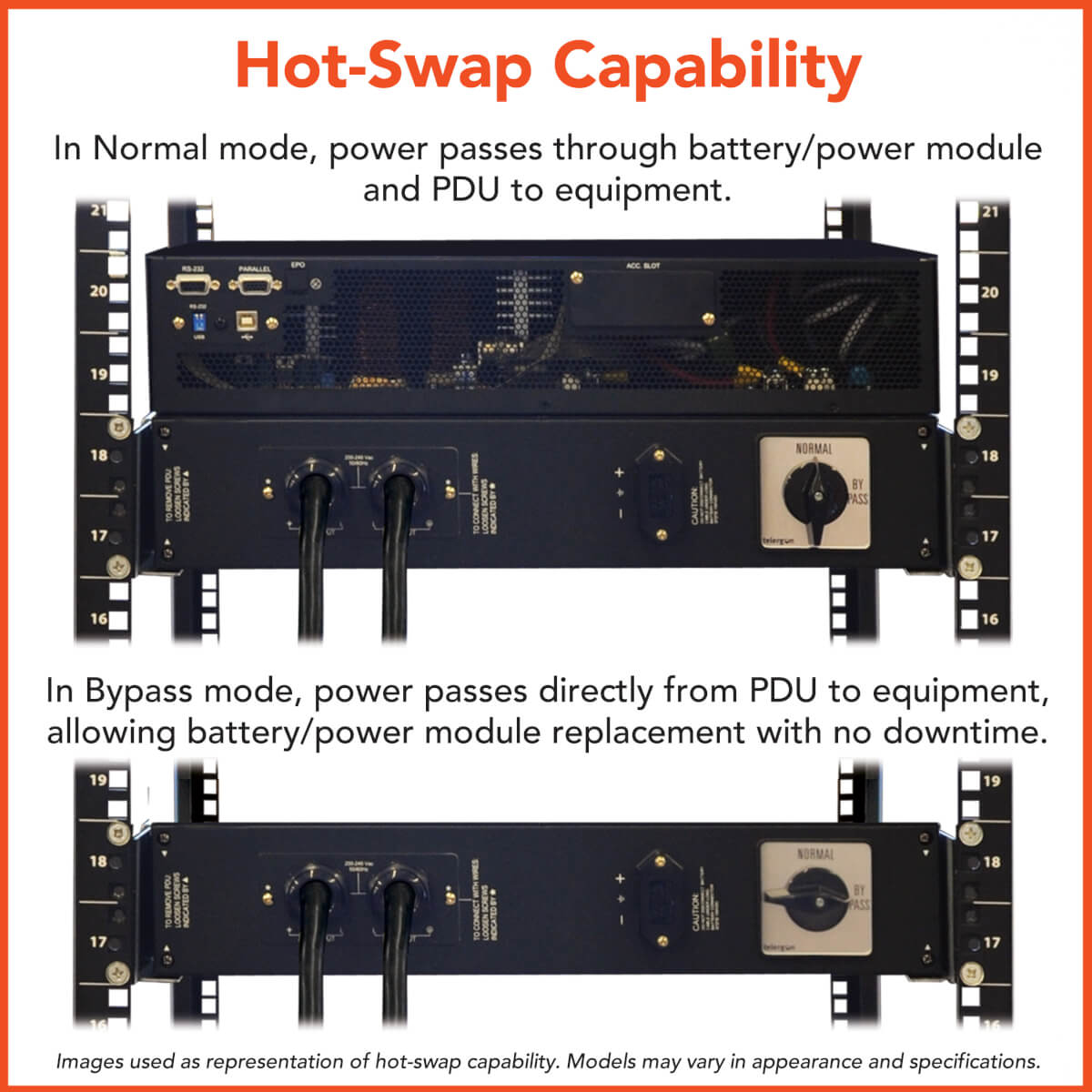

With its detachable PDU with bypass switch, the SU6000RT4UHVHW is easily hot-swappable by a user of any skill set—no need for lengthy and expensive service calls, and no downtime if a repair or battery replacement is needed. In bypass mode, the PDU passes power to equipment without the use of the power and battery modules, allowing them to be removed while keeping your application in operation.

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU6000RT4UHVHW’s runtime can be expanded with optional external battery packs.

The SU6000RT4UHVHW features a highly efficient (96%) economy mode setting that can significantly reduce a facility's energy costs by minimizing heat output, reducing cooling requirements and consuming less electricity.

An LCD display with LED indicators enables IT personnel to operating modes and conditions. The LCD/LED panel rotates for viewing in horizontal rack or vertical tower installations and includes an audible alarm that signals various conditions.

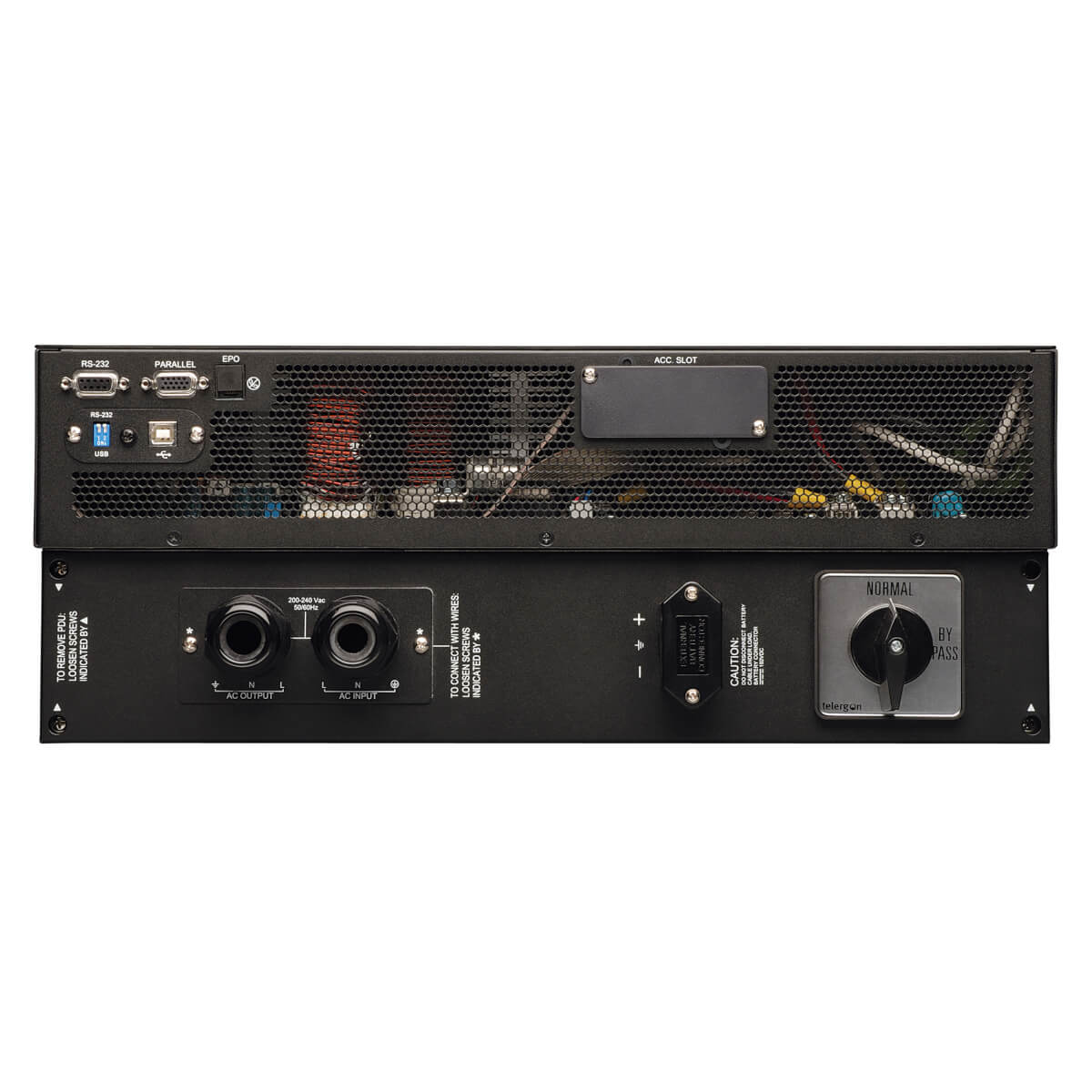

The SU6000RT4UHVHW features a USB port and a DB9 ports for comprehensive network power monitoring and control. Network management card options available.

The unit requires only 4U of rack space in a standard rack enclosure and can be installed in a 2-post rack using the 2POSTRMKITHD accessory, or in a tower configuration with the 2-9USTAND accessory.

The SU6000RT4UHVHW comes with $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment.

Specifications

Power
Output power5400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Maximum current40 A
Efficiency96%
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity6 kVA
Input frequency50/60 Hz
Performance
Number of phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level60 dB
Audible alarm(s)Yes
Features
Country of originChina
Output power5400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Maximum current40 A
Efficiency96%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level60 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity6 kVA
Input frequency50/60 Hz
Number of phases1
Ports & interfaces
USB 2.0 ports quantity1
Serial ports quantity1
RS-232 ports1
Modem (RJ-11) ports0
Ethernet LAN (RJ-45) ports0
Battery
Battery recharge time6 h
Typical backup time at half load8.5 min
Typical backup time at full load2 min
Hot-swap batteryYes
Design
Country of originChina
Rack capacity4U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationUL1778 CSA FCC Part 15 Category A IEC 61000-4-5 1995 B
Display typeLED
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width23.6" (599.4 mm)
Package depth29.1" (739.1 mm)
Package height12.7" (322.6 mm)
Weight116.2 lbs (52.7 kg)
Width17.5" (444.5 mm)
Package weight156.5 lbs (71 kg)
Height6.85" (174 mm)
Depth20.7" (525 mm)
Packaging data
Package width23.6" (599.4 mm)
Package depth29.1" (739.1 mm)
Package height12.7" (322.6 mm)
Package weight156.5 lbs (71 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23.6" (599.4 mm)
Master (outer) case length29.1" (739.1 mm)
Master (outer) case height12.7" (322.6 mm)
Master (outer) case gross weight156.5 lbs (71 kg)
Certificates
CertificationUL1778 CSA FCC Part 15 Category A IEC 61000-4-5 1995 B
Other features
Number of phases1
Relative humidity0 - 95%
Management platformSNMP
