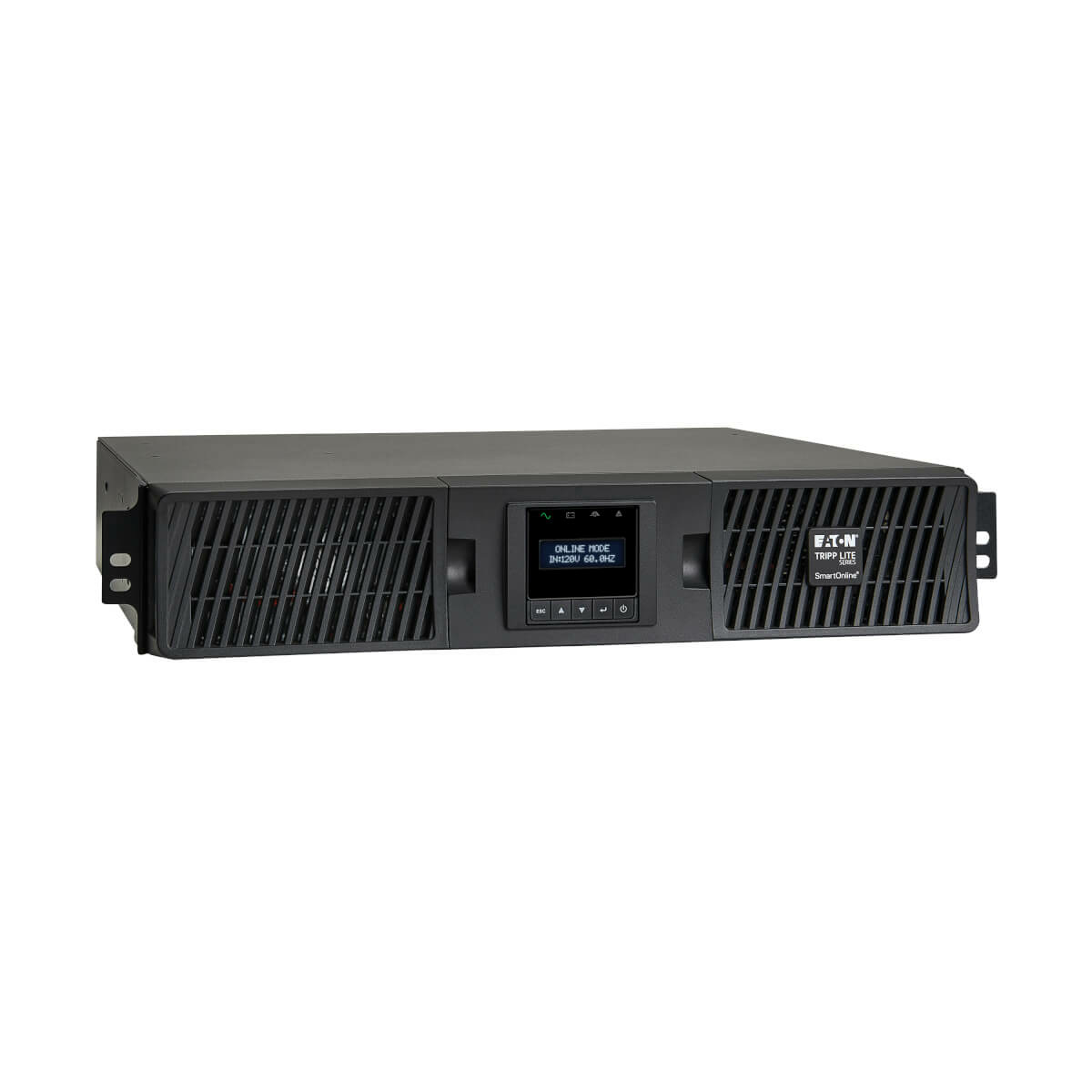

Tripp Lite SU750RTXLCD2U uninterruptible power supply (UPS) Double-conversion (Online) 0.75 kVA 675 W 6 AC outlet(s)

Tripp Lite SU750RTXLCD2U uninterruptible power supply (UPS) Double-conversion (Online) 0.75 kVA 675 W 6 AC outlet(s)

SmartOnline 100-127V 750VA 675W On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 2U Rack/Tower, LCD display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp UPS SU750RTXLCD2U SmartOnline 750VA 15A 120V 675W 2U Rack Tower RTL 203445 Register free see stock
BlueStar TRIPP LITE, SMARTONLINE 120V 750VA 675W DOUBLE-CONVERSION UPS, 2U RACK/TOWER, EXTENDED RUN, NETWORK CARD OPTIONS, LCD DISPLAY, USB, DB9 SERIAL SU750RTXLCD2U
D&H UPS 750VA Smart Online LCD 2U SU750RTXLCD2U
Ingram Micro SMART ONLINE UPS 750VA 120V RM PX7922
TD Synnex UPS 750VA SMART ONLINE LCD USB DB9 2URM 3395626

Related Products

Description

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.

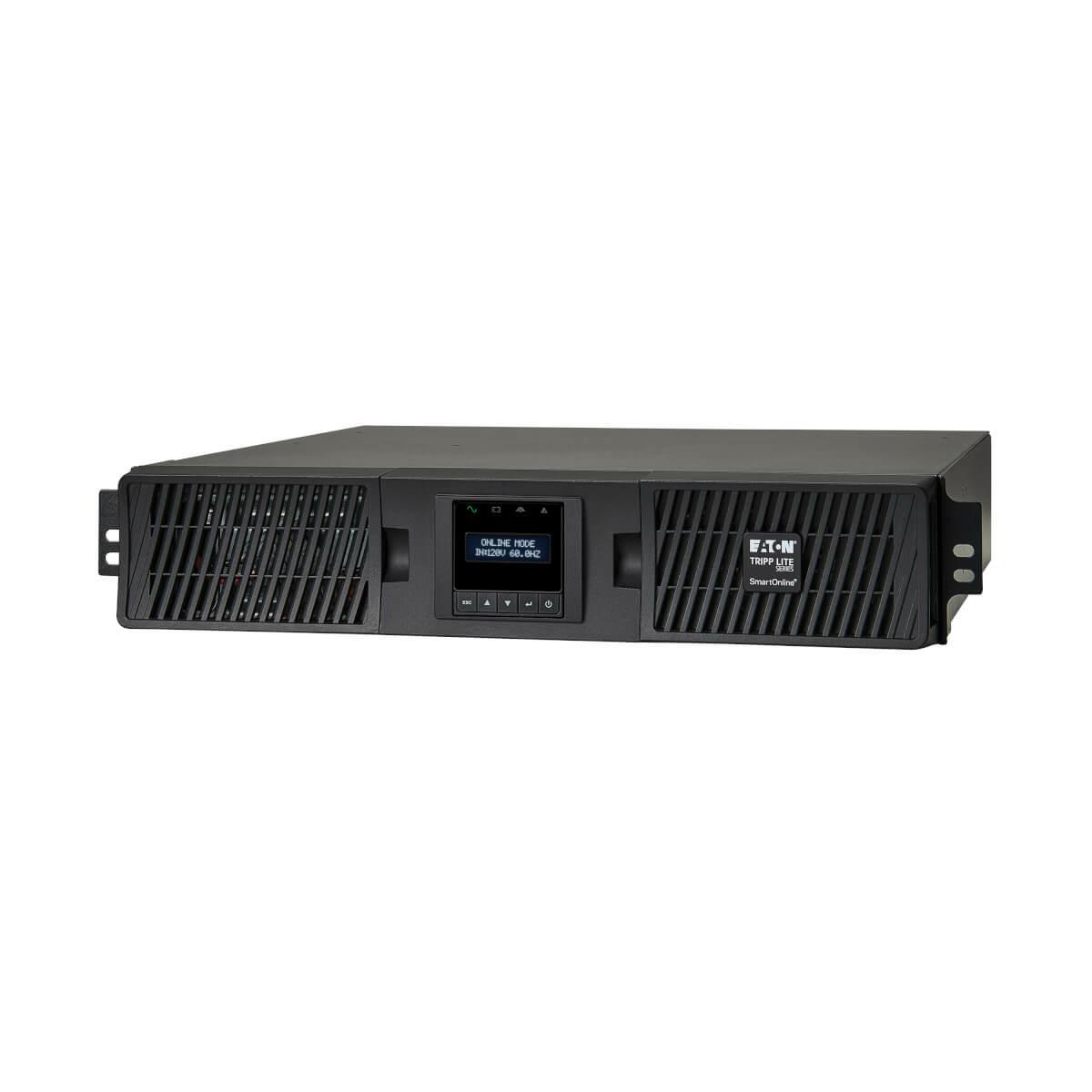

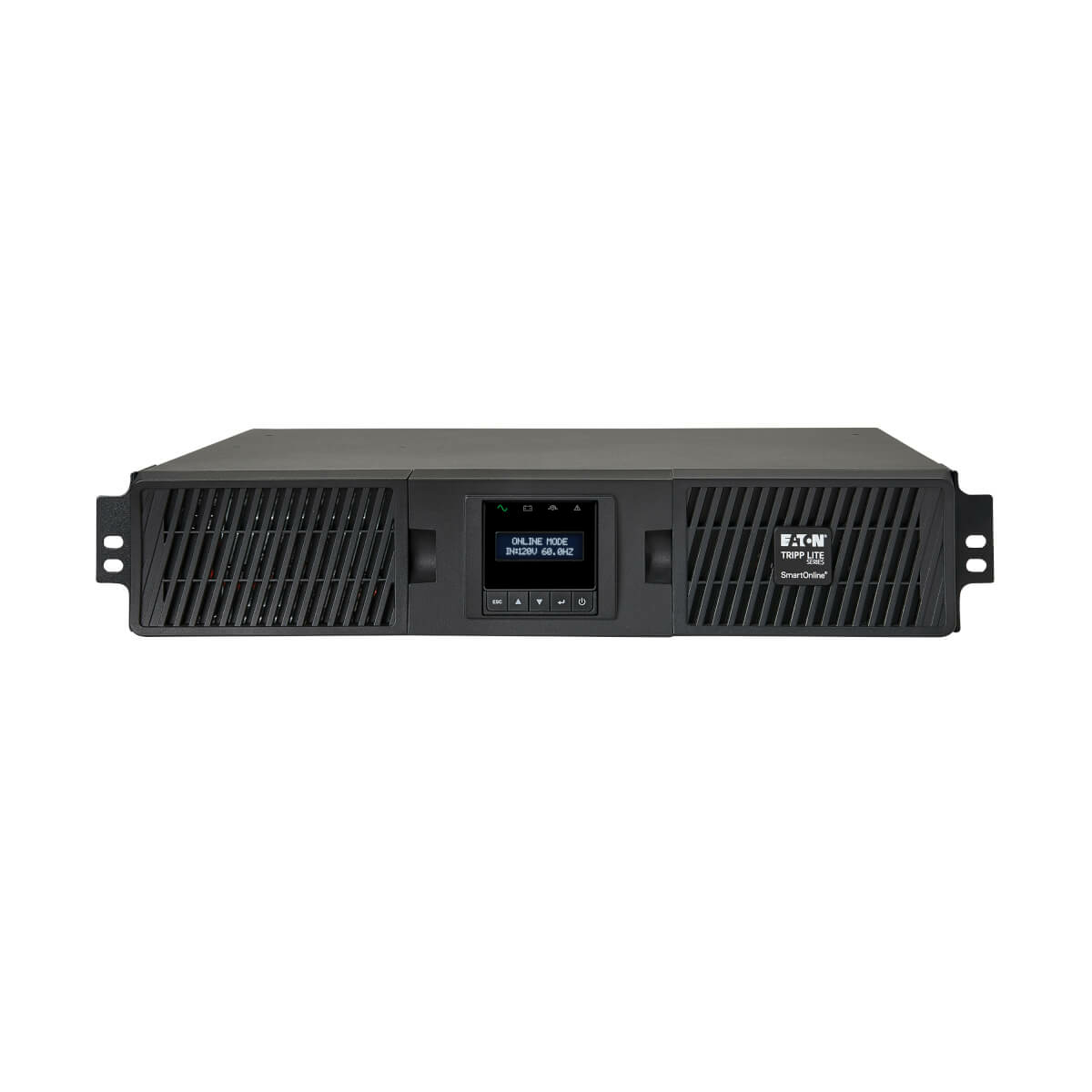

- Tripp Lite SU750RTXLCD2U 750VA / .75kVA / 675W on-line, double-conversion 2U rack / tower UPS
- Transformerless, IGBT technology
- Selectable 100/110/120/127V output (120V factory preset)

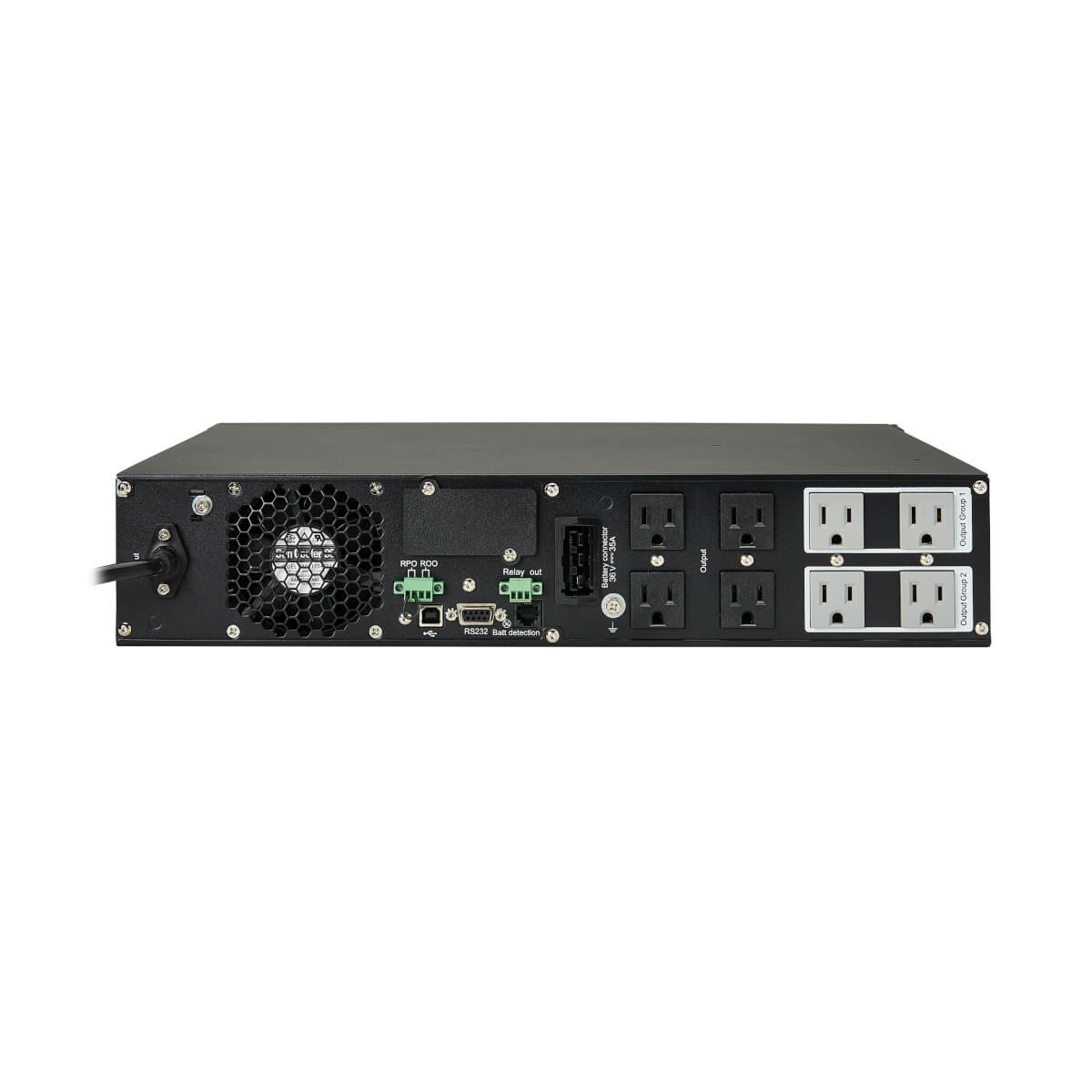

- NEMA 5-15P input, 6 NEMA 5-15R outlets
- Two switched outlets support remote reboot or programmable load shedding options
- Supports 2% output voltage regulation and zero transfer time in double conversion mode
- Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions
- 13.9 minutes runtime at 50% load (337.5W) and 4.3 minutes at 100% load (675W) with internal batteries
- BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
- LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % & kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime, Capacity remaining, Kw/hr. consumption)
- LCD interface also supports 16 screens of UPS configuration and setup options

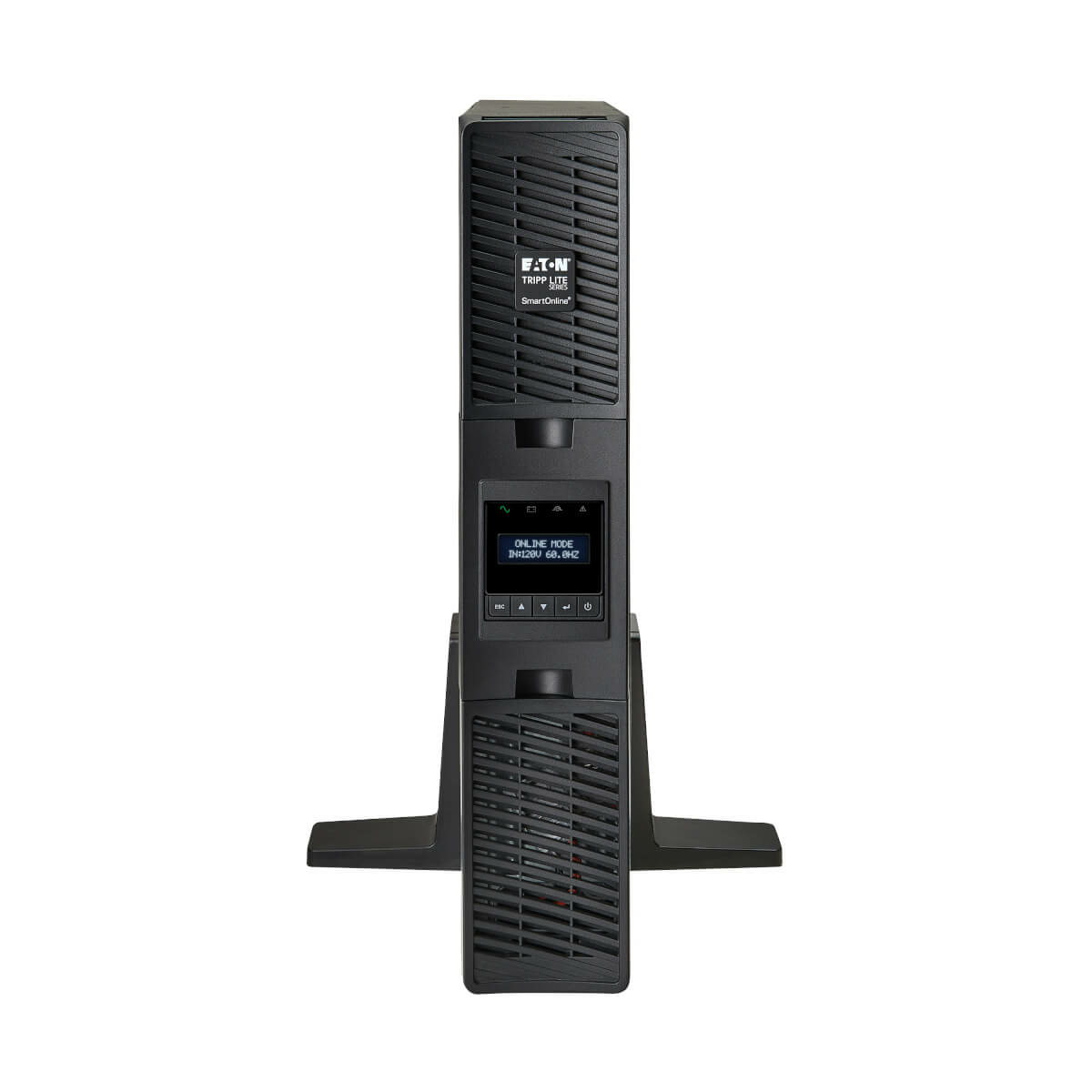

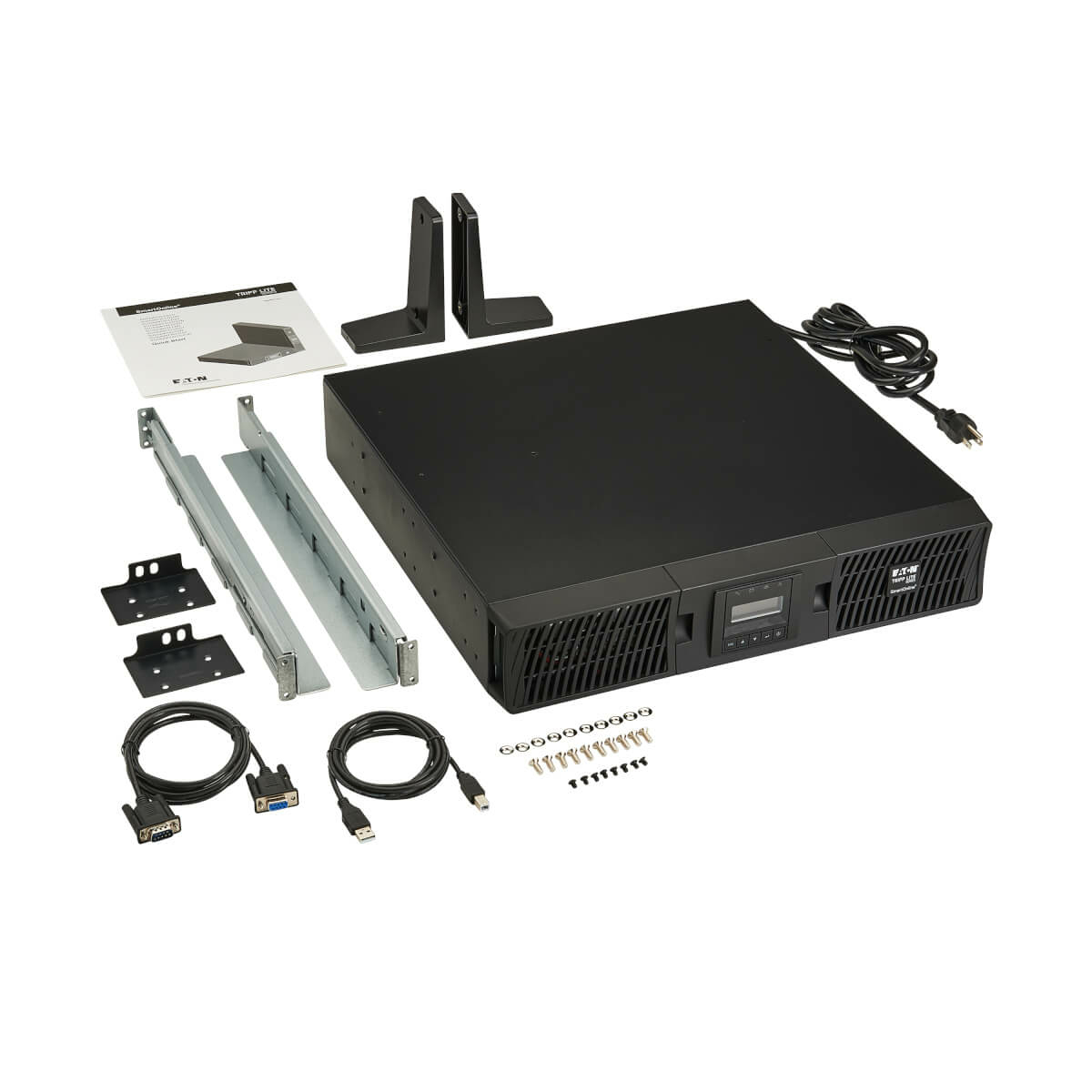

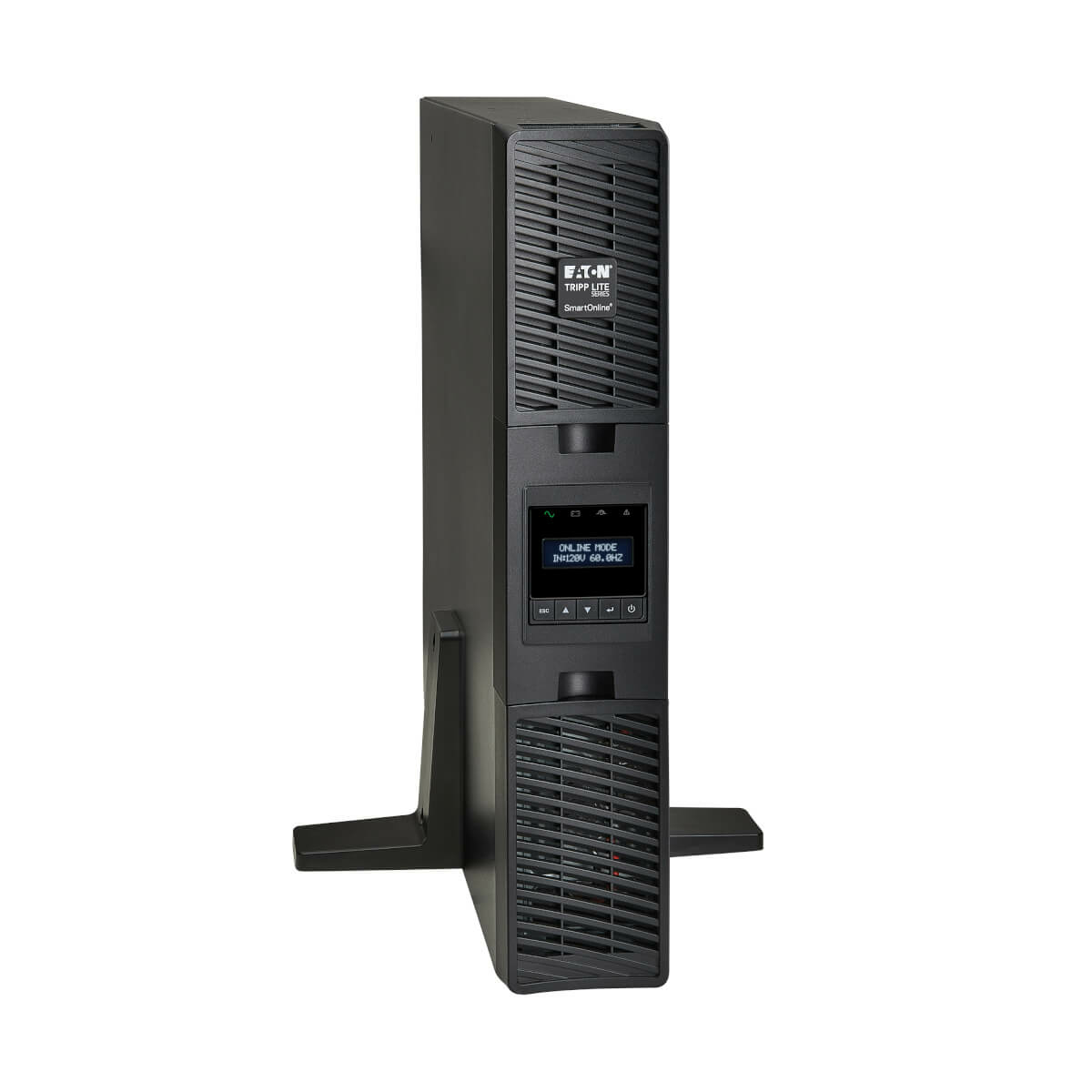

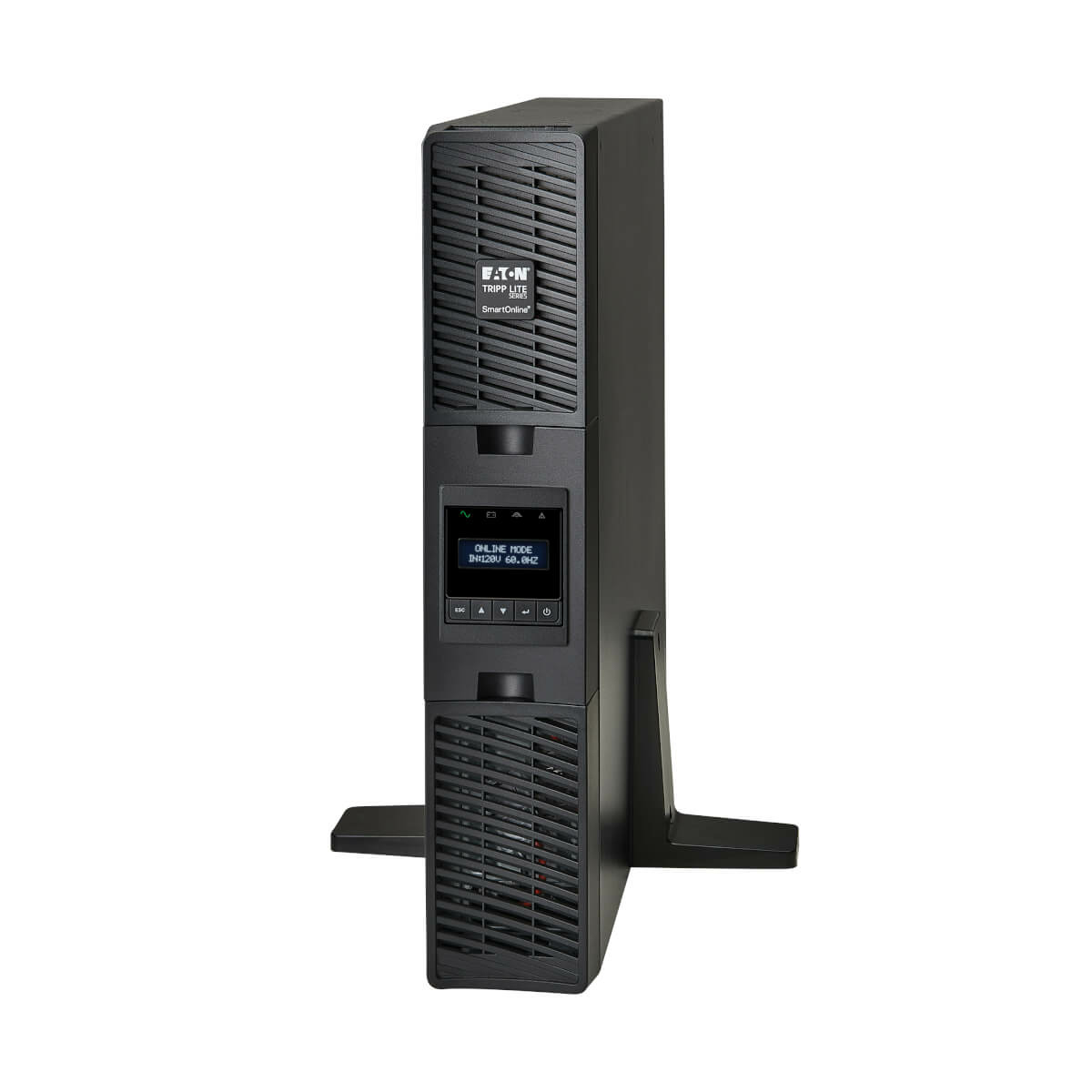

- 4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack / wallmount installation, Optional 2-9USTAND enables tower placement
- Single line TEL / Network surge suppression
- Electronic bypass maintains utility output during a variety of UPS fault conditions
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
- Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software

Specifications

Power
Output power675 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Efficiency93%
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity0.75 kVA
Input frequency50/60 Hz
Battery
Battery typeRBC24V-LCD
Battery recharge time3 h
Typical backup time at half load13.9 min
Typical backup time at full load4.3 min
Hot-swap batteryYes
Cold startYes
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level45 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Number of input phases1
Output power675 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Efficiency93%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level45 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity0.75 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
USB 2.0 ports quantity1
Serial ports quantity1
Design
Country of originChina
Rack capacity2U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, FCC-15 B (EMI)
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width23.1" (586.7 mm)
Package depth19.4" (492.8 mm)
Package height9" (228.6 mm)
Weight27.6 lbs (12.5 kg)
Width17.5" (444.5 mm)
Package weight39.9 lbs (18.1 kg)
Height3.5" (88.9 mm)
Depth12.5" (317.5 mm)
Packaging data
Package width23.1" (586.7 mm)
Package depth19.4" (492.8 mm)
Package height9" (228.6 mm)
Package weight39.9 lbs (18.1 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23.1" (586.7 mm)
Master (outer) case length19.4" (492.8 mm)
Master (outer) case height9" (228.6 mm)
Master (outer) case gross weight39.9 lbs (18.1 kg)
Certificates
CertificationUL1778, CSA, FCC-15 B (EMI)
Other features
Battery typeRBC24V-LCD
