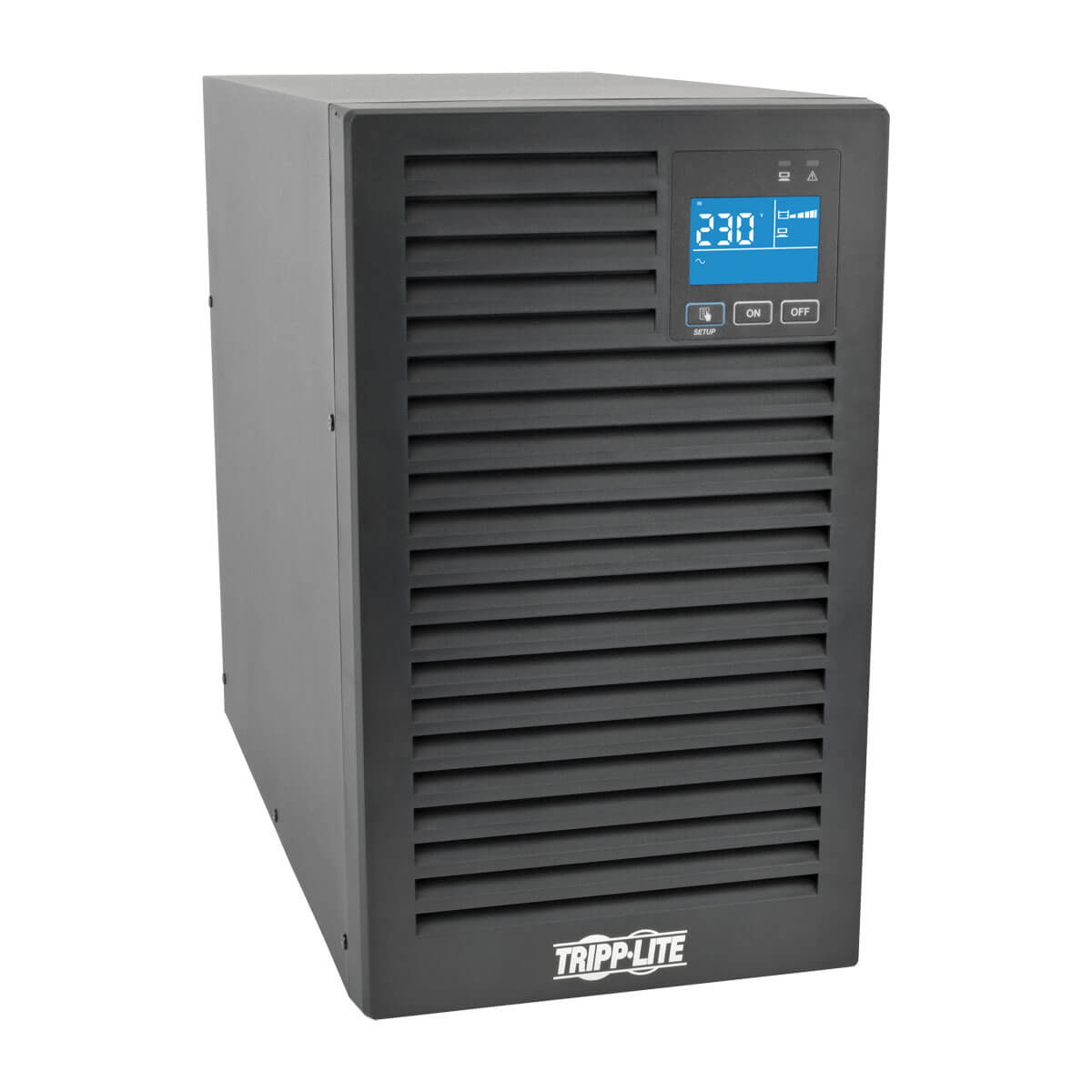

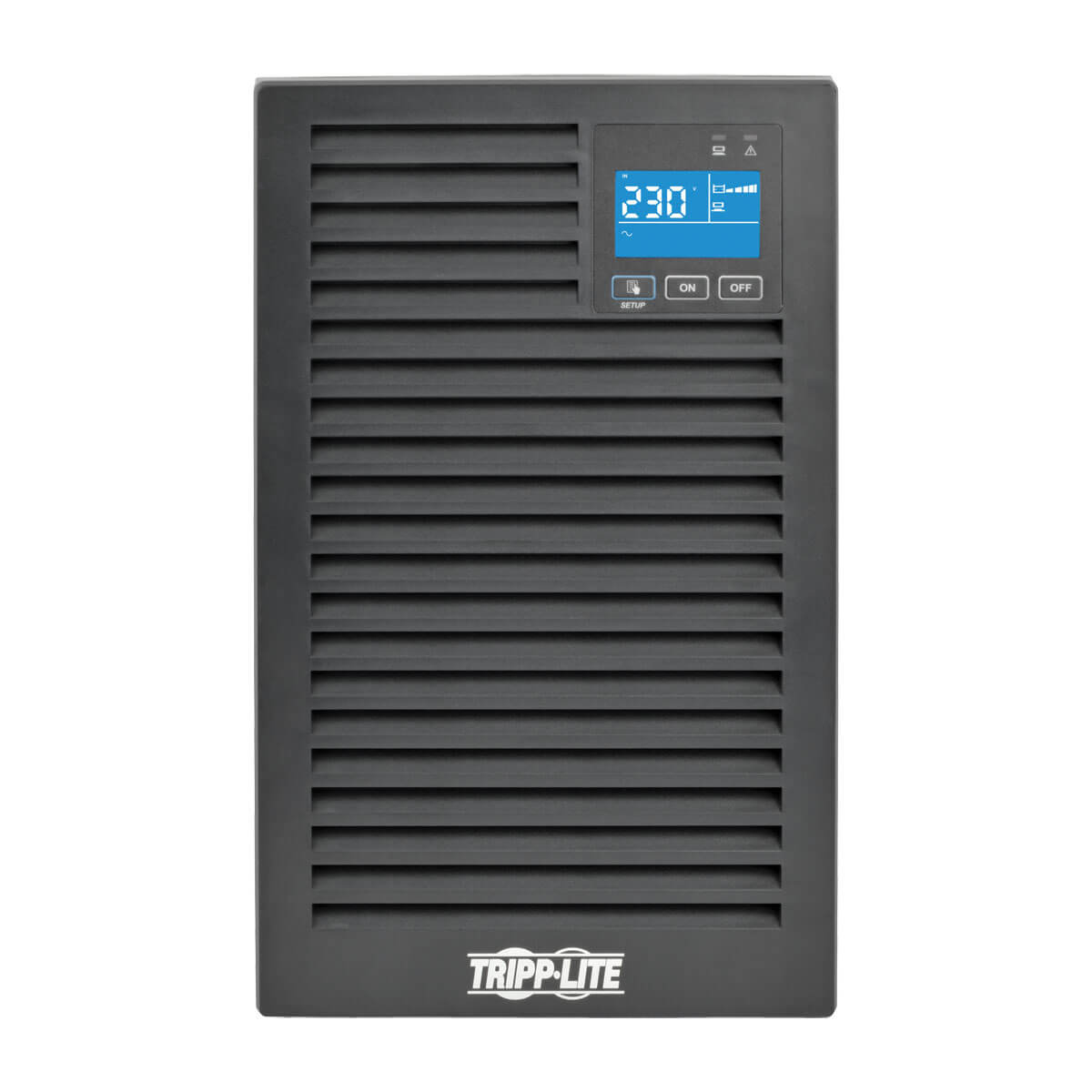

Tripp Lite SUINT2000XLCD uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 7 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SUINT2000XLCD
- EAN: 0037332194886
SmartOnline 230V 2kVA 1800W On-Line Double-Conversion UPS, Tower, Extended Run, Network Card Options, LCD, USB, DB9
Offer details
Description
The SUINT2000XLCD SmartOnline® 230V 2kVA 1800W On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online, double-conversion mode.
Featuring seven C13 outlets, the SUINT2000XLCD has an internal battery that provides 12 minutes of support at half load (900W) and 4.7 minutes at full load (1800W). Adding external battery packs, such as BP48V27-2US (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.

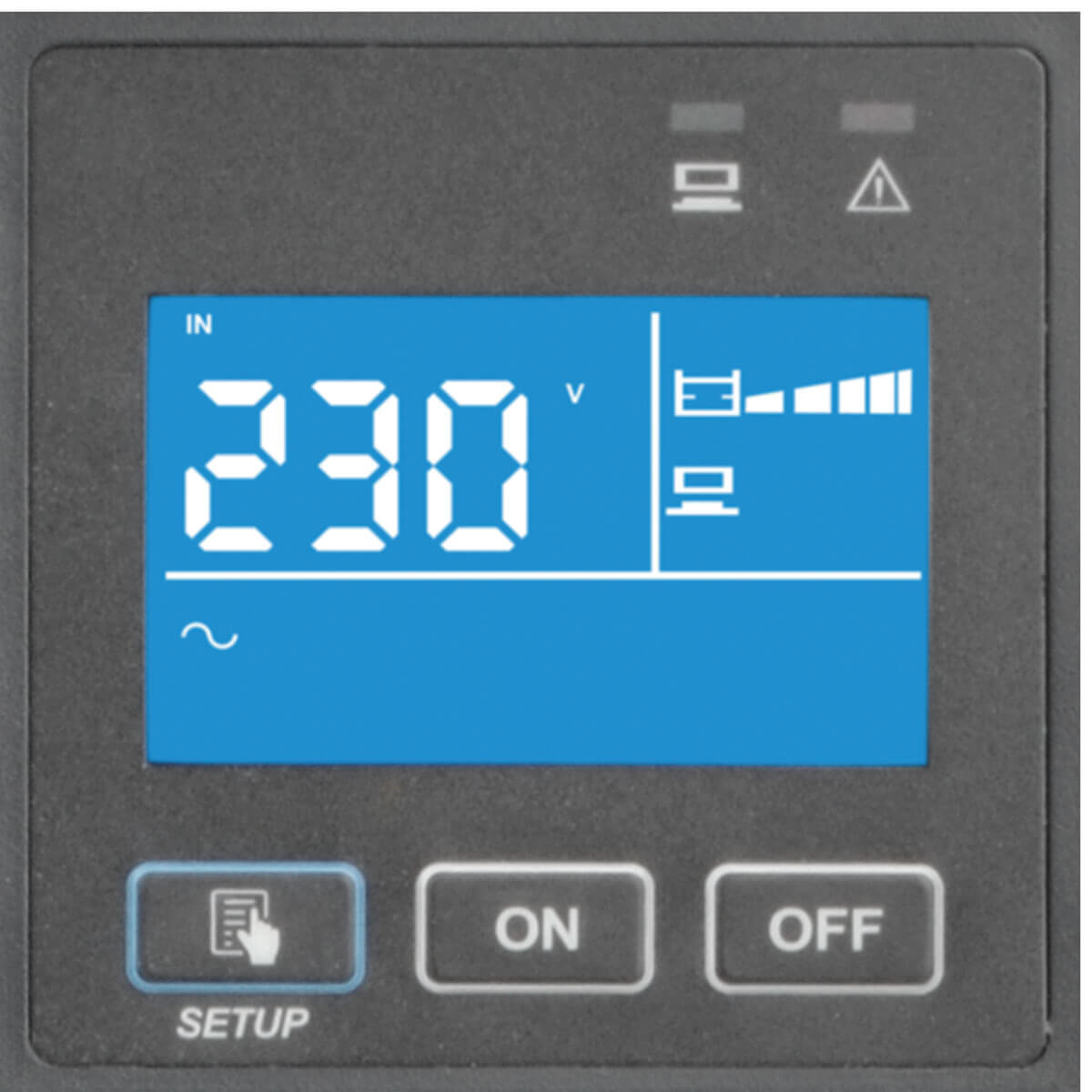

An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.
EMI/RFI line noise filtering improves your equipment’s performance, and 425-joule surge suppression prevents equipment and data damage from harmful power surges. With free downloadable PowerAlert® software, the SUINT2000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.
Featuring seven C13 outlets, the SUINT2000XLCD has an internal battery that provides 12 minutes of support at half load (900W) and 4.7 minutes at full load (1800W). Adding external battery packs, such as BP48V27-2US (sold separately), provides extended runtime. Operating in optional economy mode reduces heat output and cooling requirements and consumes less electricity.
An interactive front-panel LCD screen displays operating conditions and diagnostic data, such as load, voltage and battery levels. An audible alarm signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.
EMI/RFI line noise filtering improves your equipment’s performance, and 425-joule surge suppression prevents equipment and data damage from harmful power surges. With free downloadable PowerAlert® software, the SUINT2000XLCD enables safe unattended system shutdown and file saves in case of a prolonged power failure. A built-in card slot supports TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD for network interface and remote monitoring and control.
Specifications
| Power | |
|---|---|
| Output power | 1800 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 425 J |
| Power factor | 0.9 |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Battery | |
| Battery type | BP48V24-2U, BP48V27-2US, BP48V60RT-3U |
| Battery voltage | 48 V |
| Typical backup time at half load | 12 min |
| Typical backup time at full load | 4.7 min |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of phases | 1 |
| EMI/RFI noise filtering | Yes |
| Features | |
| Country of origin | China |
| UPS topology | Double-conversion (Online) |
| Output power | 1800 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 425 J |
| EMI/RFI noise filtering | Yes |
| Power factor | 0.9 |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Number of phases | 1 |
| Ports & interfaces | |
| USB port | Yes |

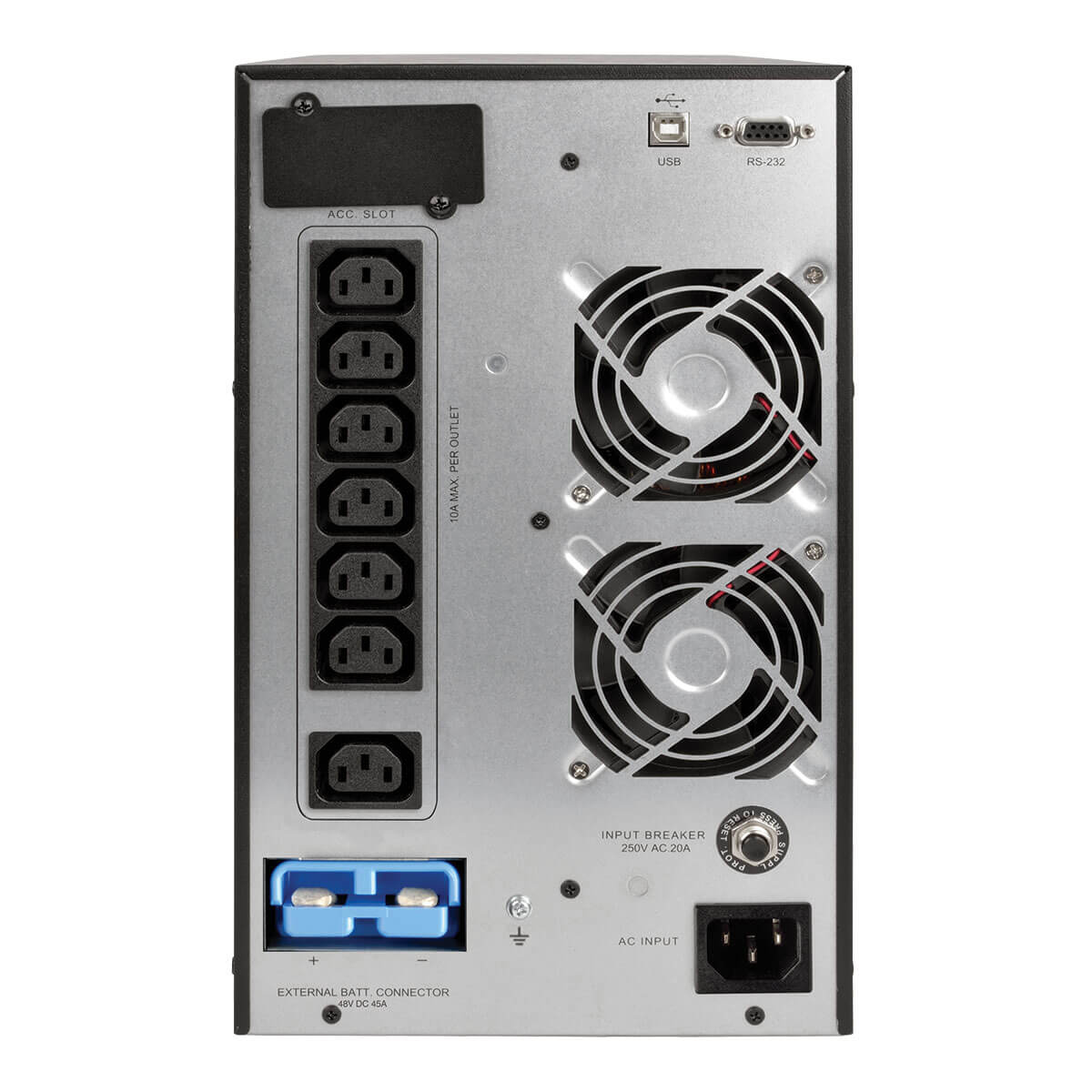

| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4 |
| Housing material | Steel |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 39370.1" (0 - 1000 m) |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | IEC 62040-1;2008+A1:2013; EN62040-2:2006; ESD:IEC61000-4-2:LEVEL 4, RS:IEC61000-4-3:LEVEL 3, EFT:IEC61000-4-4:LEVEL 2, SURGE: IEC61000-4-5:LEVEL 2, CS:IEC61000-4-6:LEVEL 3, CONDUCTED MAGNETIC FIELD: IEC61000-4-8:LEVEL 4 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 11.7" (297.2 mm) |
| Package depth | 19.4" (492.8 mm) |
| Package height | 17.4" (442 mm) |
| Weight | 43.2 lbs (19.6 kg) |
| Width | 7.5" (190.5 mm) |
| Package weight | 53.6 lbs (24.3 kg) |
| Height | 12.8" (325.1 mm) |
| Depth | 14.2" (360.7 mm) |
| Packaging data | |
| Package width | 11.7" (297.2 mm) |
| Package depth | 19.4" (492.8 mm) |
| Package height | 17.4" (442 mm) |
| Package weight | 53.6 lbs (24.3 kg) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 11.7" (297.2 mm) |
| Master (outer) case length | 19.4" (492.8 mm) |
| Master (outer) case height | 17.4" (442 mm) |
| Master (outer) case gross weight | 53.6 lbs (24.3 kg) |
| Other features | |
| Number of phases | 1 |
| Battery type | BP48V24-2U, BP48V27-2US, BP48V60RT-3U |
