Tripp Lite SMARTINT2200VS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1600 W 9 AC outlet(s)

Tripp Lite SMARTINT2200VS uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1600 W 9 AC outlet(s)

SmartPro 230V 2.2kVA 1.6kW Line-Interactive UPS, Tower, Network Card Options, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

2200VA 1600W UPSINTERNATIONAL SMART TOWER

 565434 Register free see stock

Related Products

Description

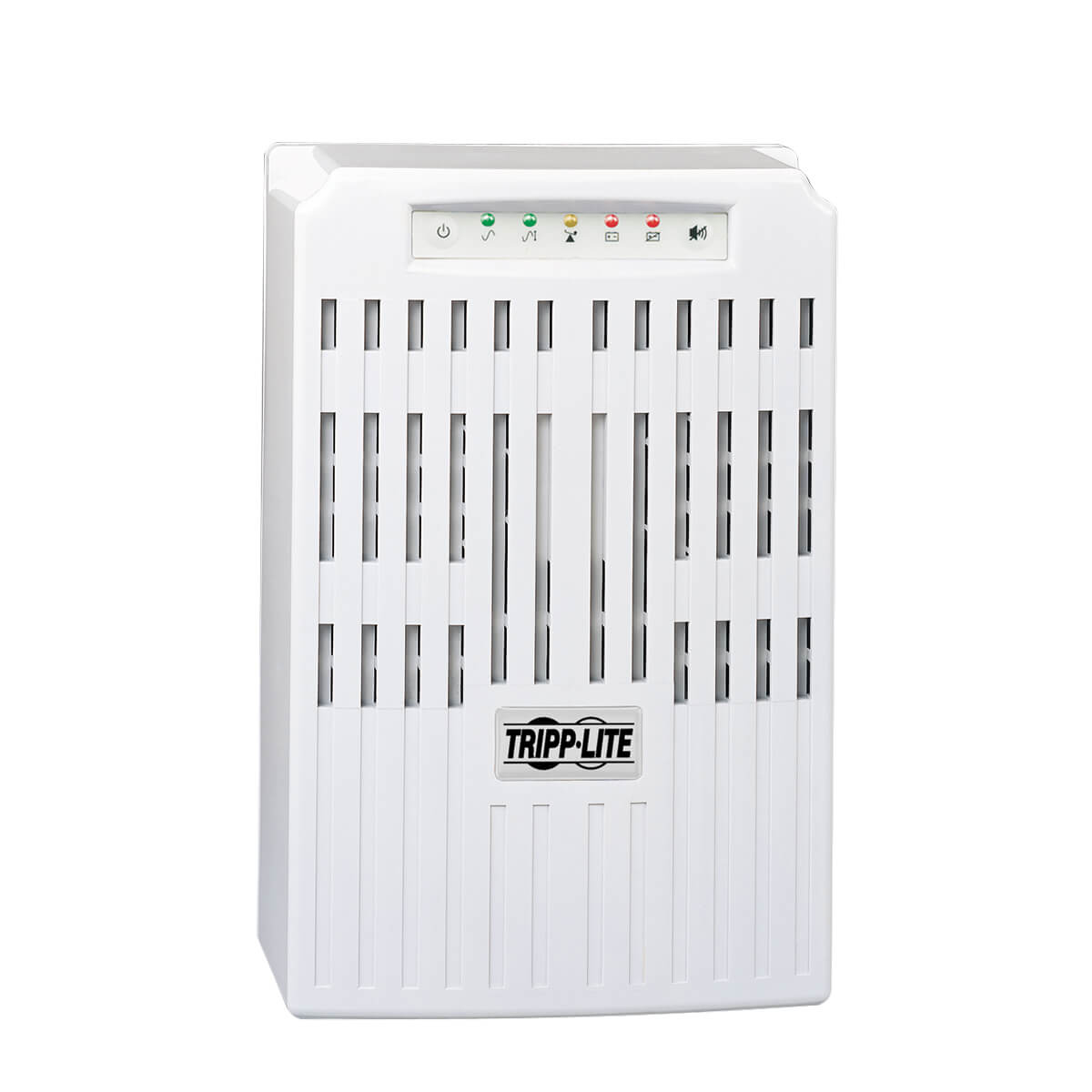

The SMARTINT2200VS intelligent line-interactive tower uninterruptible power supply (UPS) prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Large internal batteries offer 19 minutes half load runtime and seven minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts and overvoltages from 151 to 282V. 2200VA power handling capability offers compatibility with a variety of networking, telecom and other sensitive electronic applications. Includes a total of nine outlets with three load banks (two outlets each) that are individually switchable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. PowerAlert® UPS monitoring software is available via free download. Built-in accessory slot supports Network Management Card options. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of five front-panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive gray color scheme.

Specifications

Power
Output voltage regulation-19 +8%
Output power1600 W
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current11.3 A
Efficiency94%
Power factor0.7
Output power capacity2.2 kVA
Input frequency50/60 Hz
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Noise level47 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-19 +8%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power1600 W
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current11.3 A
Efficiency94%
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Power factor0.7
Noise level47 dB
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency50/60 Hz
Ports & interfaces

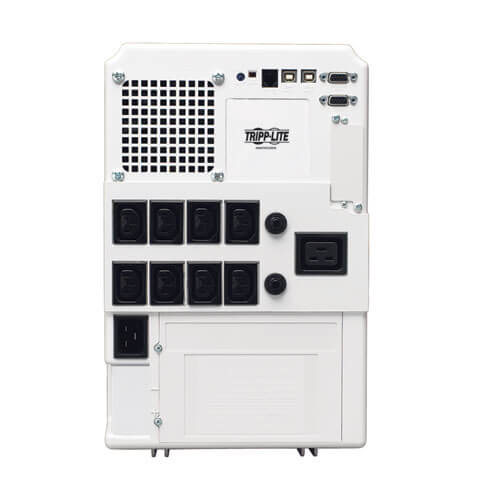

AC outlets quantity9 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB 2.0 ports quantity2
Serial ports quantity2
Battery
Battery recharge time4 h
Typical backup time at half load19 min
Typical backup time at full load7 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourWhite
Cooling typeActive
CertificationCE. FCC, CE 62040
Housing materialPolycarbonate (PC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Certificates
CertificationCE. FCC, CE 62040
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width15.2" (386.1 mm)
Package depth15.9" (403.9 mm)
Package height19.3" (490.2 mm)
Weight53.4 lbs (24.2 kg)
Width9.25" (235 mm)
Package weight60.6 lbs (27.5 kg)
Height14.3" (362 mm)
Depth12" (304.8 mm)
Packaging data
Package width15.2" (386.1 mm)
Package depth15.9" (403.9 mm)
Package height19.3" (490.2 mm)
Package weight60.6 lbs (27.5 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width15.2" (386.1 mm)
Master (outer) case length15.9" (403.9 mm)
Master (outer) case height19.3" (490.2 mm)
Master (outer) case gross weight60.6 lbs (27.5 kg)
Other features
Output connections8 x C13 1 x C19
Nominal input voltage230 V
